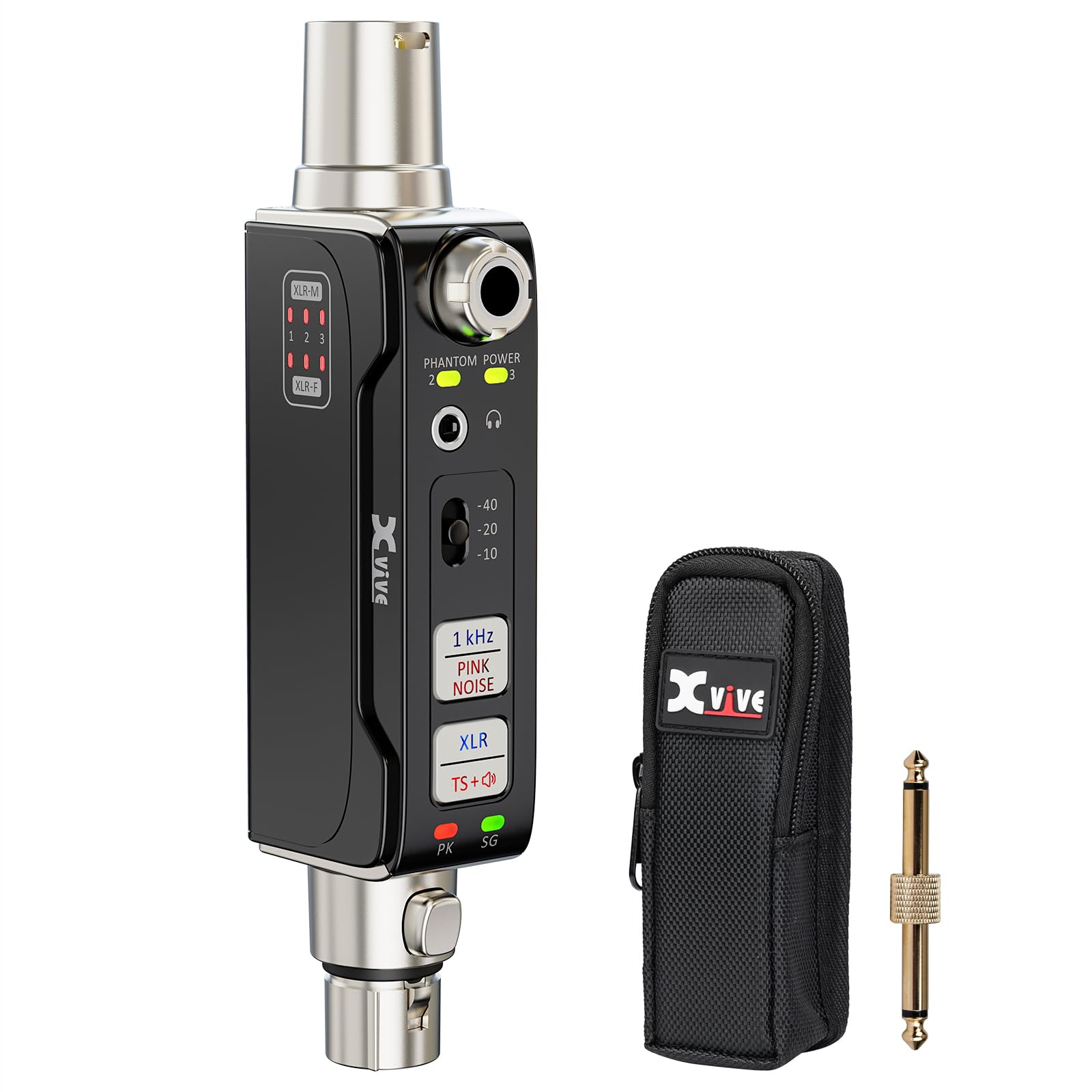

Xvive AT-2 Audio Tester Pro, 5-in-1 Signal Generator (1kHz Tone & Pink Noise), XLR Cable Tester, 48V Phantom Power Checker, XLR Input Meter, Headphone/Built-in Speaker Monitor, USB-C Rechargeable

Brand: Xvive

Color: Black

Features:

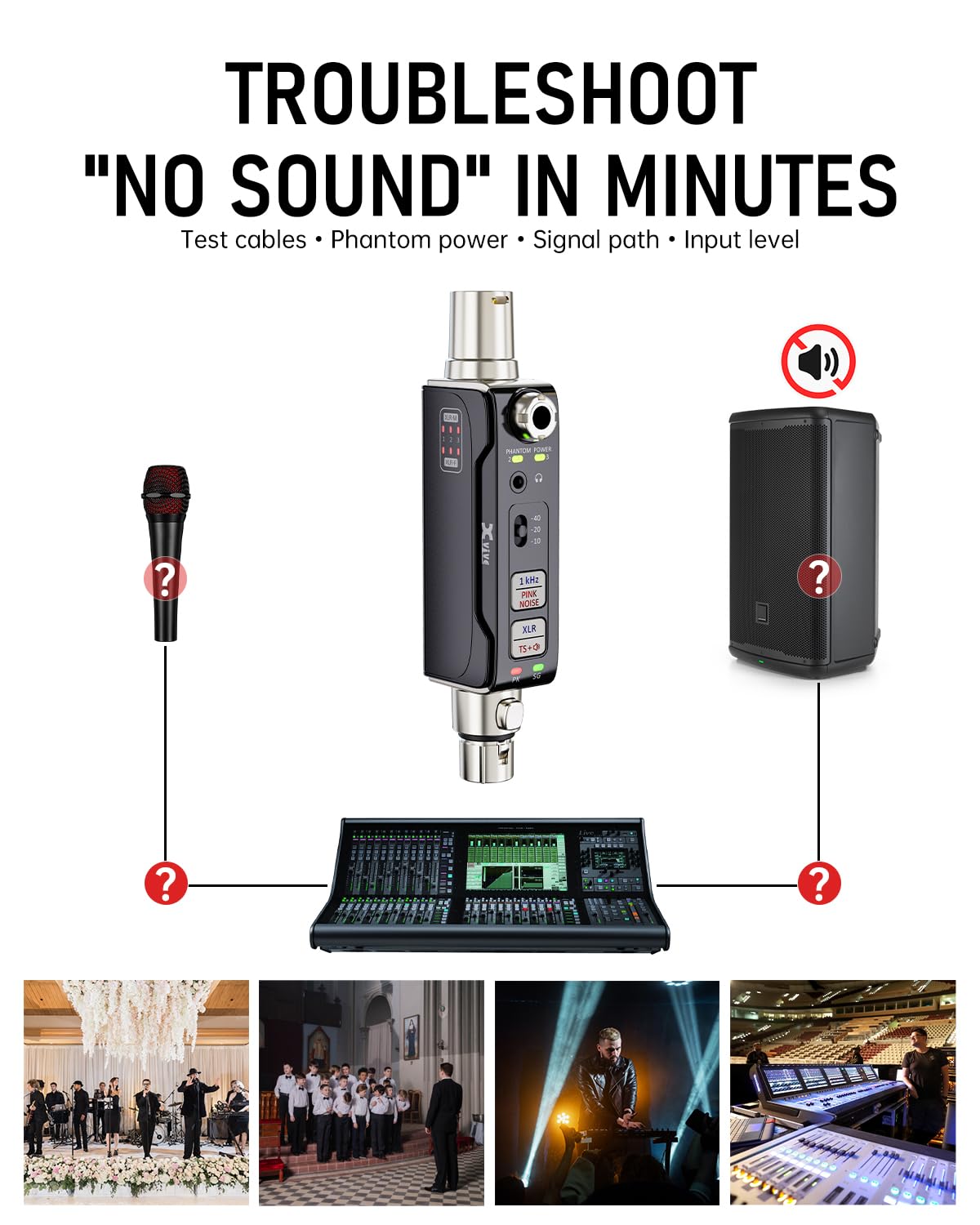

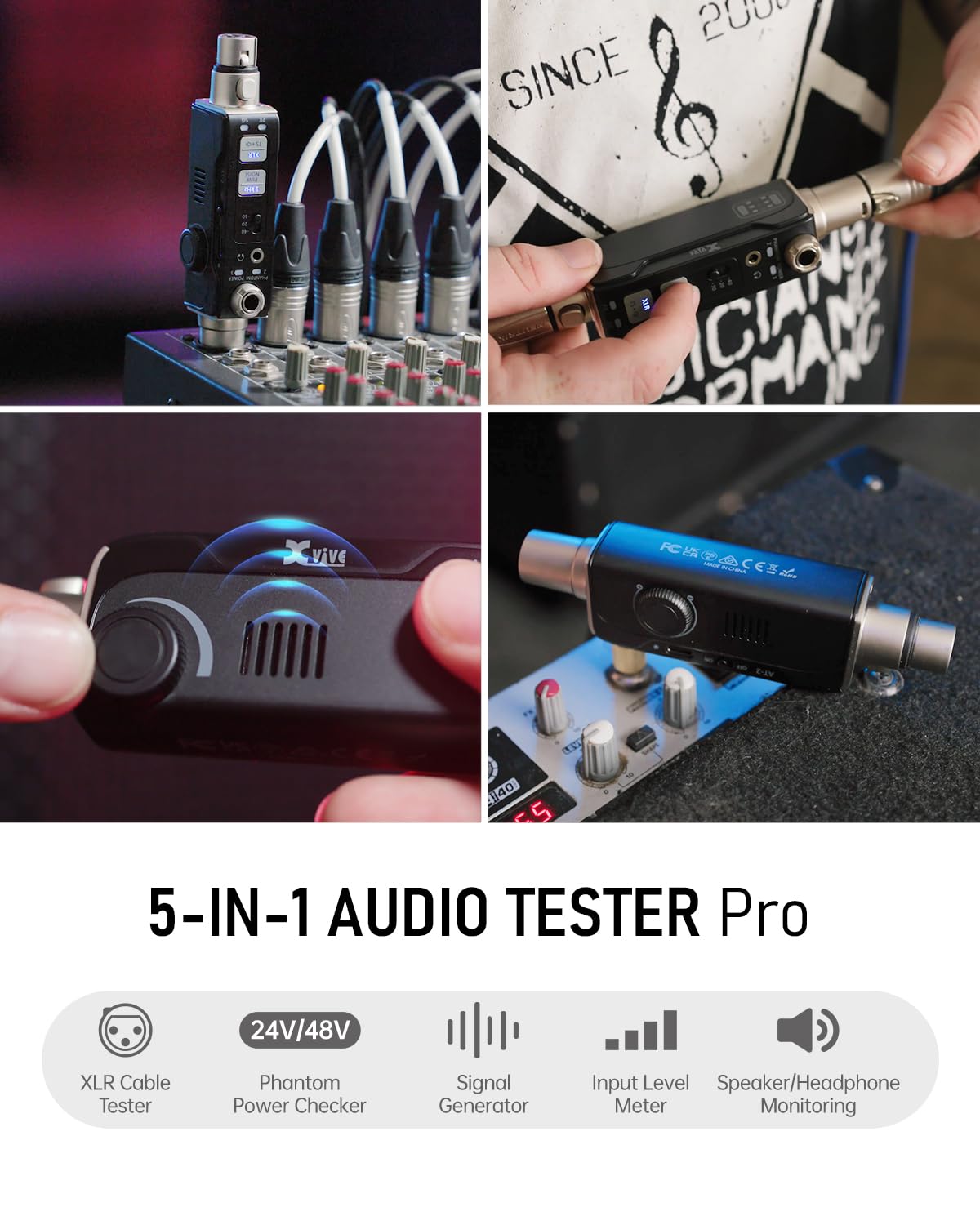

• Simplify Audio Troubleshooting: AT-2 audio tester integrates a signal generator, XLR cable tester, phantom power checker, input level meter, and headphone/speaker monitoring into a single compact unit. Designed for live sound engineers and audio professionals, it’s perfect for testing and troubleshooting PA systems, mixers, DI boxes, and effects units.

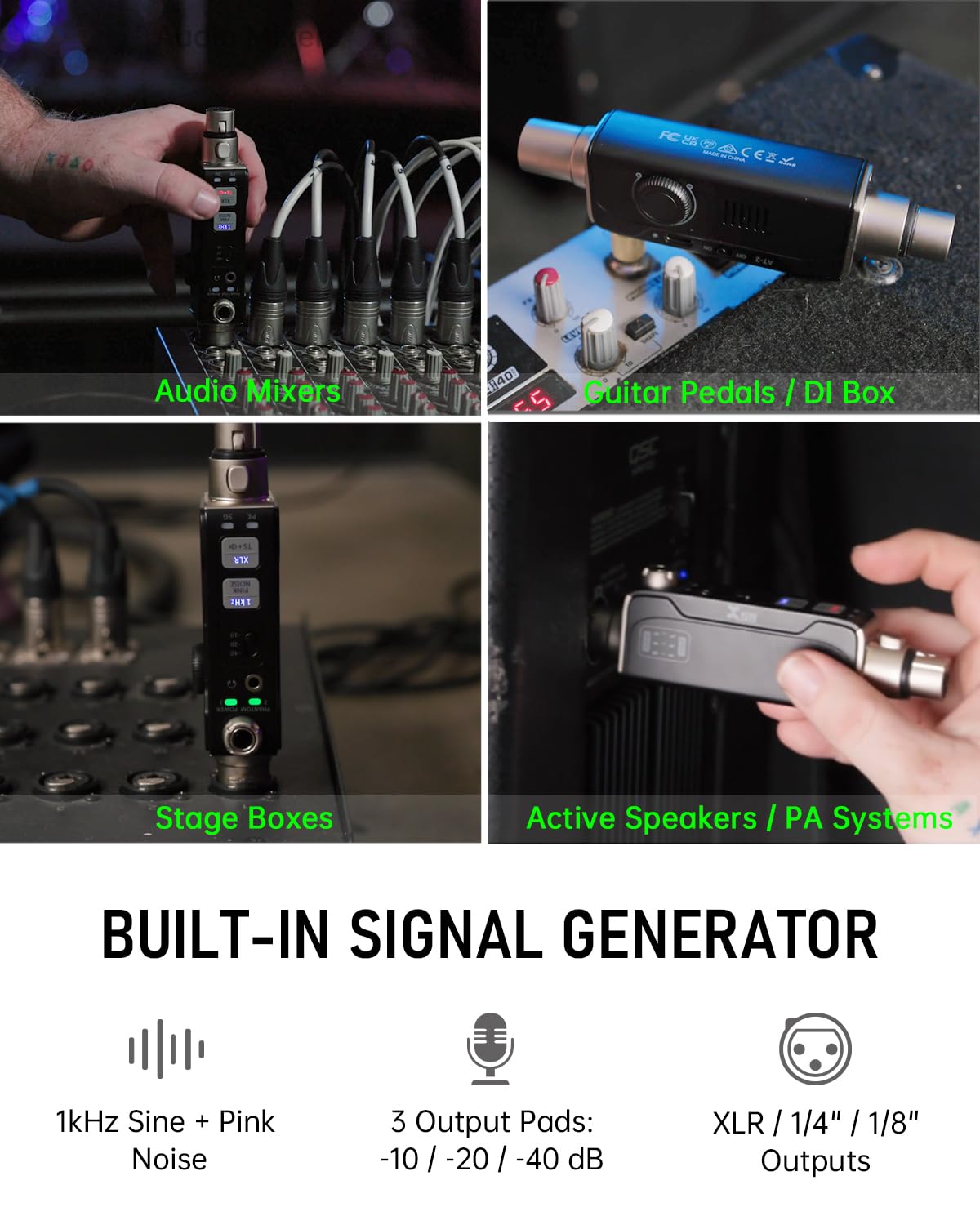

• Built‑In Signal Generator: 1kHz Tone + Pink Noise – Send a clean test signal to mixers, DI boxes, wireless systems, pedals, active PA speakers, and IEM rigs. Choose 1kHz sine or pink noise, with 3 output pad levels (-10/-20/-40 dB) for matching common inputs.
• 48V Phantom Power Check + XLR Input Metering: Verify phantom power voltage on pins 2 & 3 and confirm healthy operation (solid light for 44–52V; flashing for 24–44V). The XLR input meter LEDs help you confirm signal presence (SG) and catch very hot levels (PK) even in loud venues.

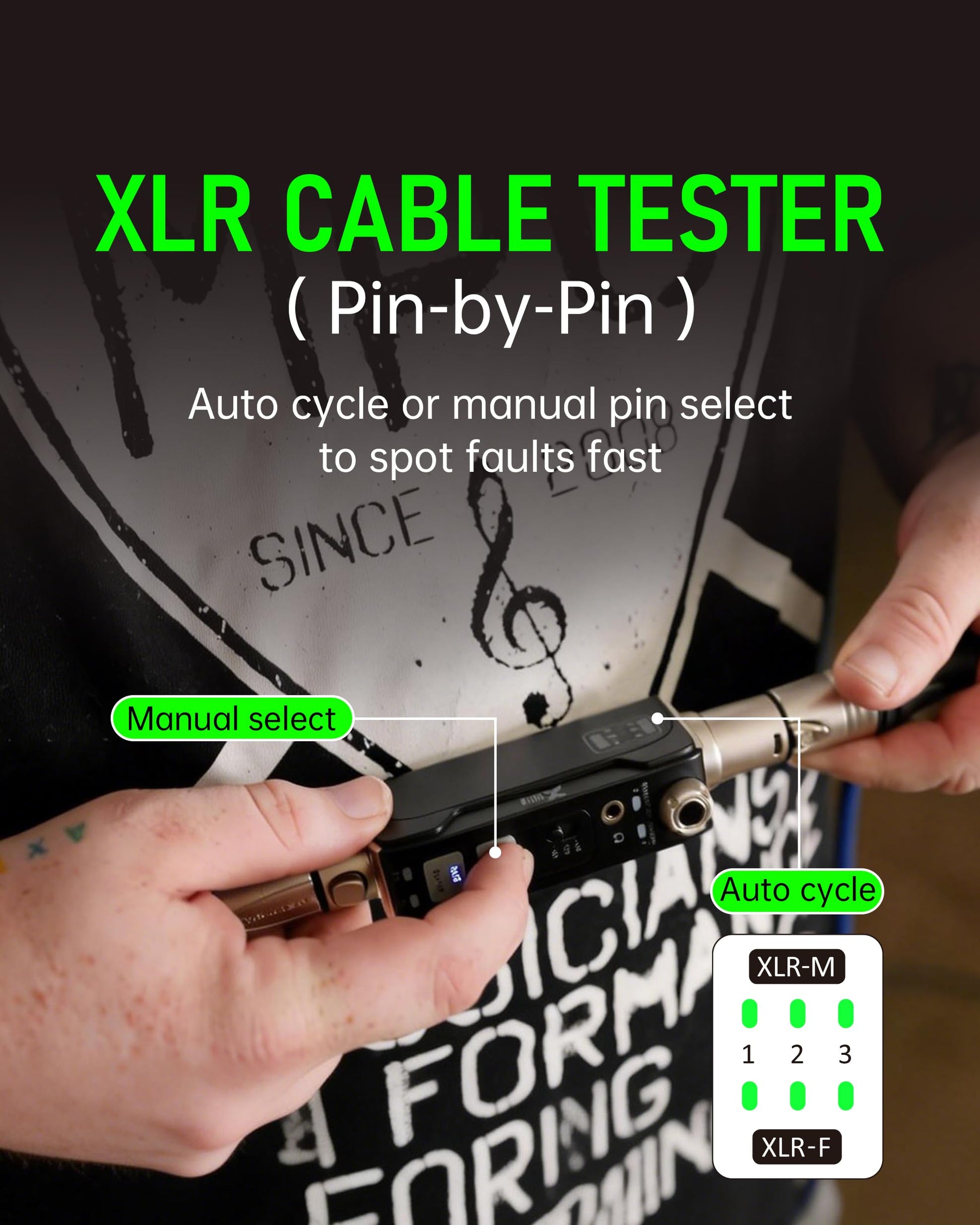

• XLR Cable Tester (Pin‑by‑Pin): Test all 3 pins on an XLR cable and spot pin faults fast. Auto cycle through pins or manually select—perfect for troubleshooting intermittent stage cables.

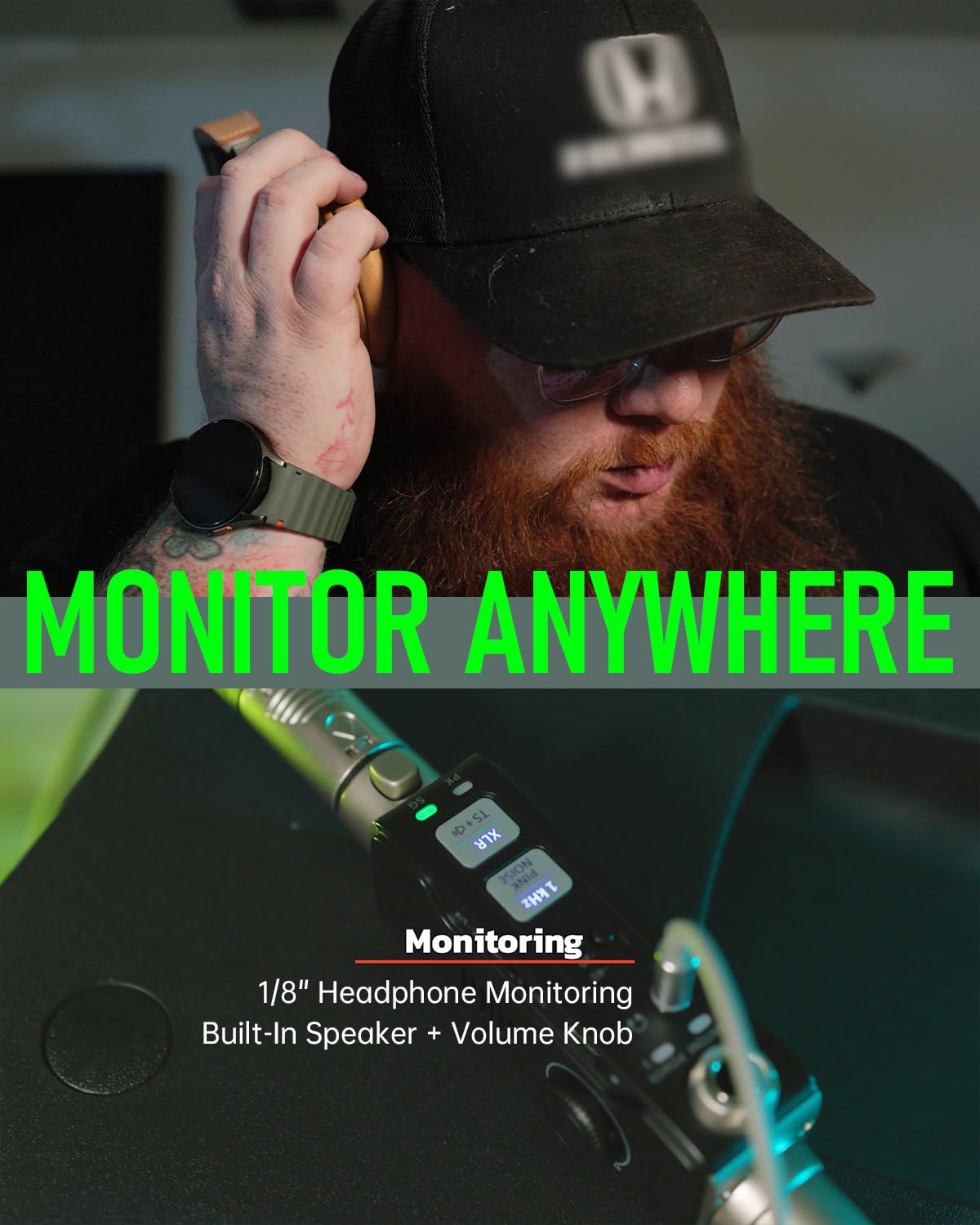

• Monitor Anywhere: 1/8' Headphone Out + Built‑In Speaker, USB‑C Rechargeable – Listen to incoming audio through headphones or the onboard speaker with a dedicated volume knob. USB‑C charging, ~1.5 hr full charge, plus low‑battery warning so you’re not troubleshooting on an empty tank.

model number: AT-2 PRO

Part Number: Xvive Cable Tester AT-2

Package Dimensions: 8.2 x 4.3 x 2.6 inches
