WZRELB 3000W Split Phase Pure Sine Wave Inverter, 48V DC to 120V/240V AC, 4 AC Outlets, Hardwire Terminal, High Efficiency up to 91.6%

Brand: WZRELB

Color: Black

Features:

• POWERFUL: 3,000 watts continuous, 6,000 watts peak power, 48 volt DC to 120V 240V AC split phase true sine wave inverter, built-in soft starter, high frequency design with high surge capability to power demanding loads like air conditioner, refrigerator, power tools, and more

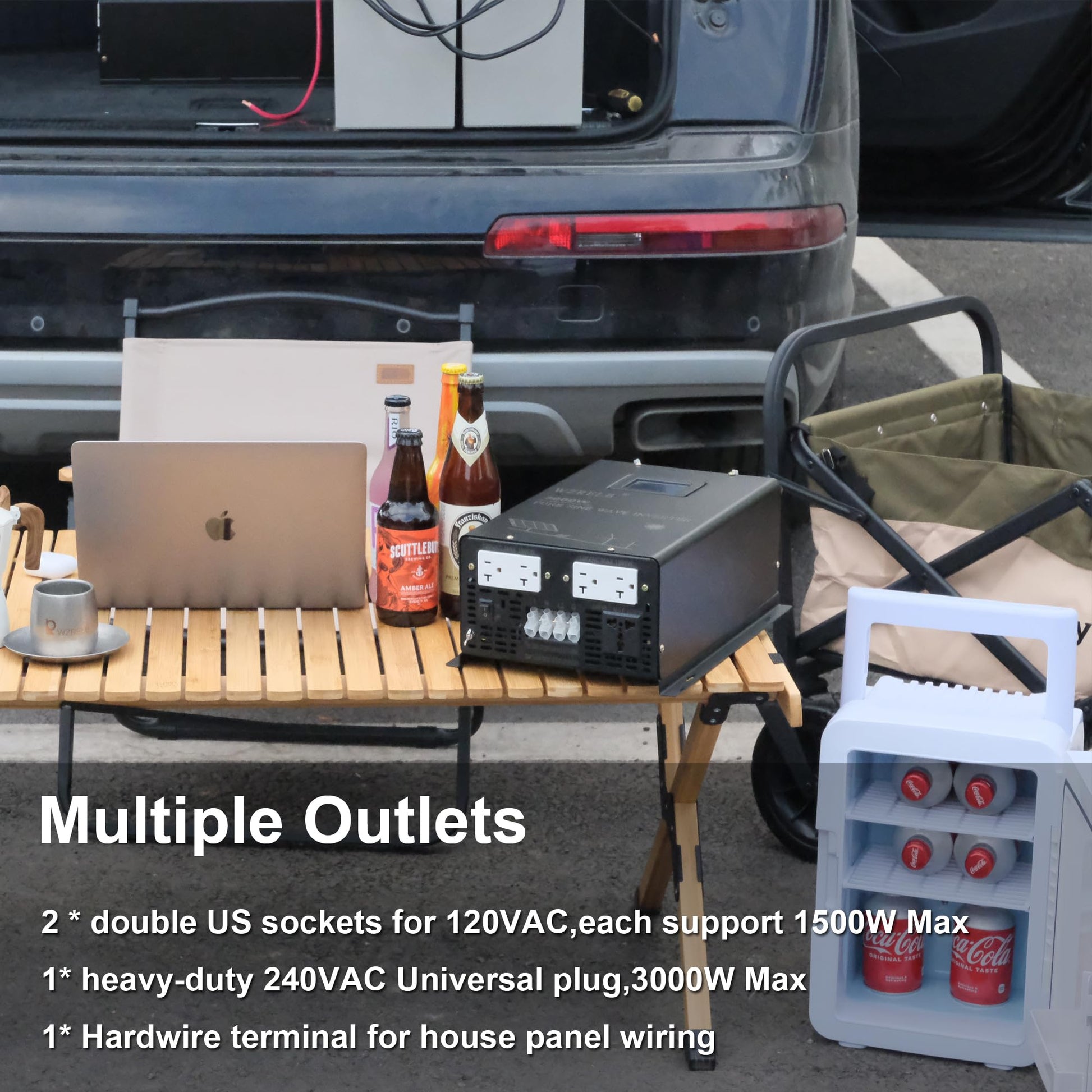

• FEATURES: 2 circuit 120v AC outputs with 4 AC outlets ,each circuit can support 1500W output at the same time ,one circuit 240VAC with max 3000W output ,one AC hardwire terminal with Multiple output (L1+L2=240V, L1+N=120V, L2+N=120V )
• Intelligent control: LCD display monitors battery status, working temperature, 120V 240V output voltage status, effective feedback battery, inverter, load working status
• APPLICATIONS: a must for off-grid live and Power Failure Emergency , compatible with AGM, gel, flooded, lead-acid and lithium-ion batteries, , ideal for home, cabin, mobile business, RV, trailer, semi-truck, boat, and more
• PROTECTIONS: Temperature-controlled cooling fan, low and high voltage alarmutdown,multi-protections against overload, short circuit, over temperature, high voltage, low voltage, internally fused, battery reverse etc

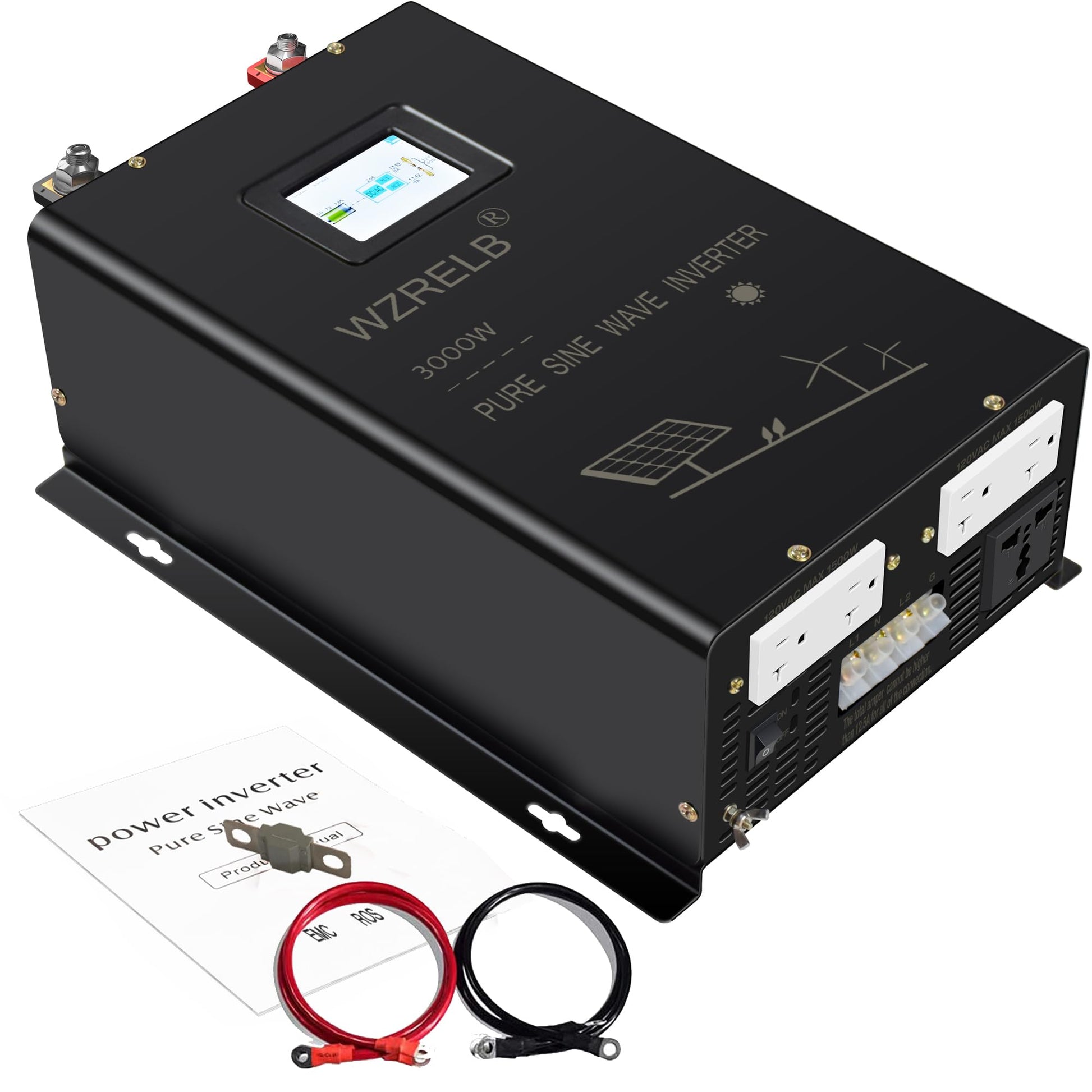

• WHAT YOU GET: 1 inverter unit, 1 User’s Manual,cables,fuse, 12 months warranty and lifetime tech support each

Release Date: 13-12-2022

model number: SPVC300048

Part Number: SPVC300048

Details: Inverter Specification
Rated Continuous power:3000W
Surge output power: 6000W
Standby input power: 3000W<30W
DC Input Voltage : 48V
DC input voltage range:40~60VDC
High battery shut down:60V
Low voltage shut down: 40V
AC output voltage (nominal): 120VACand 240VAC
AC output frequency:60±2Hz
AC output waveform: Pure sine wave
Conversion efficiency: ≧91.6%
Ambient operating temperature range: 32℉-104℉/0℃-70℃
Cooling method:Intelligent temperature controlled fan or the load power reaches to the half of the inverter power
Protection: Input low voltage protection, Input high voltage protection, overload protection, temperature protection, short circuit protection, battery reverse protection.
Packings: inverter, cable, fuse, manual,warranty card.
NOTE:The fuse is for the replacement of the fuse inside of the inverter as a backup. No need of change for usage in the first time.

EAN: 0739608190812

Package Dimensions: 19.5 x 13.0 x 8.5 inches
