WARN 26502 M8000 Series Electric 12V Winch with Steel Cable Wire Rope: 5/16" Diameter x 100' Length, 4 Ton (8,000 lb) Pulling Capacity

Brand: WARN

Color: No Color

Features:

• low-profile design and separate control box allows for a wide range of mounting options
• powers load in and out via 100 ft of 5/16 in wire rope;electrical controls: contactor
• efficient, 3-stage planetary gear box and automatic direct drive cone brake system
• powerful 4.8 hp series wound motor, with a 8,000 lb pull rating and sliding ring gear freespooling clutch
• electrical control box and hand-held remote with 12 ft (3.7m) lead
• Fit type: Vehicle Specific. Max Amp Draw-435 Amp Draw

model number: 26502

Part Number: 26502

Details: From the Manufacturer

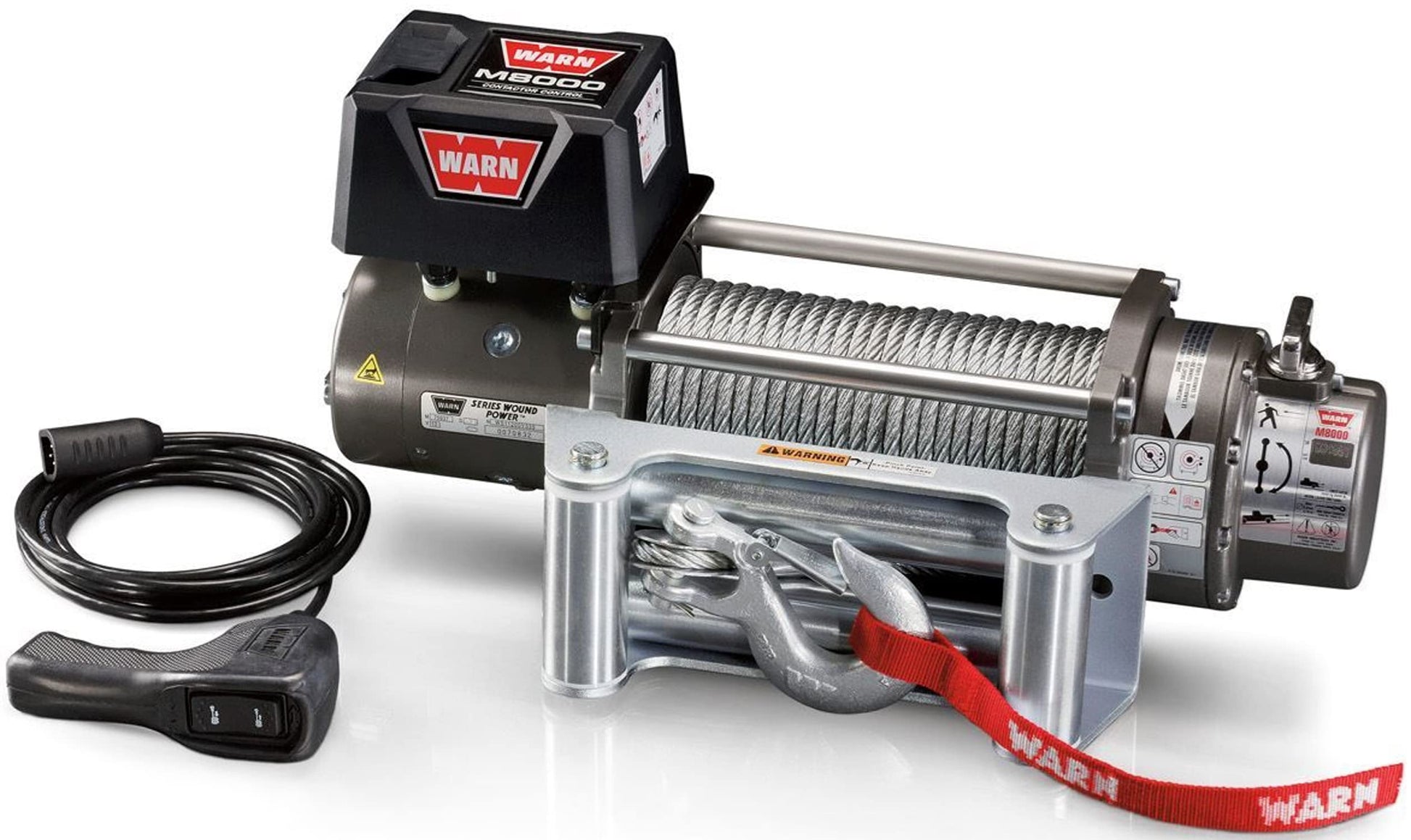

Compact. Tough. An outstanding value. Available with a roller or hawse fairlead and your choice of 80 or 100' of 5/16' diameter wire rope, the M8000 pulls a fast 8ft. per minute at rated load. The 4.8 hp Series Wound motor delivers big torque and power. Includes an all-weather remote control on a 12' (3.7m) lead.
SPECIFICATIONS Rated Line Pull: 8000 lbs. (3630 kgs.) single-line Motor: 12V 4.8 hp, 24V 2.1 hp, Series WoundTM Remote Control: Remote switch, 12' (3.7m) lead Geartrain: 3-Stage Planetary Gear Ratio: 216:1 Lubrication: Aeroshell #17 Clutch (freespooling): Sliding Ring Gear Brake: Automatic Direct Drive Cone Drum Diameter/Length: 2.5'/9.0' (6.4cm/23cm) Weight: 74 lbs. (34 kgs.) Wire Rope: 80', 5/16' diam. (24m, 8mm diam.) or 100', 5/16' diam. (30m, 8mm diam.) Fairlead for PN 20910: Hawse Fairlead for PN 26502, 265022, 265032: Roller Recommended Battery: 650 CCA minimum for winching Battery Leads: 2 gauge, 72' (1.83m) Finish: Argent Gray Powder Coat Nuts/Bolts: PN 39625 Winch Dimensions: 21.04' L. x 6.3' D. x 7.6' H. (534mm L. x 160m D. x 193mm H.) Mounting Bolt Pattern: 10.0' x 4.5' (254mm x 114.3mm)

Product Description

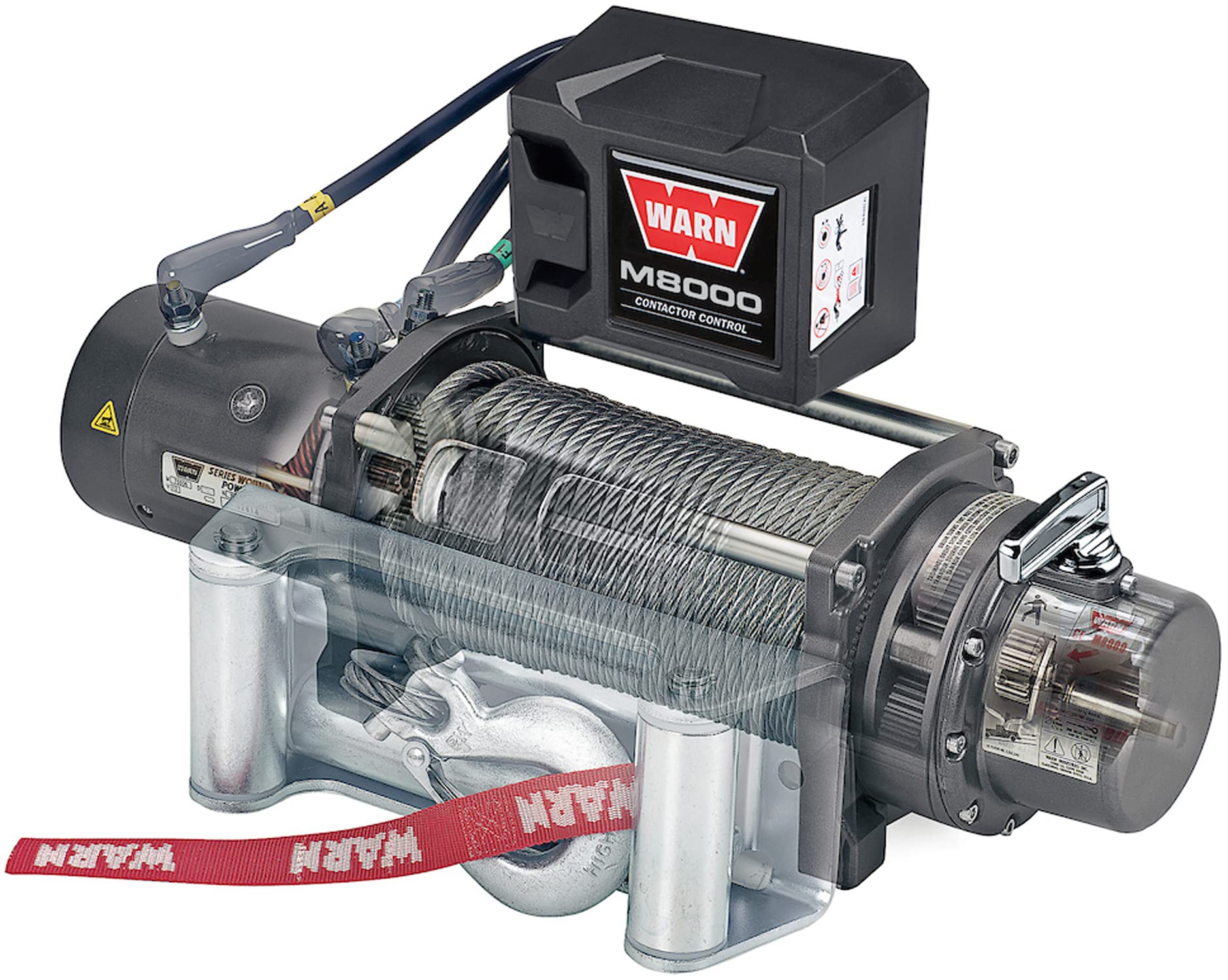

The M8000 winch has been trusted by off-roaders for over twenty years. This 8,000 lb. capacity winch offers outstanding reliability and value. Its low-profile design allows for a variety of mounting options, making it perfect for most trucks, Jeeps and SUVs. It is a compact, efficient and robust package that has a powerful 4.8 horsepower Series Wound motor and 3-stage planetary gear train. This winch includes 100-feet wire rope with a roller fairlead. Chip-resistant powder-coated finish. Limited lifetime warranty.

EAN: 0012748265023

Package Dimensions: 26.1 x 19.3 x 8.8 inches
