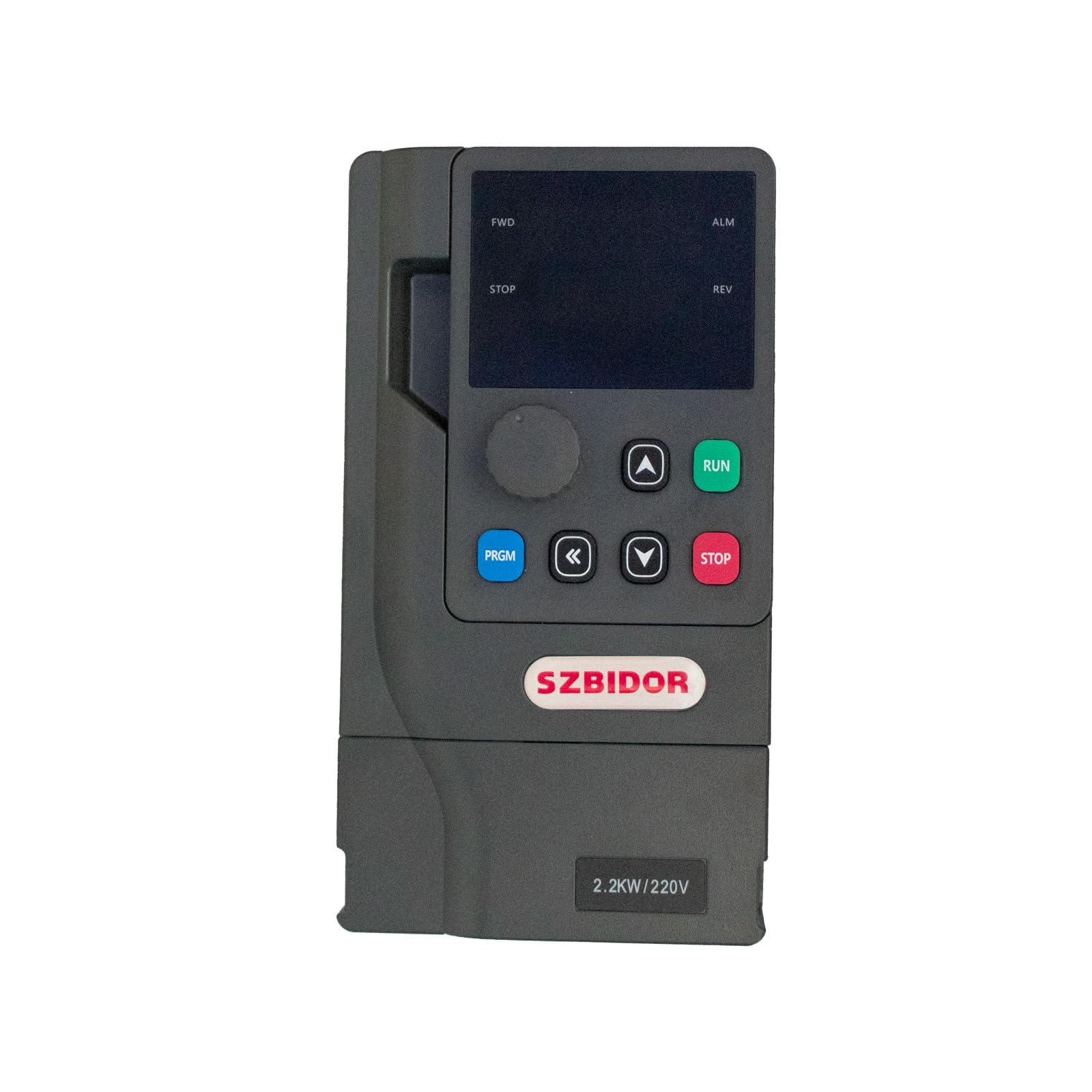

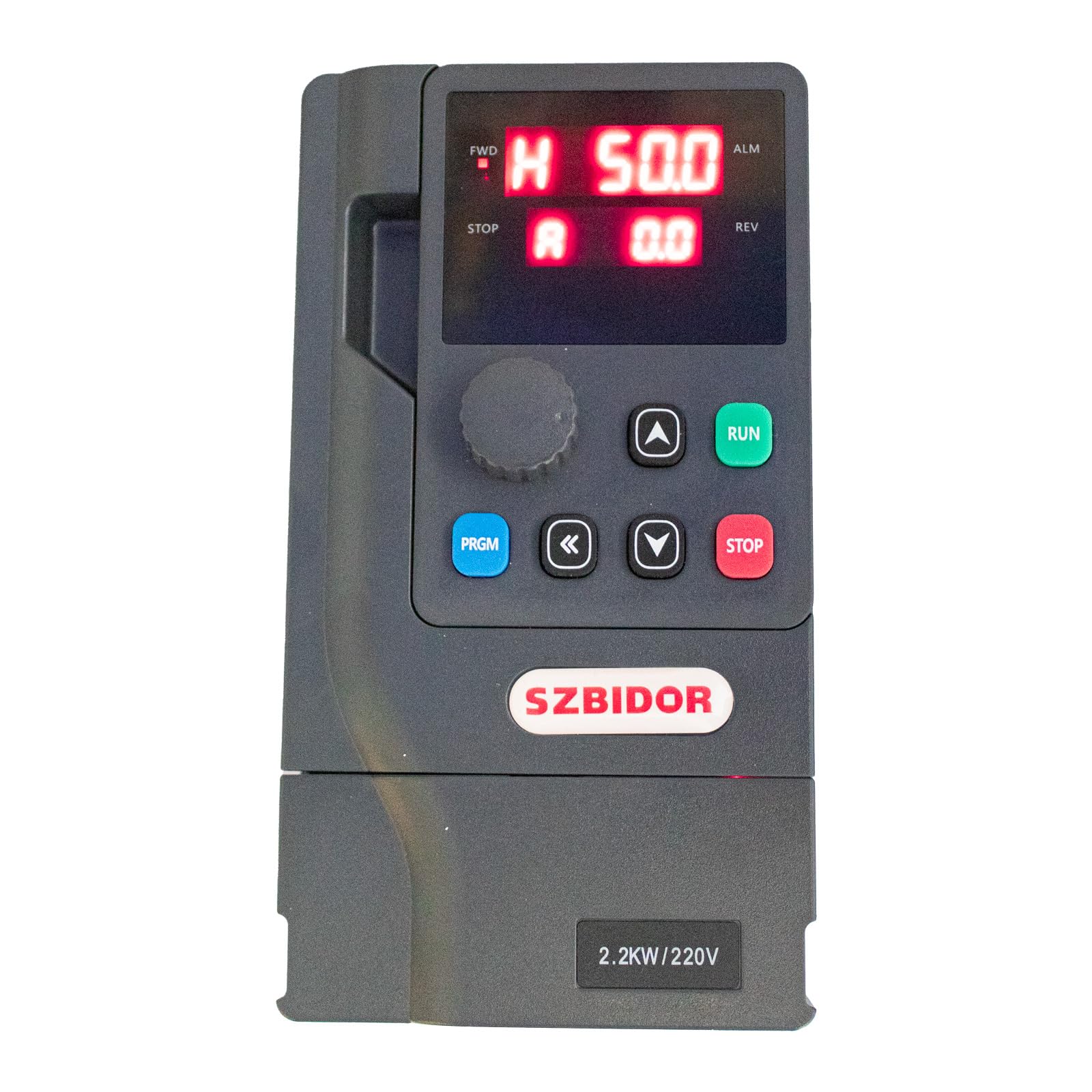

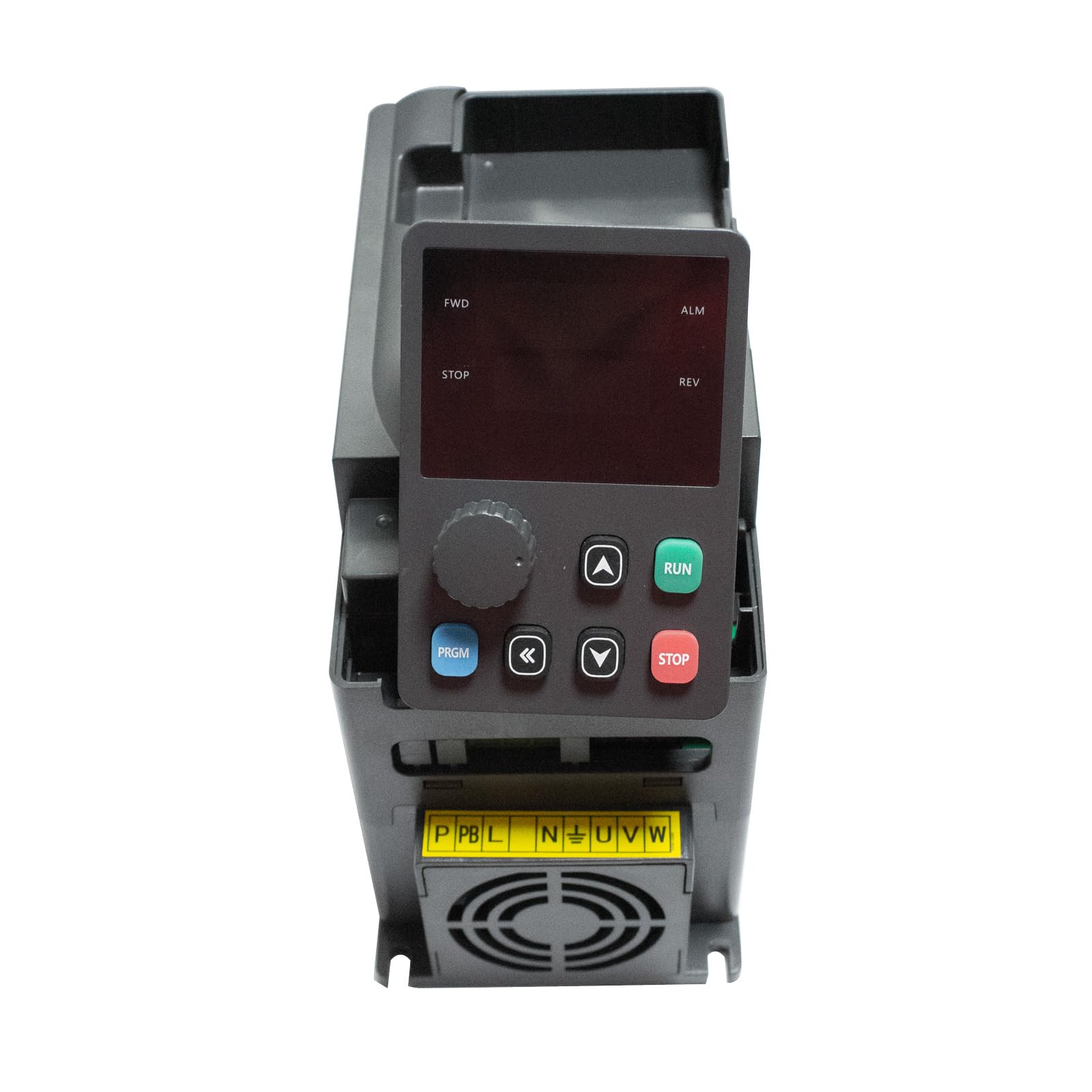

SZBIDOR Variable Frequency Drive 4KW 5HP 18A, 220V AC Motor Single Phase to 3 Phase Converter Controller Inverter for 3-Phase Motor Speed Control, Compatible with Pumps, Fans, Conveyors

Brand: SZBIDOR

Color: Black

Features:

• Input voltage: 220V(+/-15%); Output voltage: 220VAC; Input frequency: 50/60 Hz; Output frequency: 0-3200 Hz; Input phase: 1 phase; Output phase: 3 phase.3HP 10A.
• Application: Spindle Motor, Drill Press, CNC, HVAC, Lathe, Production Lines, Processing Equipments, Milling, Pumps, Conveyors, Mach3, Fan, Cooling, Compressor, Three-phase motor, etc.
• Features: (1)V/F control. (2)With RS485 communication port, using MODBUS RTU protocol. (3)DC cooling fan with low noise, large air volume. Low noise, low electromagnetic interference. (4)Built-in: 8-speed control, simple PLC, PID. (5)Timing operation function. (6)Supported multiple commands.
• The VFD machine is screwed to ensure the stability and reliability of the use, or installed on the rail with ABS flame retardant shell.The triple-proof paint is to improve and extend the life of the fuselage.Built-in chip, provides overload, overheat,Input output phase loss, over/under voltage protection.
• Using Note: ▲Altitude: Less than 1000m above sea level(when higher than 1,000m, every 100 m rise, 1 % reduction). ▲Temperature: -10 ℃ ~ +40 ℃ (when in 40 ℃ ~ 50 ℃, please reduce the amount of use). ▲Humidity: less than 95 % RH. ▲Vibration: less than 5.9 m / s². ▲Storage Temperature:-40 ℃ ~ +60 ℃.

model number: OD5L-0040G1

Part Number: OD5L-0040G1

Details: SZBIDOR VFD has better performance stability and adopt PWM vector control to enable motor to achieve high torque in LOW SPEED rotation to increase motor working efficiency.

Specification:
Application range: Universal
Rated current: 10A
Input Frequency: 50HZ/60HZ
Output Frequency: 0-400 HZ
Control Mode: Vector mode
Power: 2.2KW, Horsepower: 1HP
Input Phase: 1 phase, Output Phase: 3 phase
Output voltage adjustable method: PWM control
Protection: Over-current, over-voltage, over-heat, under-voltage, short circuit protection

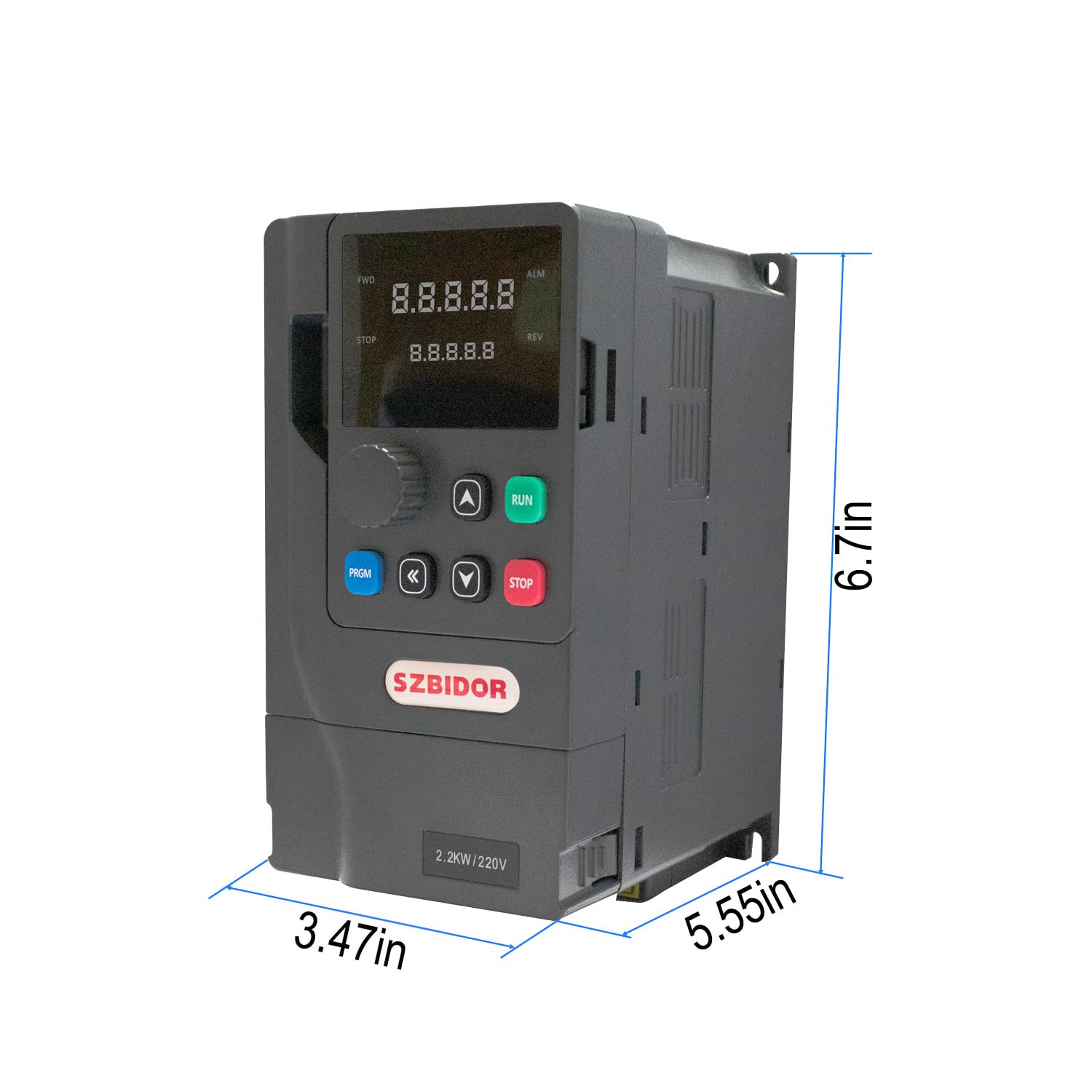

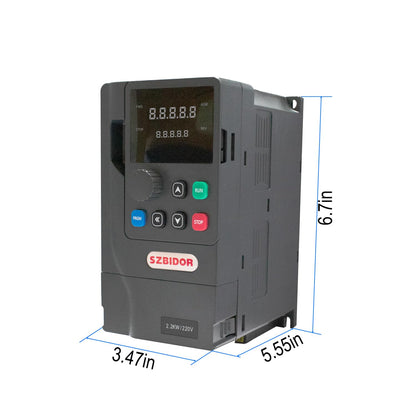

Size: Approx. 17x 8.6 x 14.1cm / 6.69 x 3.39 x 5.55inch
Weight: 3.2pounds
Package List: 1 x Variable Frequency Drive; 1x English User Manual;1x data cable,1xPanel bracket

Warranty: We are the original factory, Welcome to consult with our CS make best choice for your exact application. 1 Year replace or refund!

EAN: 0037936121554

Package Dimensions: 8.7 x 8.7 x 5.5 inches
