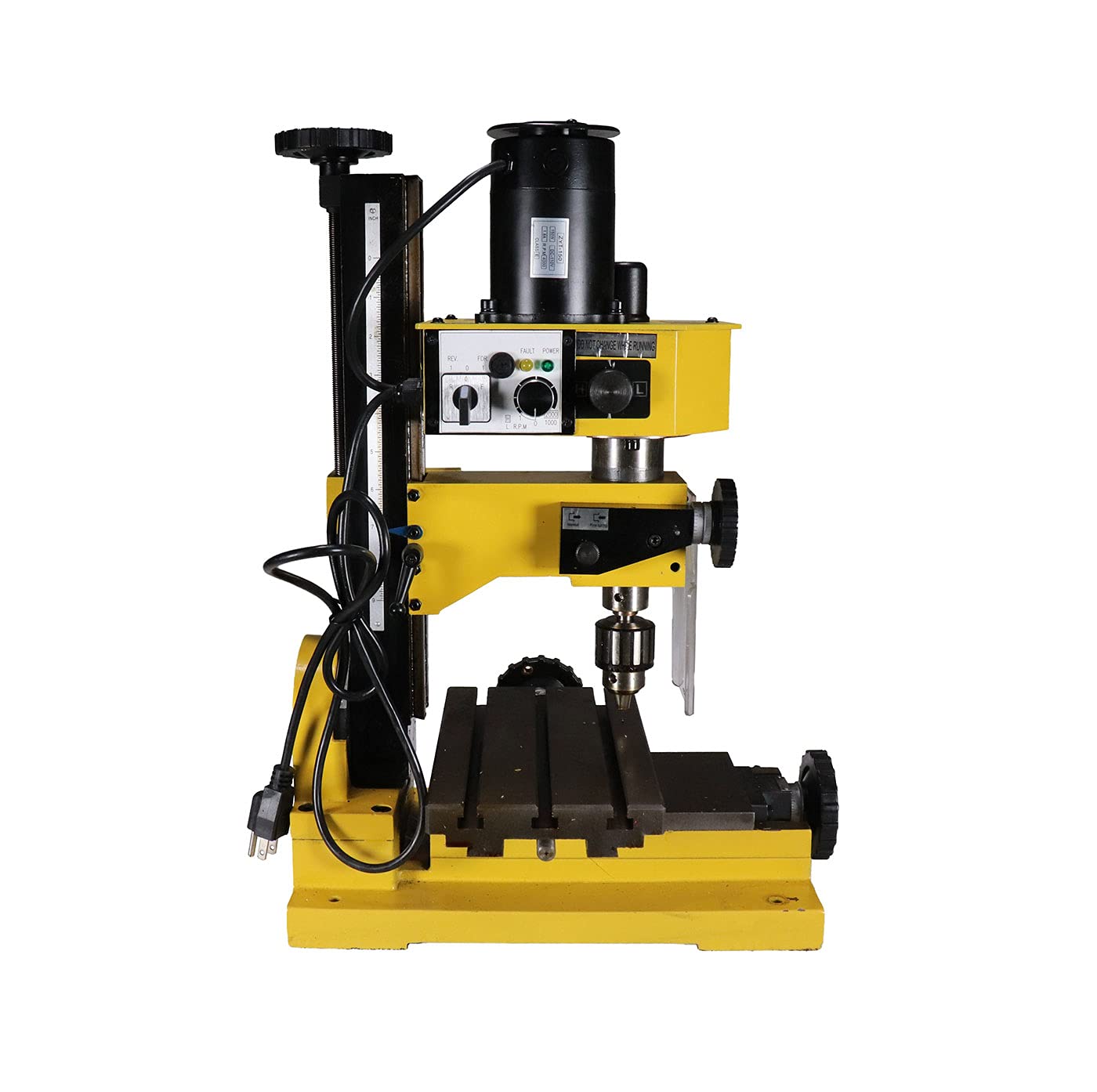

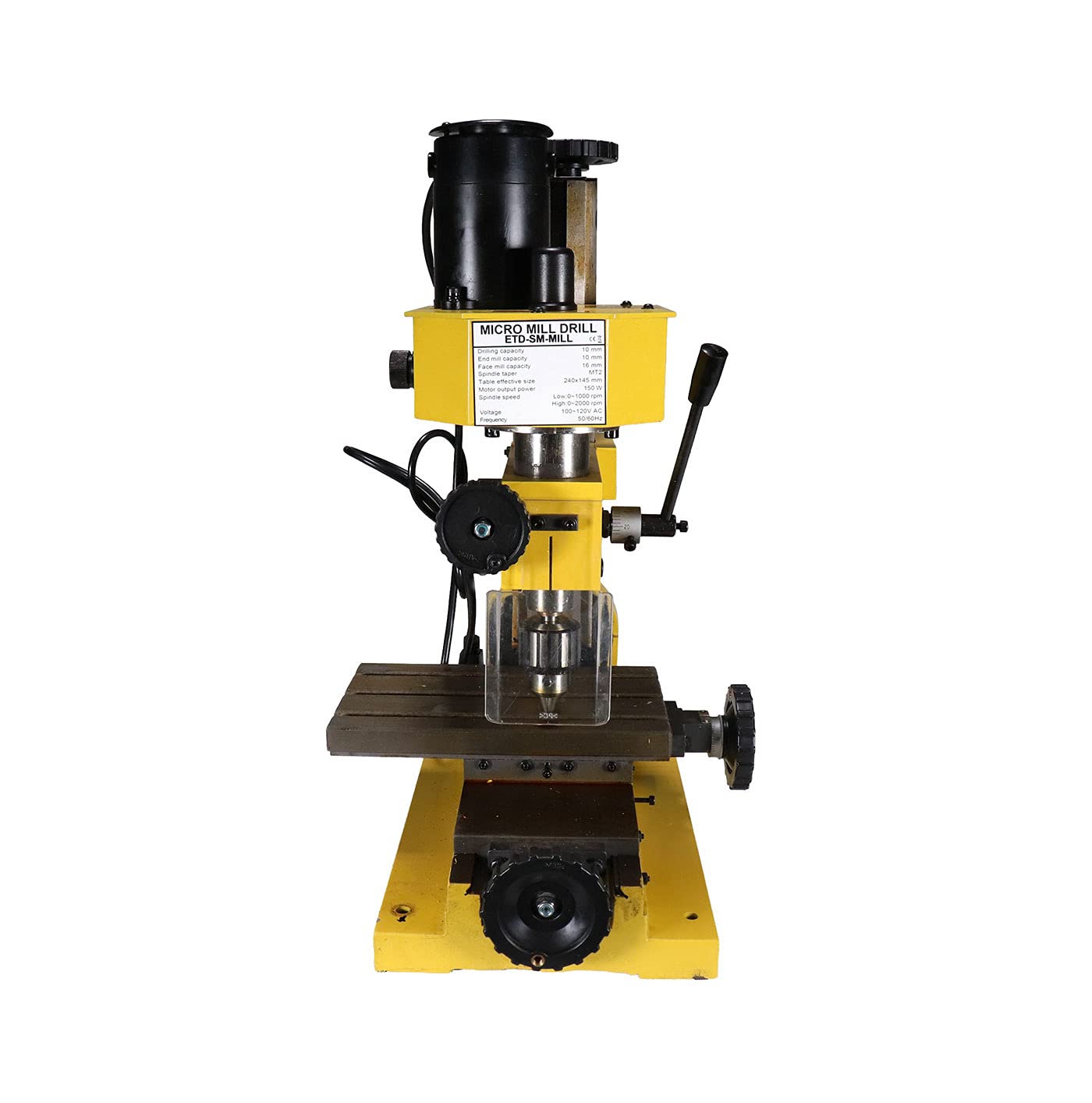

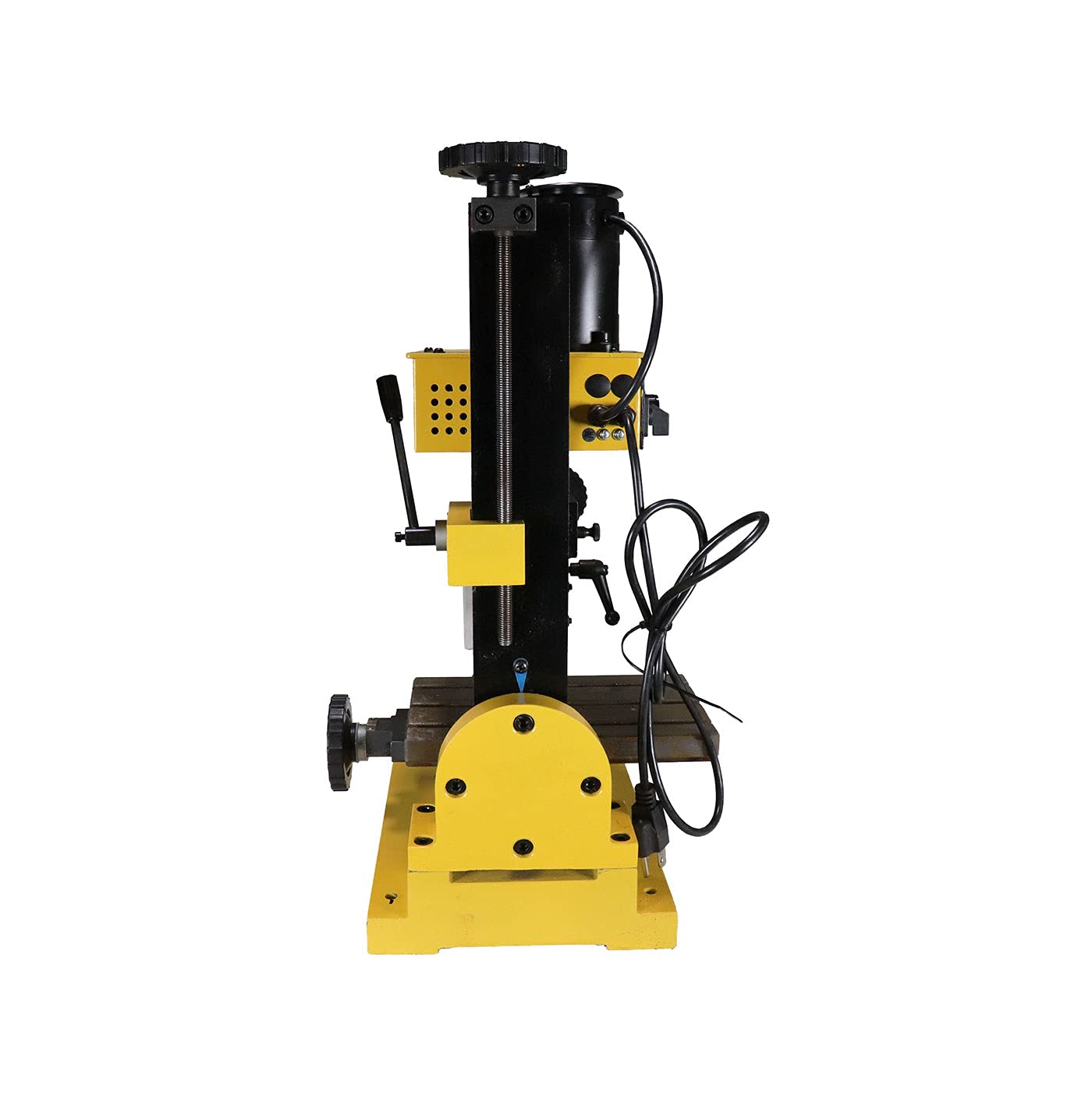

Steel Dragon Tools Variable Speed Mini Milling Machine Benchtop Drilling

Brand: Steel Dragon Tools

Color: Yellow

Features:

• Designed for drilling, deep milling and face milling with variable speed control
• Drilling Capacity: 3/8' (10mm)
• End Mill Capacity: 3/8' (10mm)
• High-speed Steel 6-piece 4 Flute with 3/8' Shank set Included
• Includes 1/8', 3/16', 1/4', 5/16', 3/8' and 5/32' sizes

model number: 04c20495-d168-4d7d-861f-ae9992a8fa75

Part Number: SDT-SM-MILL

Details: Steel Dragon Tools Variable Speed Mini Milling Machine Benchtop Drilling

Heavy duty variable speed mini milling and drilling benchtop machine comes standard with a high-speed steel 6-piece 4 Flute with 3/8' Shank cutter set. The set includes 1/8', 3/16', 1/4', 5/16', 3/8' and 5/32' size cutters. This mill has a Drilling and End Mill Capacity of 3/8' along with a Face Mill Capacity of 5/8'.

Specifications:

Drilling Capacity: 3/8'

End Mill Capacity: 3/8'

Face Mill Capacity: 5/8'

Max X-Axis Table Travel: 8.5'

Max Y-Axis Table Travel: 6.5'

Max Z-Axis without collet: 10'

Spindle Taper: MT #2

Spindle Stroke: 1 3/16'

Throat: 5 1/2'

Table Size: 9.45' x 5.70'

Spindle Speed: Low: 0~1000 RPM High: 0~2000 RPM

Motor Output Power: 150W

Features:

Designed for drilling, deep milling and face milling

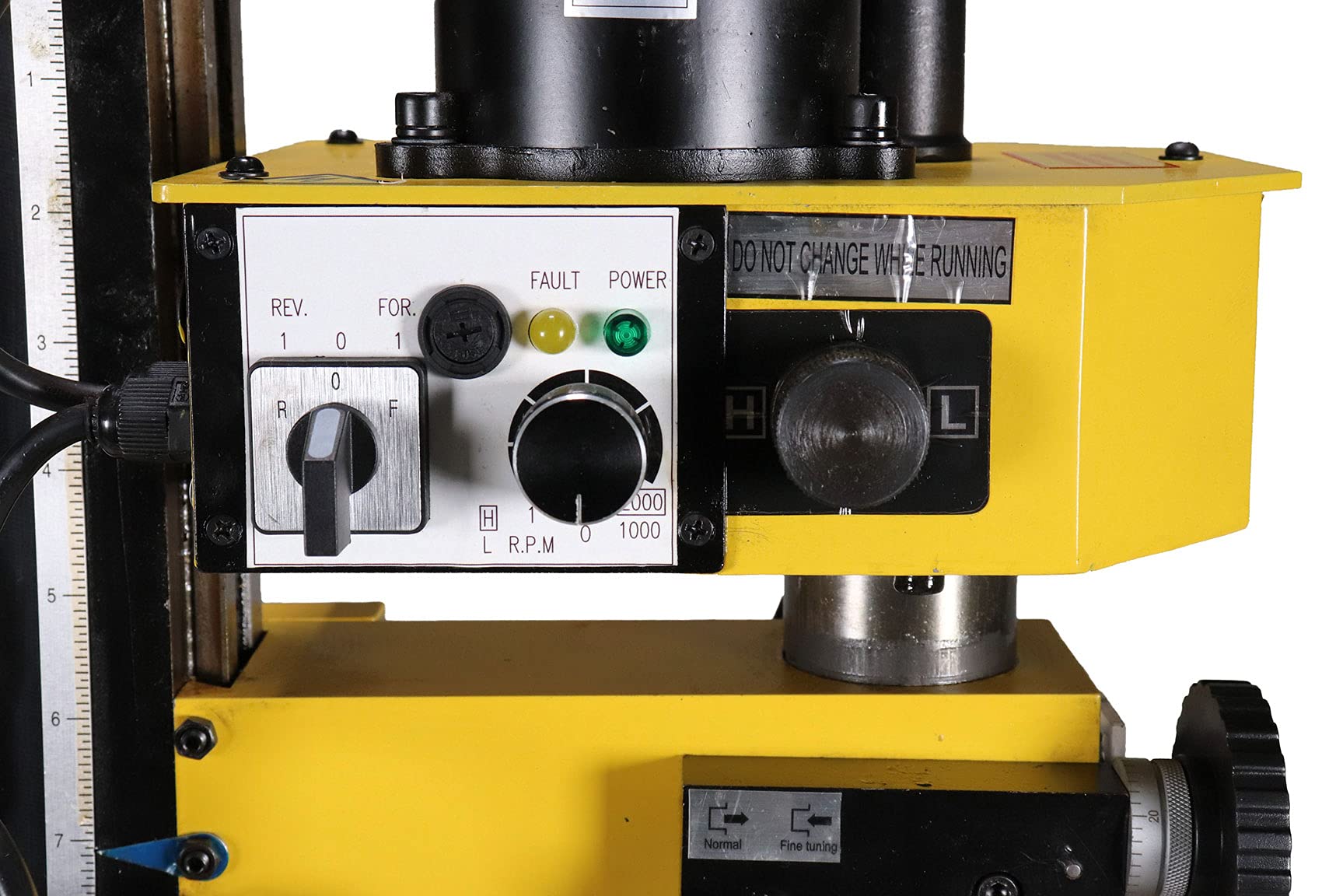

Variable speed control

FWD/REV switch

Safety shut off switch

Adjustable depth stop

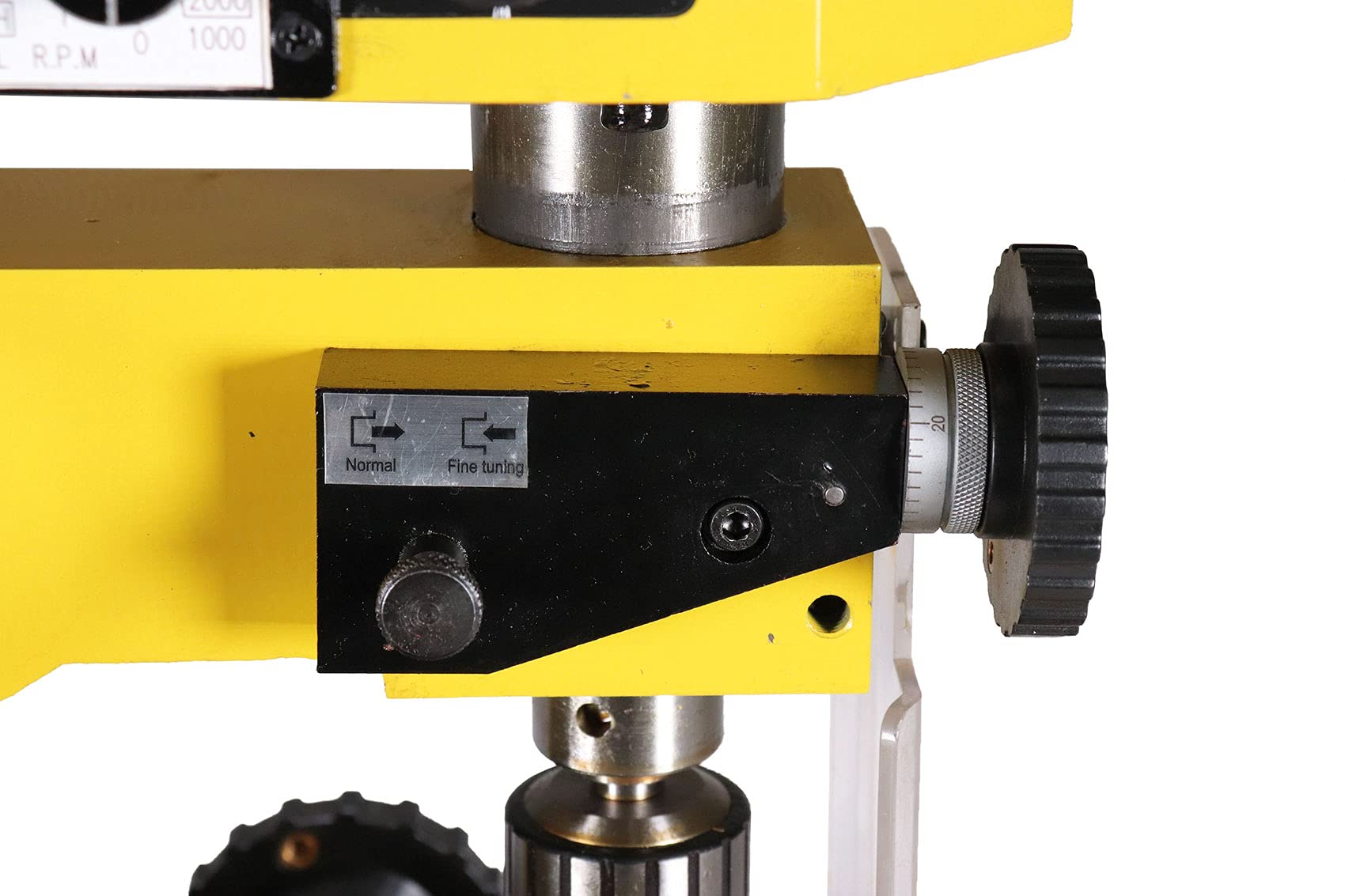

Fine feed hand wheel

Crossfeed hand wheel

Lifting hand wheel

Longitudinal feed hand wheel

Geared drive

A clear guard on the spindle

Zero setting dials read in inches

Chuck Capacity: 1/16'-3/8'

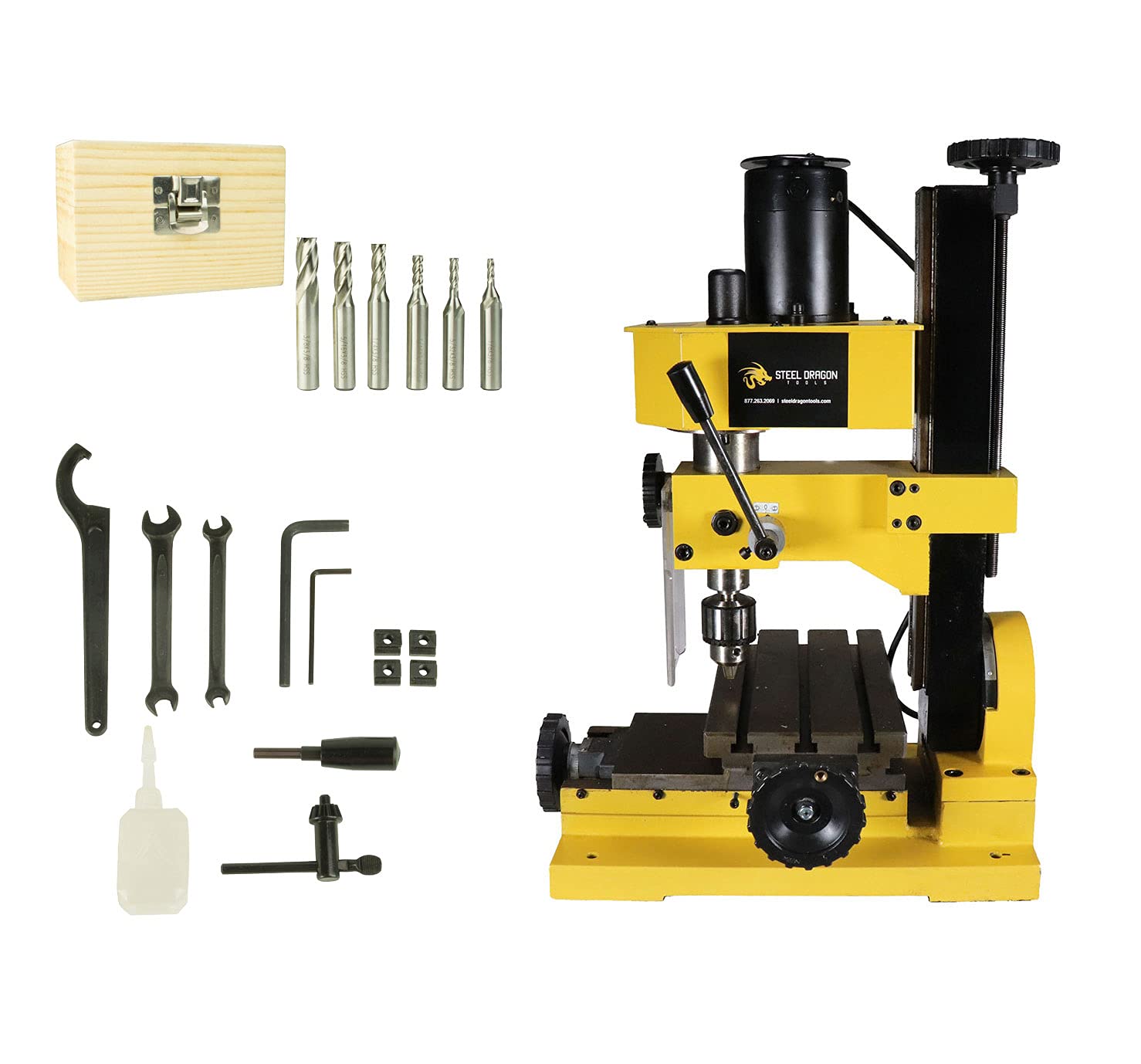

Includes

High-Speed Steel 6-piece 4 Flute with 3/8' Shank set

Includes 1/8', 3/16', 1/4', 5/16', 3/8' and 5/32' sizes

Drawbar

Spindle locking pin

4 T-slot nuts

Oil can

Spanner wrench for the spindle nut

Hex wrenches

Open-end wrenches

EAN: 0843824115303

Package Dimensions: 26.0 x 22.0 x 19.0 inches
