NEW PRODUCT | LOW STOCK

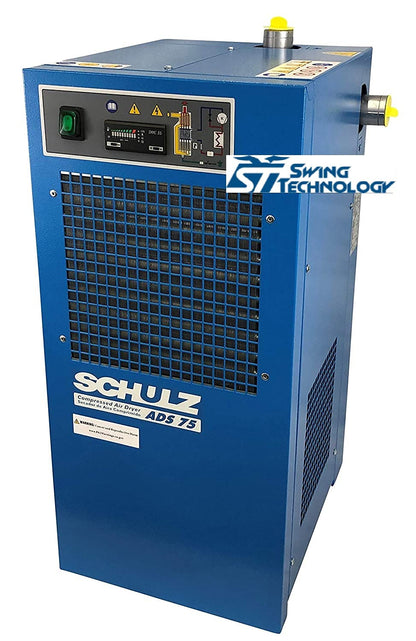

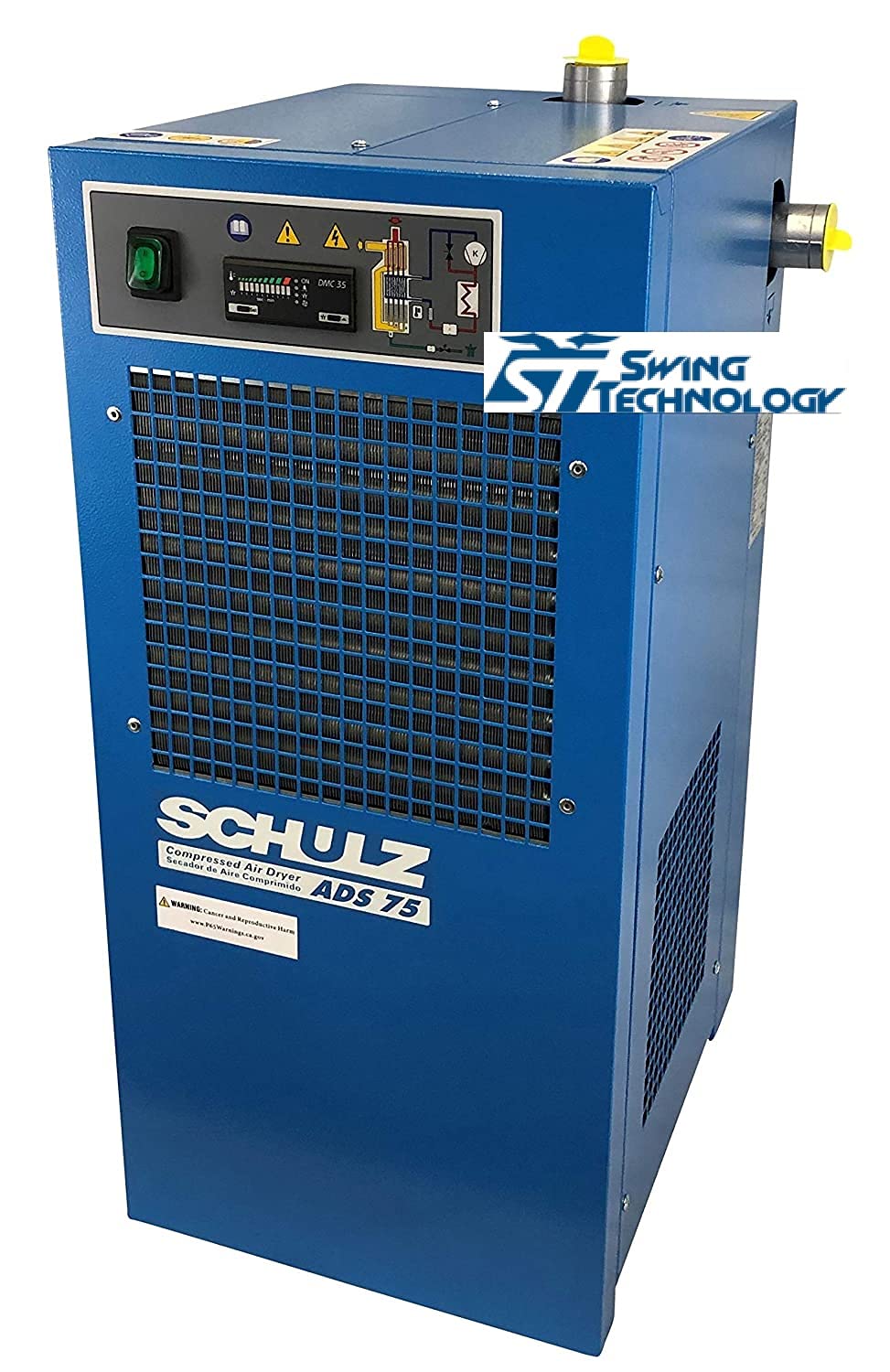

Schulz ADS-75-UP Non-cycling Compressed Air Dryer, Blue; Electronic Controller; 115V; 203 PSI Max Inlet Pressure; Single Phase Circuit; 75 CFM
Schulz ADS-75-UP Non-cycling Compressed Air Dryer, Blue; Electronic Controller; 115V; 203 PSI Max Inlet Pressure; Single Phase Circuit; 75 CFM
Couldn't load pickup availability
Schulz ADS-75-UP Non-cycling Compressed Air Dryer, Blue; Electronic Controller; 115V; 203 PSI Max Inlet Pressure; Single Phase Circuit; 75 CFM
1-2 Days delivery
Brand: Schulz
Color: Blue
Features:
- 203 PSI maximum
- Digitally shows temperature
- Controls the drain valve through a timer
- Controls the condenser fan through a probe
- Single phase
model number: ADS-75-UP
Part Number: SCHULZ
Details: Schulz ADS-75-UP Non-cycling Compressed Air Dryer, Blue; Electronic Controller; 115V; 203 PSI Max Inlet Pressure; Single Phase Circuit; 75 CFM
Schulz non-cycling compressed air dryers have been developed for applications with inlet and room temperatures up to 100 °F. Removable panels facilitate easy and quick access to internal components
Key Features:
- 203 PSI maximum
- Digitally shows temperature
- Controls the drain valve through a timer
- Controls the condenser fan through a probe
- Single phase

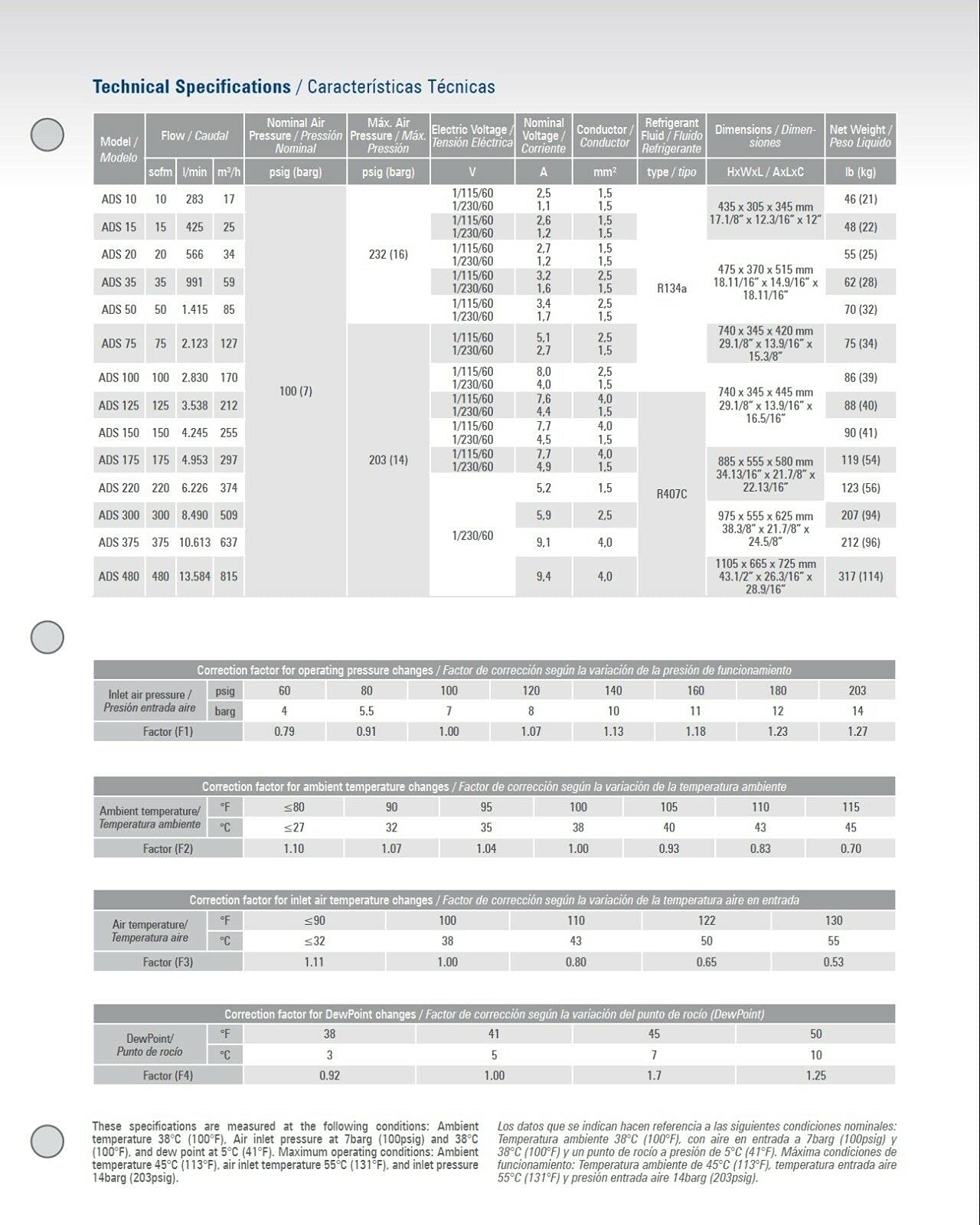

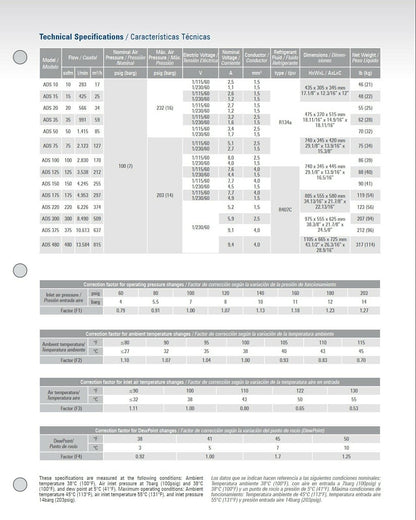

Specifications:
- Flow (CFM): 75
- Rated Pressure (PSI): 175
- Maximum Pressure (PSI): 203
- Connection (in): 1' NPT-F
- Voltage (V): 115
- Frequency (Hz): 60 Hz
- Phase: Single
- Overall Dimensions (HxWxL): 30 x 14 x 16 inches
- Weight: 75 pounds
EAN: 0649812079110
