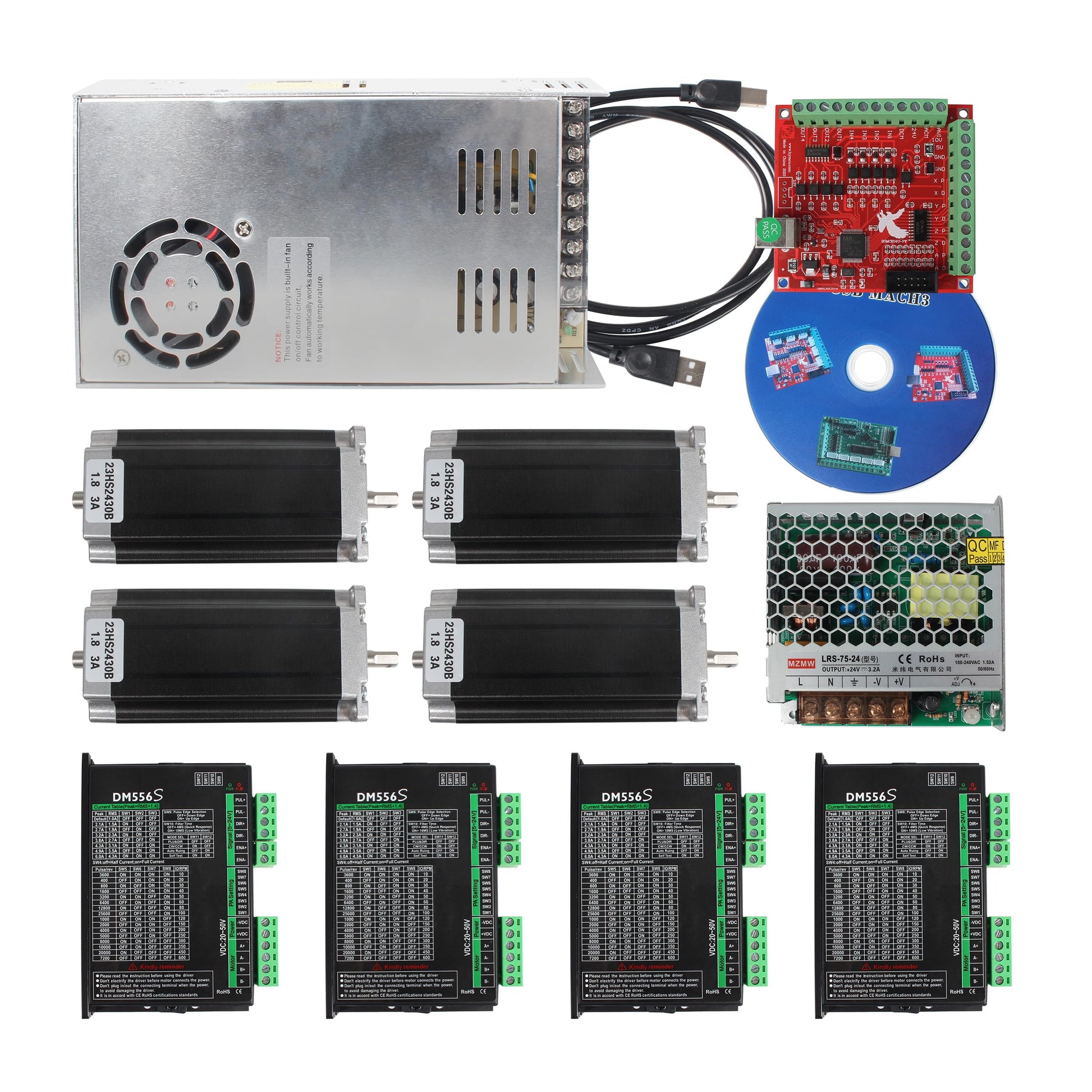

RATTMMOTOR 4 Axis Nema 23 Stepper Motor Kit,3A 425oz.in 112mm Motor Driver,Mach3 Motion Control Card 4 axis USB CNC Controller Kit,36V DC Power Supply for CNC Router Engraving Machine

Brand: RATTMMOTOR

Color: red,green

Features:

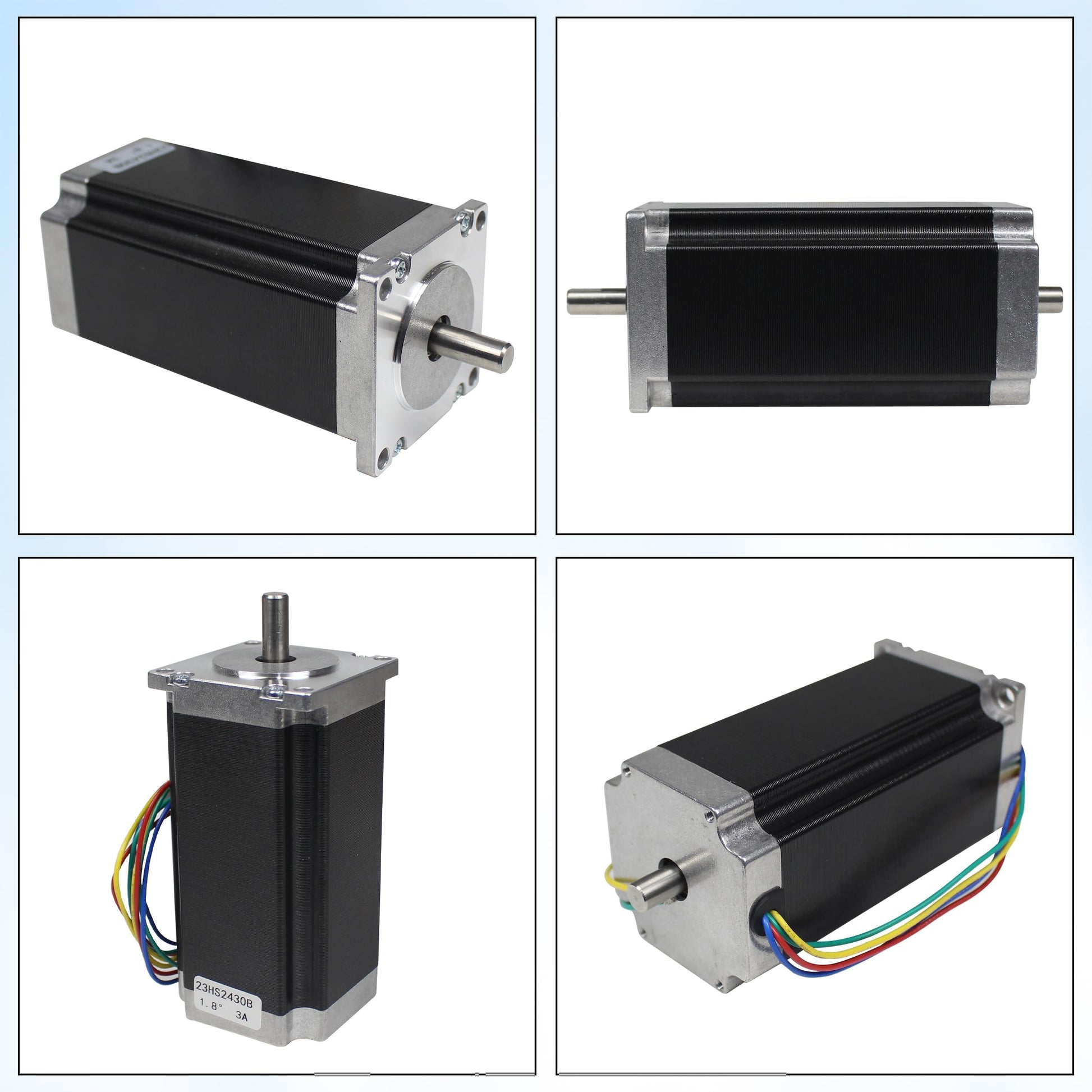

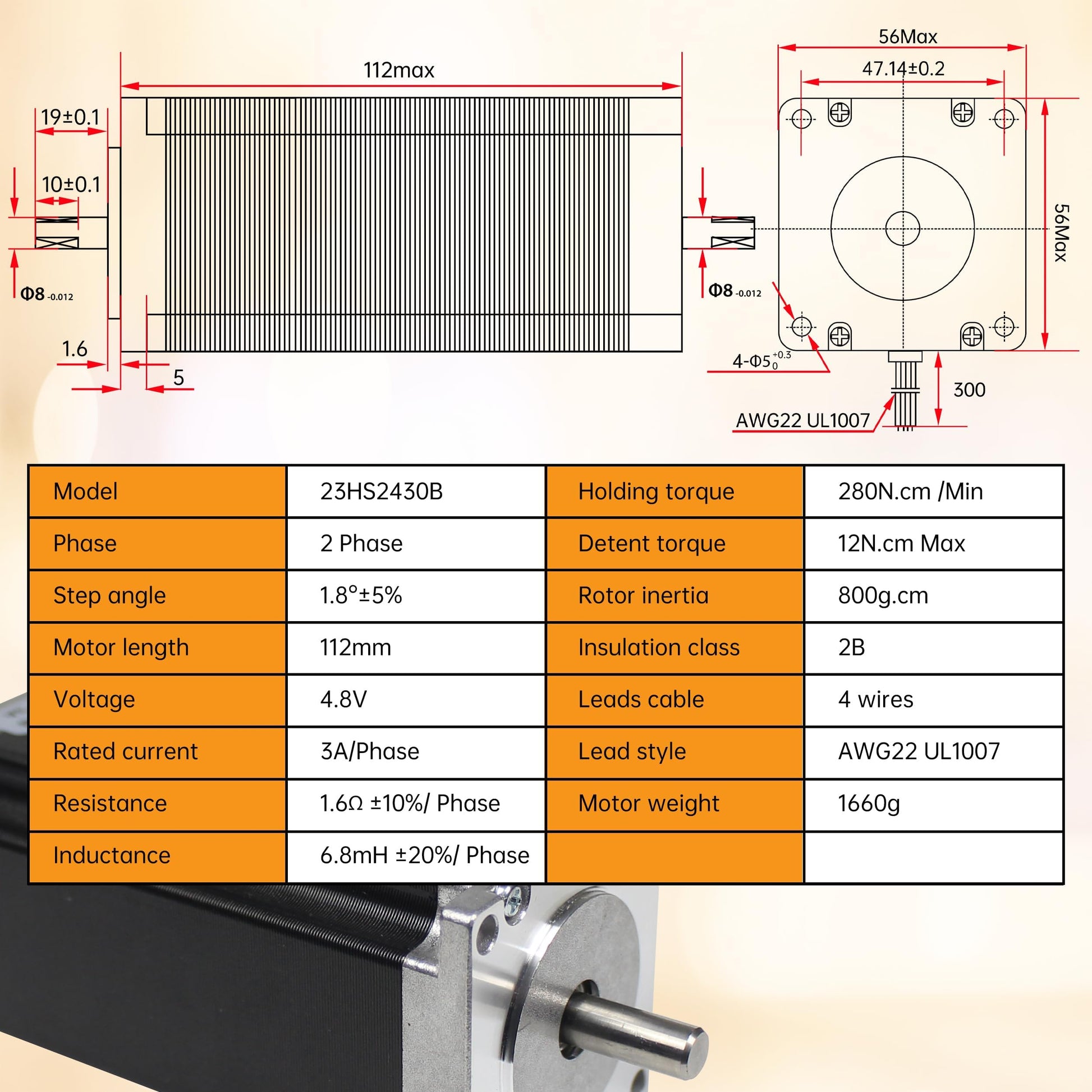

• 23HS2430B Nema23 Stepper Motor: Phase: 2 Phase; Type: Hybrid; Step Angle: 1.8degree; Current: 3.0A; Holding torque: 425oz-in 280Ncm; Shaft: Dual Shaft; Shat diameter: 8mm; 4 Lead Wires; Wirings: A+ to Red / A- to Green / B+ to Yellow / B- to Blue Motor Size: 57x57x112mm

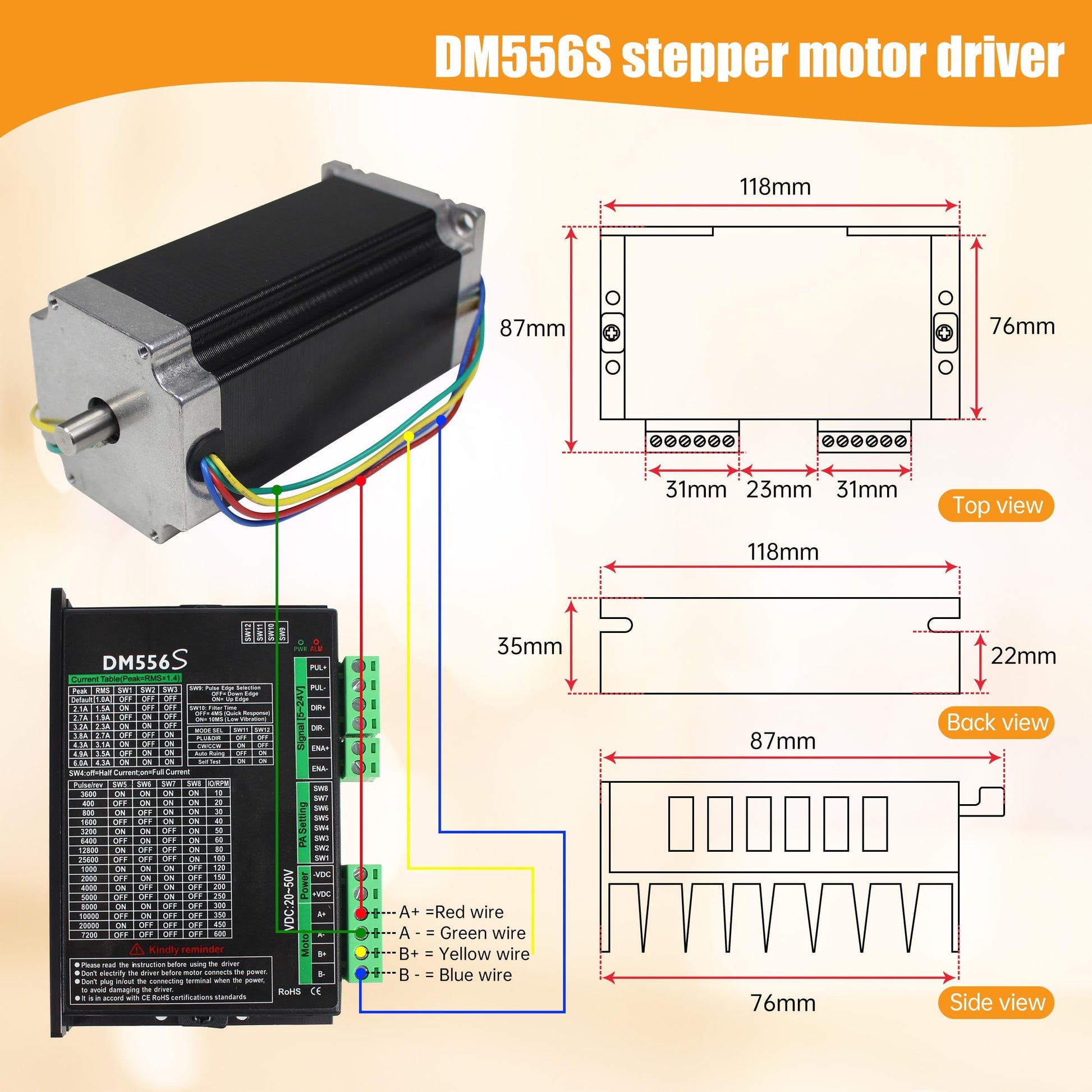

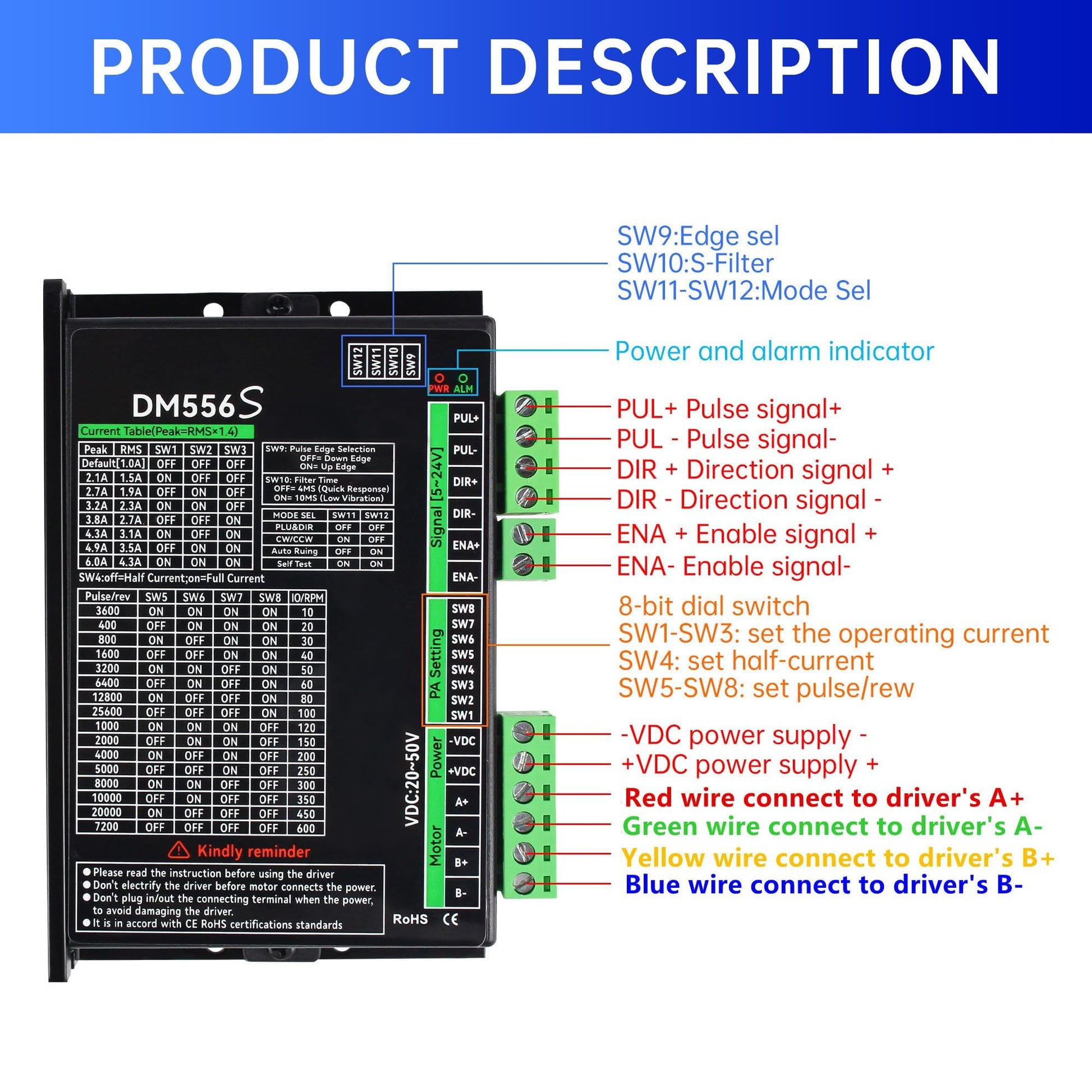

• DM556S Stepper Motor Driver: Current: 1.0A-6.0A ; Driver microstep: 200-51200 subdivision,adopts 32-bit DSP digital processing technology ; Input Voltage: 20-50V DC

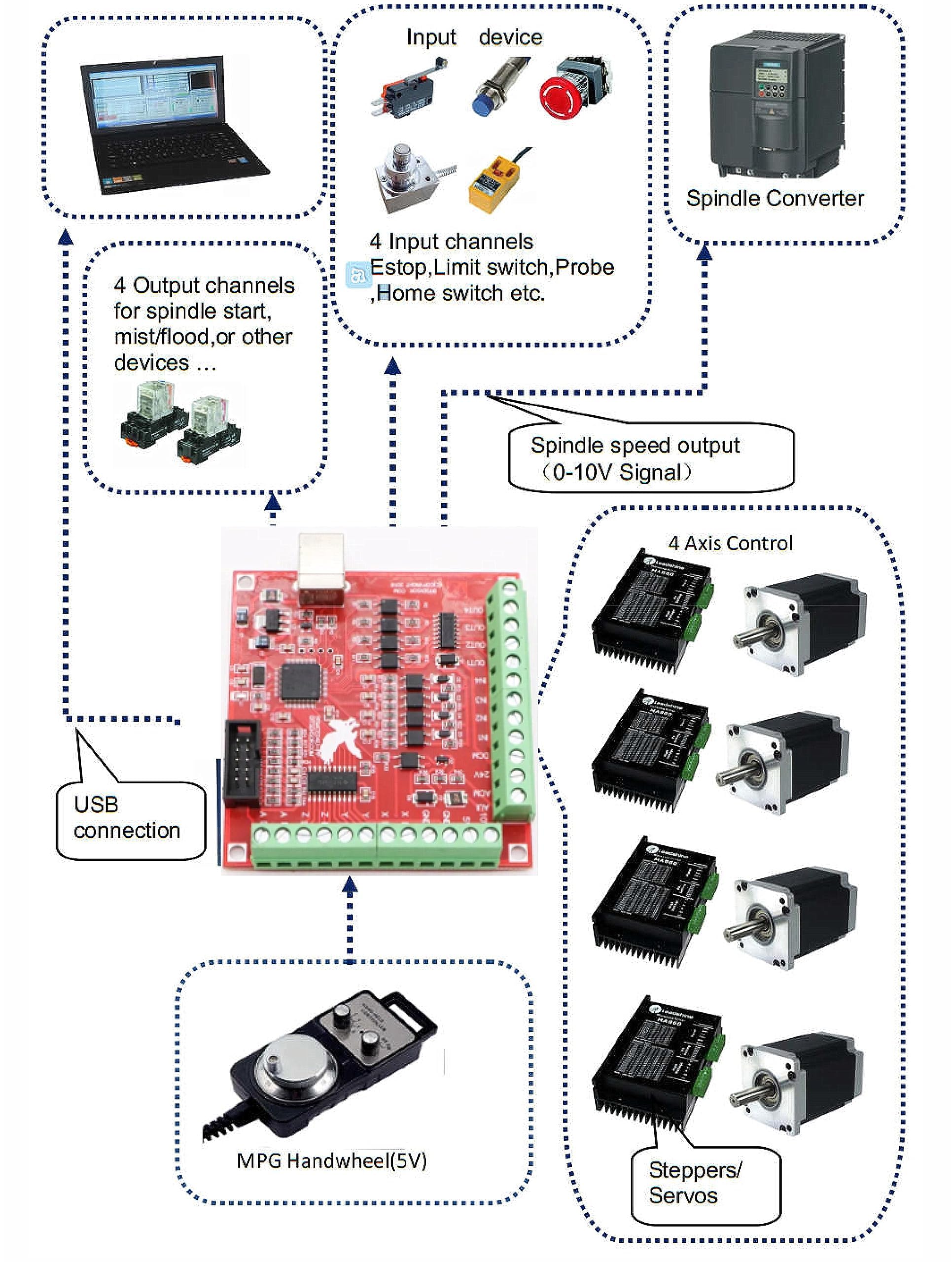

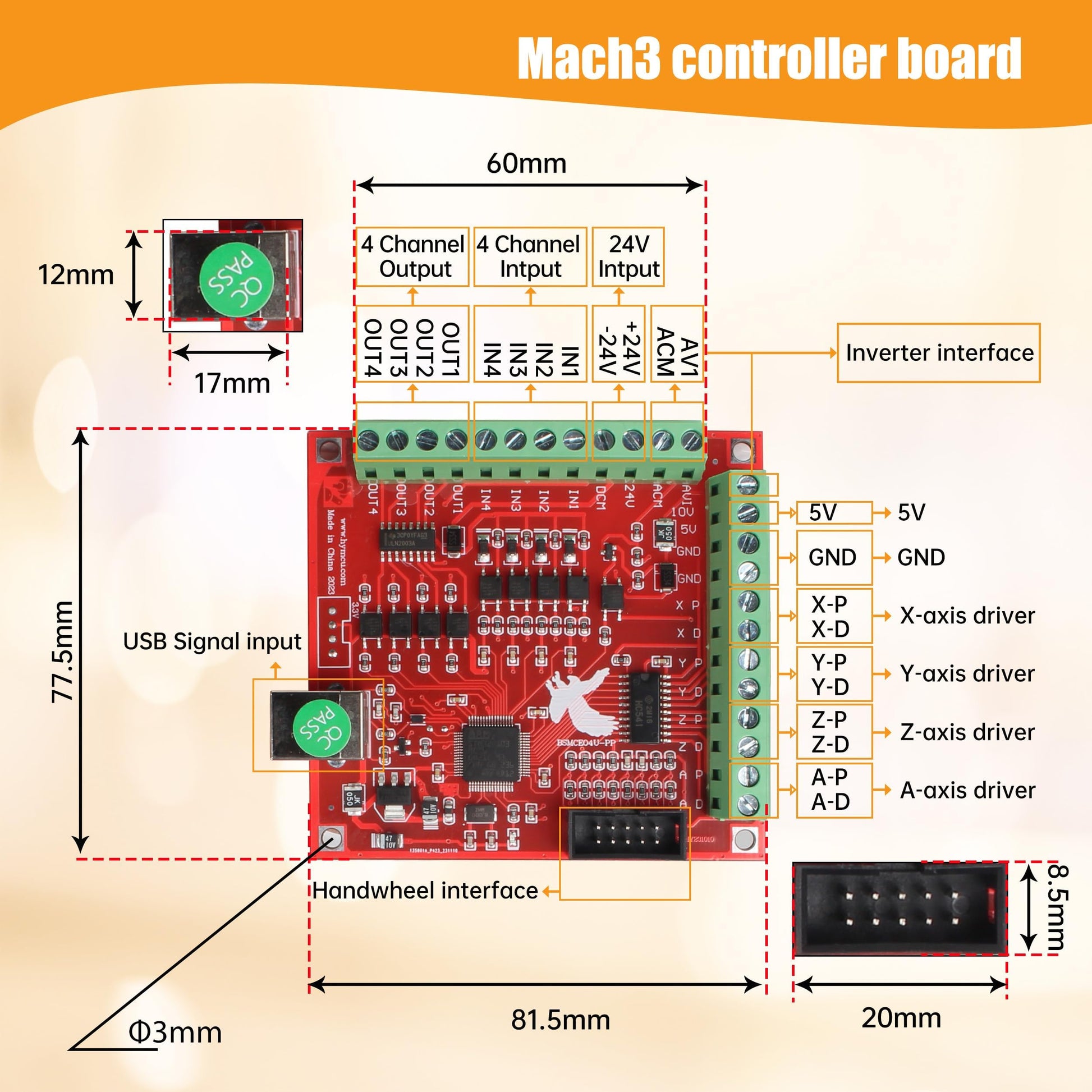

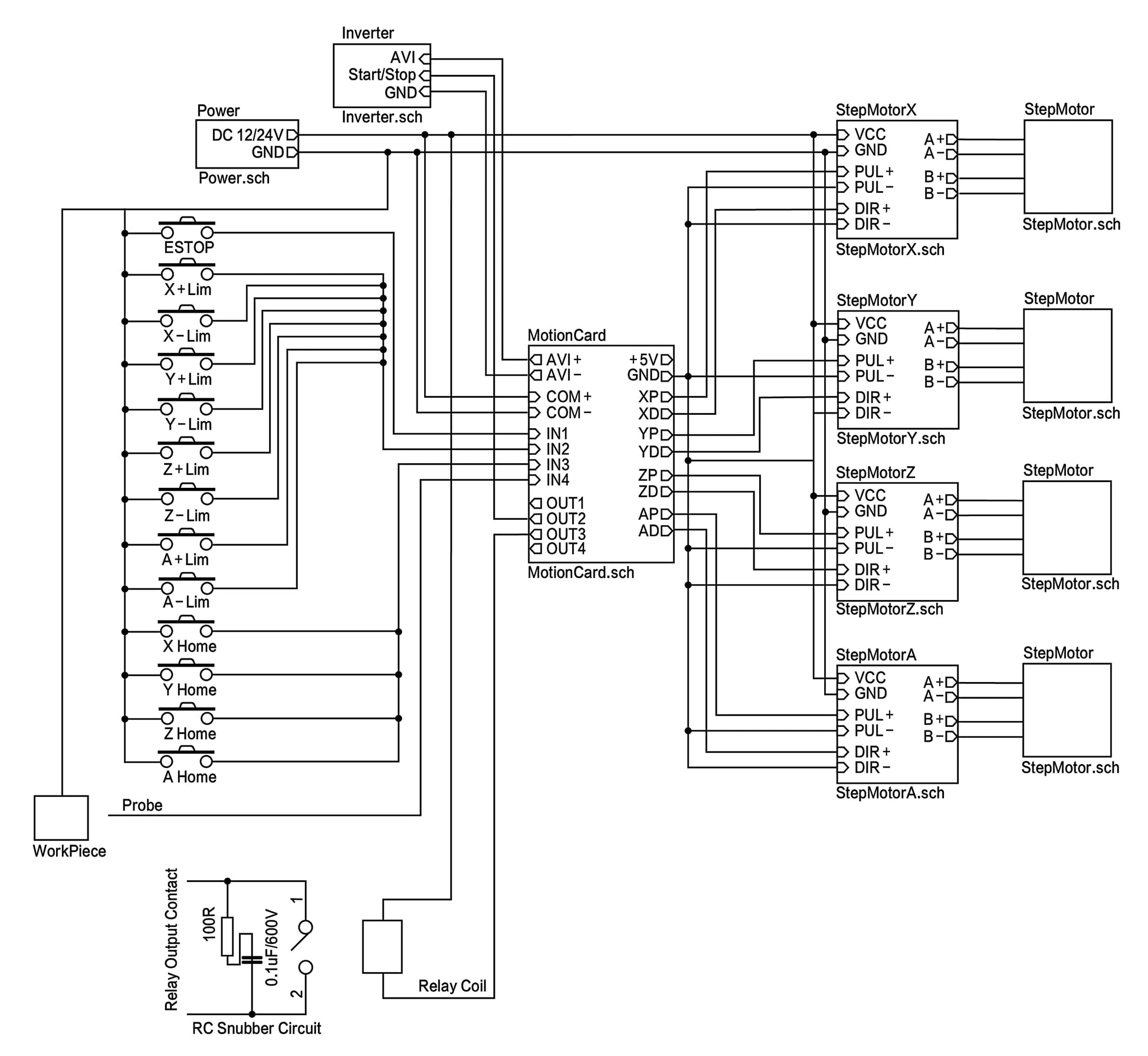

• 4 Axis USB Mach3 Control Board: USB interface is applicable to any netbook, notebook, desktop, tablet and other PC compatible computers with USB interface. This control board does not require any drivers to be installed; As long as Mach3 can run, the control card can be used; Support computer system:Windows 2000/ XP / Windows 7/8/10

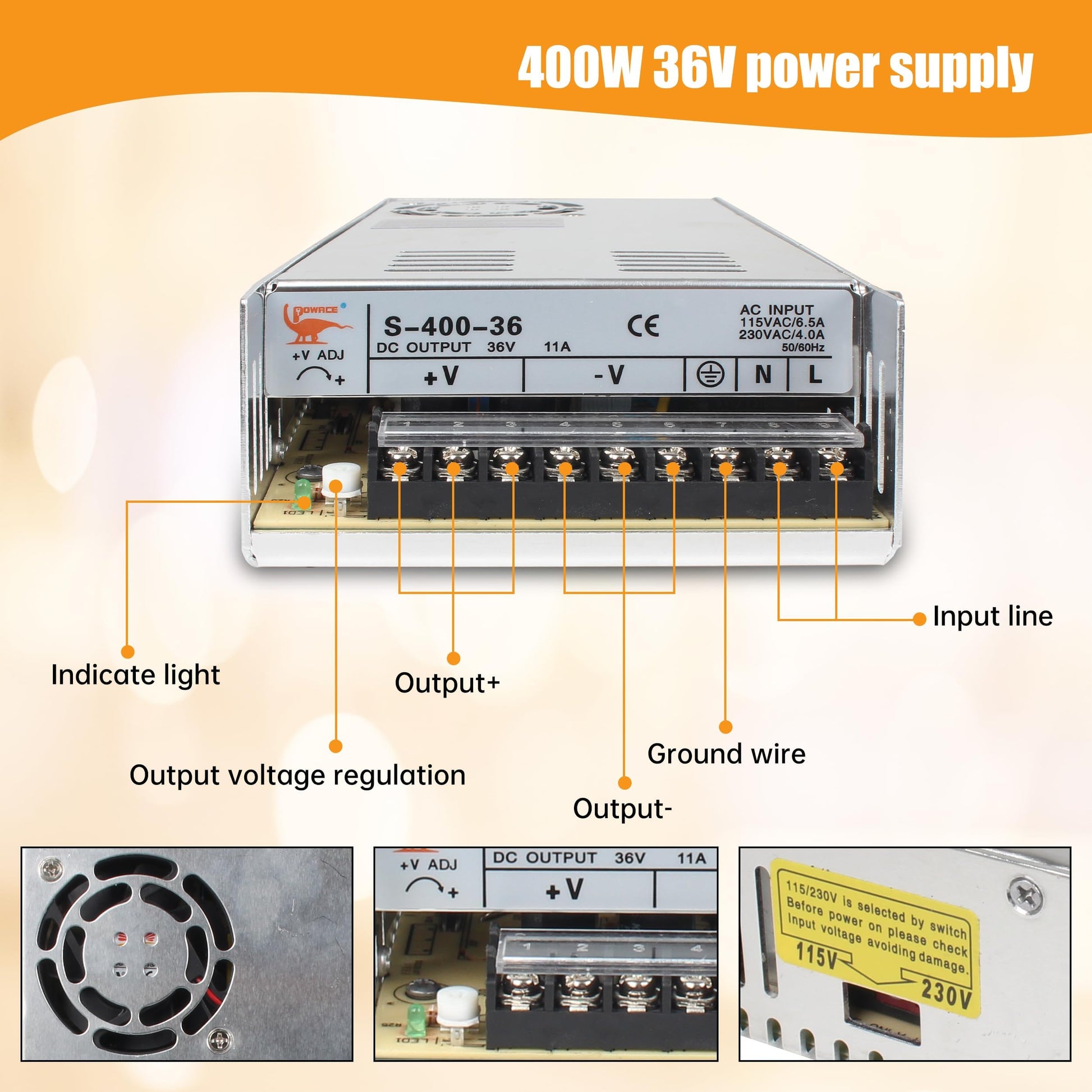

• 400W 36V 9.7A DC switching power supply; Output Voltage:36V ; Input: 110-120V AC or 220-240V AC; 75W 24V DC Switching power supply Input voltage: 100-240V AC; Output voltage: 24V; This 24V power supply is used to power the 4 axis usb mach3 control card
• Feature of Driver: Due to the use of built-in micro-subdivision technology, even in the conditions of low subdivision, but also can achieve high subdivision effect, low, medium and high-speed operation is very smooth, ultra-low noise

Part Number: 4FDK-USB-R

Package Dimensions: 15.0 x 9.5 x 7.2 inches
