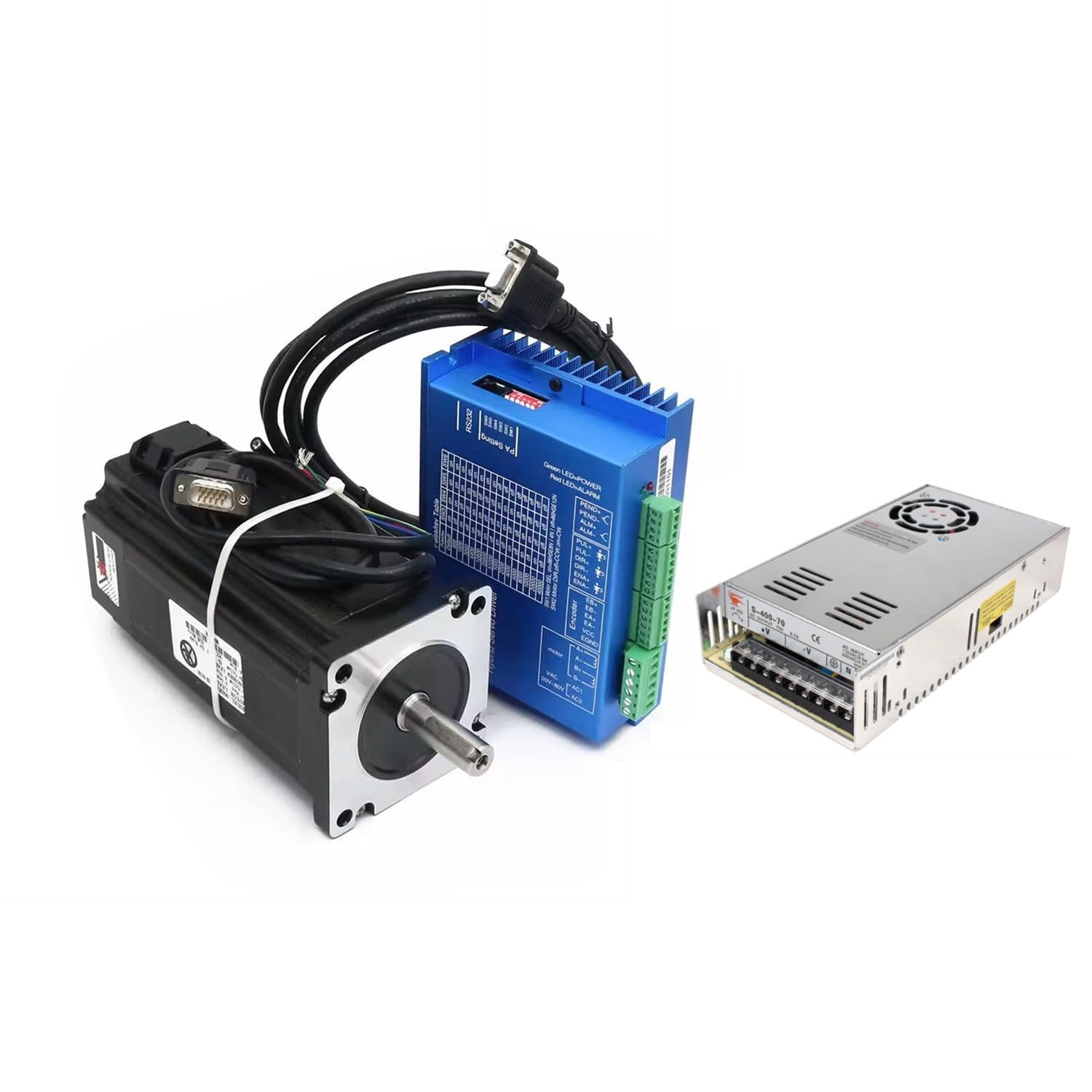

RATTMMOTOR 12N.m Closed Loop Servo Motor Nema34 CNC Kit with 70V DC Power Supply,12Nm 1700oz-in 86x86x156mm 6A+2HSS86 Hybrid 2-Phase Stepper Motor Servo Driver for CNC Router Engraving Milling Machine

Brand: RATTMMOTOR

Features:

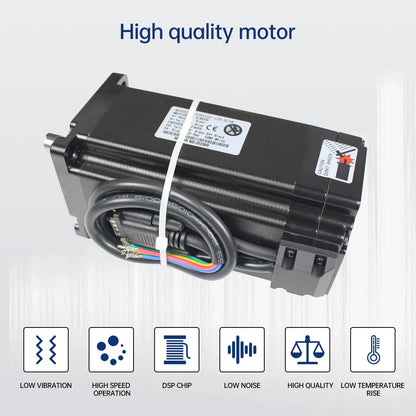

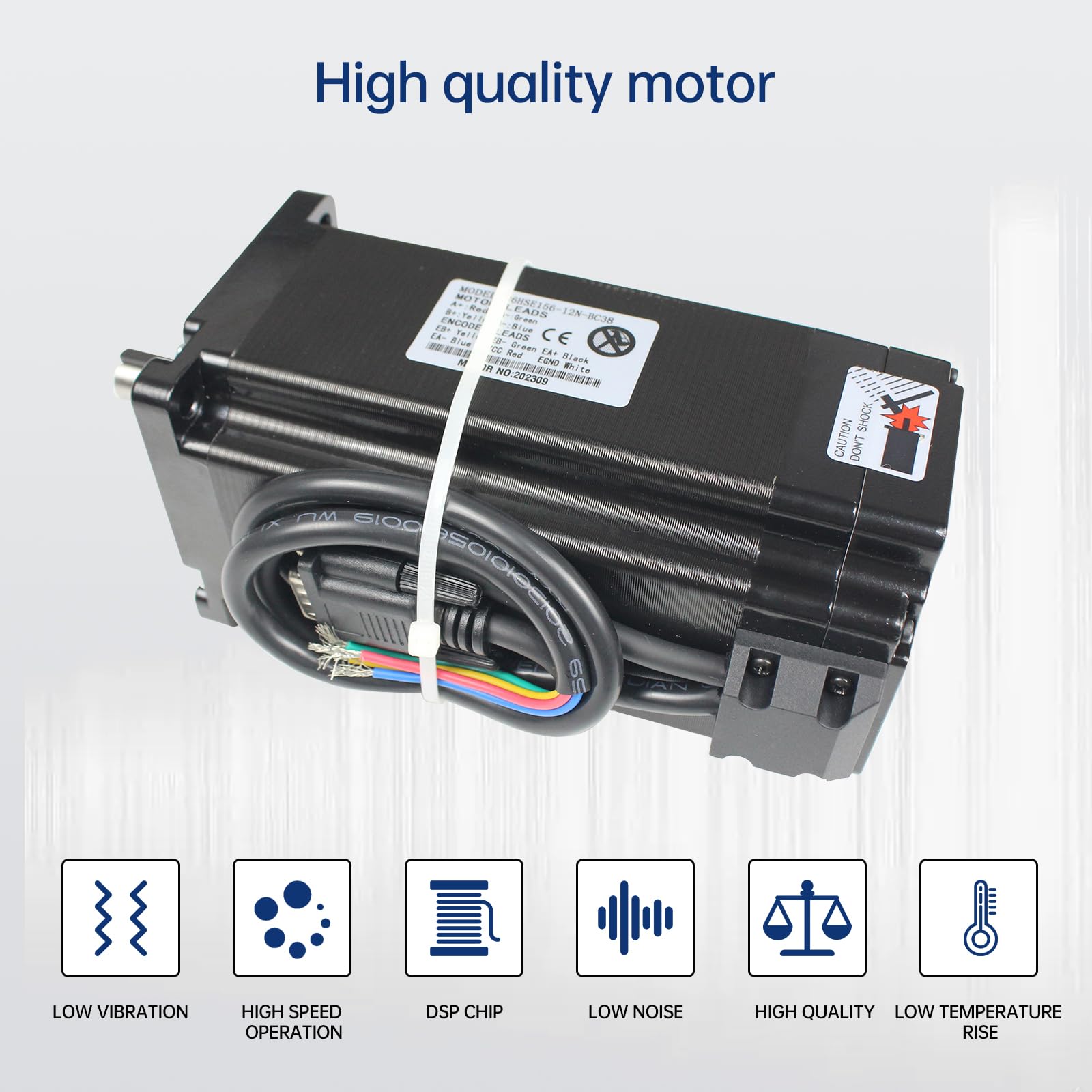

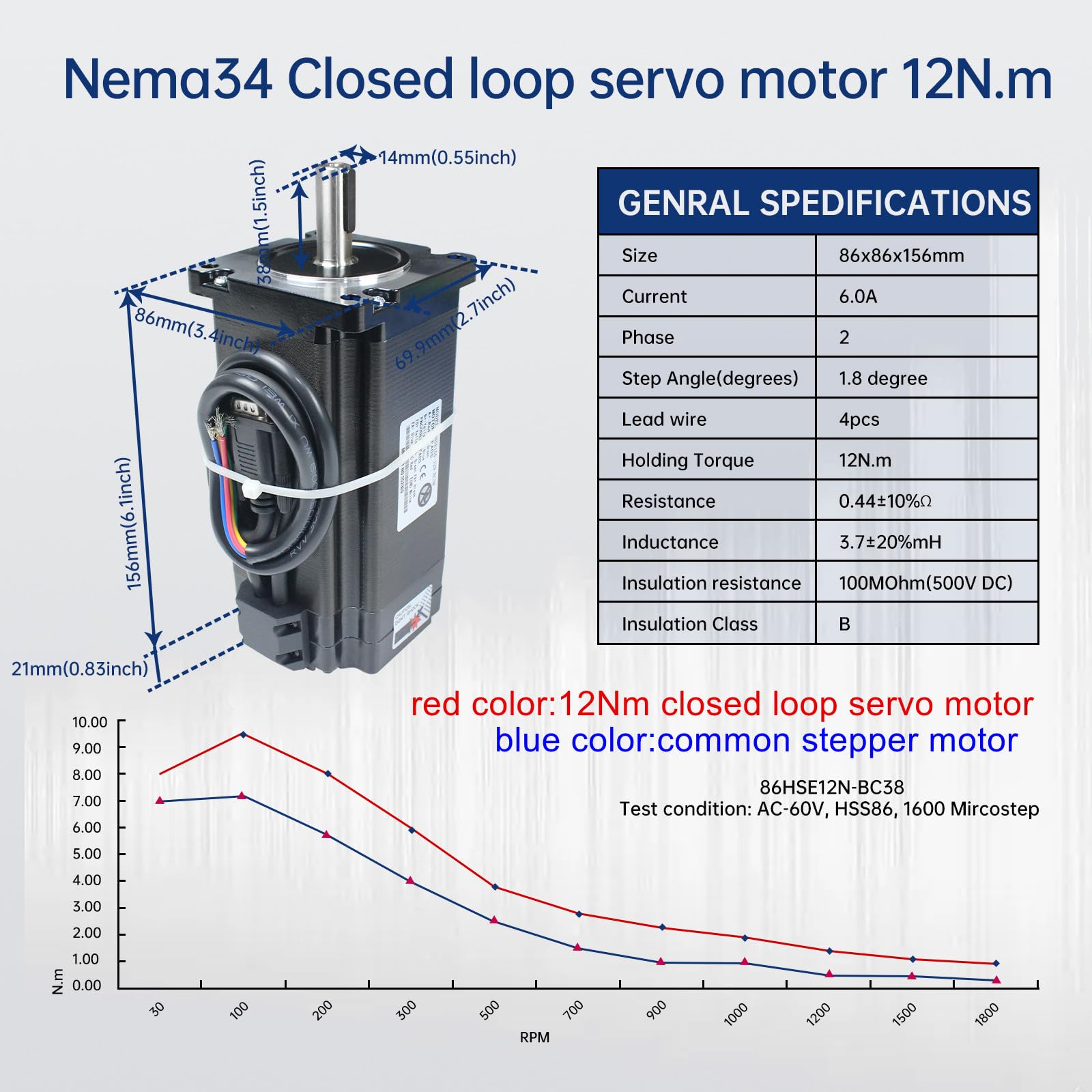

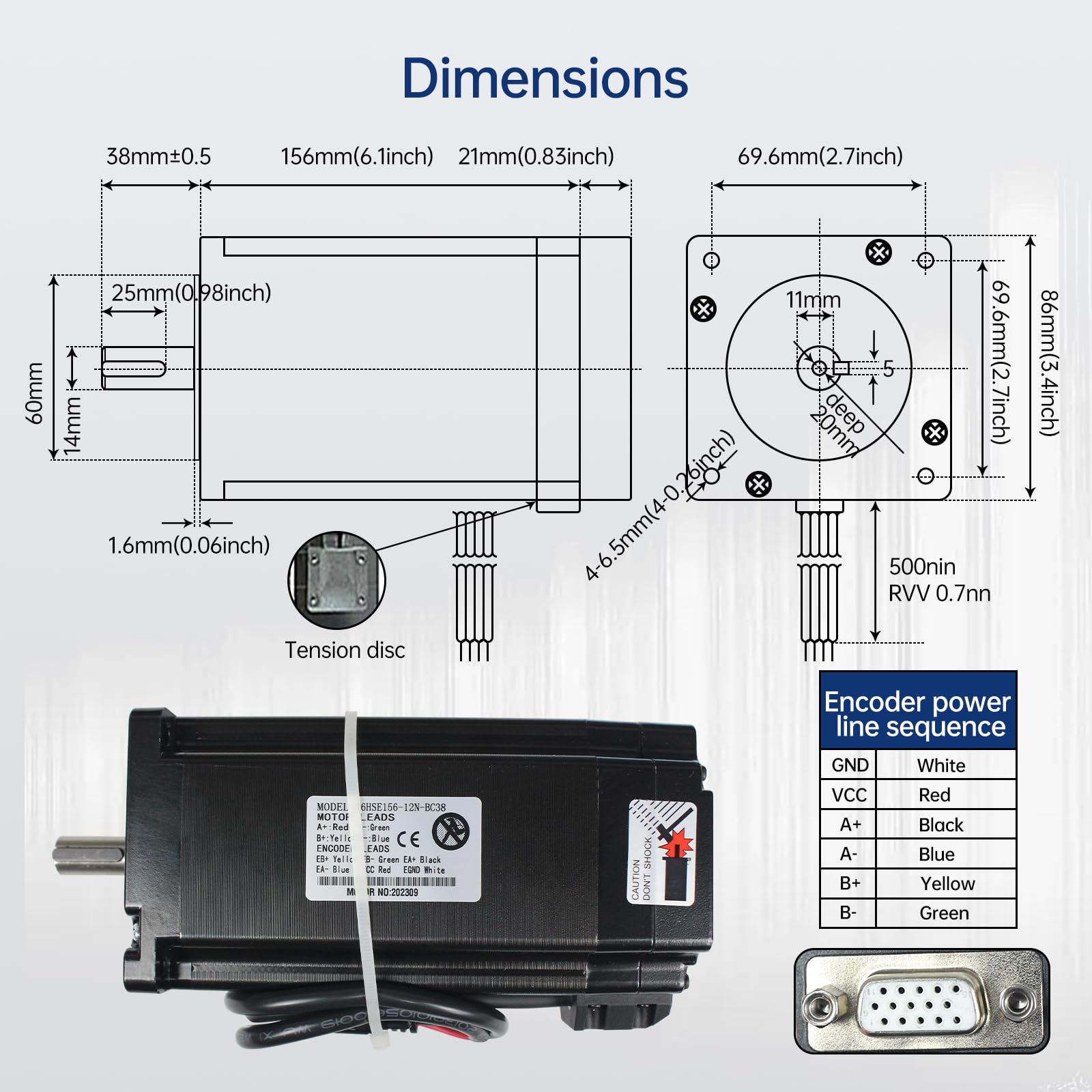

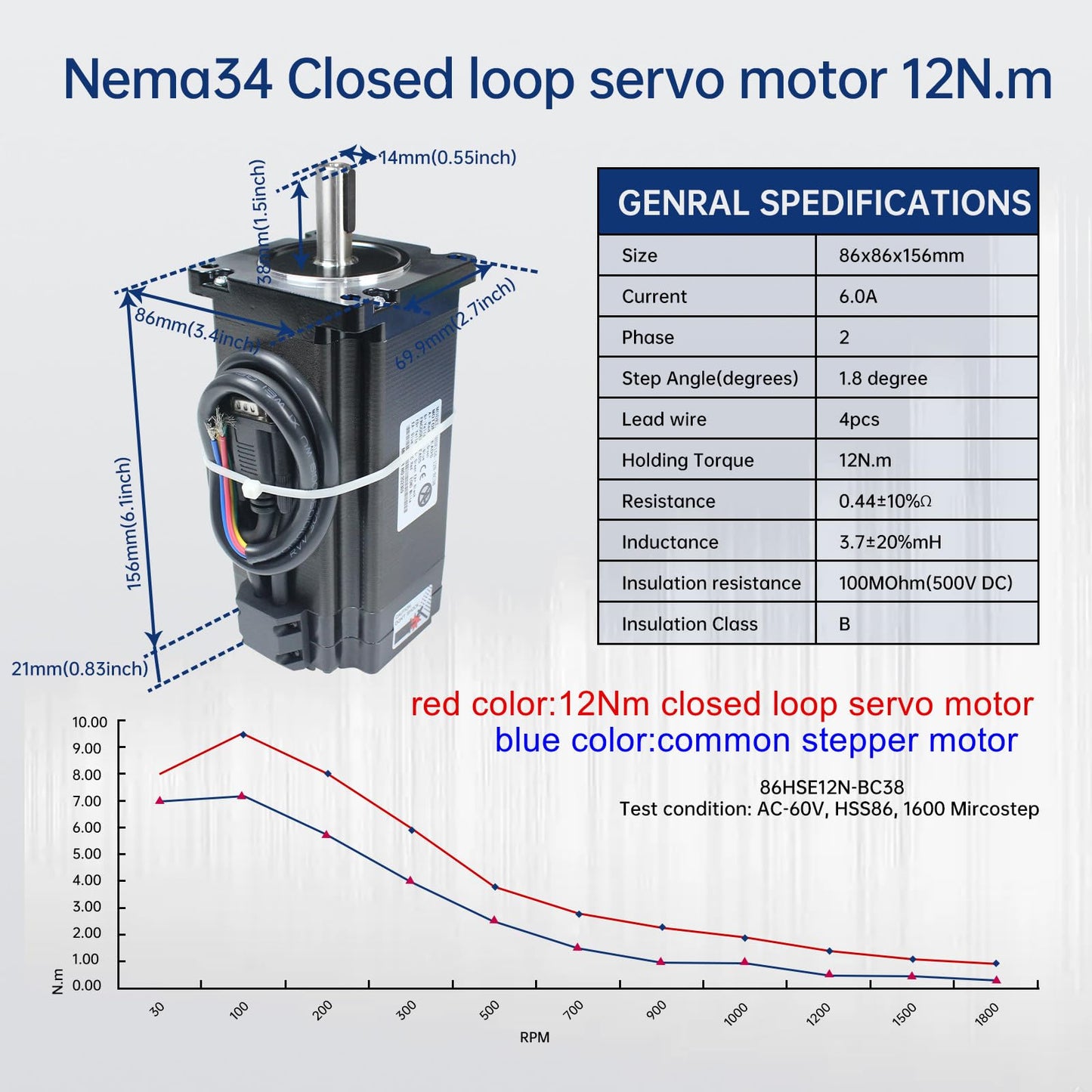

• Specifications of Motor: Model is 86HSE156; Holding Torque:12N.m 1700oz-in; Rated Current:6A; Peak Current:8A; Phase:2-Phase; Size:86x86x156mm; Step Angle:1.8 degree; Motor Lead Wire: 4-Wires; Encoder lines:1000; Shaft diameter: 14mm

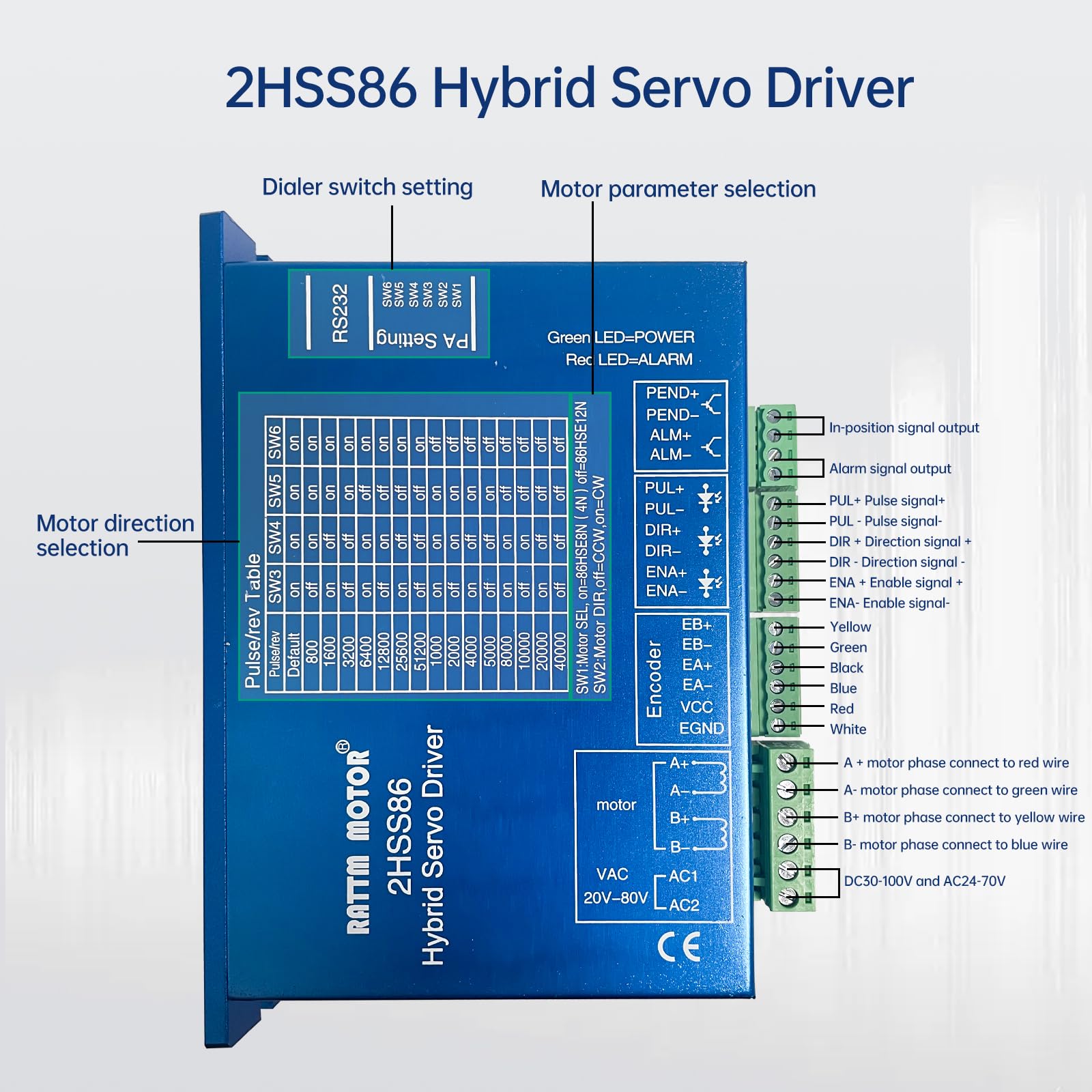

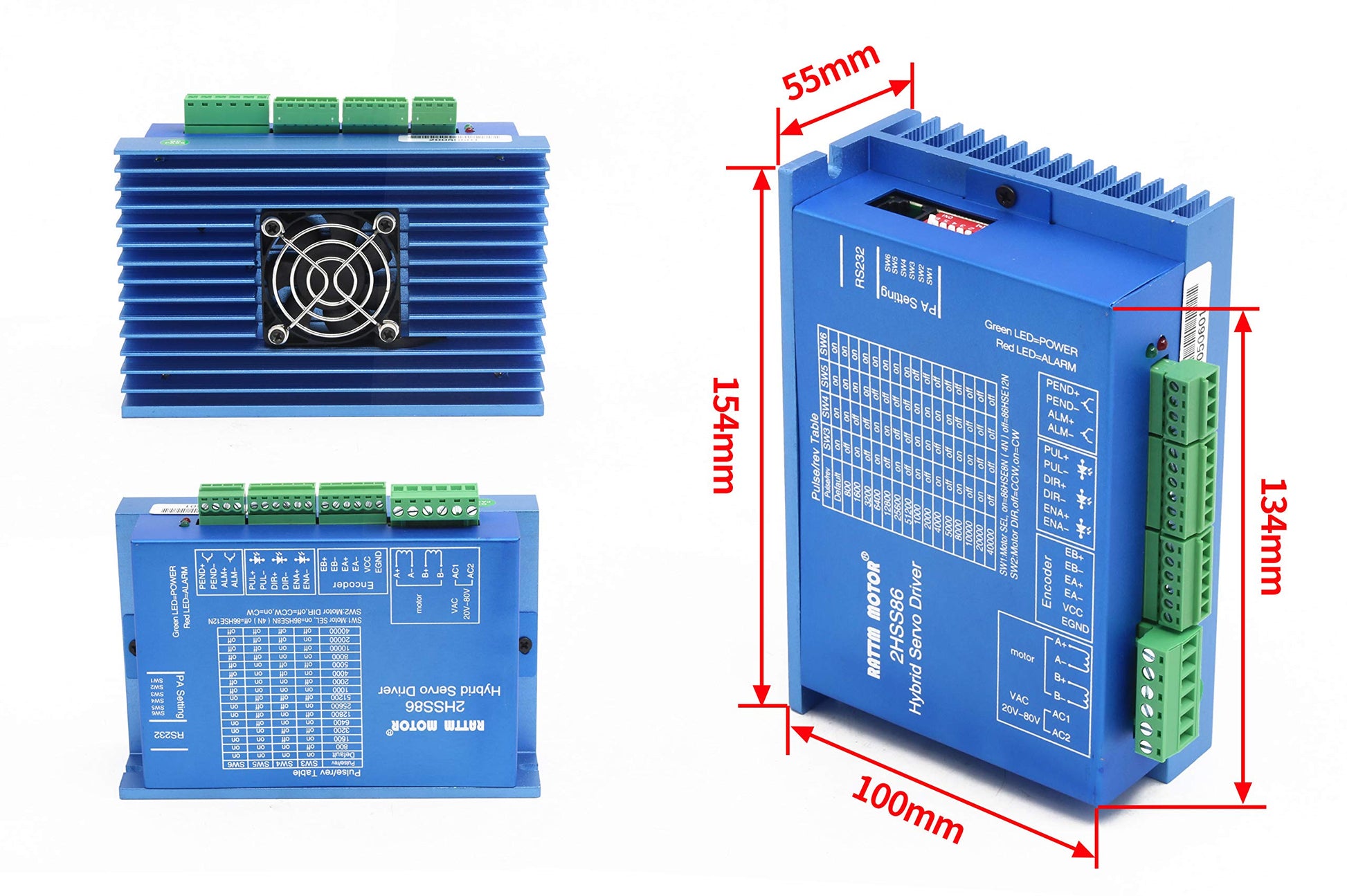

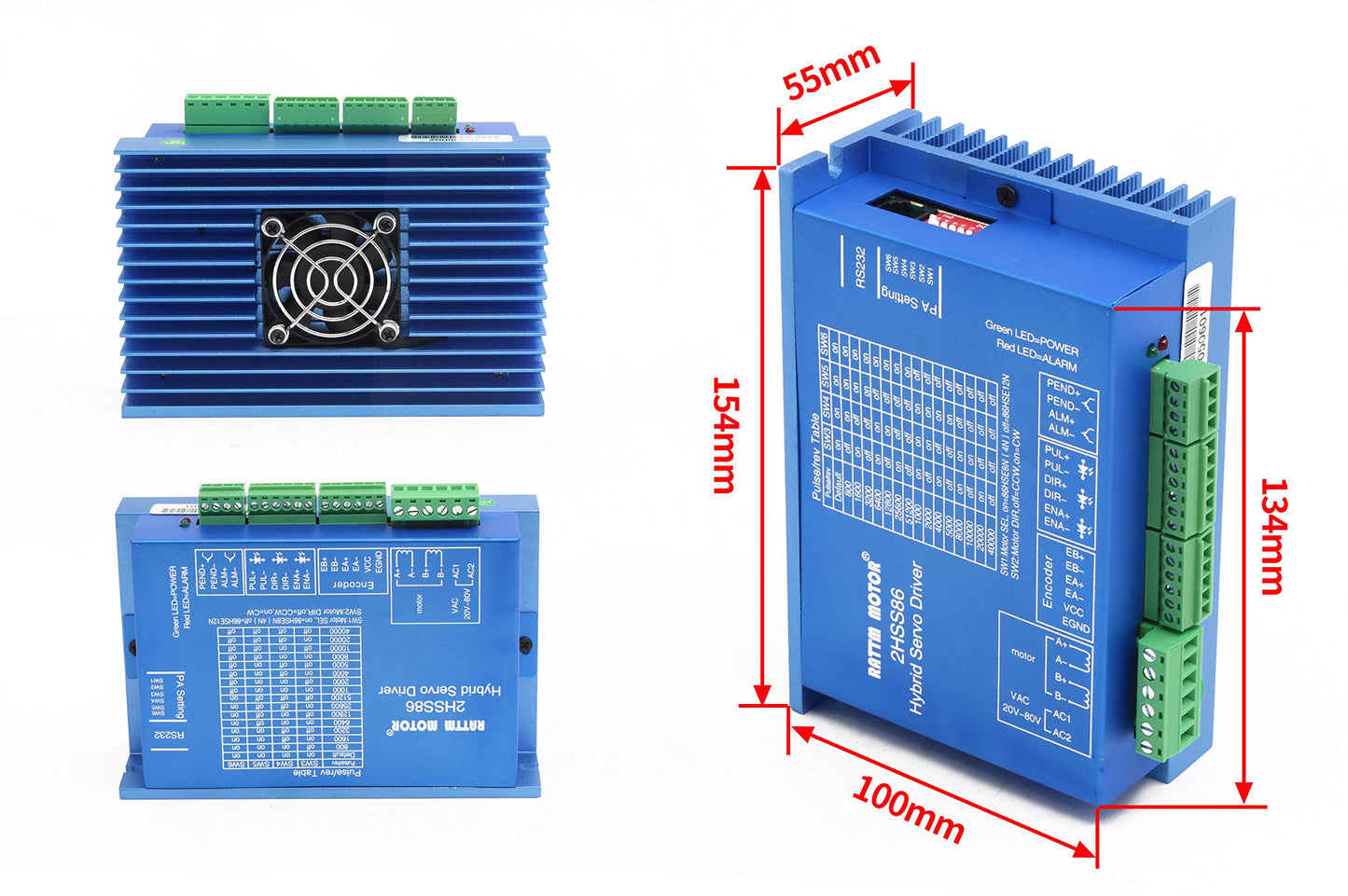

• Specifications of Driver: Model is 2HSS86; Type:2-Phase Hybrid Stepper Servo Driver; Frequency:0-200KHz;Voltage: AC 24-70V or DC 30-100V input
• Advantages:Stepper motor closed loop system,never lose step; The stepper motor control has a new generation of 32-bit DSP; The vector control technology can ensure the accuracy of the motor; Improve motor output torque and working speed; Automatic current adjustment based on load; Pulses response frequency can reach 200KHZ; 16 kinds microsteps choice,highest 51200 microsteps/rev
• More Functions: It supports over-current protection, over-voltage protection, position outside the tolerance protection; The build-in place in position and alarm output signal can help the upper monitor to monitor and control,the function of position ultra difference alarm can ensure the machine work safely

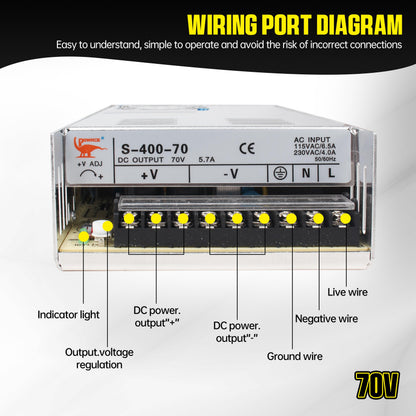

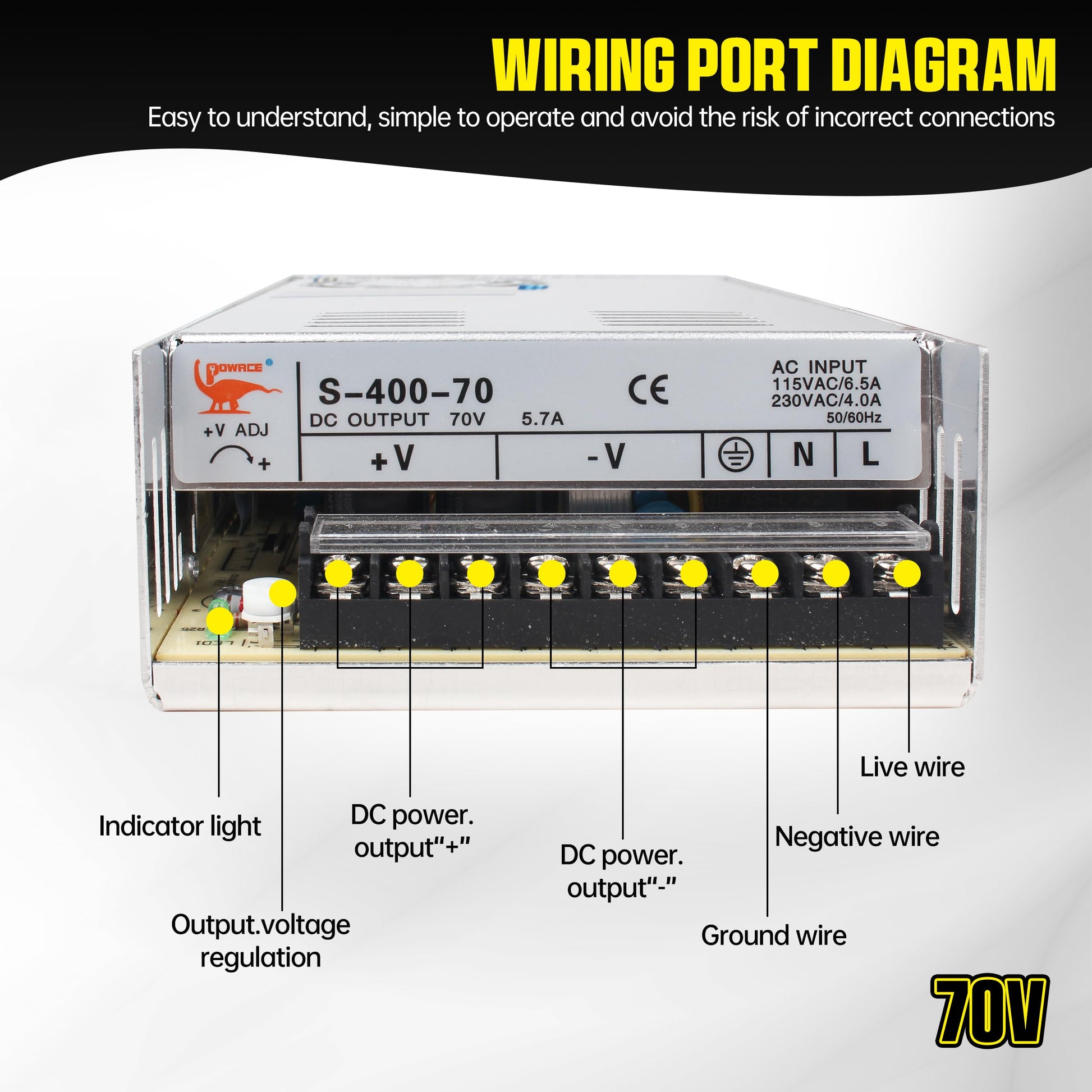

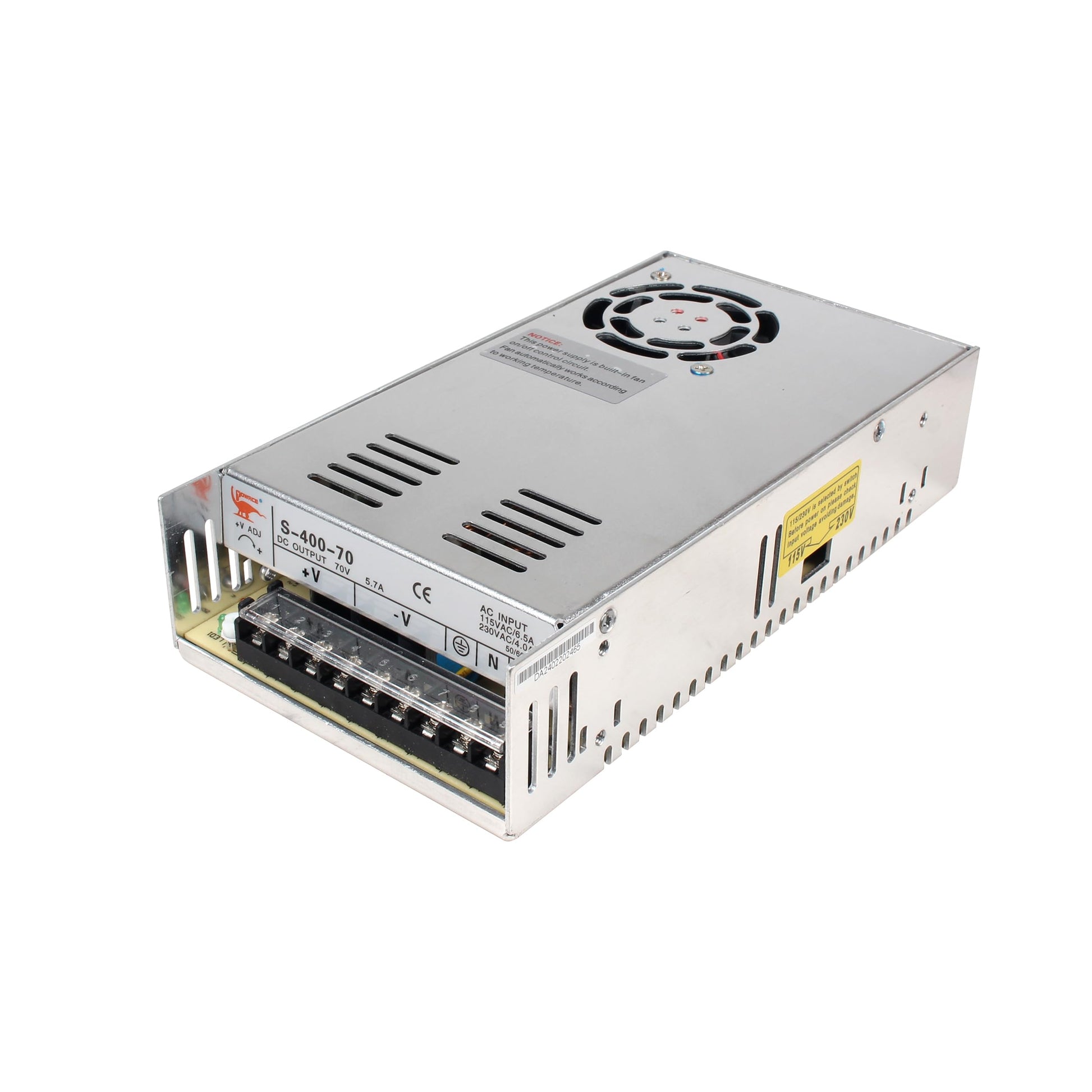

• 400W 70V DC Switching Power Supply; S-400W-70V-5.7A ; Size: 215x115x50mm Input voltage: 115V AC 50Hz or 230V AC 60Hz Please flip the side input voltage selector switch; Output voltage: Output Voltage: 70V DC; Output Current: 0-5.7A ; Output Frequency: 85% ; Output Power: 301-400W
