QNK CNC Spindle Motor Kits,220V 1.5KW CNC Spindle Air Cooled Spindle Motor+220V 1.5KW VFD Single to 3 Phase Inverter Variable Frequency Drive+ ER11 Collet Set

Brand: QNK

Features:

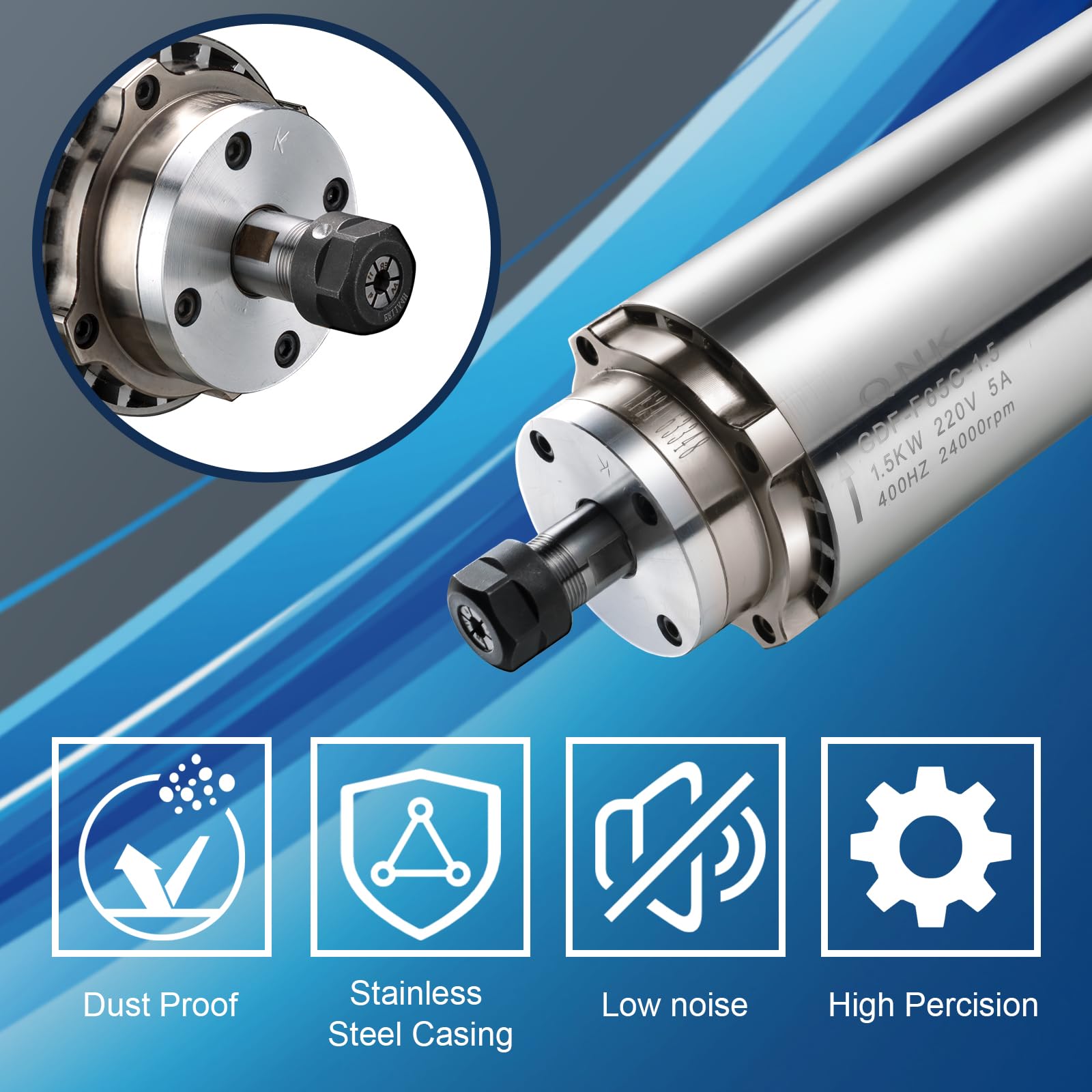

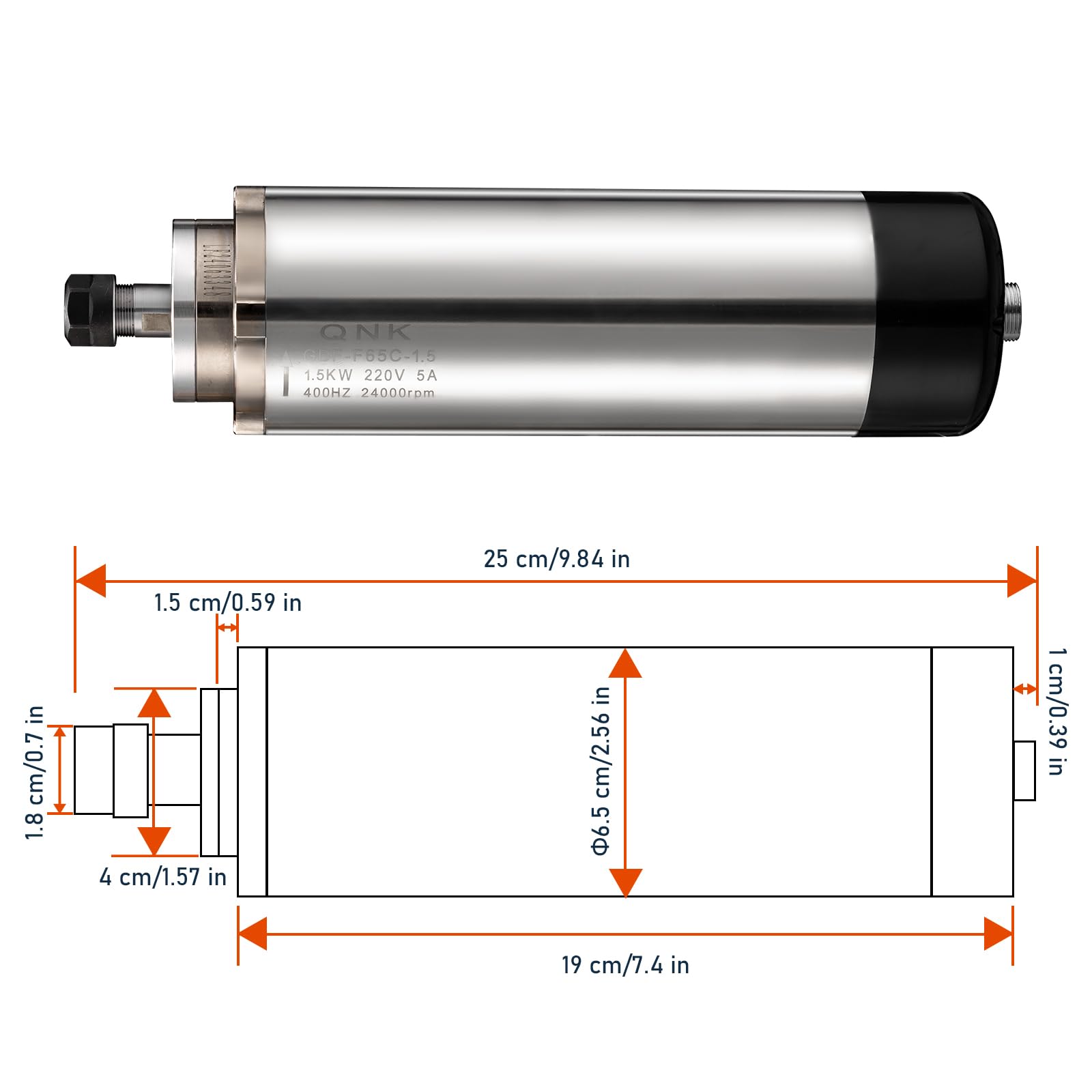

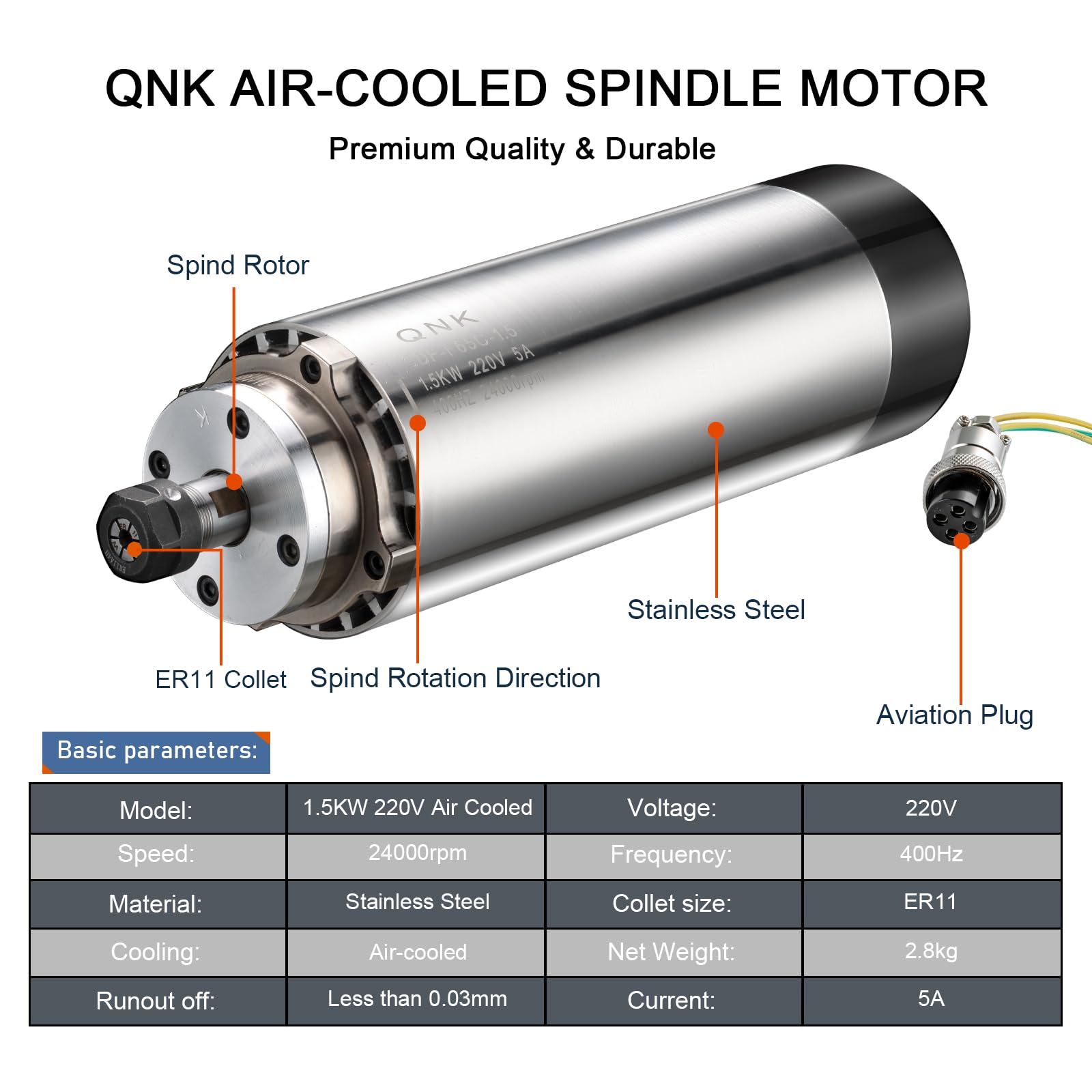

• 【Basic Parameters for CNC Spindle Motor】- Power: 1.5KW, Voltage: 220V, Current: 5A, Speed: 24000RPM, Frequency: 400HZ, Collet: ER11, Net Weight: 2.8KG, Runout off: less than 0.03mm,Diameter： Φ60mm.This spindle motor should be equipped with VFD 220V,400HZ

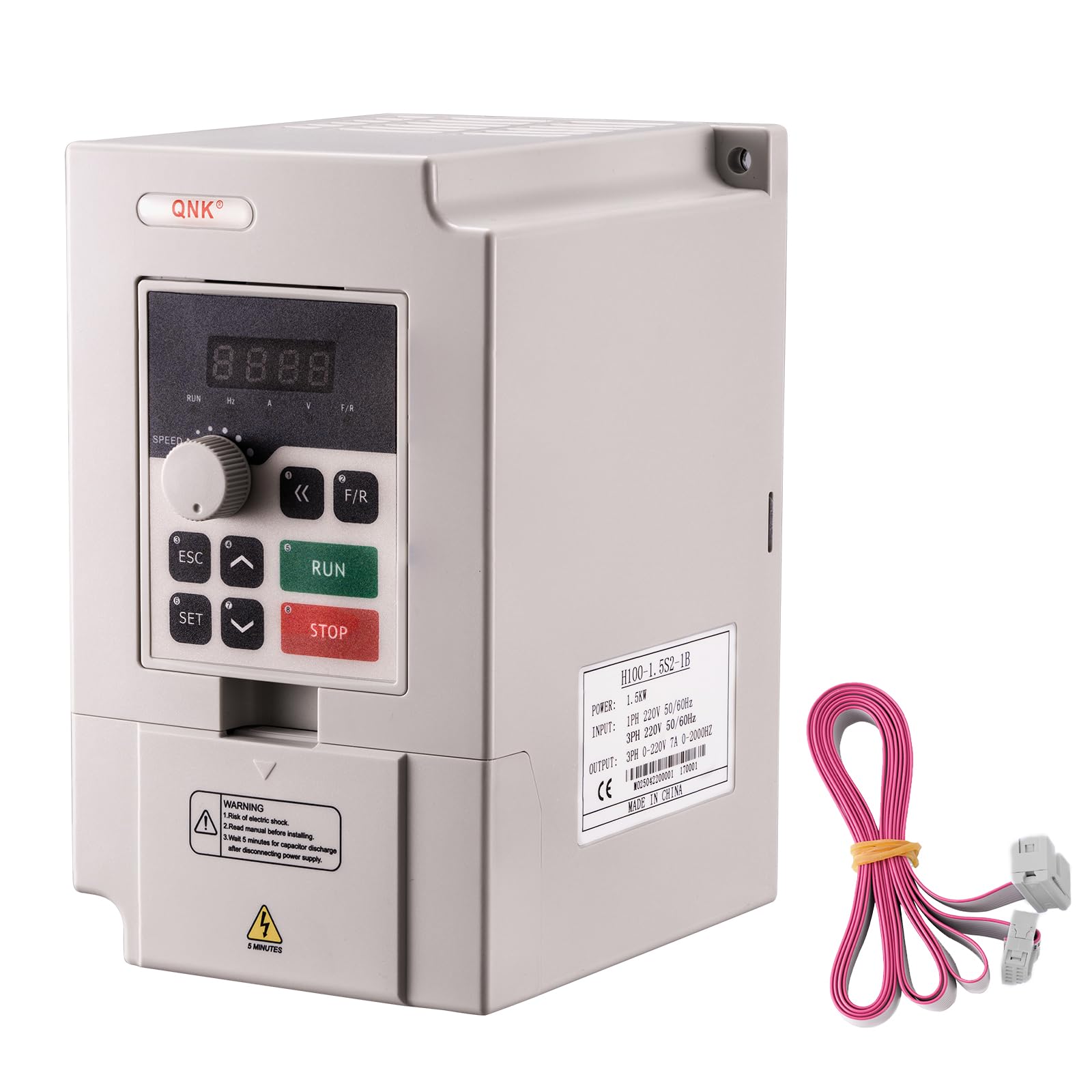

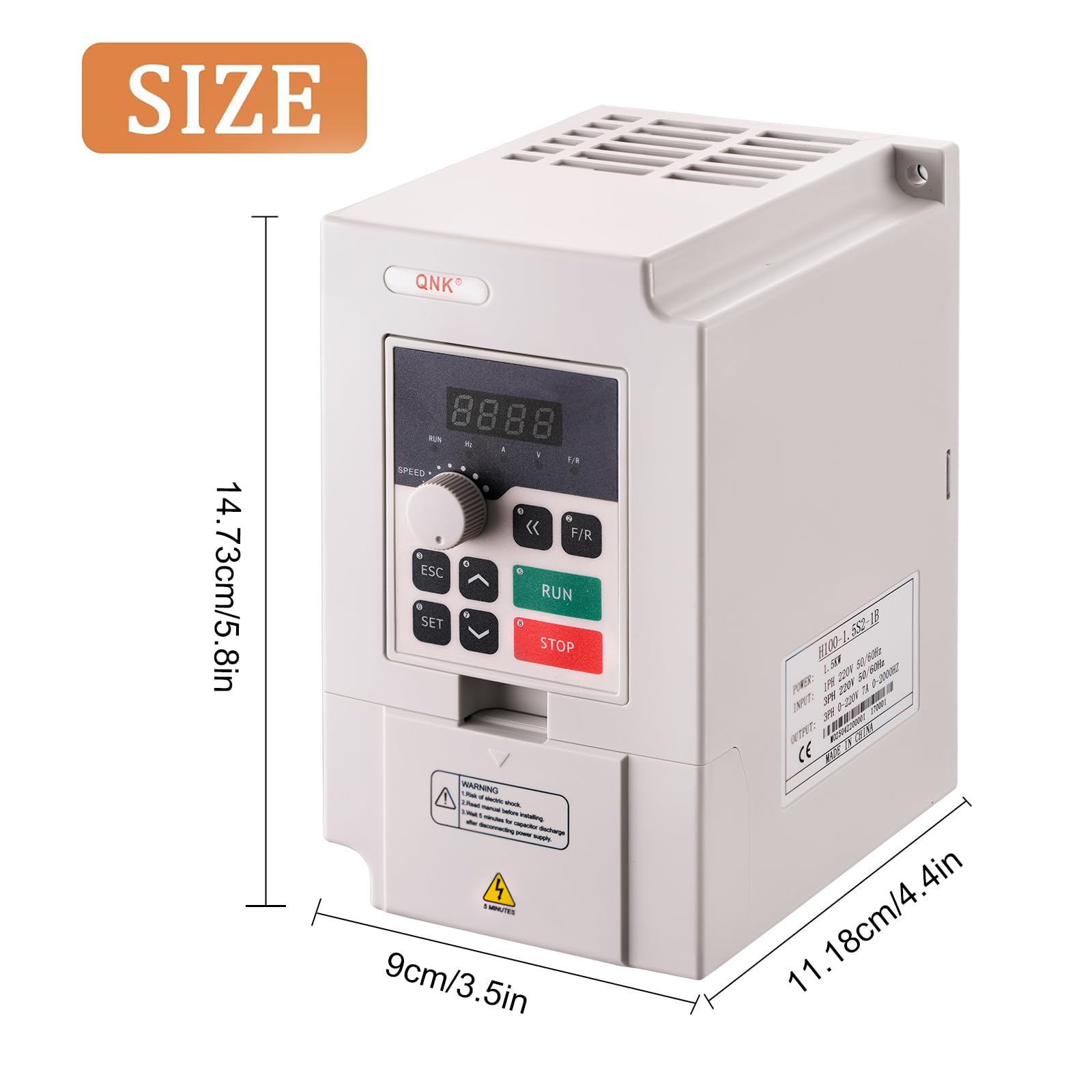

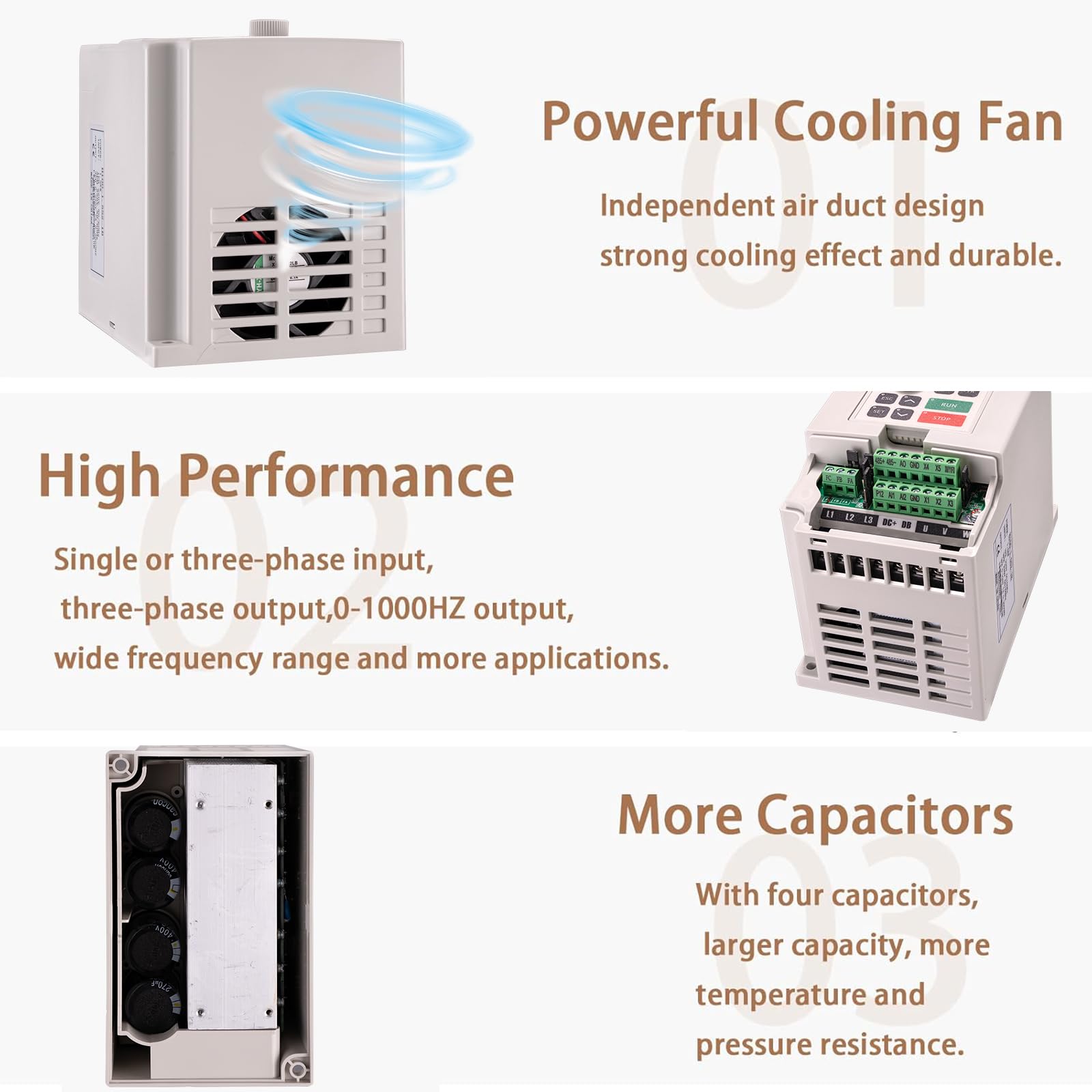

• 【1.5KW (2HP) Variable Frequency Drive】Input: 1-phase/3-phase 220 VAC (+/- 15%), 0-7 A, and 50/60 Hz. Output: 3-phase 220 VAC, 0-7A, and 0-1,000 Hz.
• 【Primary Application】- This spindle motor is usually used with VFD InverterTypes of Drilling and Engraving Materials: such as plastics, soft aluminum,brass, acrylics, PVC, PCB, wood,plywood, nylon,ect; The VFD can be used in various types of equipment such as Spindle Motors, CNC Routers, Milling Machines, Pumps, Compressors, Grinders, among others
• 【How to Connect The Spindle Motor】The spindle motor's aviation plug marked with number 1, 2, 3, 4. Number 1, 2, 3 port are connected with inverter's port U, V, W respectively. Number 4 is the ground wire, no wiring is required

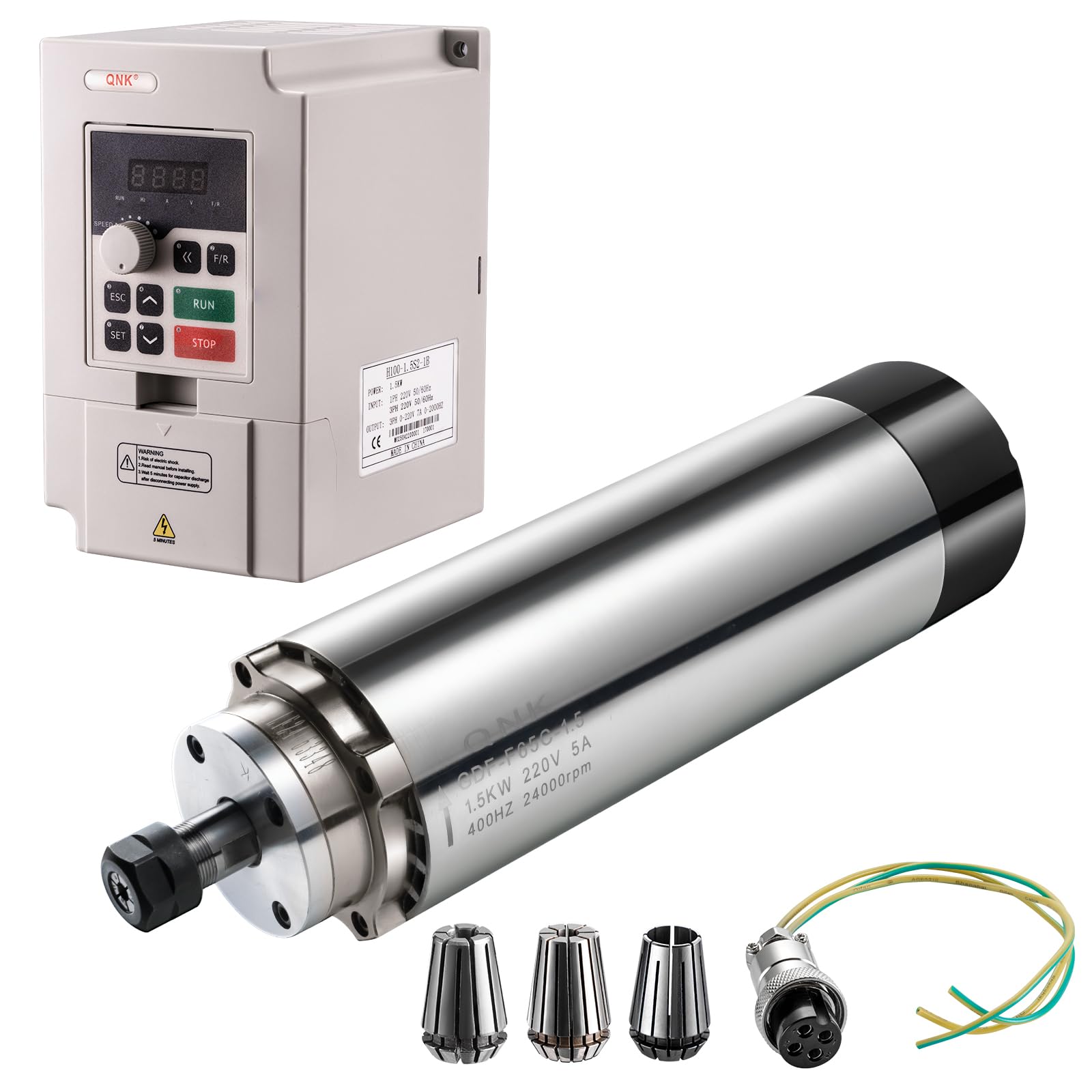

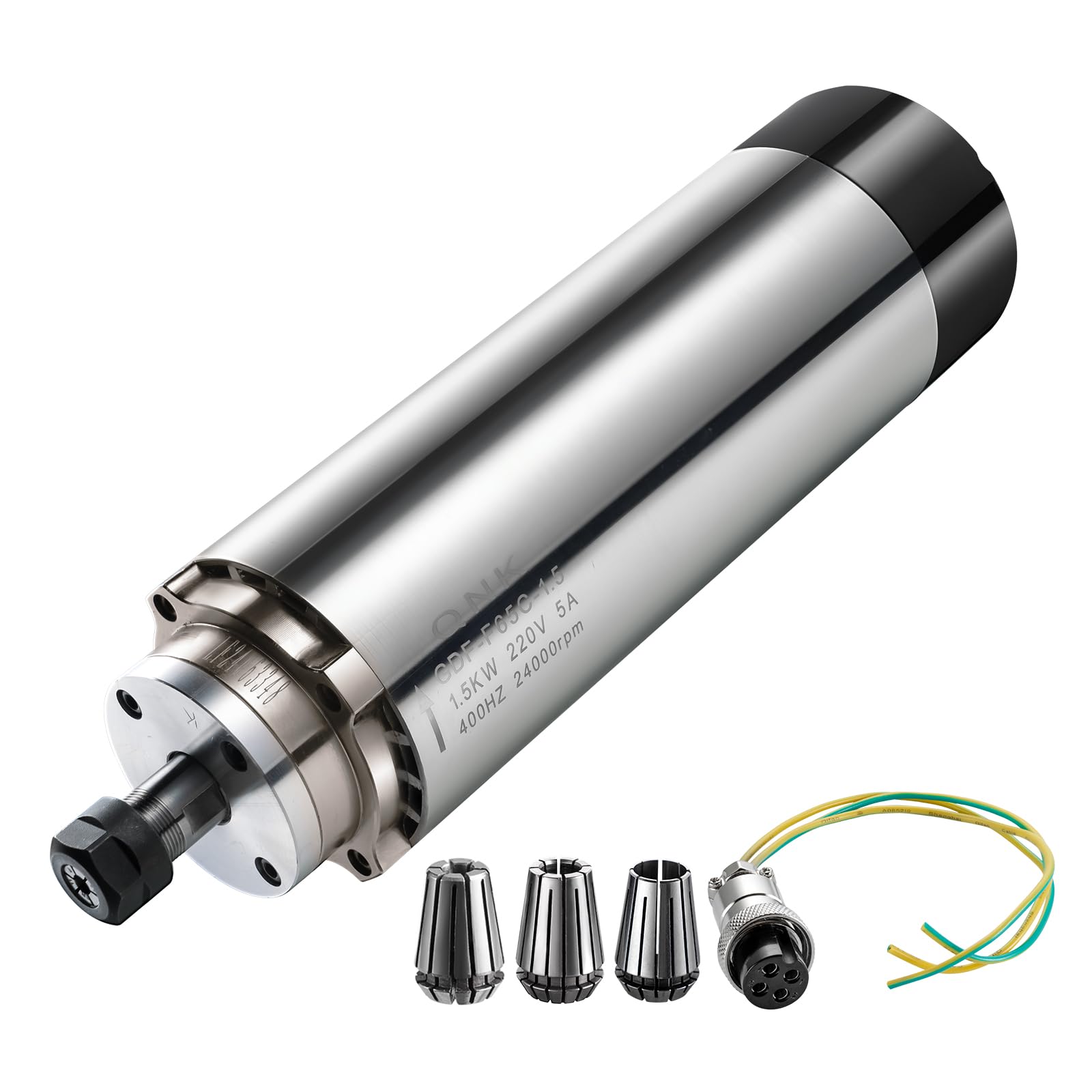

• 【Package Include】- 1x VFD Converter,1x Air Cooled Spindle Motor, 1x Aviation Wire, 3x Collets(ER11-3.175mm, ER11-4mm, ER11-6mm)
