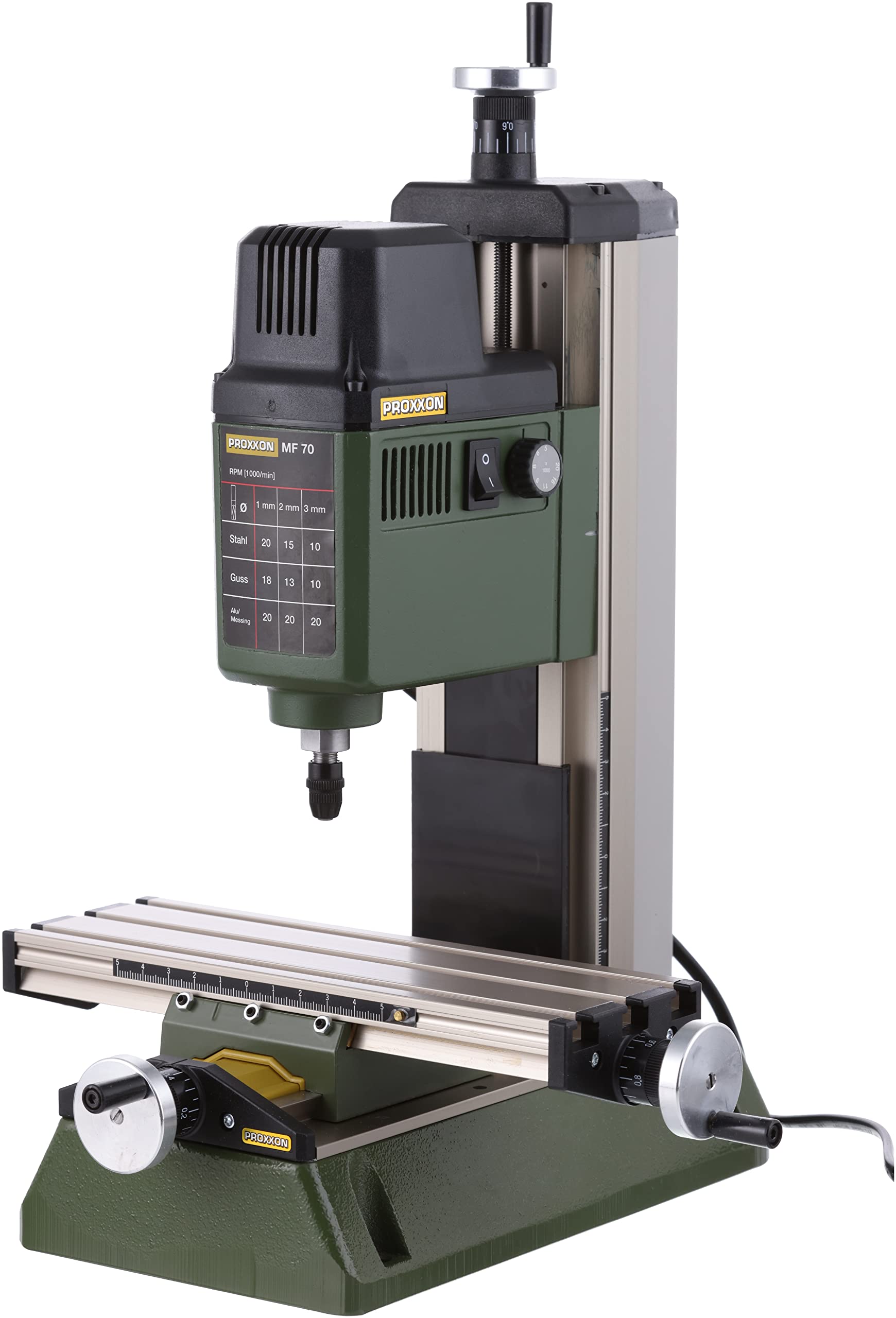

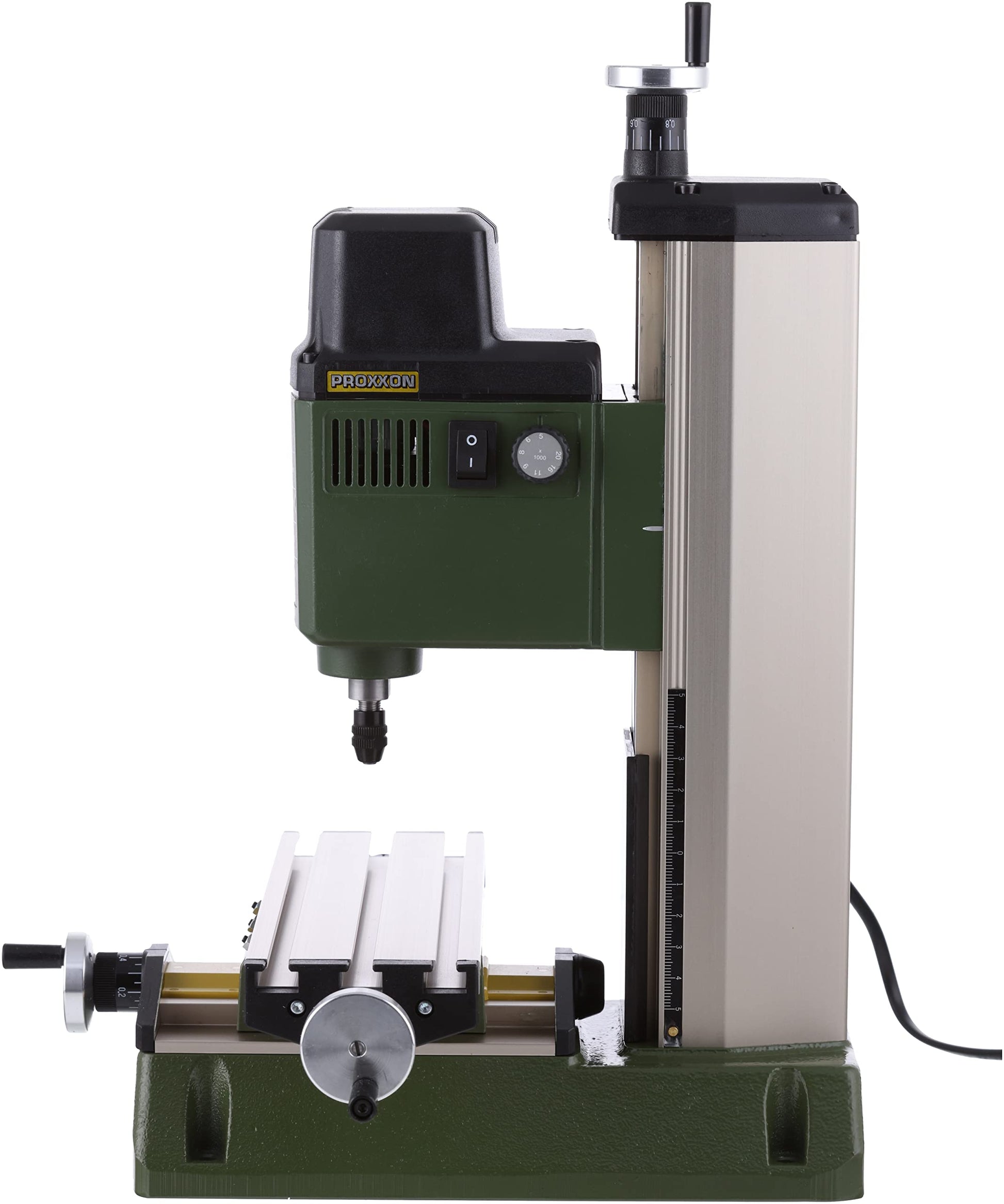

Proxxon Micromot MF 70Milling Machine

Brand: PROXXON

Color: Metal

Features:

• EAN 4006274271104
• Proxxon 27110
• MICRO Miller MF 70

model number: 27110

Part Number: 27110

Details: Stable grey-cast iron machine base, vertical guide and compound table. Free from play, readjustable dovetail gib in all axes. Die-cast aluminium arm housing, with 24-pin special motor (balanced). For vibration-free work at high speeds.

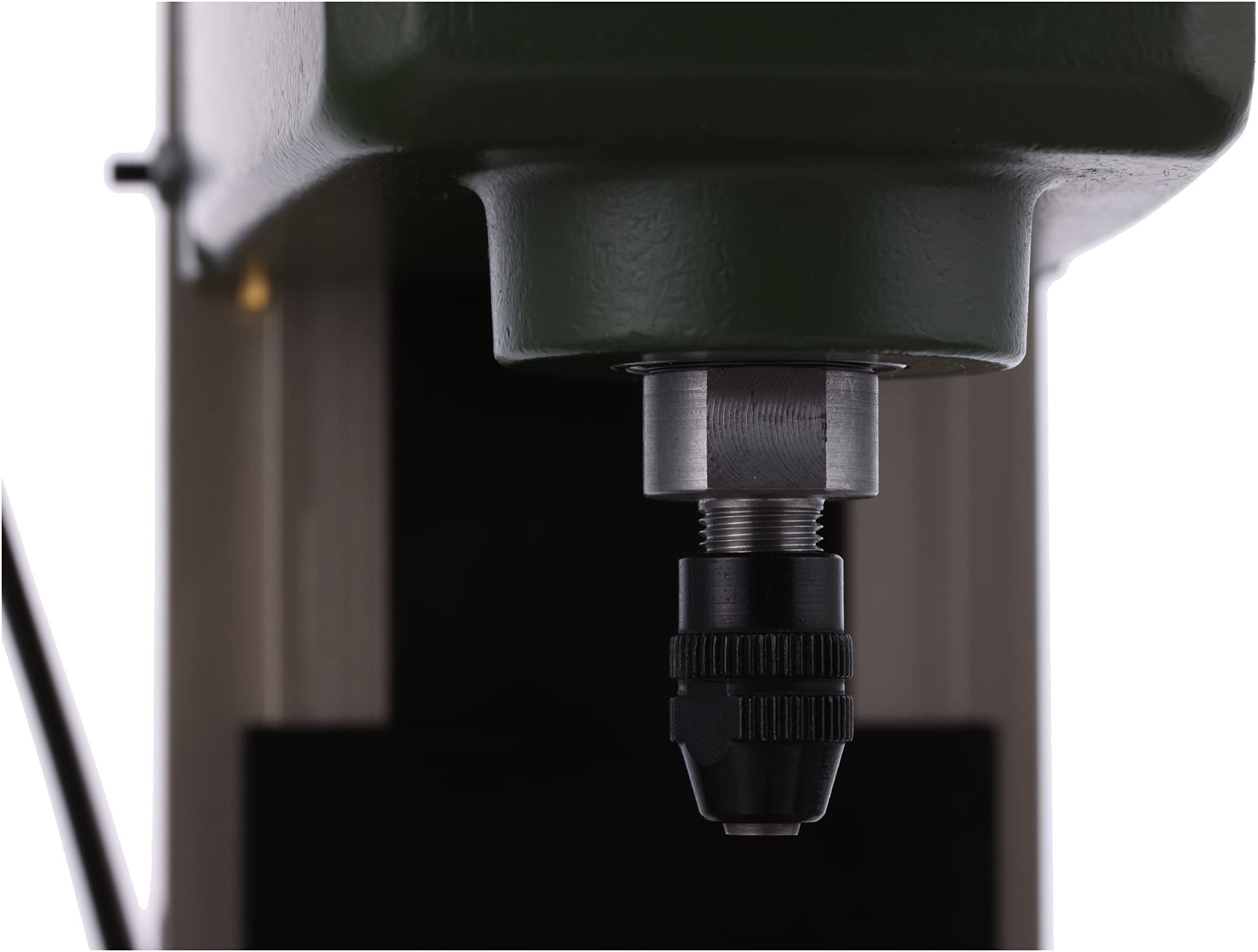

The triple slit, hardened steel MICROMOT collets cover 1 - 1.5 - 2 - 2.35 - 3 - 3.2mm. The table is fitted with 3 T-slots of the 12 x 6 x 5mm MICROMOT norm. An adjustable ruler scale eases the positioning of the workpiece.
Technical data:
-230V, 100W, 50/60Hz. -Spindle speeds 5,000 - 20,000rpm. -Table 200 x 70mm with X-Y travel of 134 and 46mm respectively, with vertical travel 80mm. -Footprint size 130 x 225mm and overall height 370mm. -Weight approx. 7kg. -The clamping blocks depicted are included too, but not the workpiece!
- Supplied complete with stepped clamp blocks of steel.
- Table of stable aluminium. Both axes are fitted with adjustable dovetail slides.
- Continuously variable speed from 5,000 - 20,000rpm, perfect for even the smallest milling cutter.
- Stable cast iron base
- MICROMOT steel collets, triple slit and hardened, from 1.0 to 3.2mm

EAN: 4006274271104

Package Dimensions: 23.7 x 15.0 x 10.4 inches
