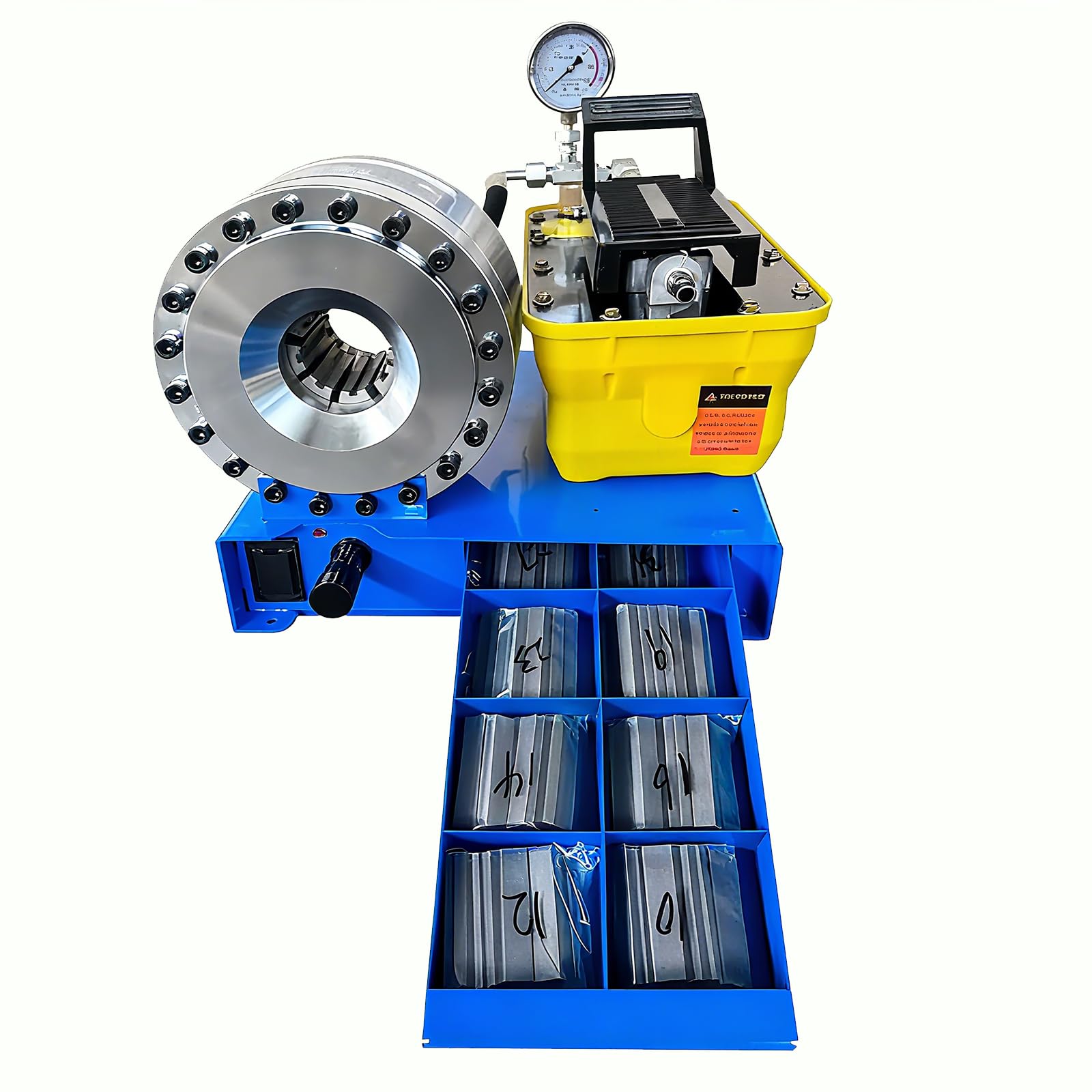

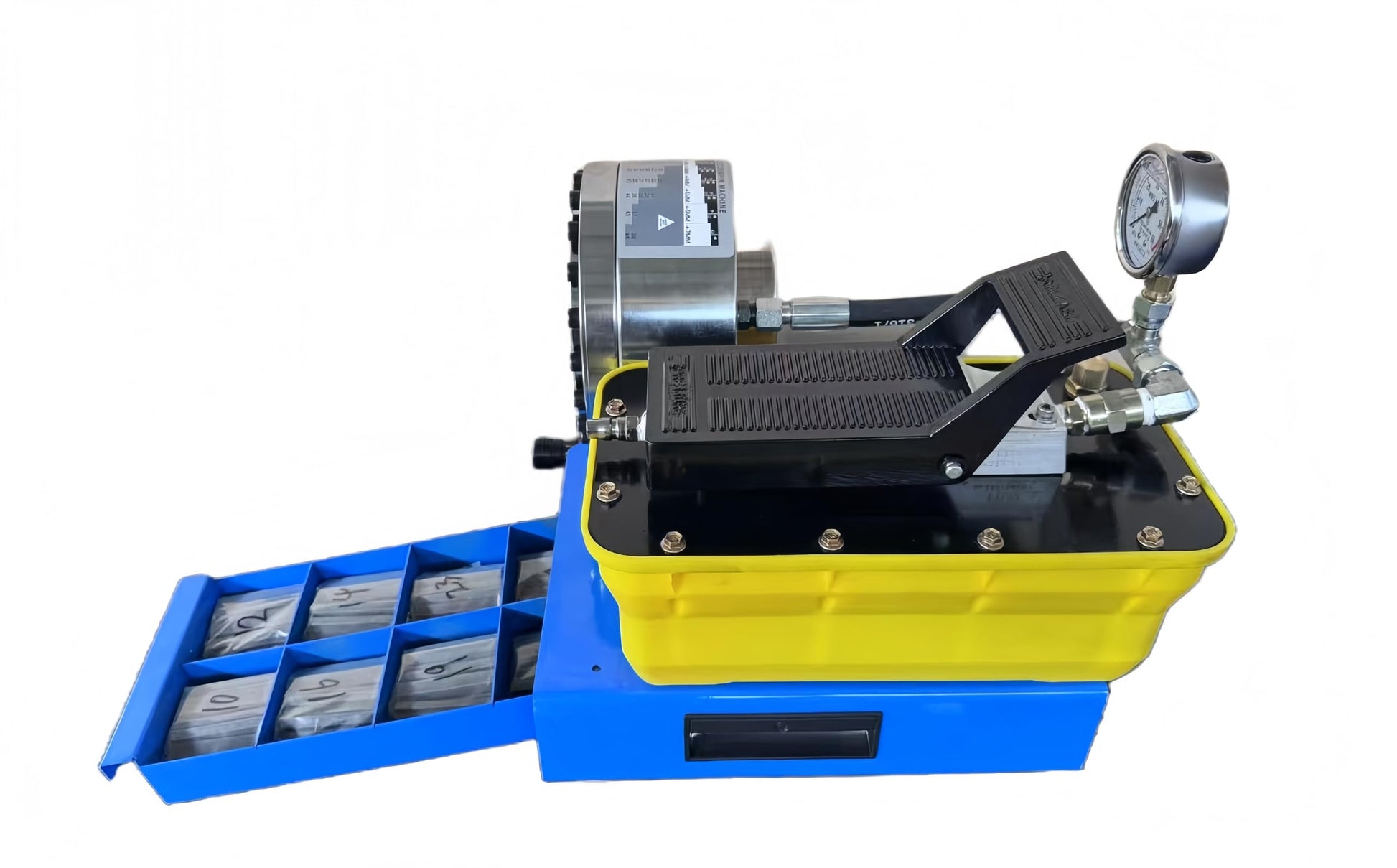

Pneumatic Hydraulic Hose Crimping Machine with 8 Sets of Dies, 40MPa System Pressure, suitable for high-pressure hydraulic hoses and pipes (Plastic Pump Casing)

Brand: Acdesino

Features:

• Equipped with 8 interchangeable dies (10/12/14/16/19/23/27/31 mm), this pneumatic hydraulic crimping machine supports hoses with an outer diameter up to 32 mm and inner diameter up to 25 mm.
• Designed to work with 1/4' to 1' hydraulic hoses reinforced with two layers of steel wire (R2), and 3/4' hoses with double steel wire (2AP/SH).

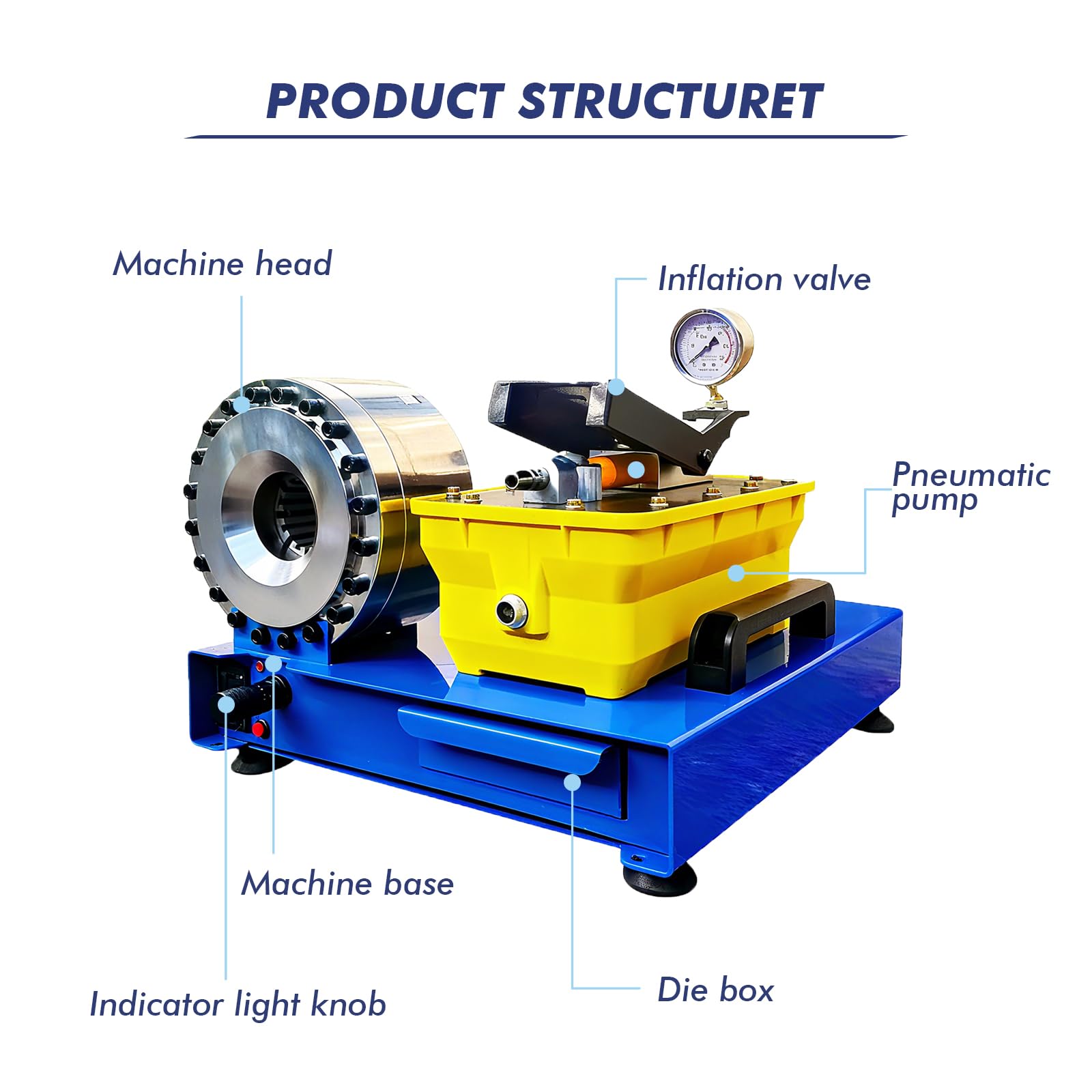

• Built with a reinforced plastic pump casing and the same 1.6–2.3L high-capacity oil tank, this machine provides consistent and dependable performance even in high-pressure applications.
• It operates at a system pressure of 40MPa and has an air inlet size of 1/4 inch, with a 3/8 inch oil outlet. The crimping head allows for a maximum opening of 55 mm without dies and 45 mm with dies.
• Durable and precise, this machine is ideal for mechanical oil pipes, air conditioning hoses, water and gas lines, fuel pipes, cable joints, and more.

model number: Acd2599

Part Number: Acd2599

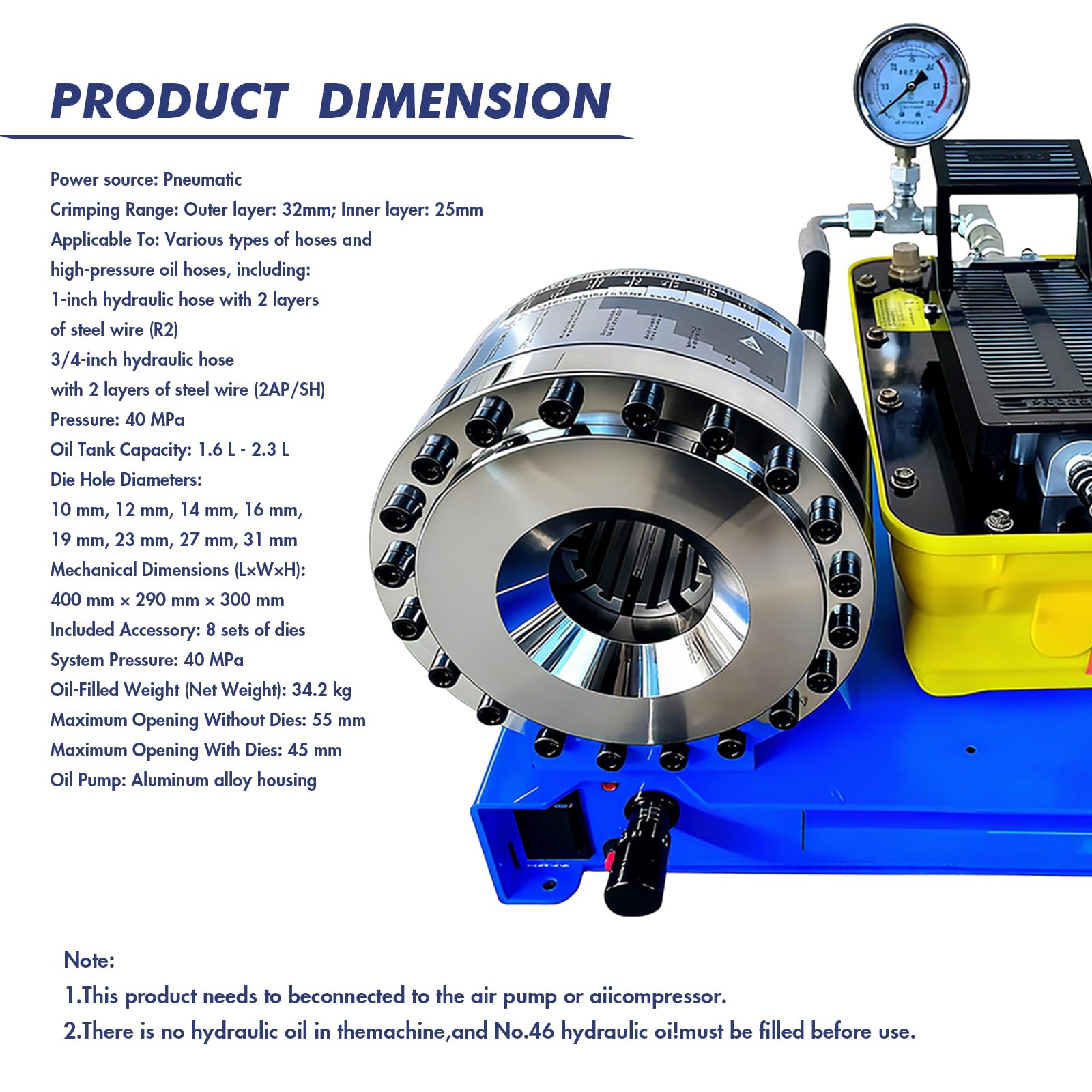

Details: Crimping range (outer): ≤ 32 mm
Crimping range (inner): ≤ 25 mm
Crimping force: 95 tons

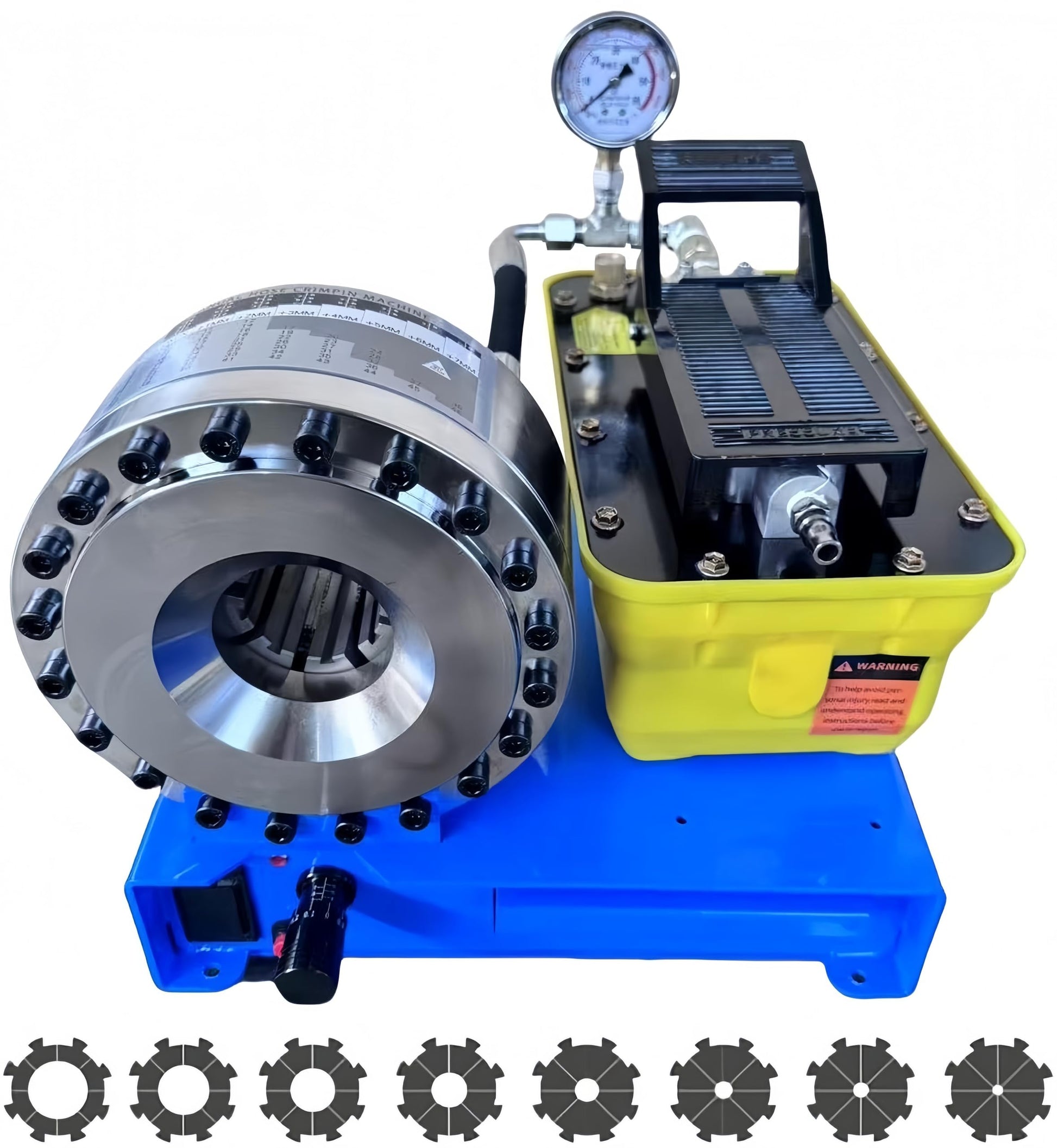

Die sizes: 10 / 12 / 14 / 16 / 19 / 23 / 27 / 31 mm
Max opening without dies: 55 mm
Max opening with dies: 45 mm

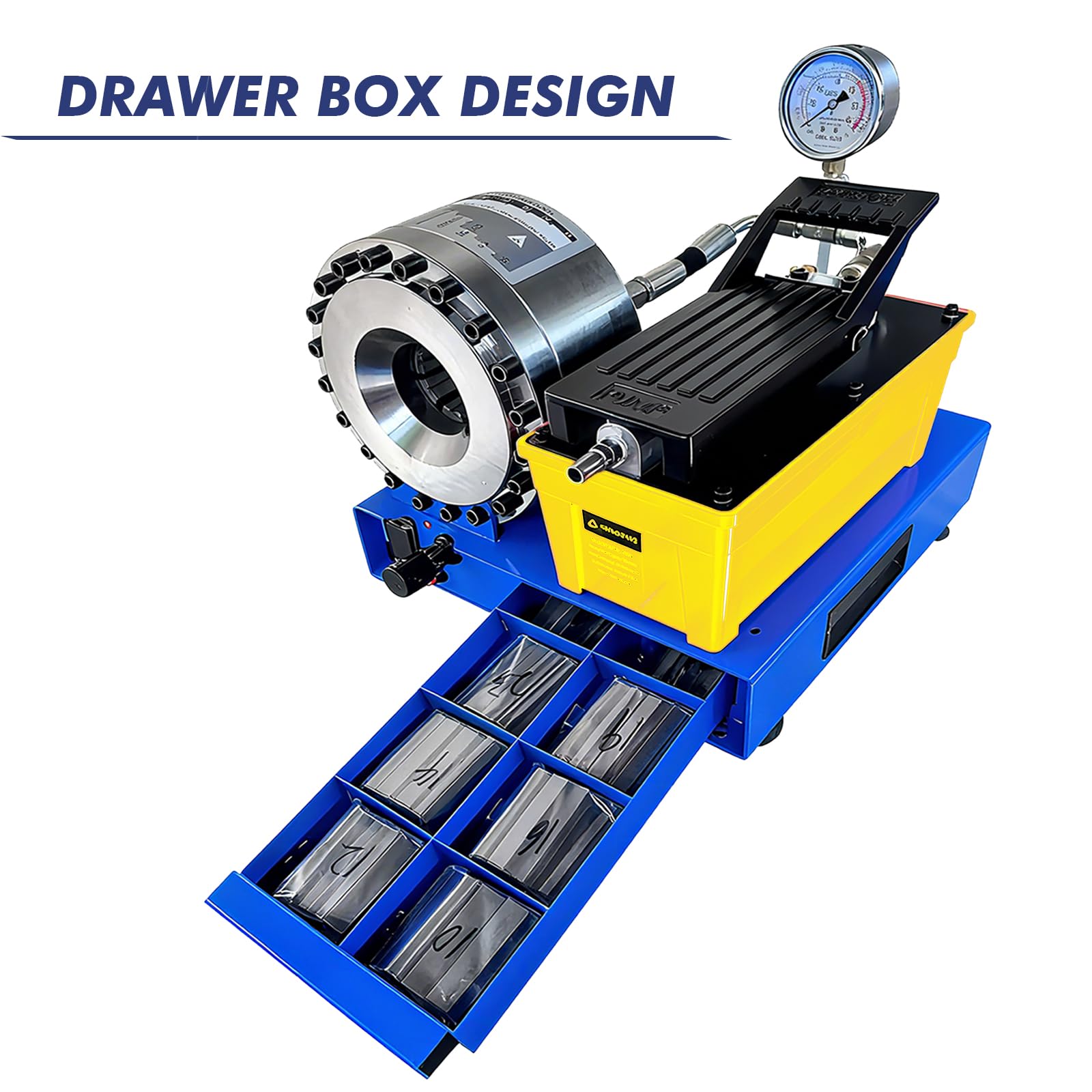

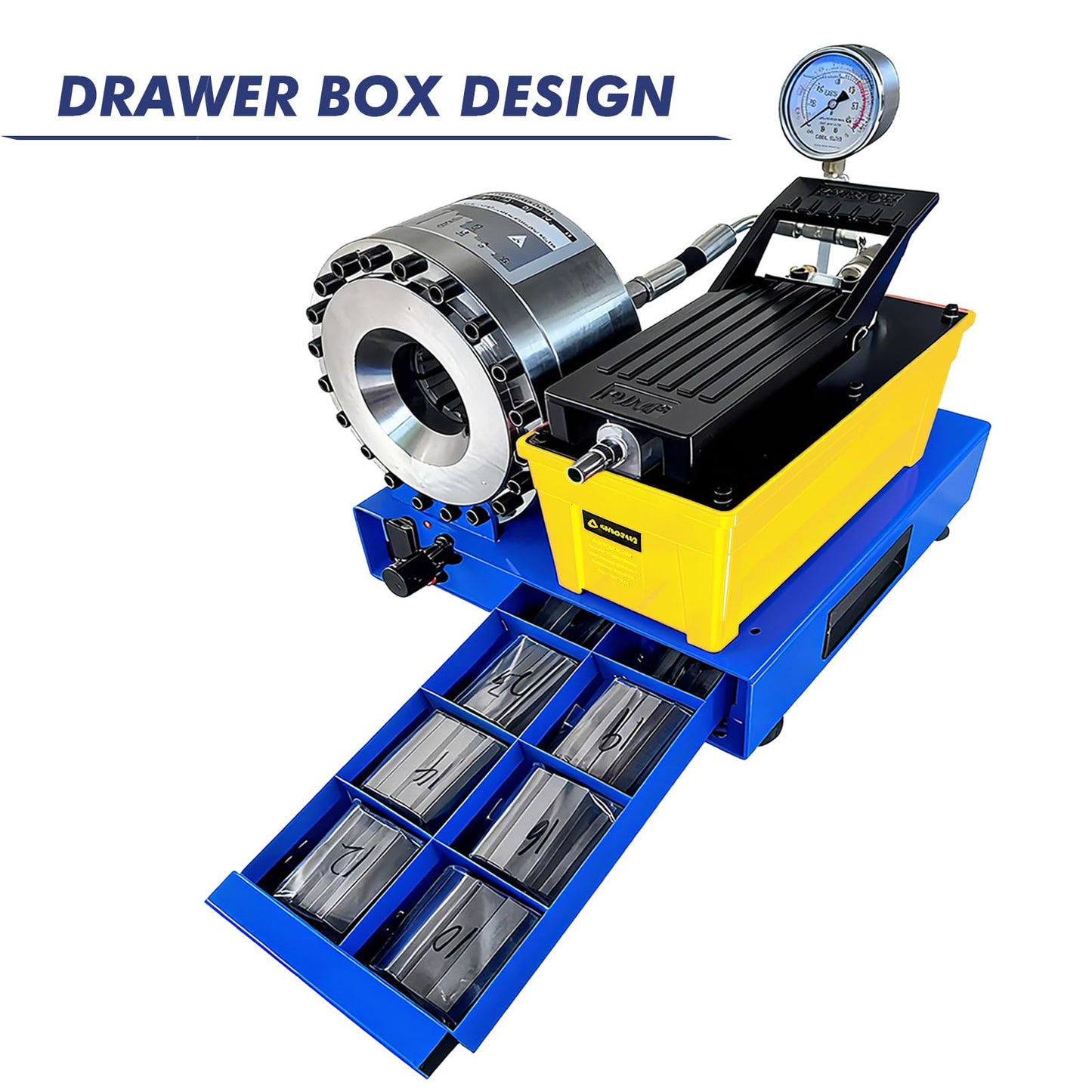

Number of dies: 8 sets (included)
Oil tank capacity: 1.6–2.3 L

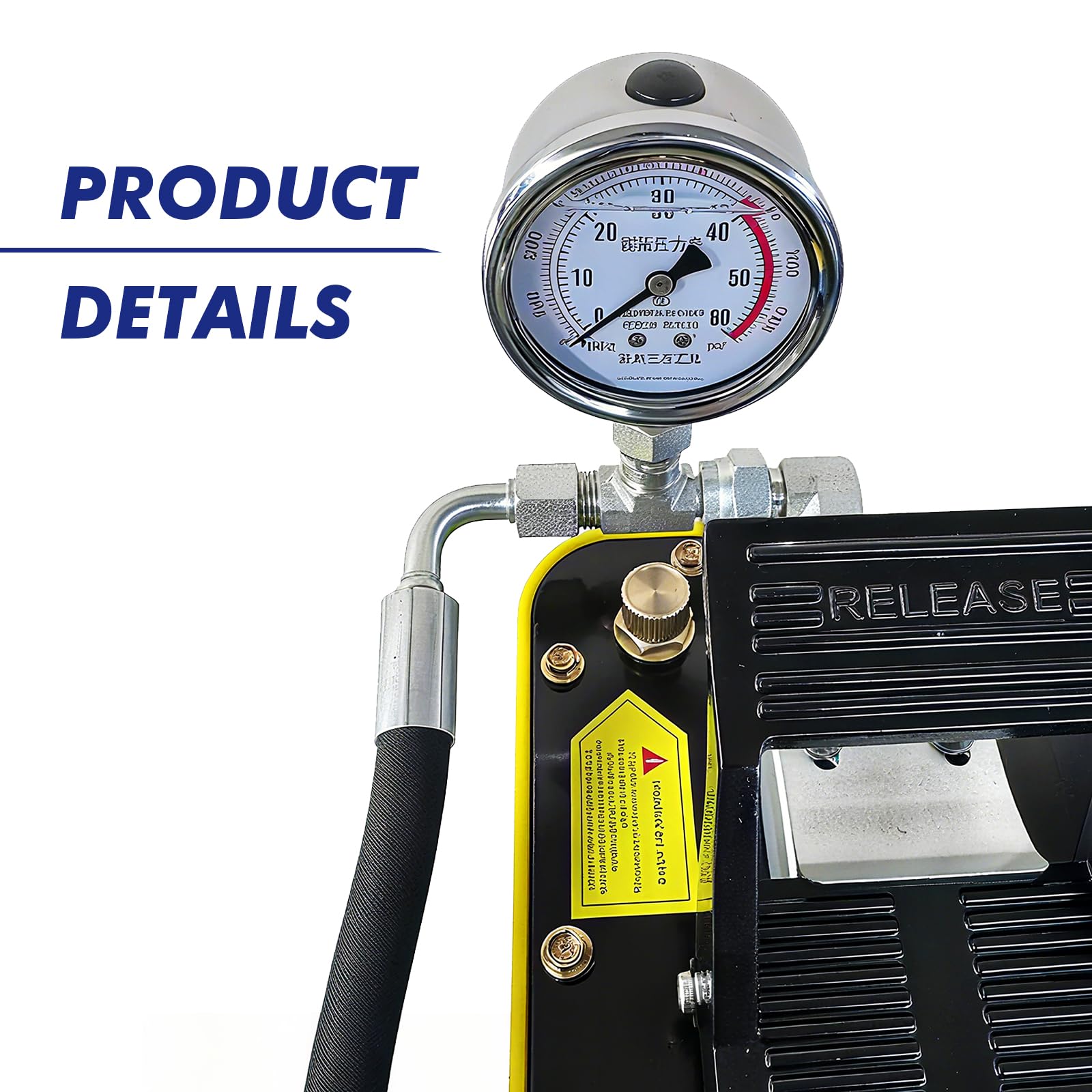

System pressure: 40 MPa
Oil outlet: 3/8 inch
Air inlet: 1/4 inch
Recommended oil: No. 46 hydraulic oil (sold separately)
Dimensions (L×W×H): 400 × 290 × 300 mm
Net weight (with oil): 34.2 kg
Pump housing: Aluminum alloy/ABS

EAN: 0744316363700

Package Dimensions: 15.0 x 15.0 x 14.0 inches
