Little Giant 9S-SMPXRT-K 4/10 HP, 115-Volt, 6000 GPH Pre-Packaged Simplex Sewage Basin/Pump System - Assembly Required, Black/Blue, 509074

Brand: Little Giant

Color: White

Features:

• APPLICATIONS: suitable for 2-inch discharge sewage or effluent systems with 2-inch or 3-inch vents

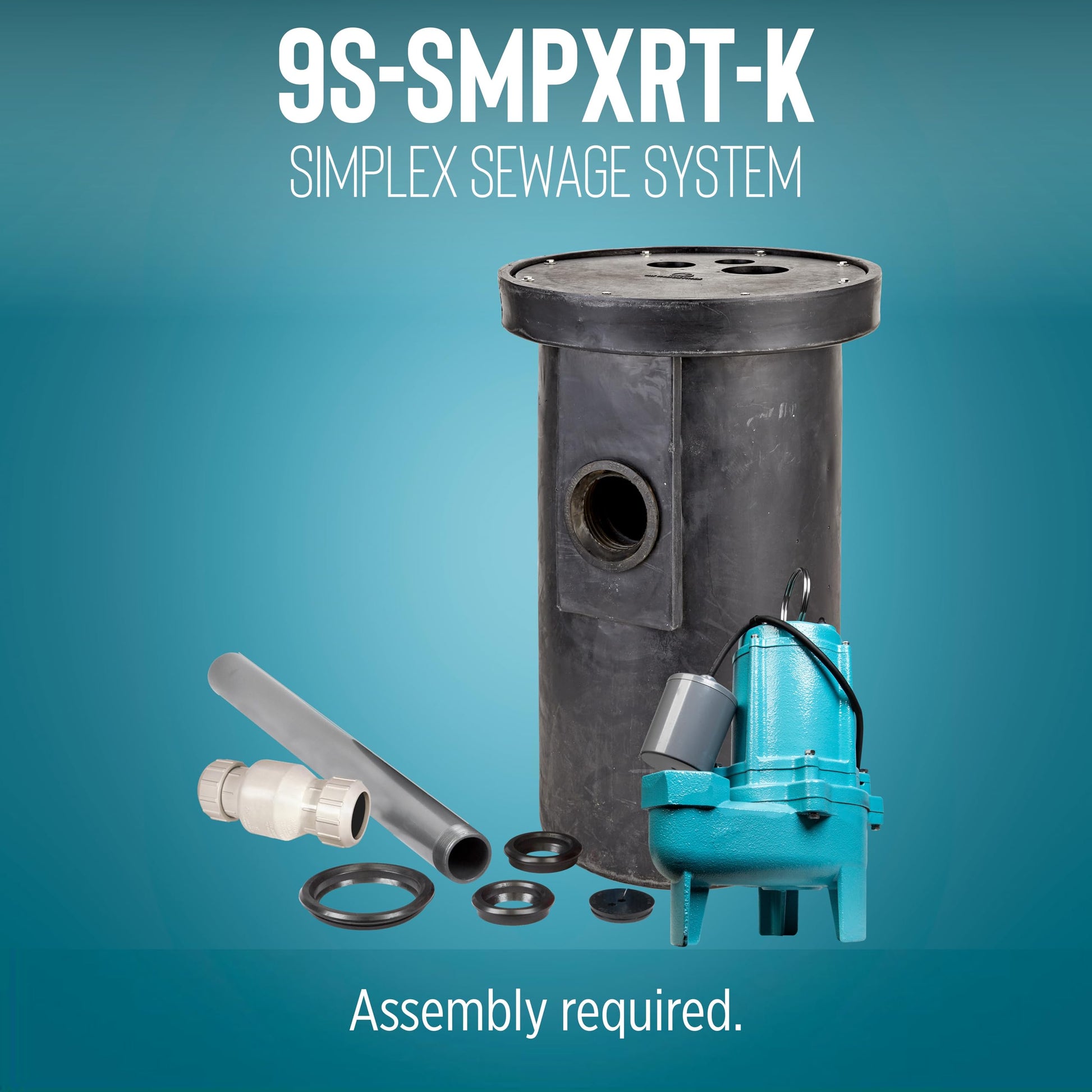

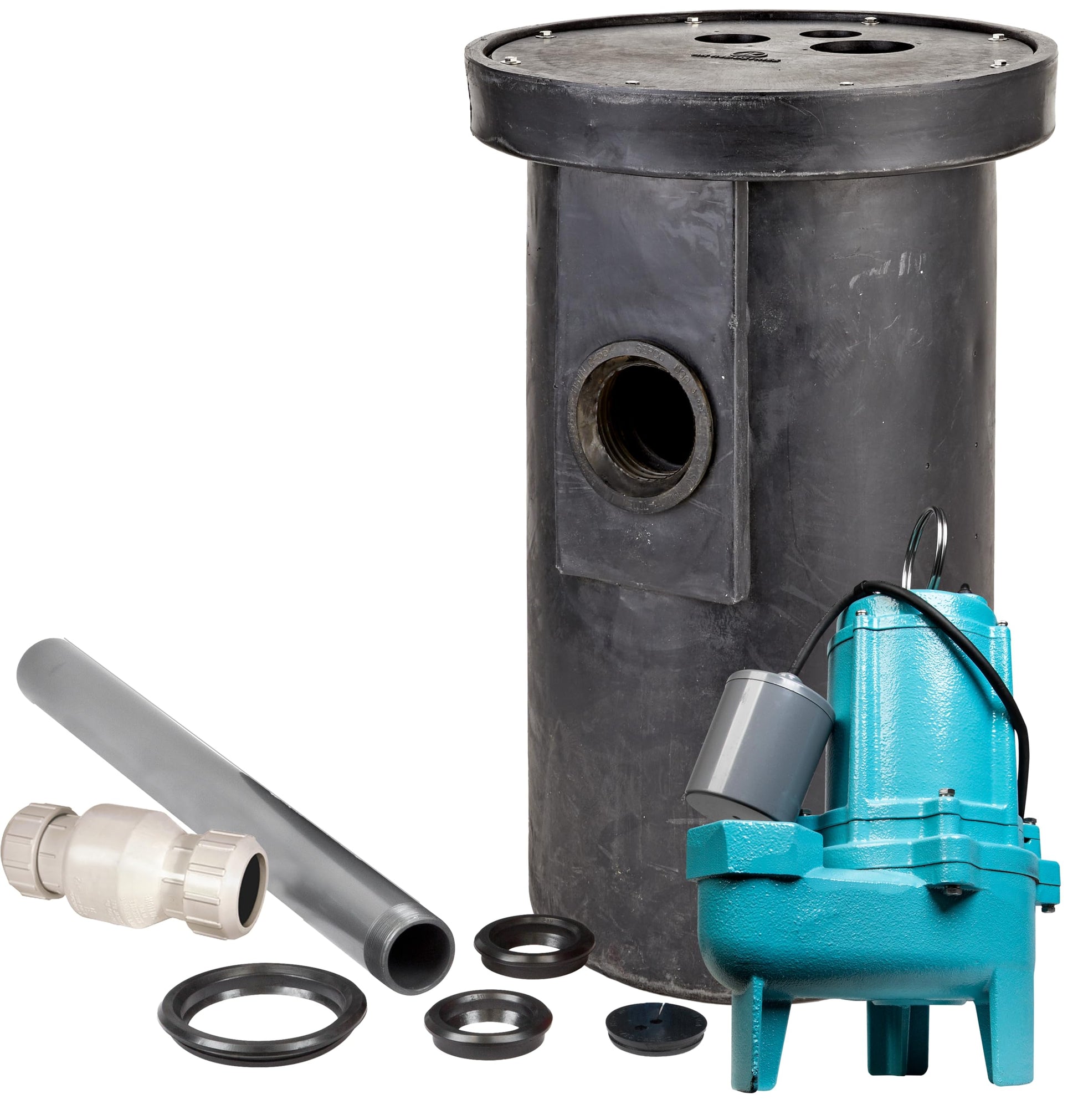

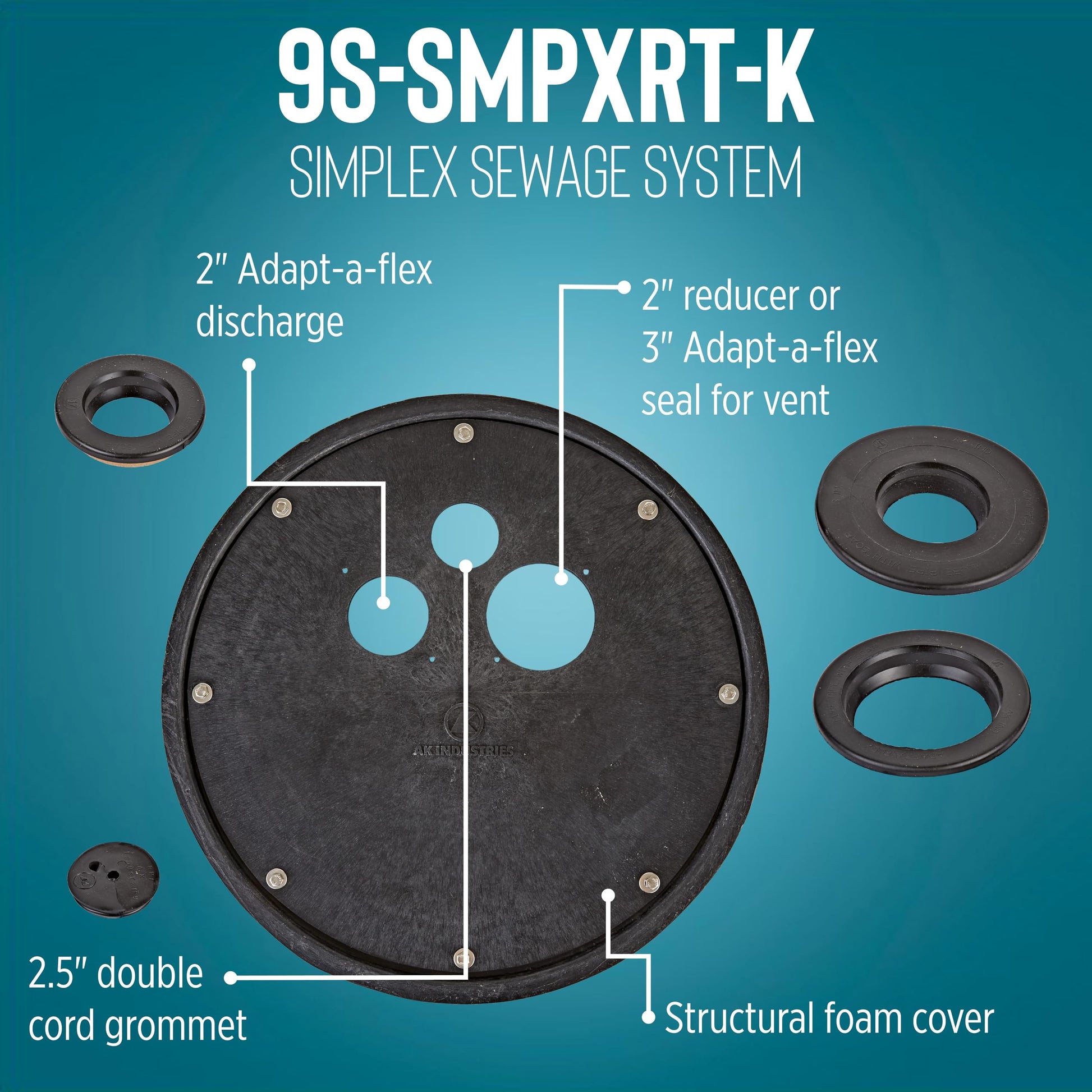

• COMPLETE SEWAGE SYSTEM: contains pump, 2-inch check valve, basin, lid, 28.25-inch PVC pipe, grommets, flanges, gasket tape and bolts; ready to be assembled and connected to sewage system

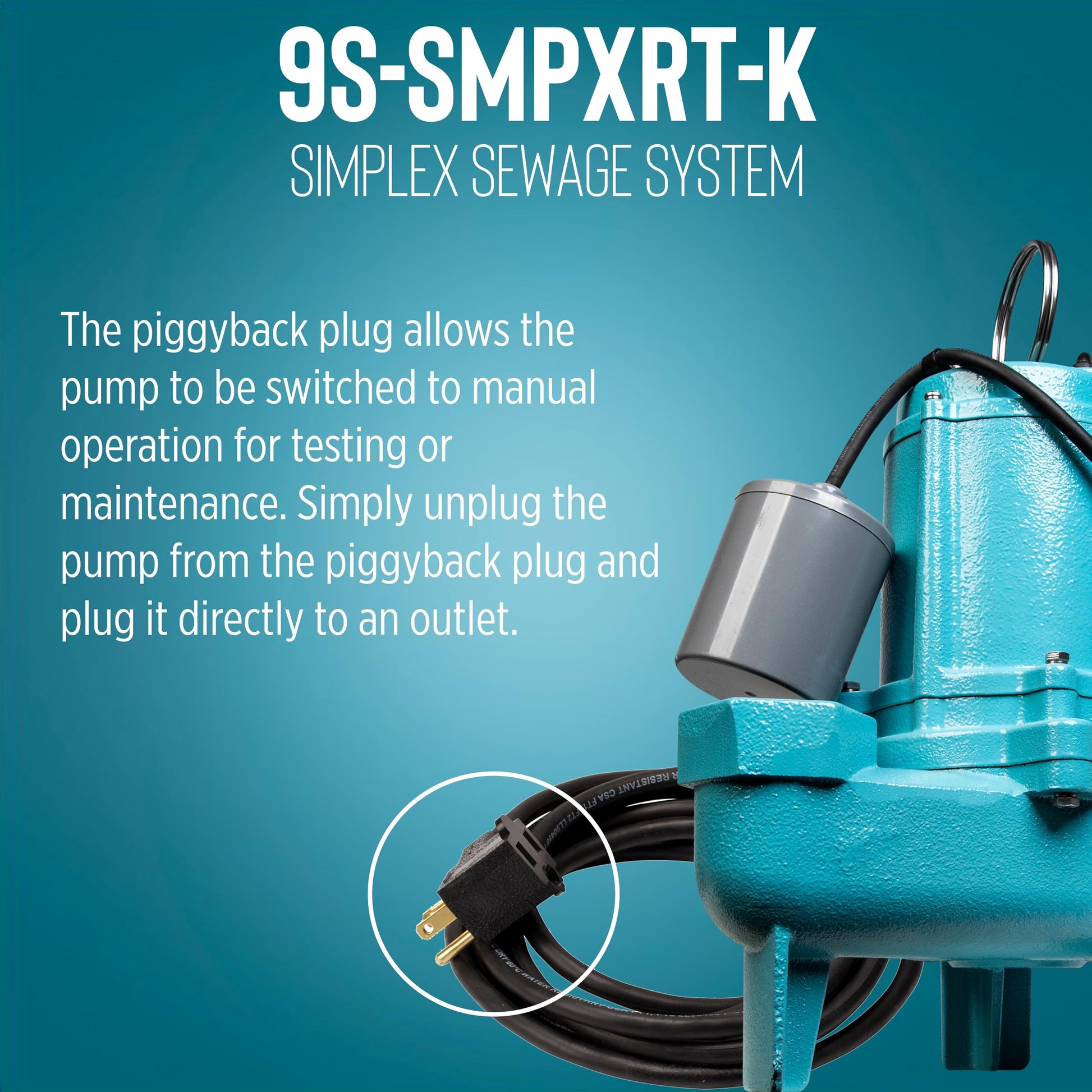

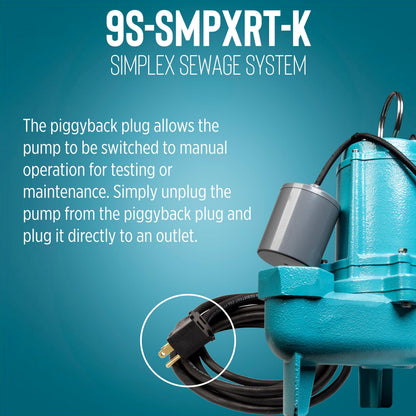

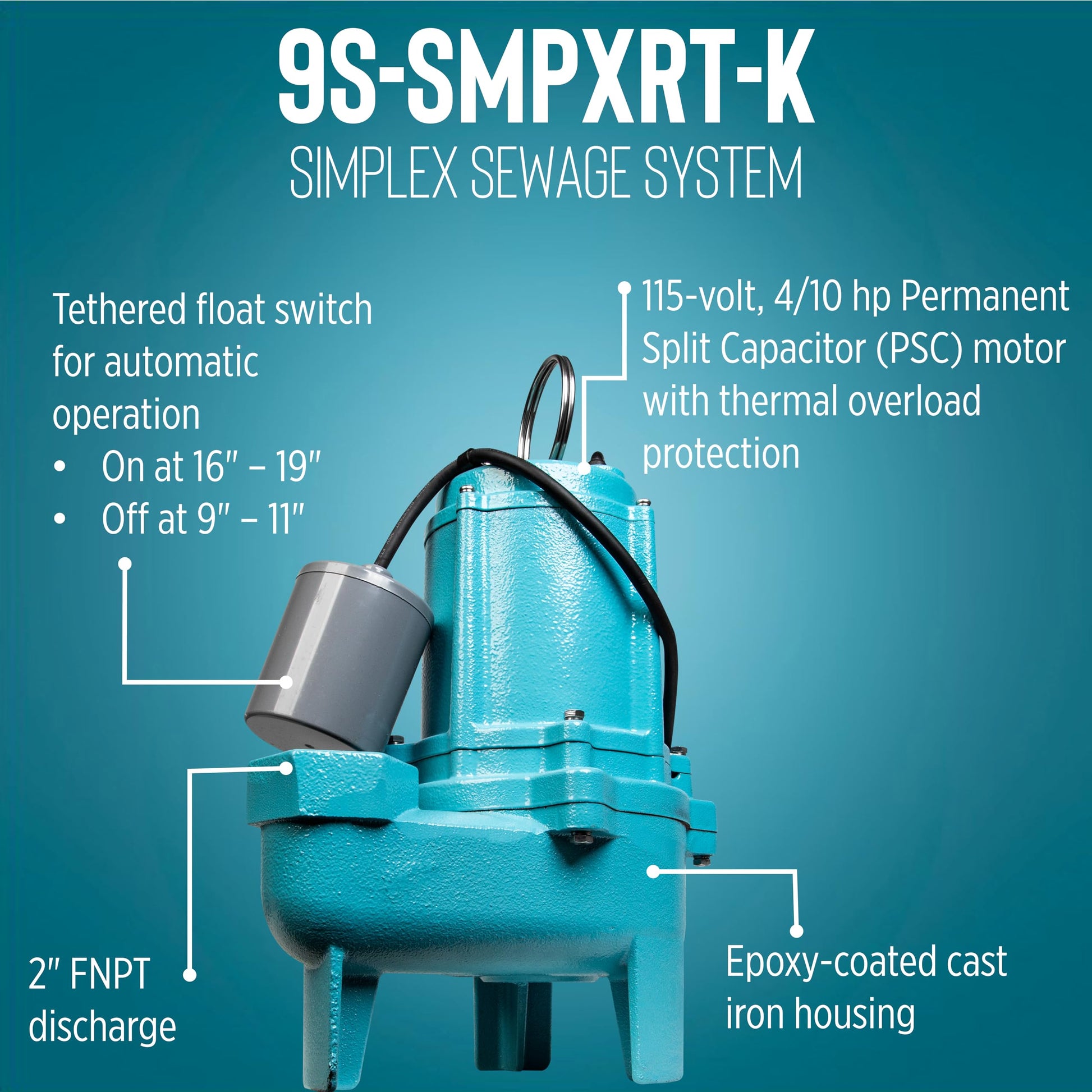

• SEWAGE PUMP INCLUDED: Little Giant 9SC-CIA-RF 4/10 HP, 115-Volt, 2-inch discharge sewage pump with piggyback mechanical float switch and 20-ft. cord
• PUMP SPECIFICATIONS: 115-Volts, 60 Hz, 8.0 running Amps, 870 Watts; rated for 140° F liquid temperature; handles 2-inch solids; 6000 GPH at 5-ft. lift; maximum 8.7 PSI; 20-ft. shut-off
• SWITCH SPECIFICATIONS: piggyback mechanical float switch activates when liquid reaches 16 to 19 inches and shuts off when liquid falls between 9 and 11 inches

model number: 509074

Part Number: 509074

Details: Product Description

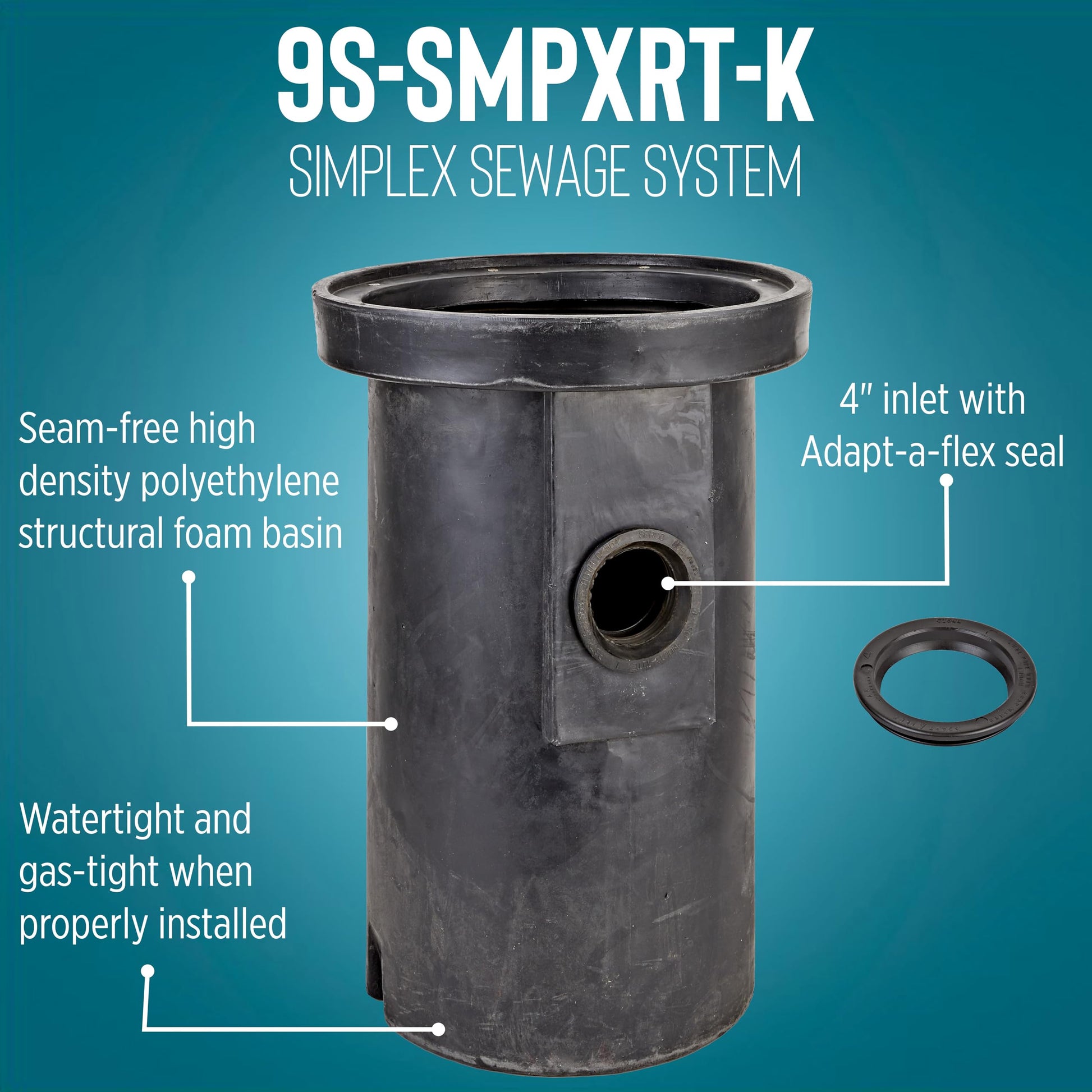

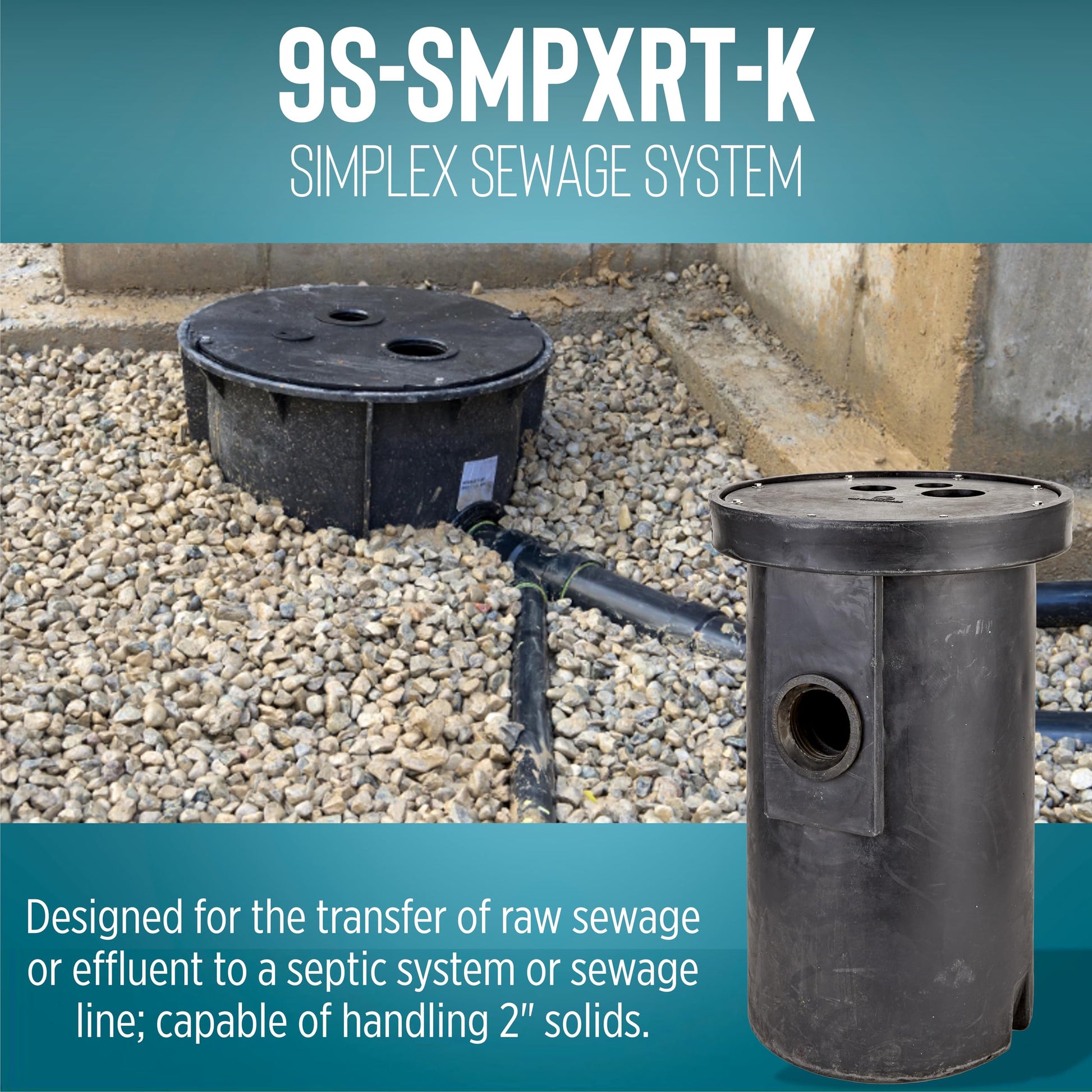

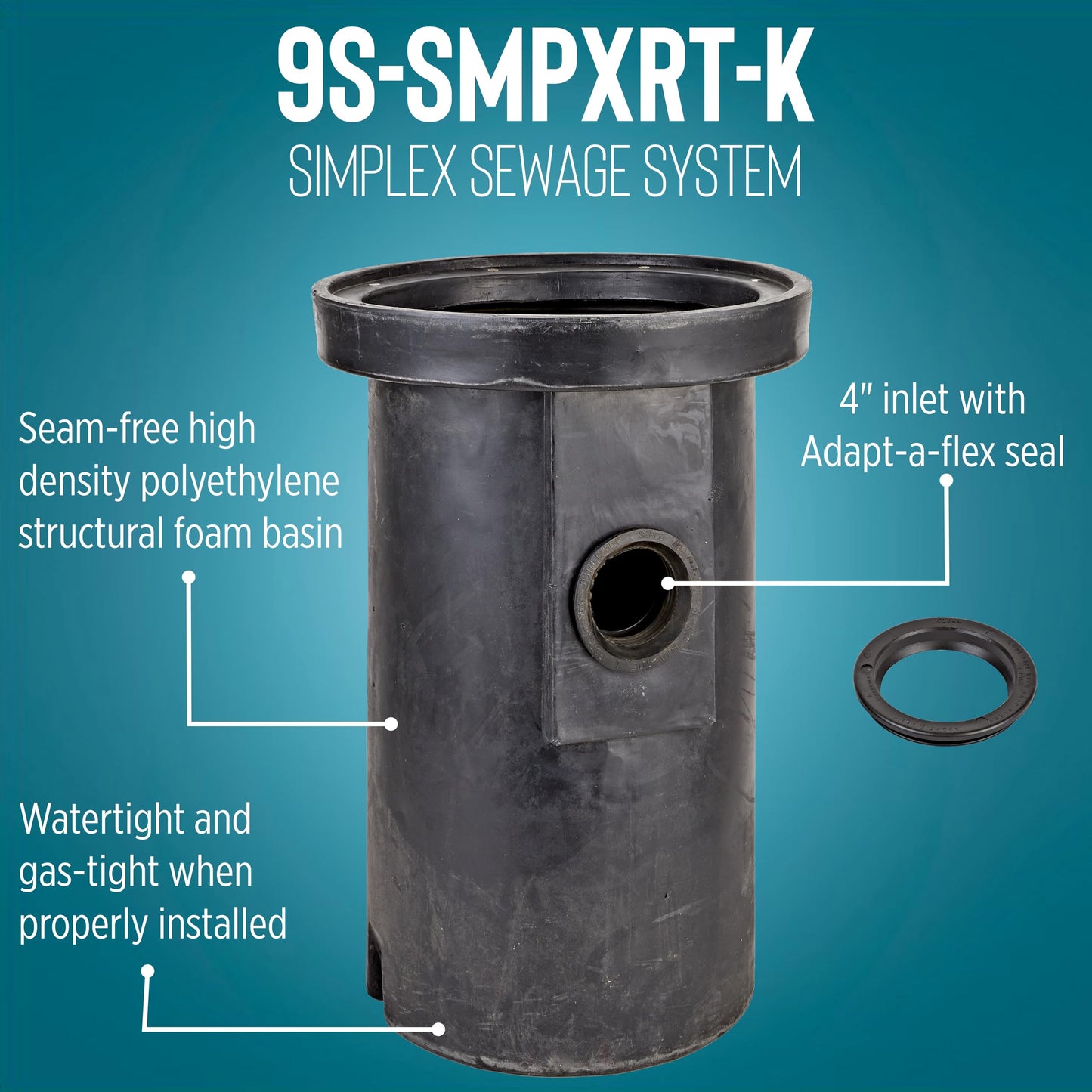

The Little Giant 9S-SMPXRT-K pre-packaged simplex sewage system is designed to transport sewage or effluent waste to a septic system or sewage line. It consists of the basin, lid, pump (Little Giant 9SC-CIA-RF), float switch, 2-inch check valve, 28.25-inches of PVC pipe, hardware and flanges/gaskets for 2-inch discharge and a 2-inch or 3-inch vent. Basin/lid are water-tight and gas-tight when properly assembled. Assembly required.

From the Manufacturer

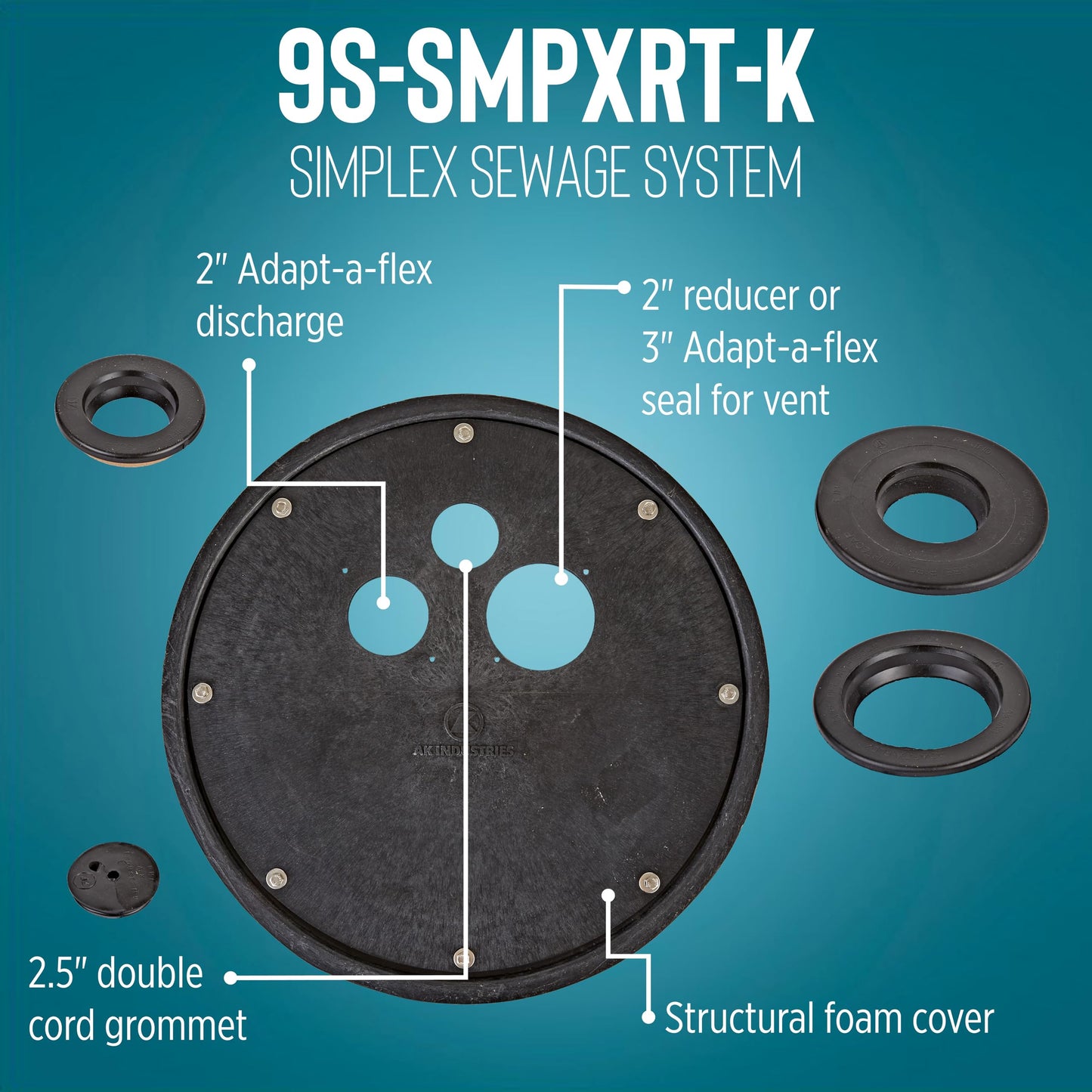

Simplex Package with Roll Top Ployethylene Basin and Slip-Fit Flanges / One-piece Structural Foam Cover. For collection of sewage, effluent, drainage and seepage water. Suitable for homes, farms, light commercial and industrial use. Pre-assembled systems are provided ready to install. Includes CV-SE2 check valve and 2-Inch discharge.

EAN: 0010121090743

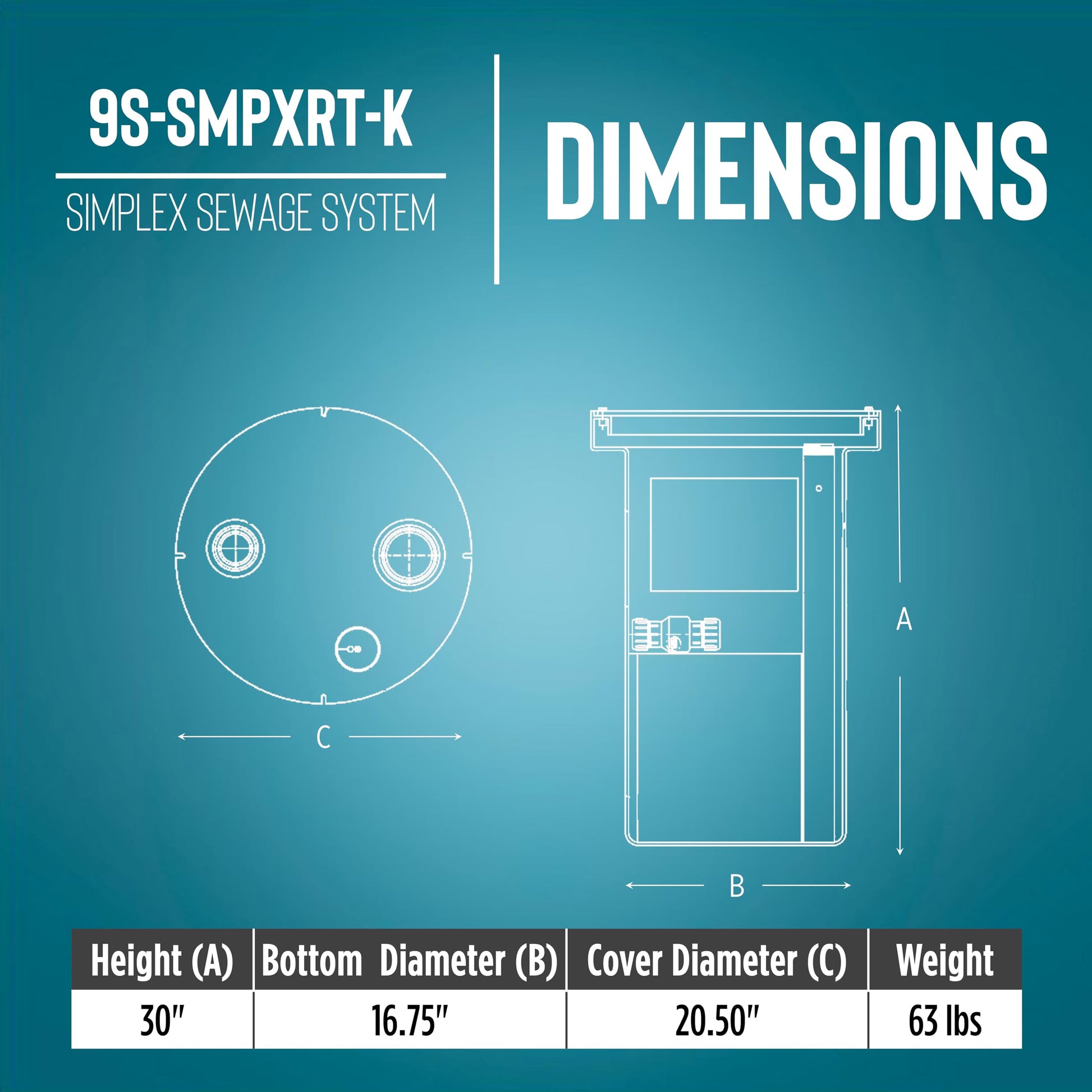

Package Dimensions: 29.7 x 22.5 x 22.5 inches
