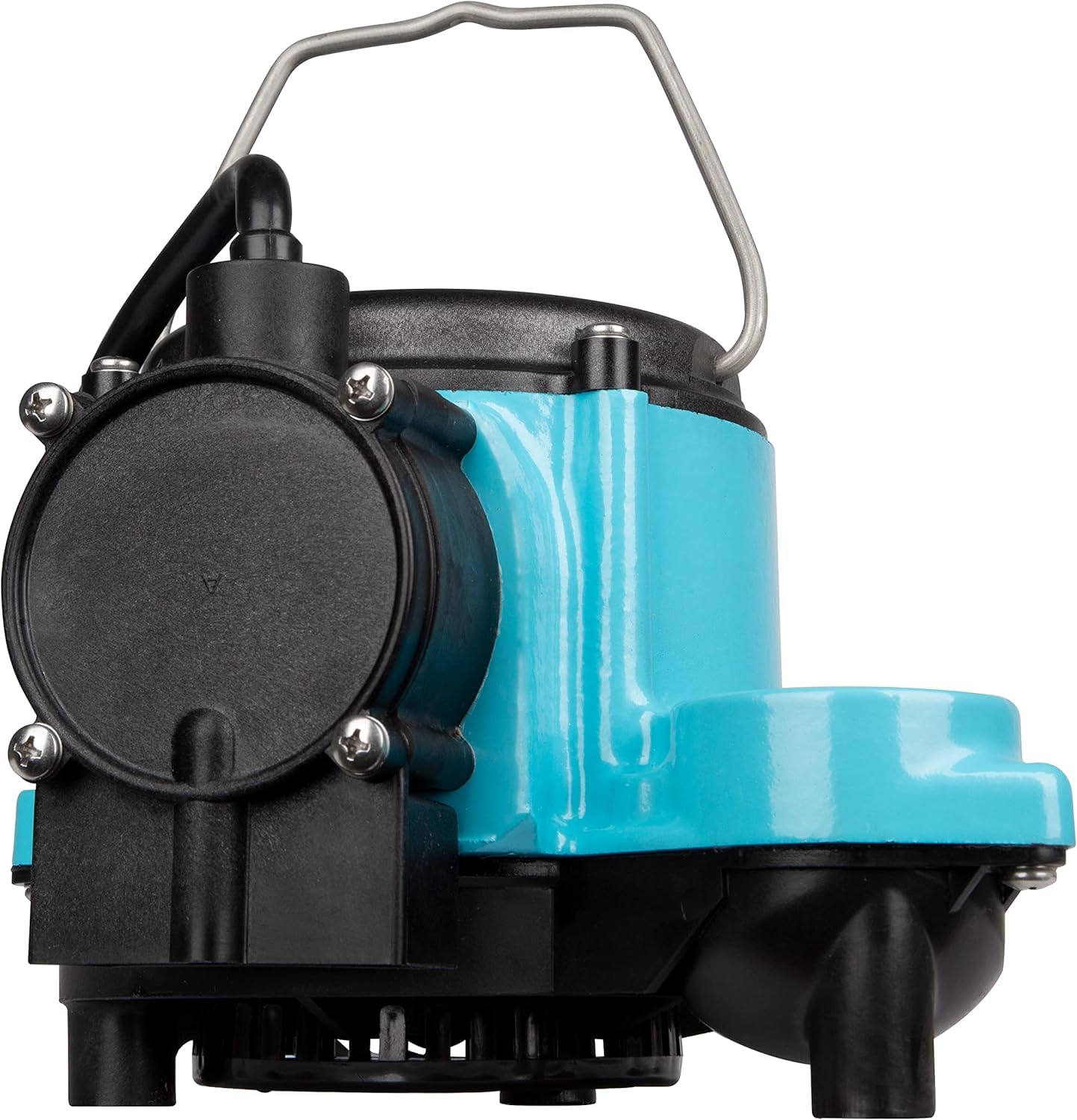

Little Giant 6-CIA 115 Volt, 1/3 HP, 2760 GPH Cast Iron Automatic Submersible Sump Pump with Integral Diaphragm Switch for Sump Systems, 10-Ft. Cord, Blue, 506158

Brand: Little Giant

Color: Blue

Features:

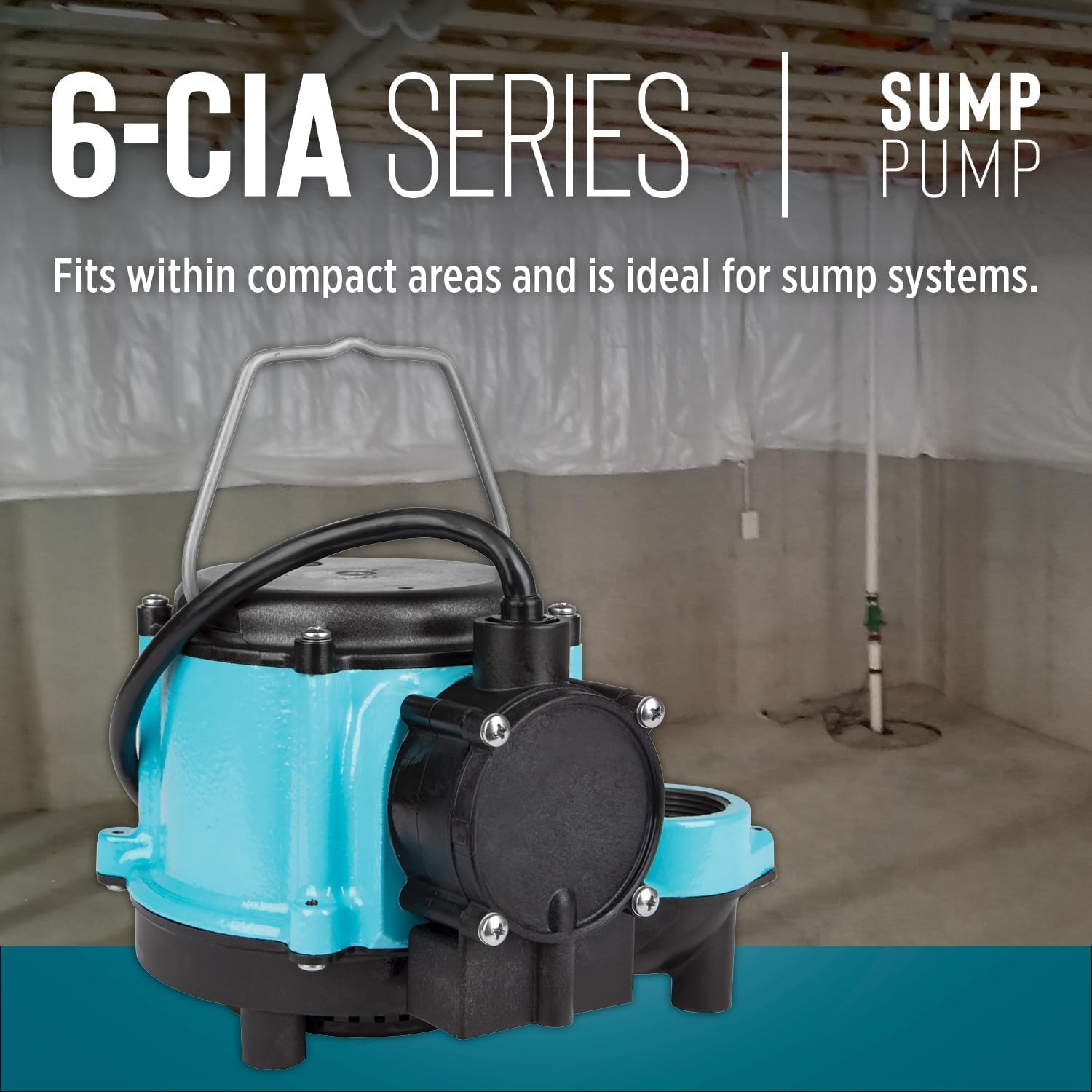

• AUTOMATIC SUBMERSIBLE PUMP: ideal for sump systems; not recommended for general dewatering or emergency water removal

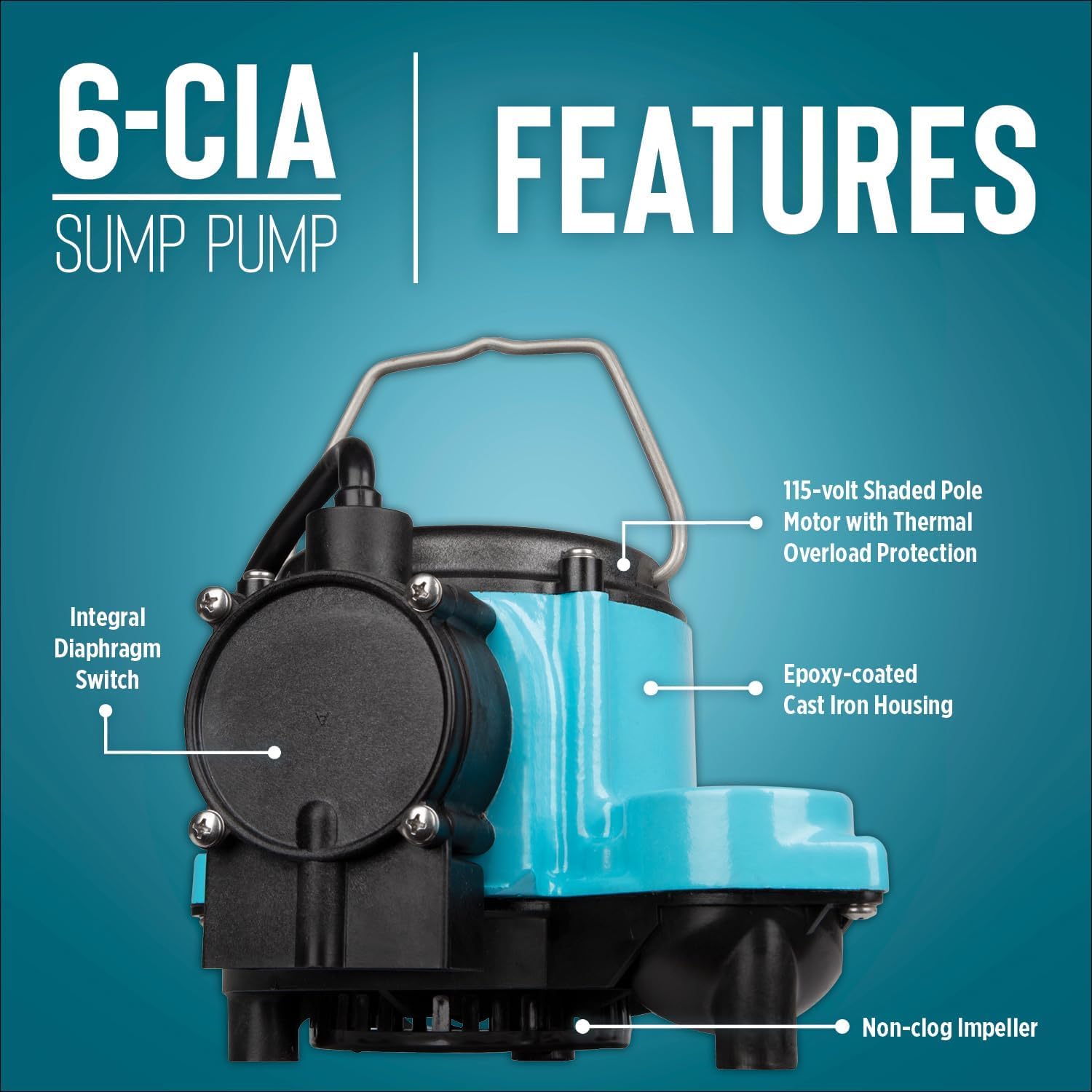

• BUILT TO LAST: Epoxy-coated cast iron housing; non-clog vortex style impeller; upper and lower bearings; nitrile/carbon/ceramic mechanical shaft seal

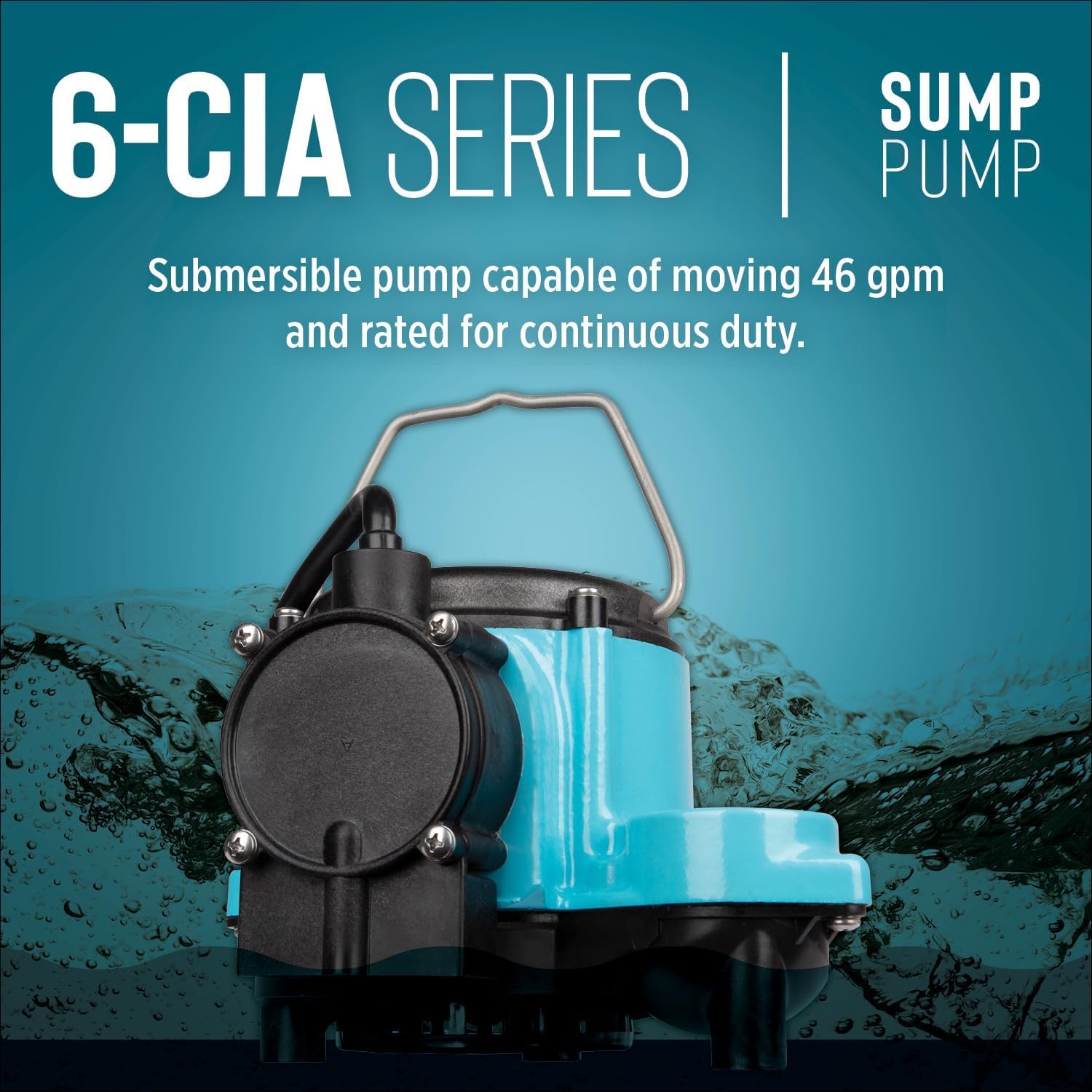

• CONTINUOUS DUTY MOTOR: 1/3 HP shaded pole motor, 9.0 running Amps, 14.3 starting Amps, 720 Watts, thermally protected, CSA listed in the USA and Canada

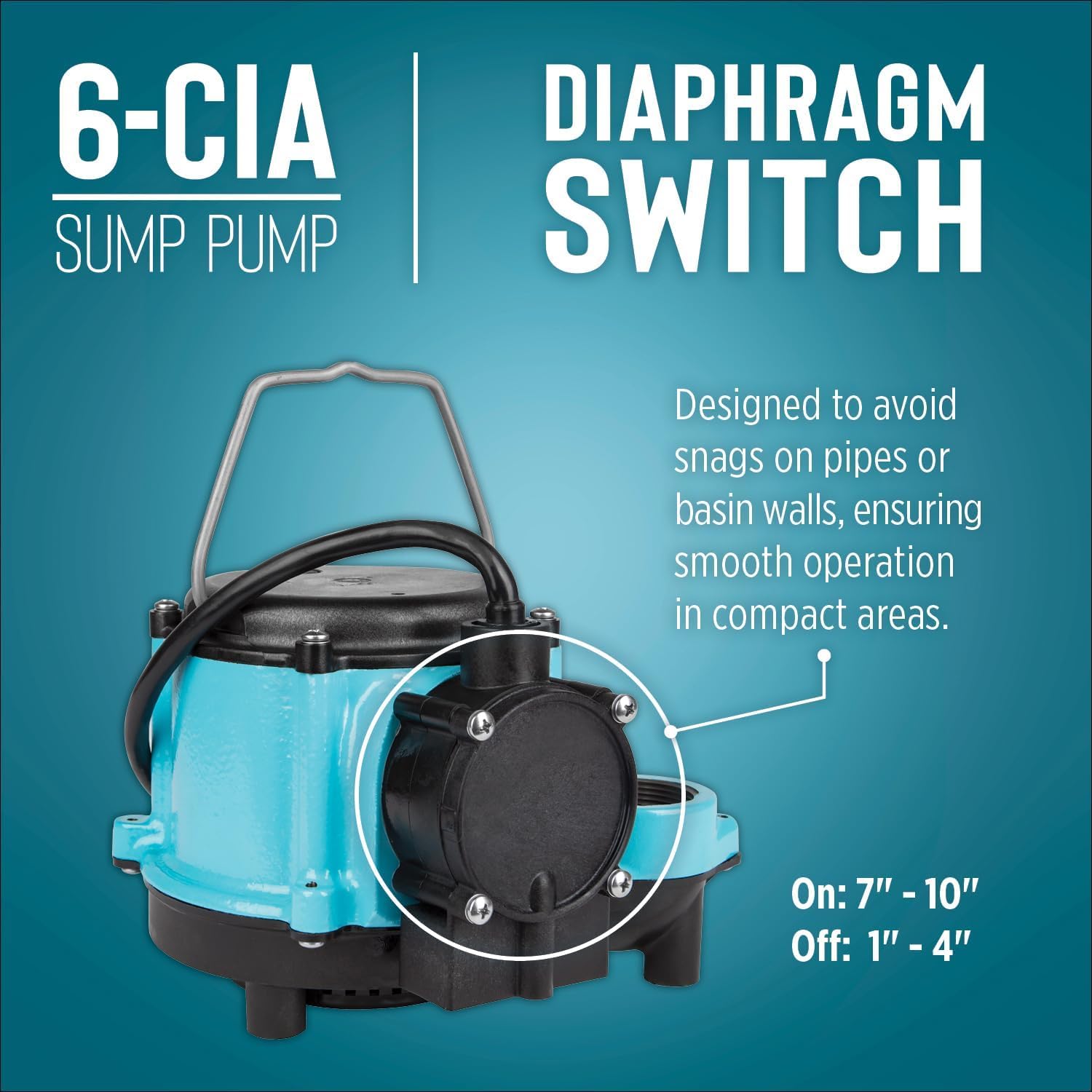

• BUILT-IN DIAPHRAGM SWITCH: pressure activated non-adjustable switch; on at 7 - 10'; off at 1 - 4'; NOT recommended for emergency water removal or general dewatering

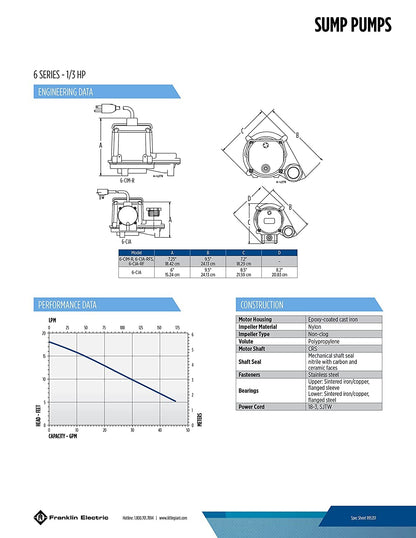

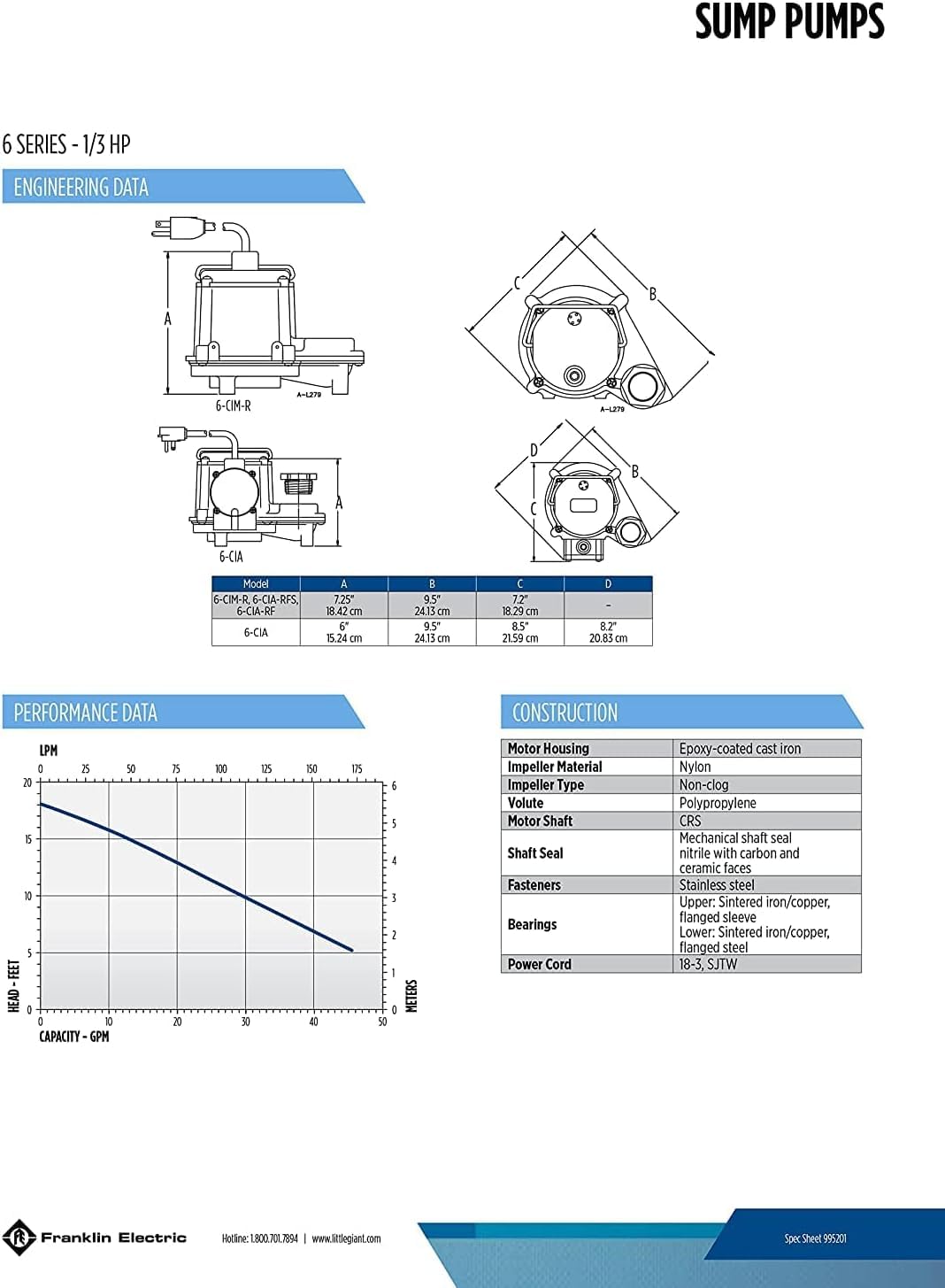

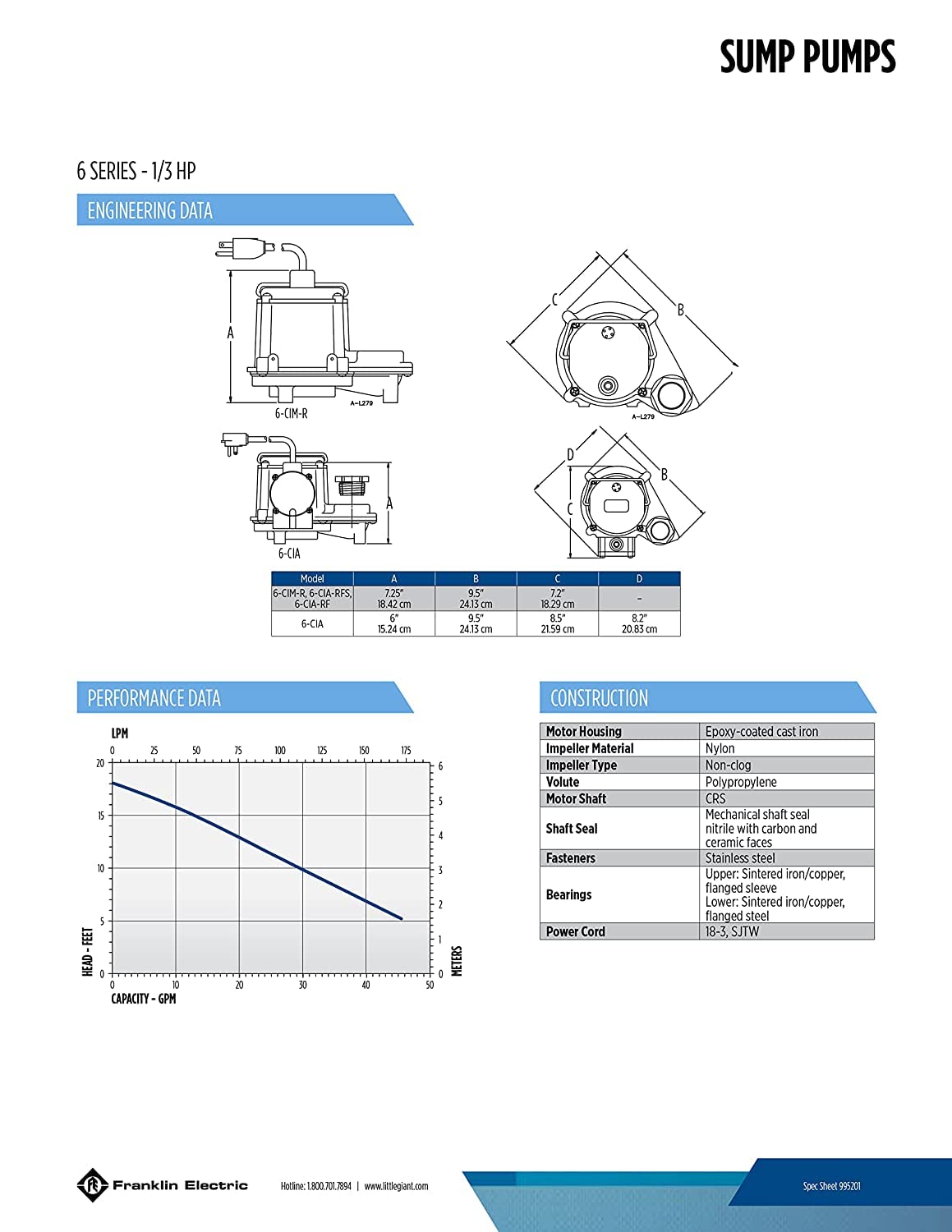

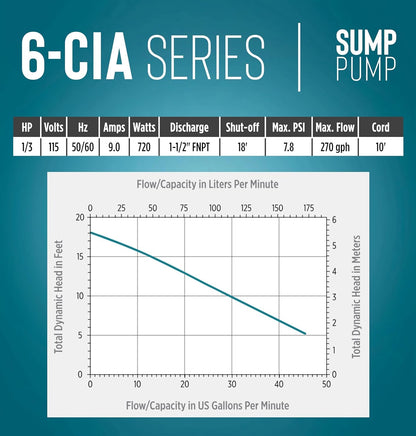

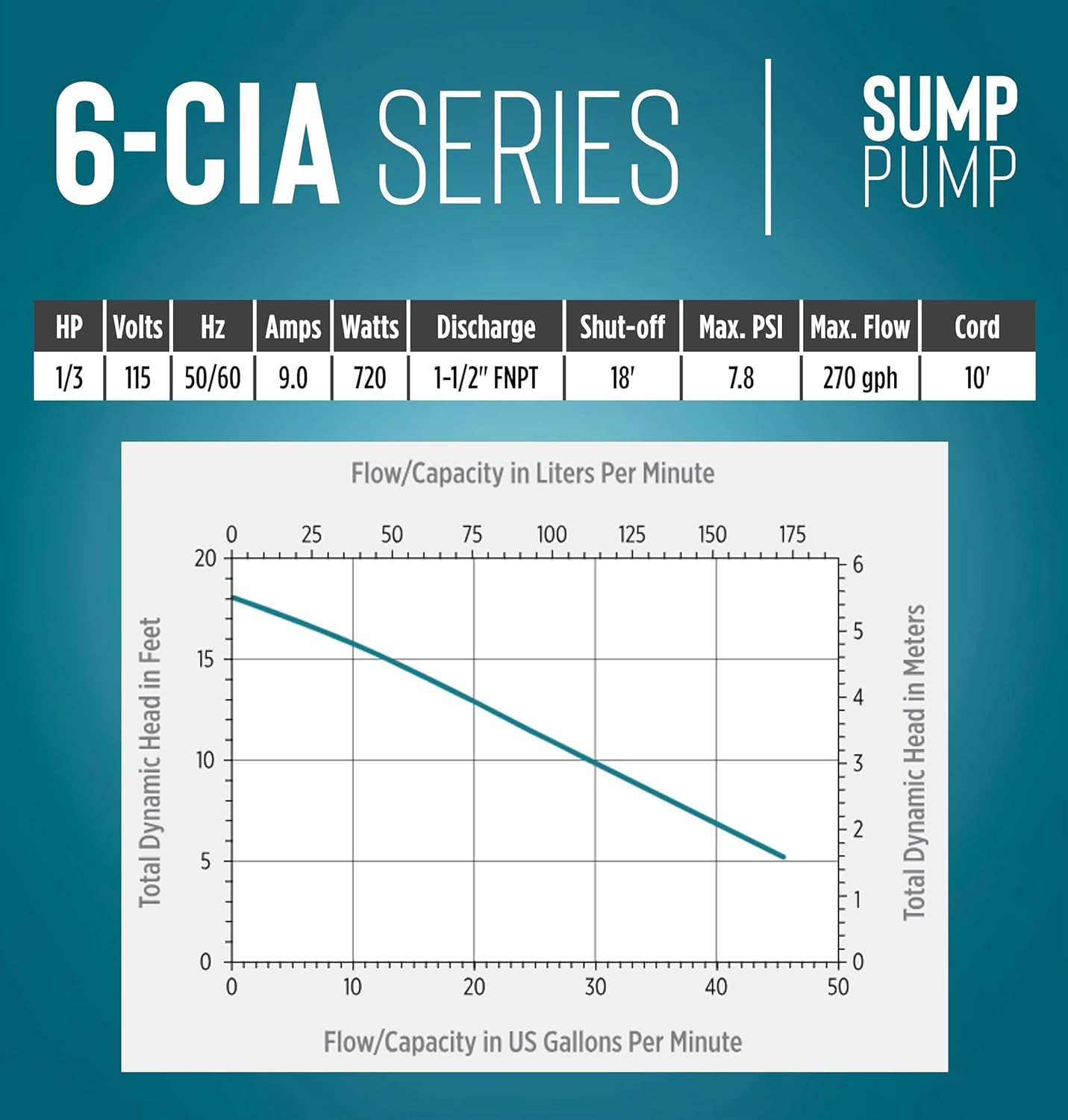

• SPECIFICATIONS: 1/3 hp; 115 Volts; 50/60 Hz; 9.0 running Amps; 14.3 starting Amps; 720 Watts; 2760 gph at 5' lift; 18' shut-off; 7.8 PSI; 10' cord; 1.5' FNPT discharge; 140° max fluid temperature

Release Date: 25-11-2017

model number: 506158

Part Number: 506158

Details: Product Description

The Little Giant 6-CIA float operated submersible (NEMA 6)features a 2-pole mechanical switch and variable level long cycle. Oil-filled, hermetically sealed, automatic reset thermal overload protected motor. Maximum temperature for effluent or dewatering 130°F (54°C). For residential and light commercial use, the Model 6 Series sump pumps provide efficient and reliable service. For extended or continuous use in moving large volumes of water, these pumps feature a 1-1/2' discharge with a maximum lift of 18', a polycarbonate cover and a polypropylene volute/base. A choice of manual or automatic versions with various switch configurations provides user with the right pump for their needs.

From the Manufacturer

Little Giant 6-CIA has a diaphragm pressure switch which engages the pump at 7-Inch to 10-Inch water level and turns it off at 1-Inch to 4-Inch. It is one of the most popular sump pumps and works extremely well for moving large volumes of water. It has 1/3 HP shaded pole motor with overload protection and is designed for continuous duty. Typical applications include commercial, industrial, and home uses where liquid must be transferred or recirculated.

EAN: 0010121061583

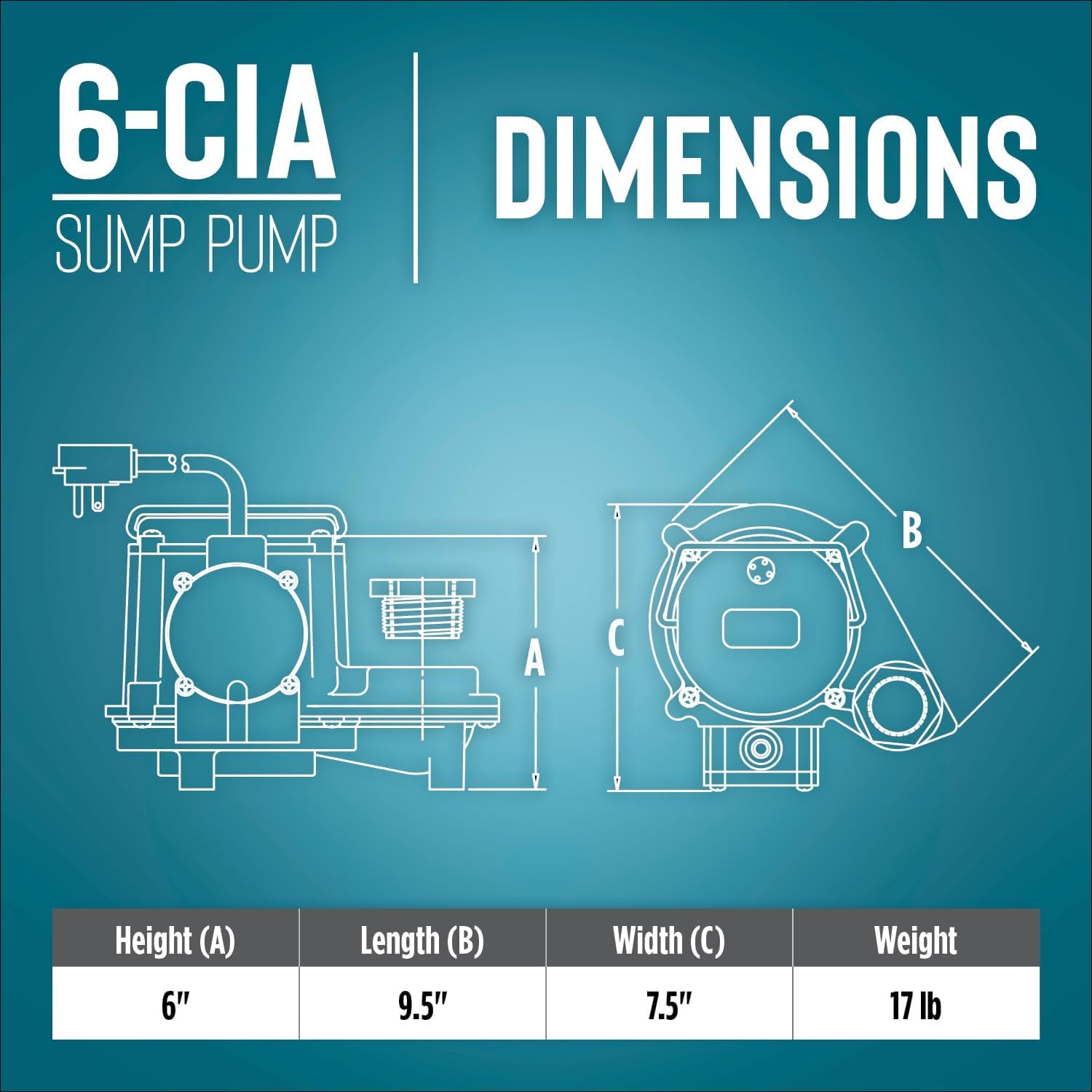

Package Dimensions: 10.8 x 10.4 x 8.1 inches
