Little Giant 10SF2V2D Pit Plus SR Sewage Basin System with 115-Volt, 1/2 HP, 7200 GPH 10SC-CIM Sewage Pump and 20-Ft. Cord, Green/Blue/Black, 511661

Brand: Little Giant

Color: Green/Blue/Black

Features:

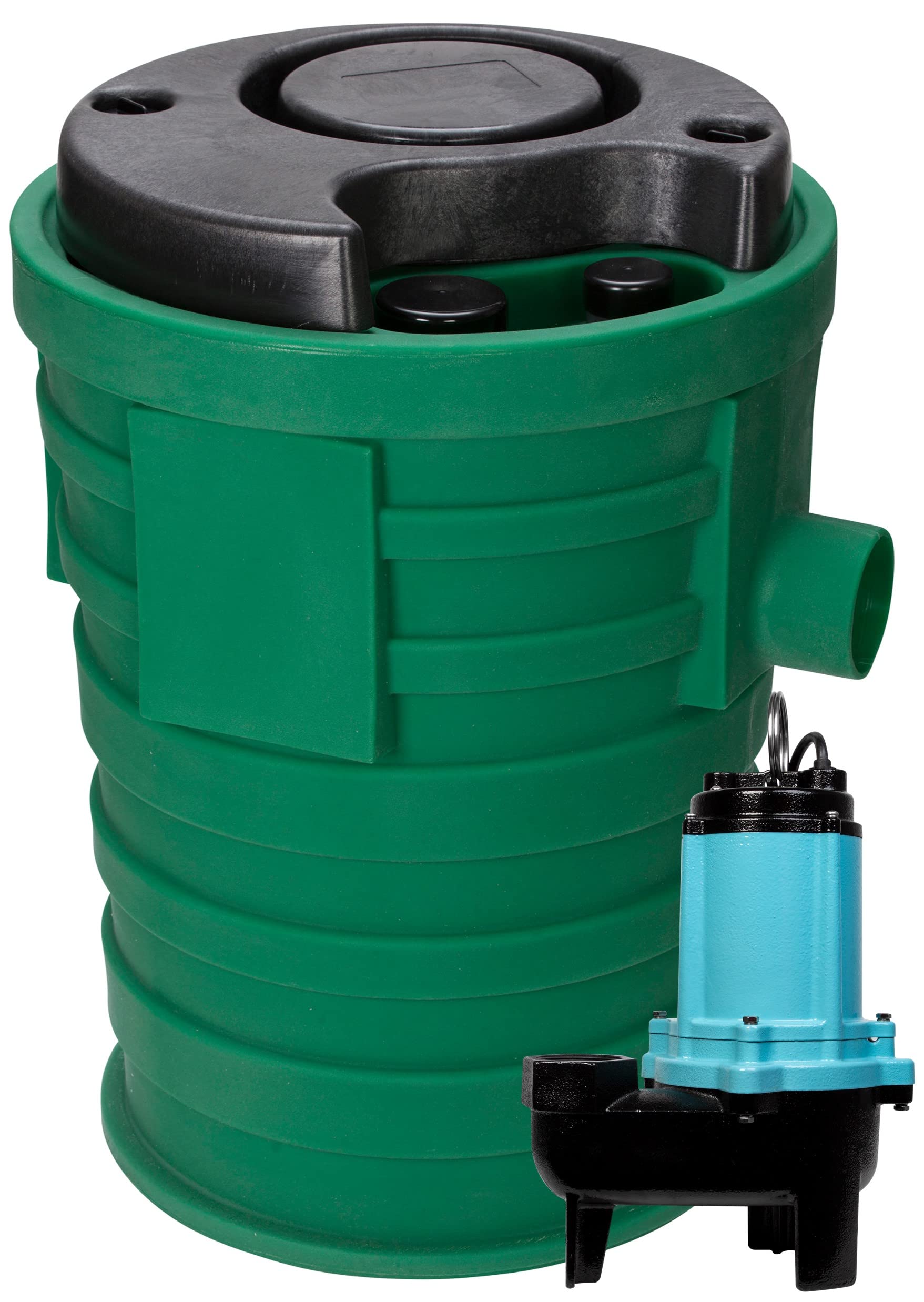

• ALL-IN-ONE SEWAGE BASIN SYSTEM: includes 20'x30' Pit+Plus SR basin/lid, sewage pump, one 2' MNPT discharge pipe with quick disconnect coupling, one 6' x 2.38' vent pipe; piggyback float switch/tree

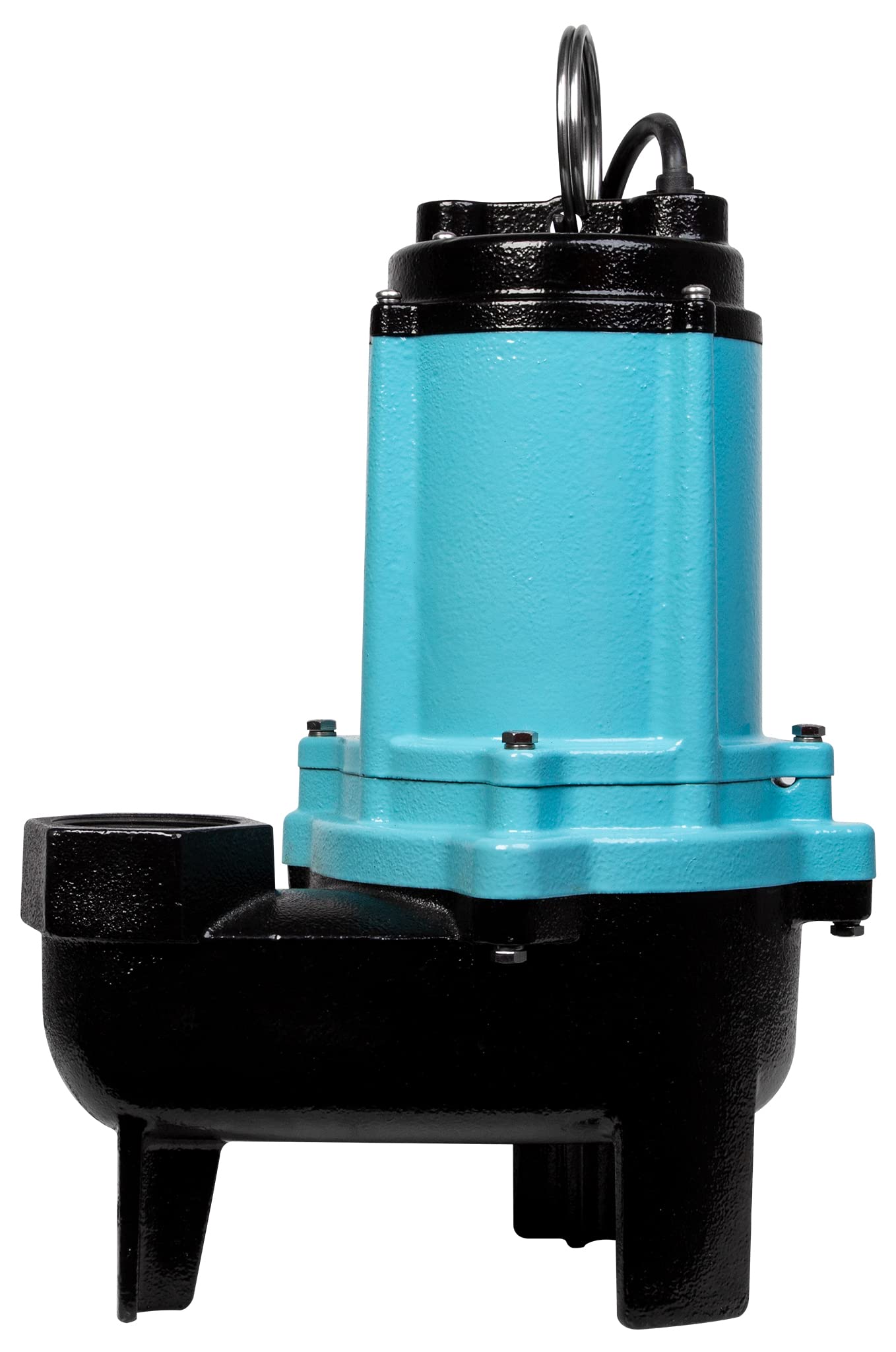

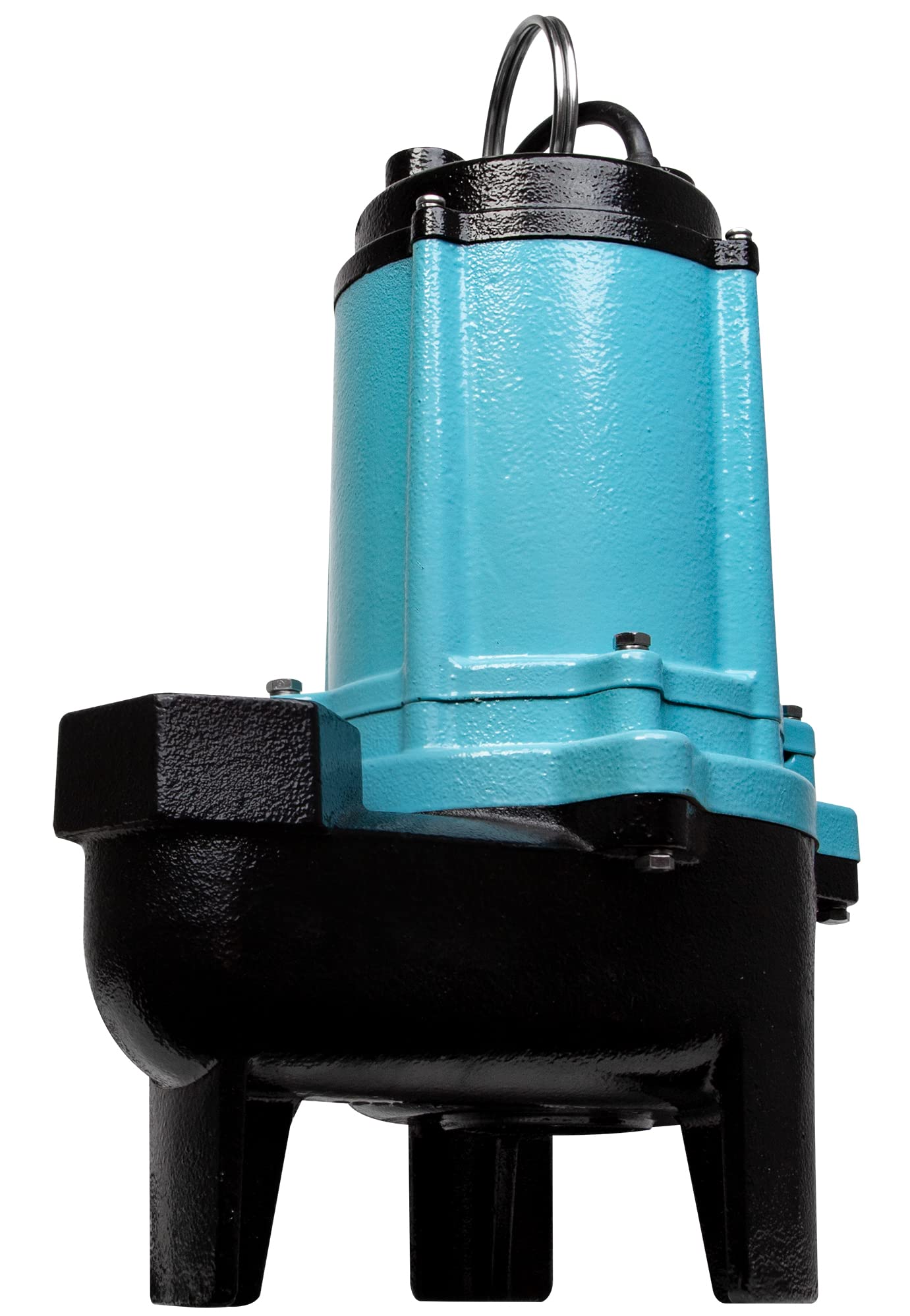

• SEWAGE PUMP INCLUDED: Little Giant's energy-efficient 10SC-CIM 1/2 HP cast iron sewage pump delivers 7200 GPH, is equipped with a 2-inch FNPT discharge, and comes with a 20-ft. cord

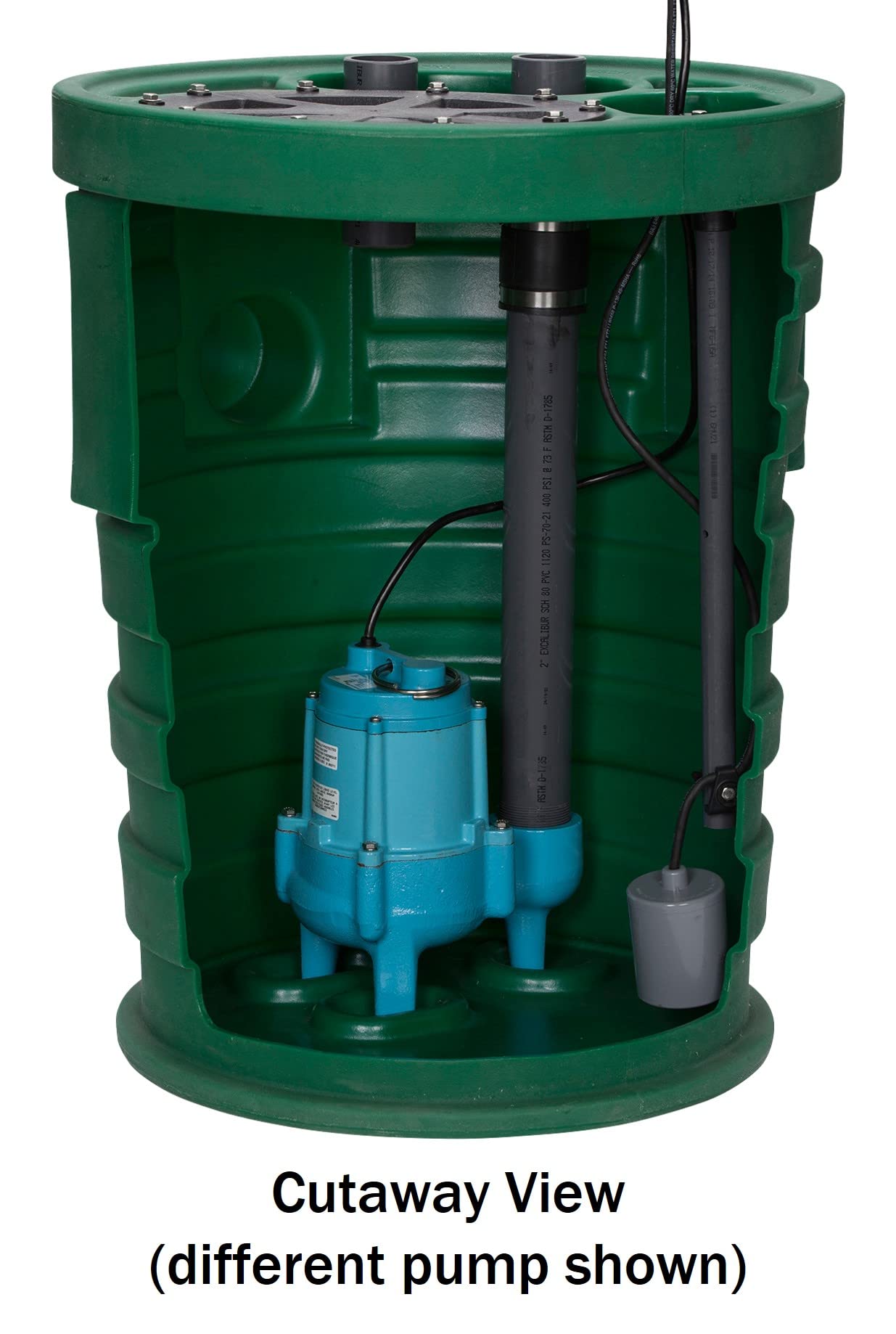

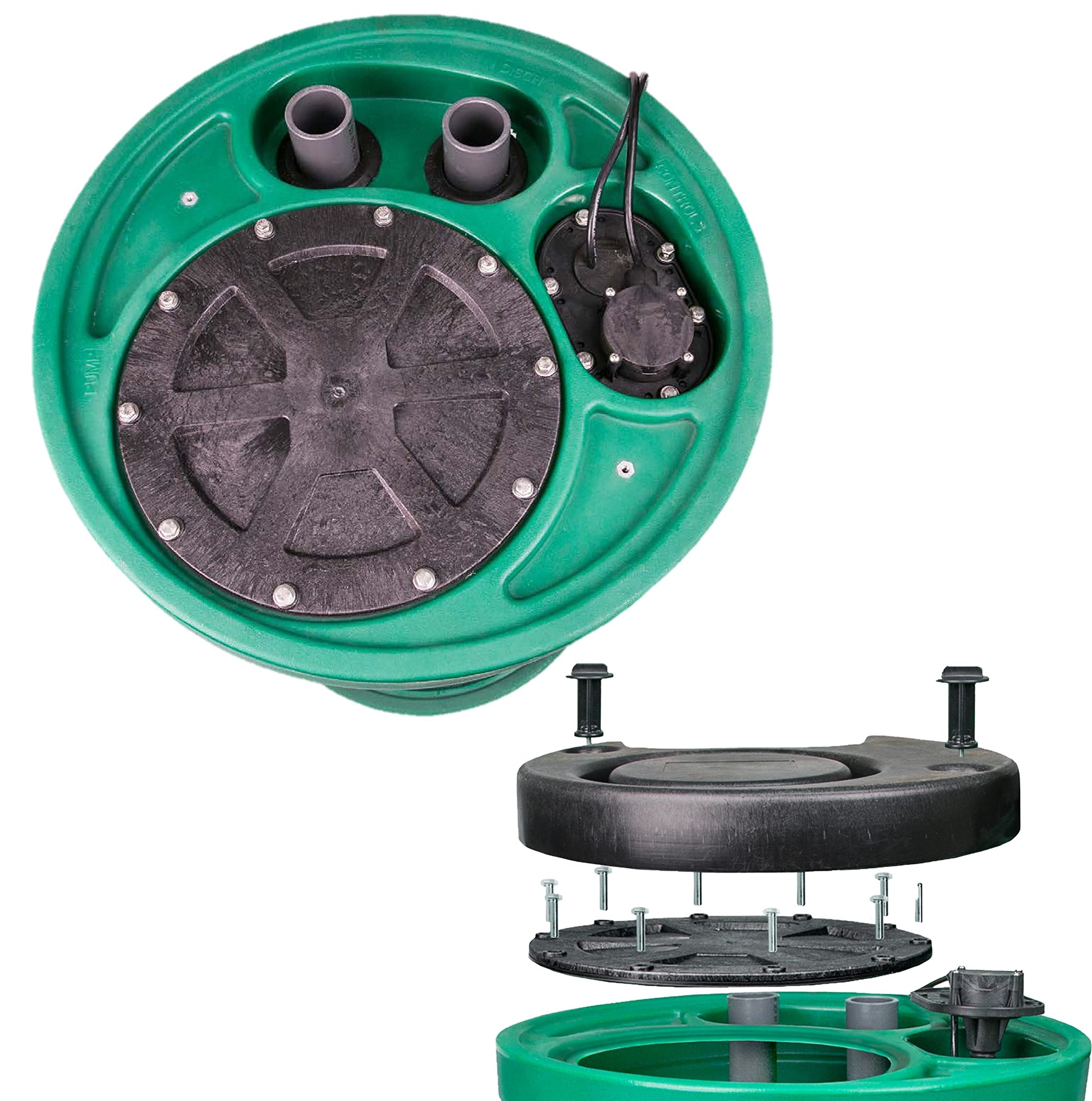

• PIT+PLUS SR BASIN FEATURES: recessed discharge and vent location; monolithic molded basin top; independent recessed switch module; independent pump access cover; durable finish cover
• MOTOR SPECIFICATION: 1/2 HP; 115-Volt, 60 Hz Permanent Split Capacitor (PSC) motor designed for continuous duty; 11 running Amps; 1230 Watts
• PUMP SPECIFICATIONS: 7200 GPH at 5-ft. lift; 25-ft. shut-off; maximum 10.8 PSI; 2' discharge; manual operation (switch included seperately); 20-ft. cord; epoxy-coated cast iron cover/housing/volute

model number: 511661

Part Number: 511661

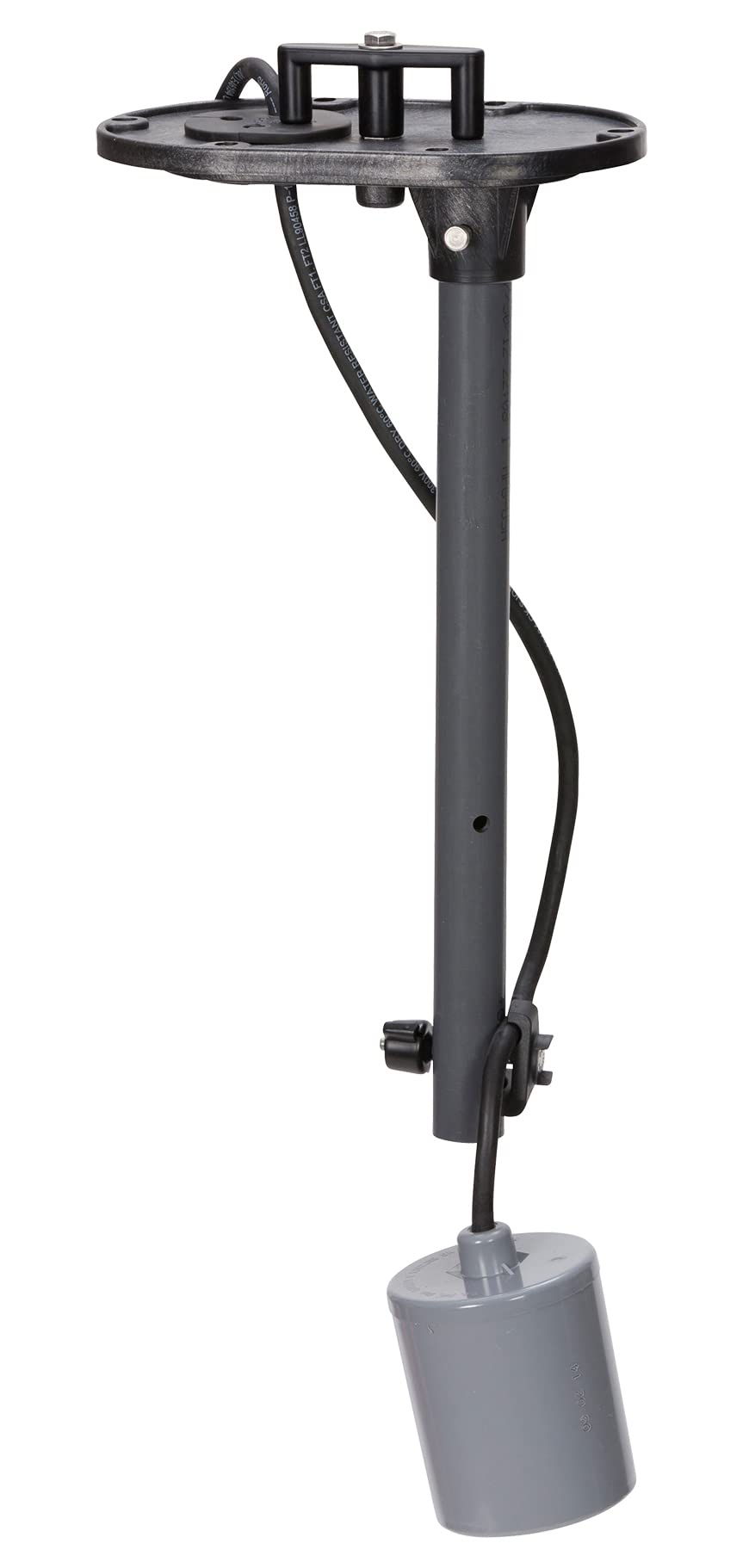

Details: Little Giant's preassembled Pit+Plus SR includes a 1/2 HP submersible sewage/effluent pump with basin and float switch. The basin features a radial rib design for added strength, 360° molded handle; integrated anti-floatation collar; and recessed discharge and vent location. The 10SC-CIM pump delivers 7200 GPH at 5-ft. lift; comes with a 2-inch discharge and a 20-ft. cord. The system also includes a piggy-back mechanical float switch and float tree. Also included is a 19' x 2' MNPT discharge pipe with quick disconnect coupling and 6'x2.38' vent pipe. Please note: this product does not come with a check valve.

EAN: 0010121147744

Package Dimensions: 33.0 x 23.0 x 22.5 inches
