LINOVISION Industrial 8-Port Flat PoE Switch with 4 802.3at PoE+ Ports, Front-Access Design, Dual Power Input, 120W Budget for IP Cameras in Electrical cabinets, Control Boxes, or Outdoor enclosures

Brand: LINOVISION

Color: Green

Features:

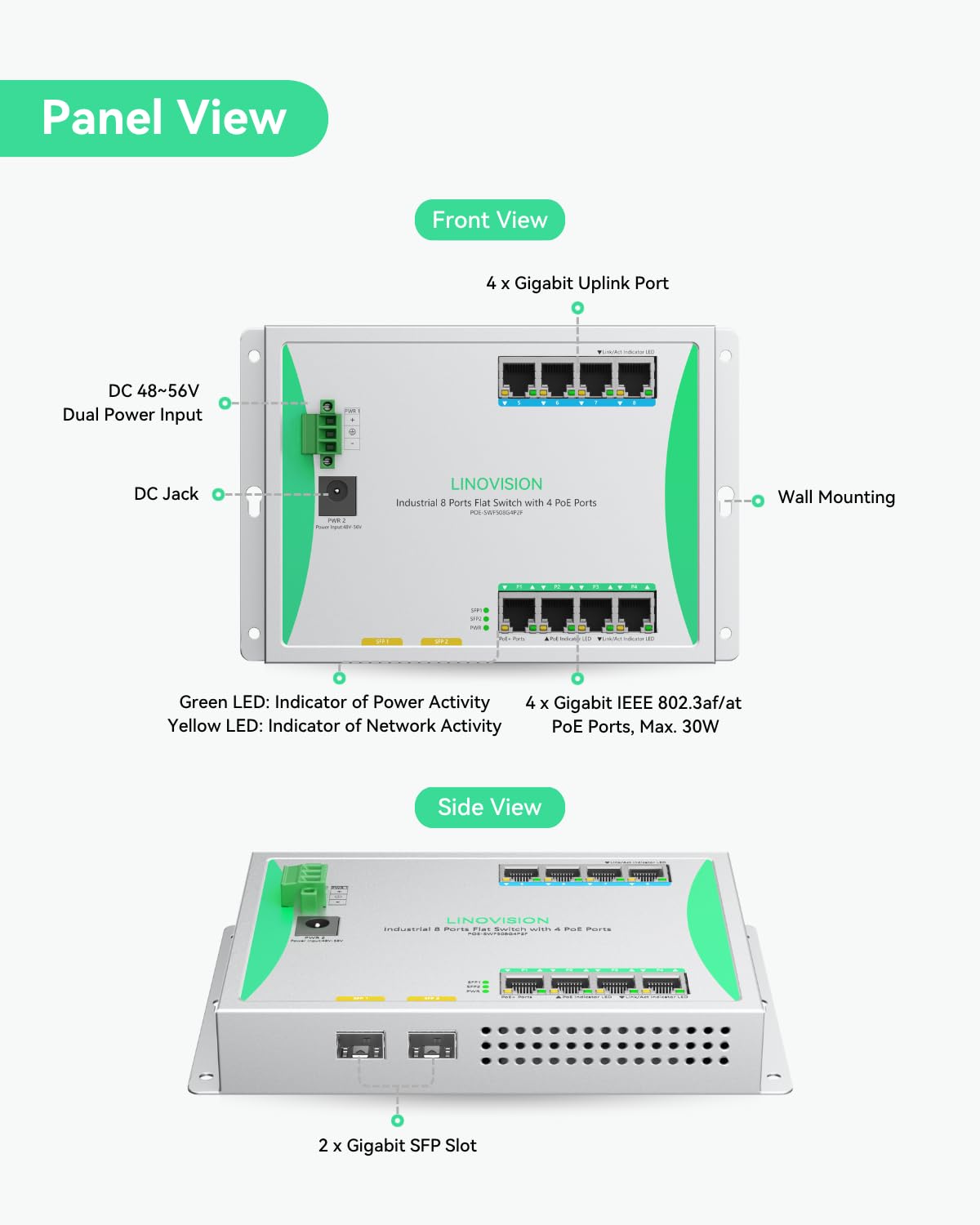

• 4 Ports Full Gigabit PoE Switch - Provides 4x IEEE802.3af/at PoE, 4x Gigabit uplink and 2 x Gigabit SFP Slot; Total POE budget 120W.
• IEEE802.3af/at Compliant - Providing up to 30W per port and total PoE power budget of 120W. Compatible with Mode A POE outputs only. PoE Pins 1/2(+), 3/6(−)

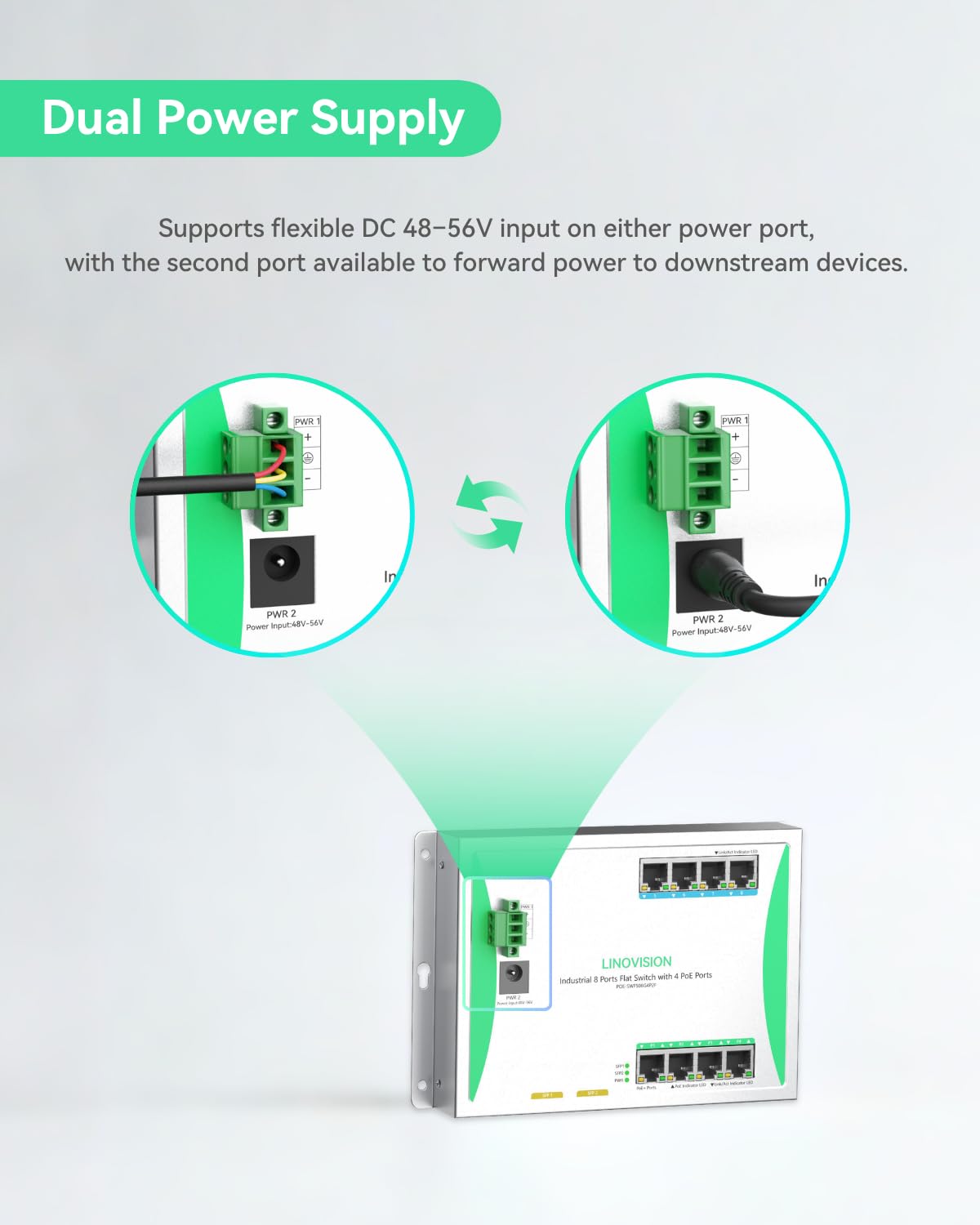

• Dual DC Power Ports with Power Pass-Through Design - Allows DC 48–56V power input on either port and provides pass-through power output to external devices. Simplifies wiring and reduces the need for additional power supplies in industrial, roadside, and distributed network deployments.

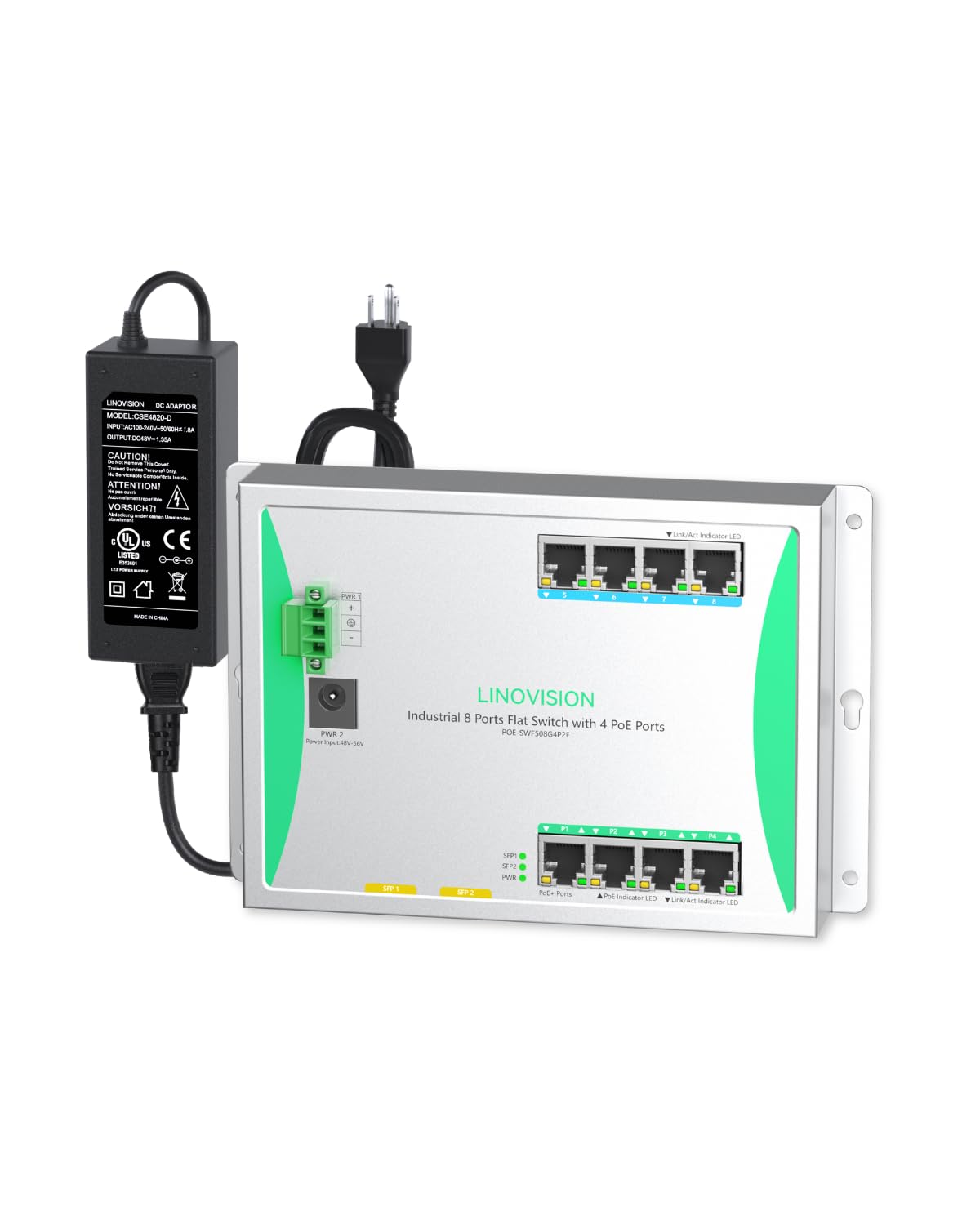

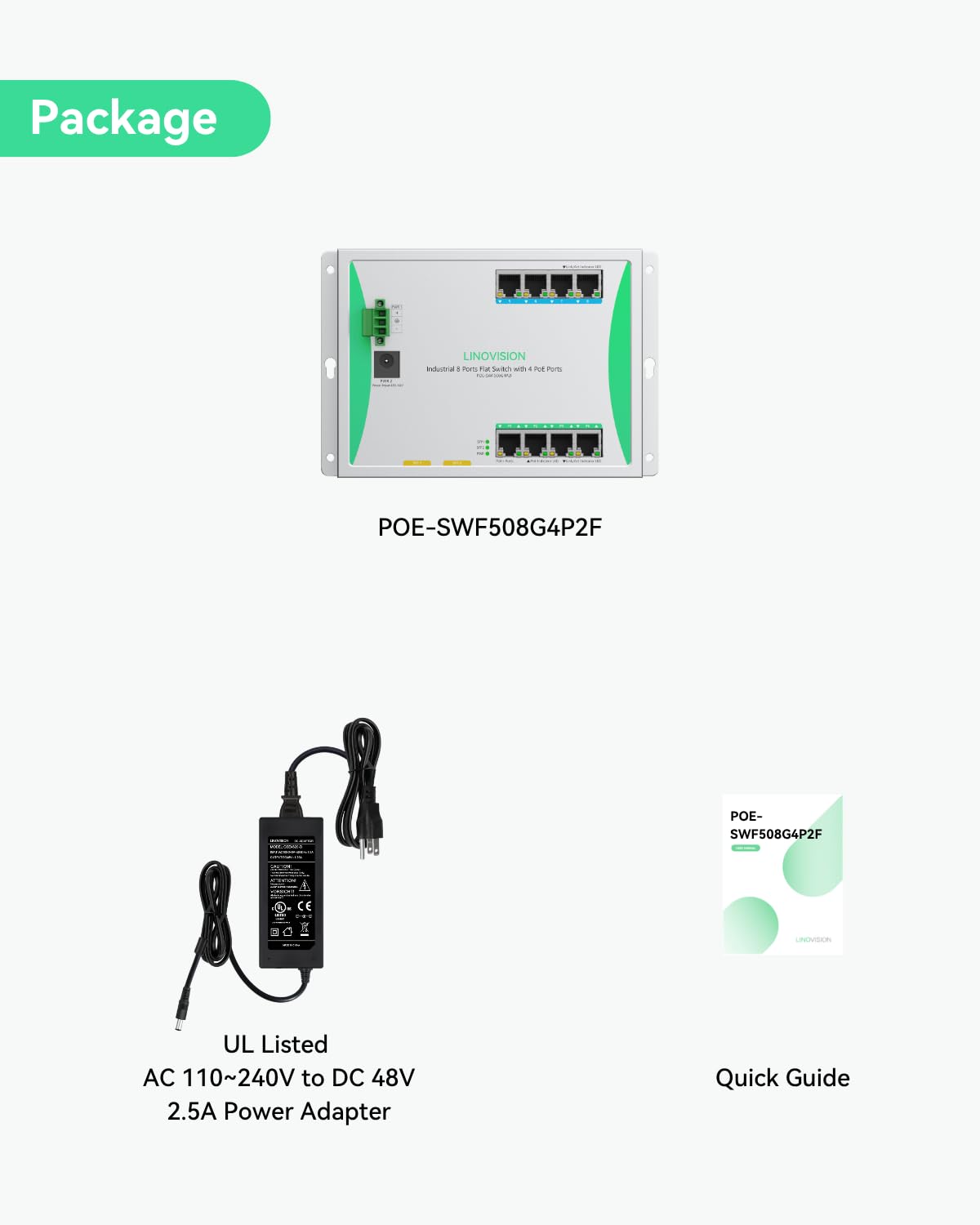

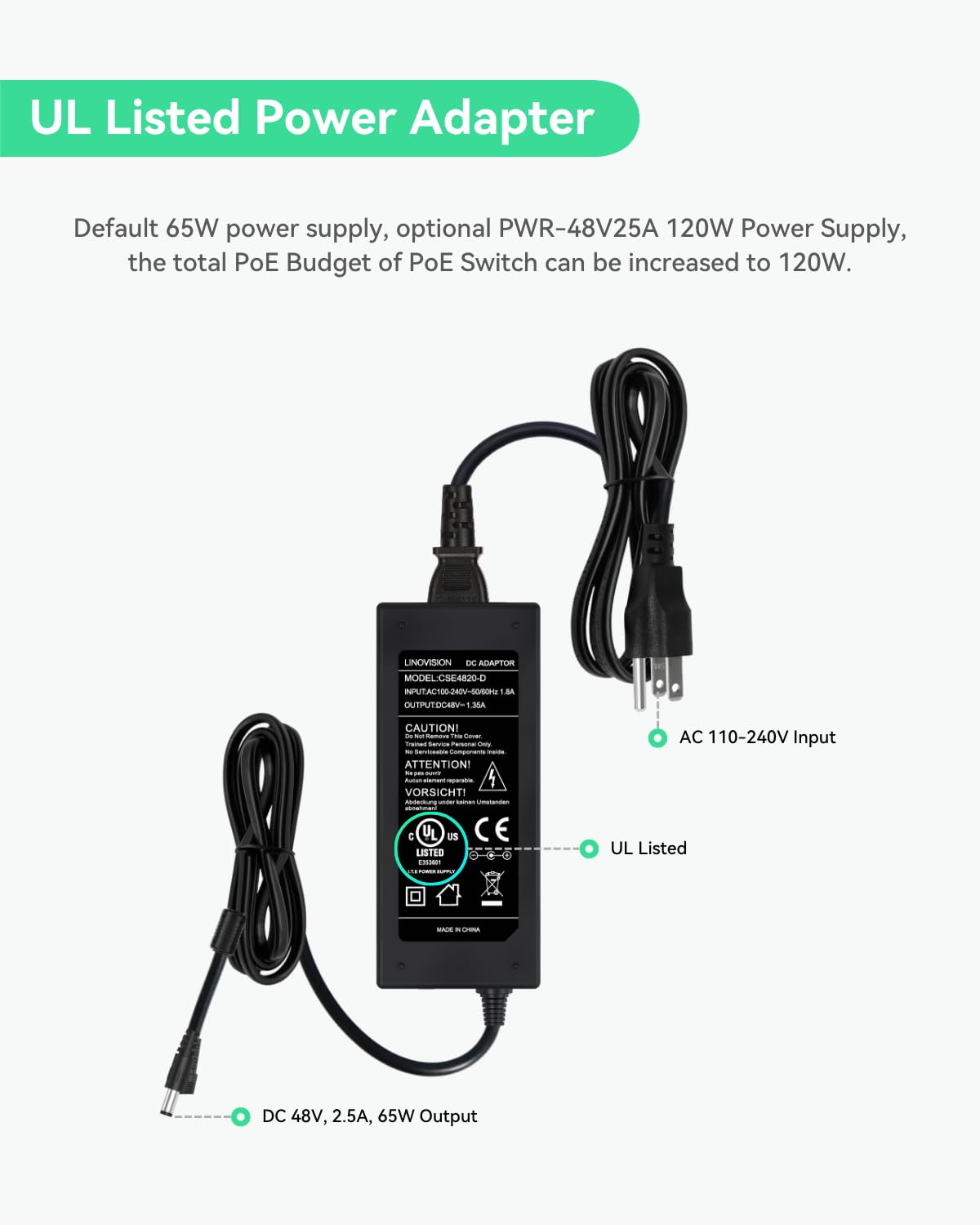

• UL Listed 65W Power Included - Optional 120W Power adapter PWR-48V25A.

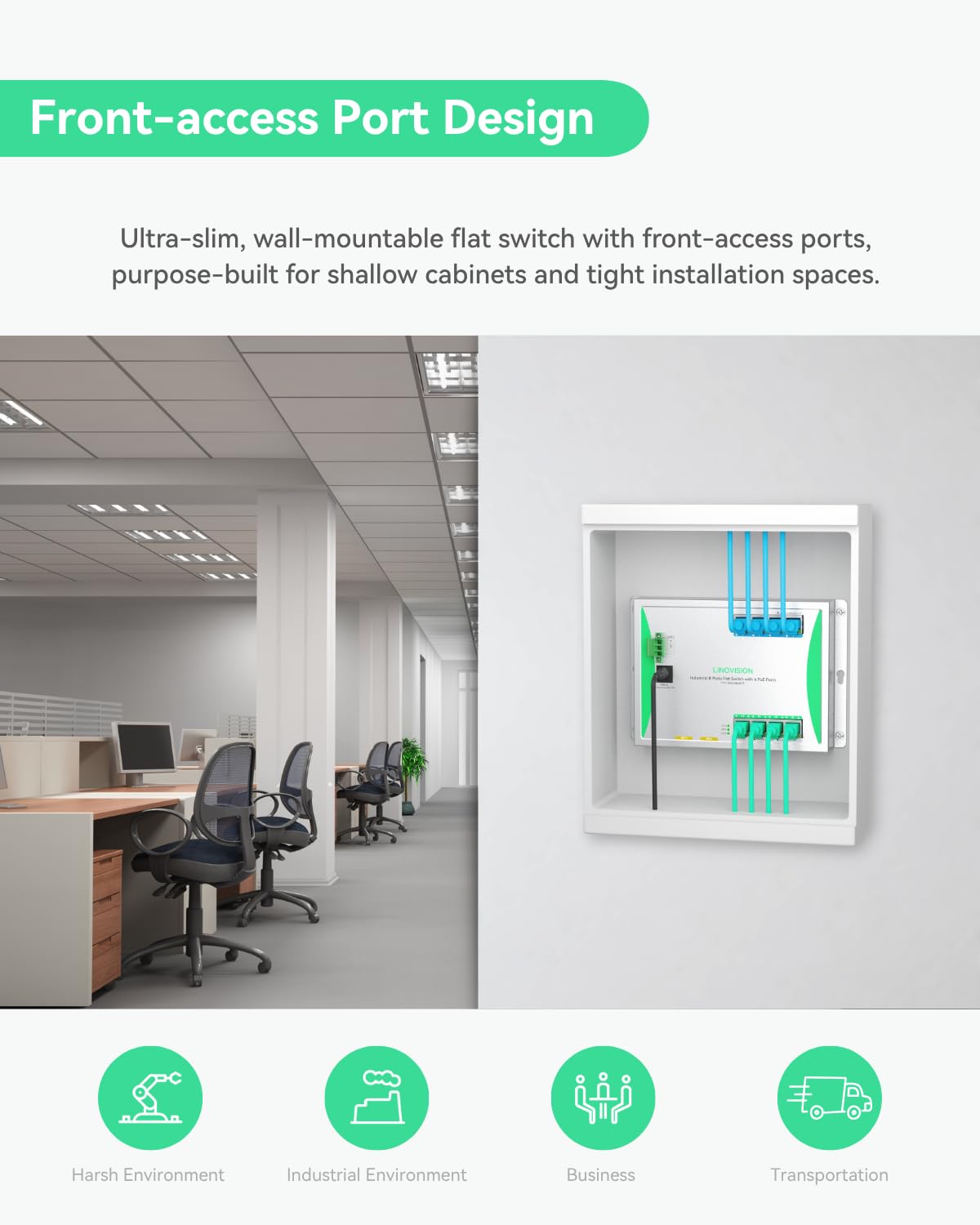

• Industrial Front-access Port Design - Ultra-slim, wall-mountable flat switch with front-access ports, purpose-built for shallow cabinets and tight installation spaces,perfect for tight spaces like electrical cabinets, control boxes, or outdoor enclosures.
• Surge Protection - 6KV surge protection, keep the PoE devices from lightning strikes and other electrical surges, offering reliable performance even in some harsh environments. Wide working temperature -40 ℉ to 167 ℉ (-40°C to 75°C).

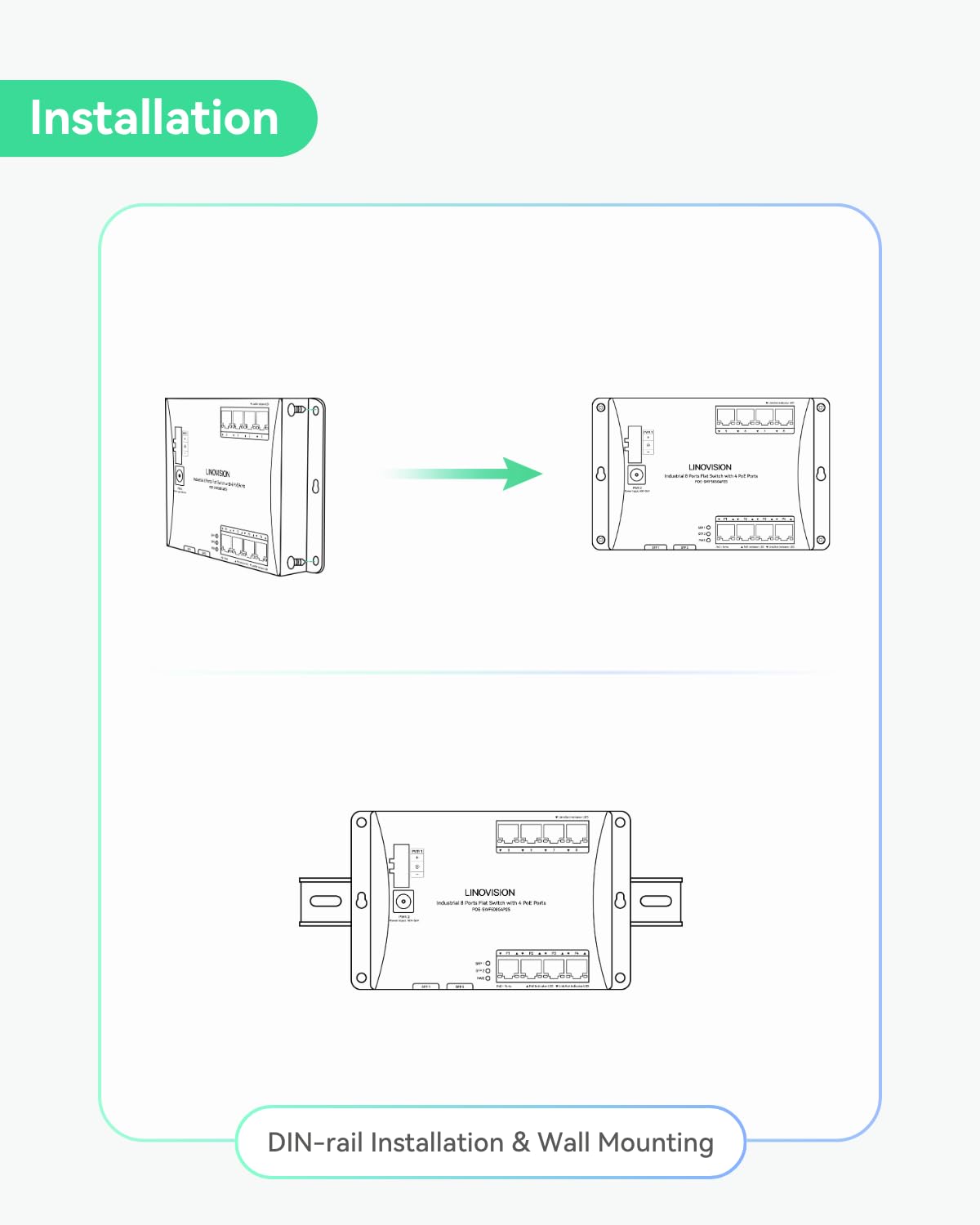

• Easy to use - Plug and play, no configuration is needed. Support DIN-Rail & Wall Mount; compact dimension 3.27 x 2.48 x 1.02''(83x63x25.8mm)

model number: POE-SWF508G4P2F-EU

Part Number: POE-SWF508G4P2F

Package Dimensions: 8.6 x 7.4 x 2.8 inches
