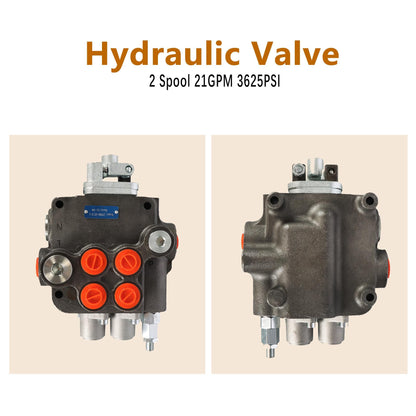

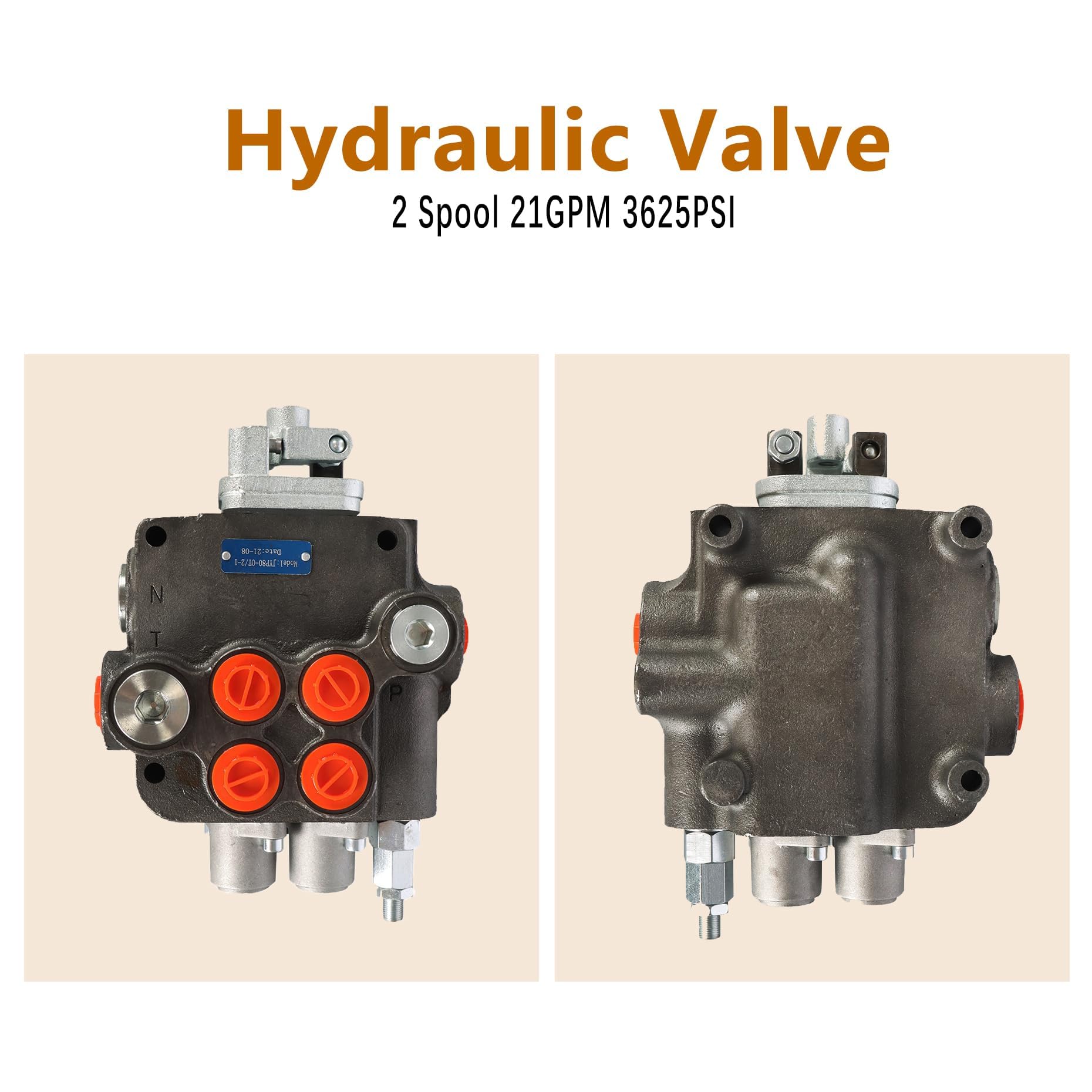

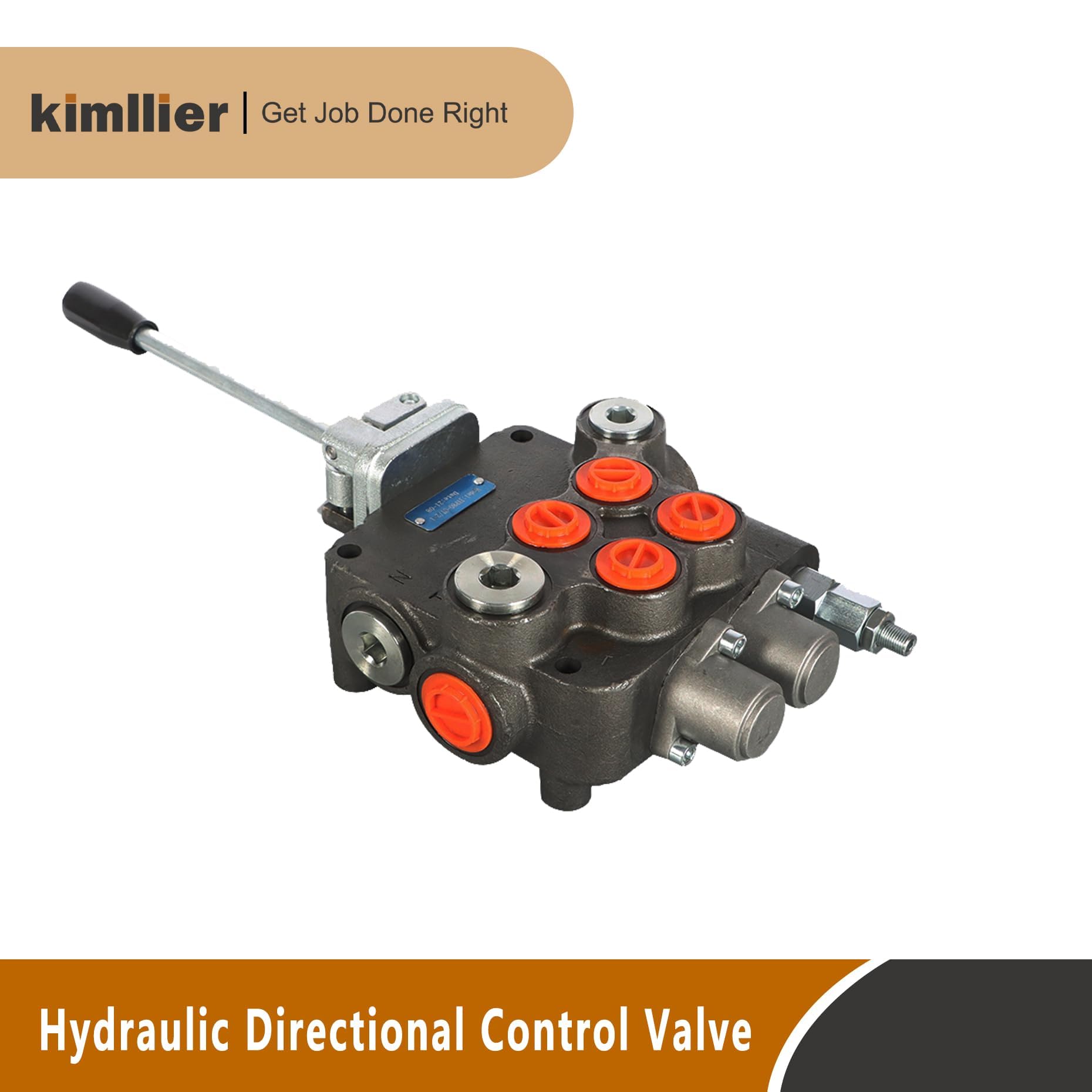

kimllier 2 Spool Hydraulic Valve 21GPM 3625PSI Hydraulic Directional Control Valve w/Joystick SAE Ports Double Acting Valve

Brand: kimllier

Features:

• This loader control valve come with 2 spools, with cast iron construction for long-time use.

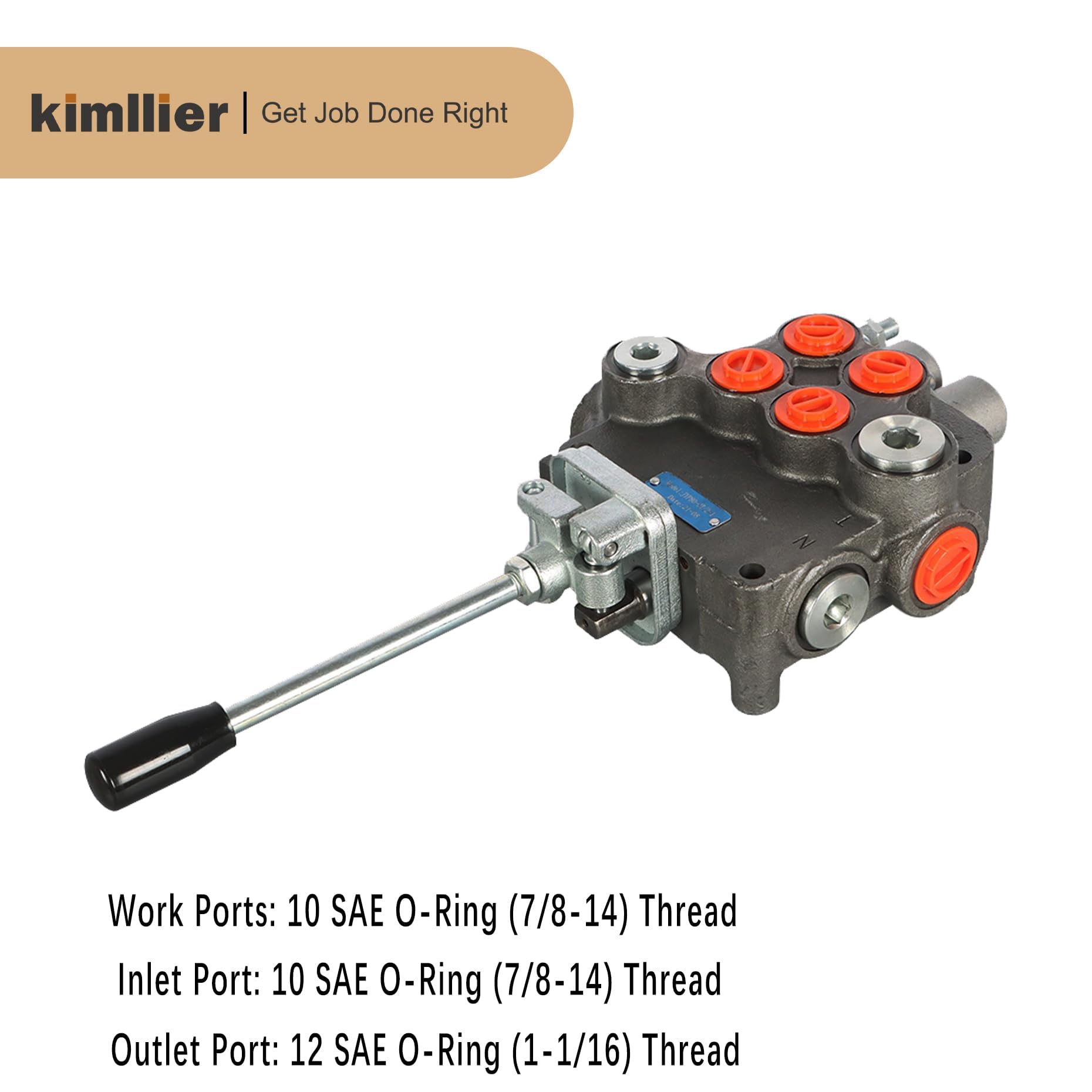

• The relief valve range is up to 3625PSI and the maximum flow is up to 21GPM. A B Work Ports: 10 SAE O-Ring (7/8-14) Thread, Inlet Port: 10 SAE O-Ring (7/8-14) Thread, Outlet Port: 12 SAE O-Ring (1-1/16) Thread.
• The check valve in the valve body ensures that the hydraulic oil does not return, and the overflow valve in the valve body can adjust the working pressure of the hydraulic system.

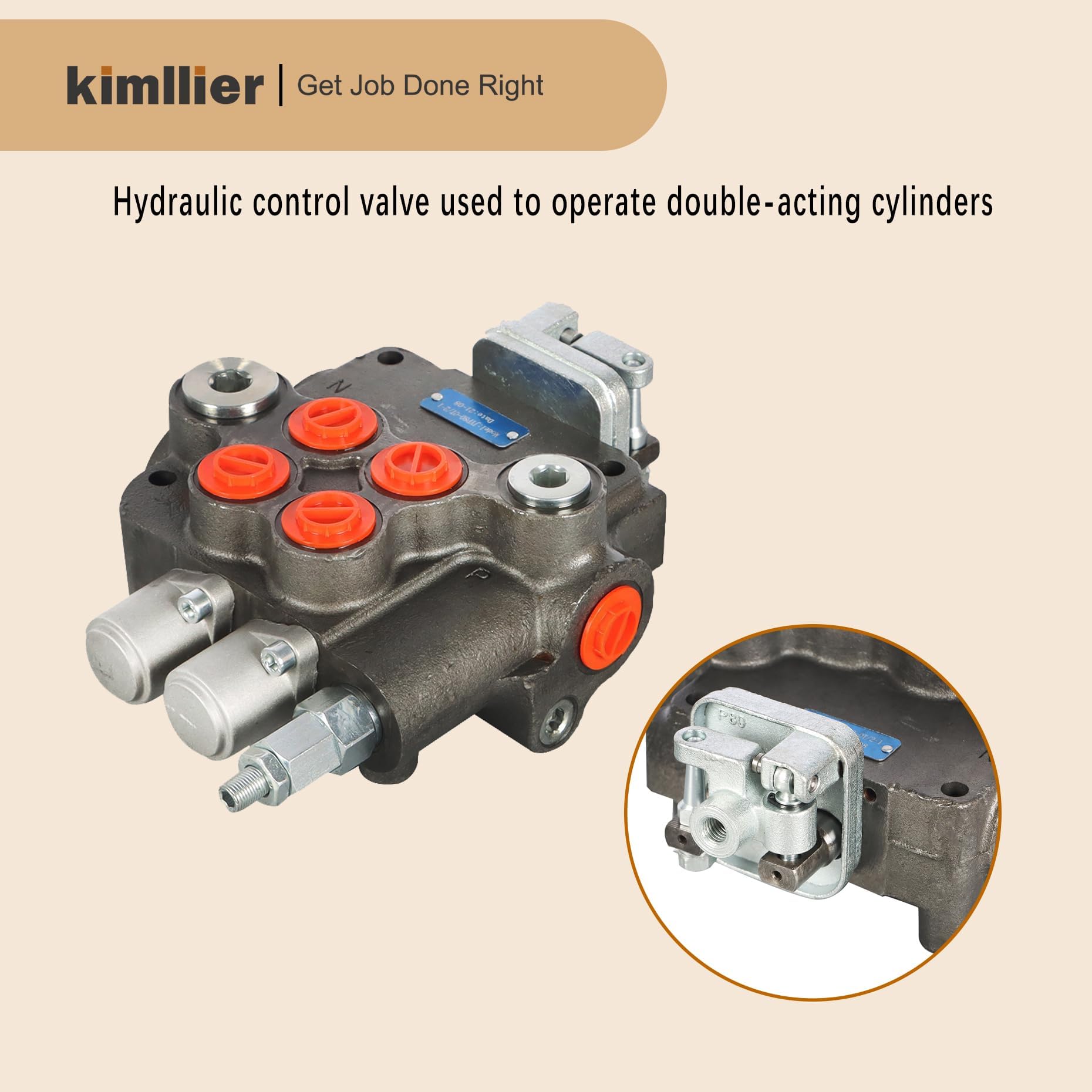

• Hydraulic control valve used to operate double-acting cylinders. All standard spools are spring-returned and can be reset to the neutral place. There are springs at the bottom of the handles that make the joysticks easy to control.

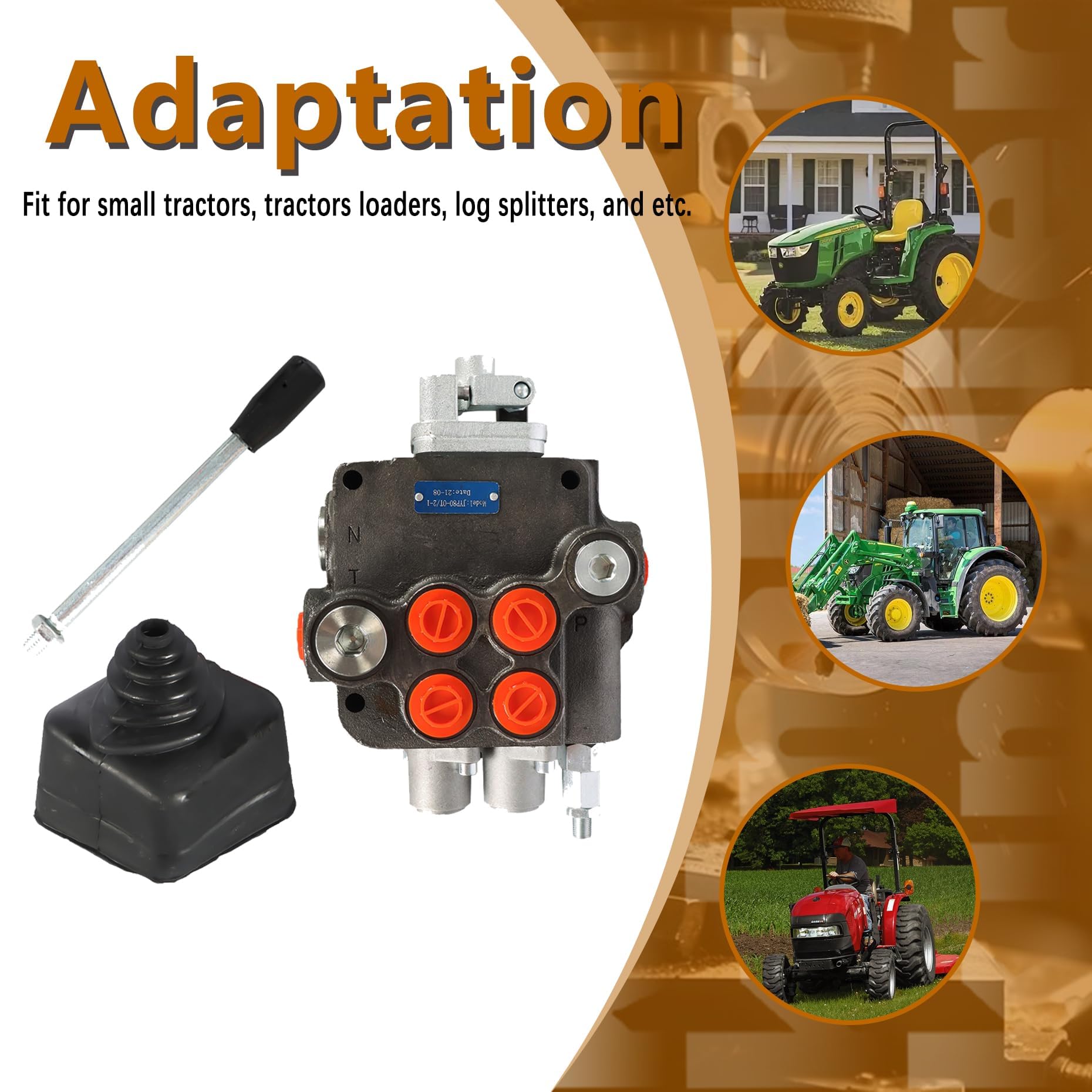

• Fit for small tractors, tractors loaders, log splitters, and etc. The oil port dimensions of this product are PT: 7/8 inches in the US standard, AB: 3/4 inches in the US standard, and C port: 7/8 inches in the US standard

model number: Does Not Apply

Part Number: KM-1456188-253718-LR

Package Dimensions: 11.2 x 10.7 x 4.8 inches
