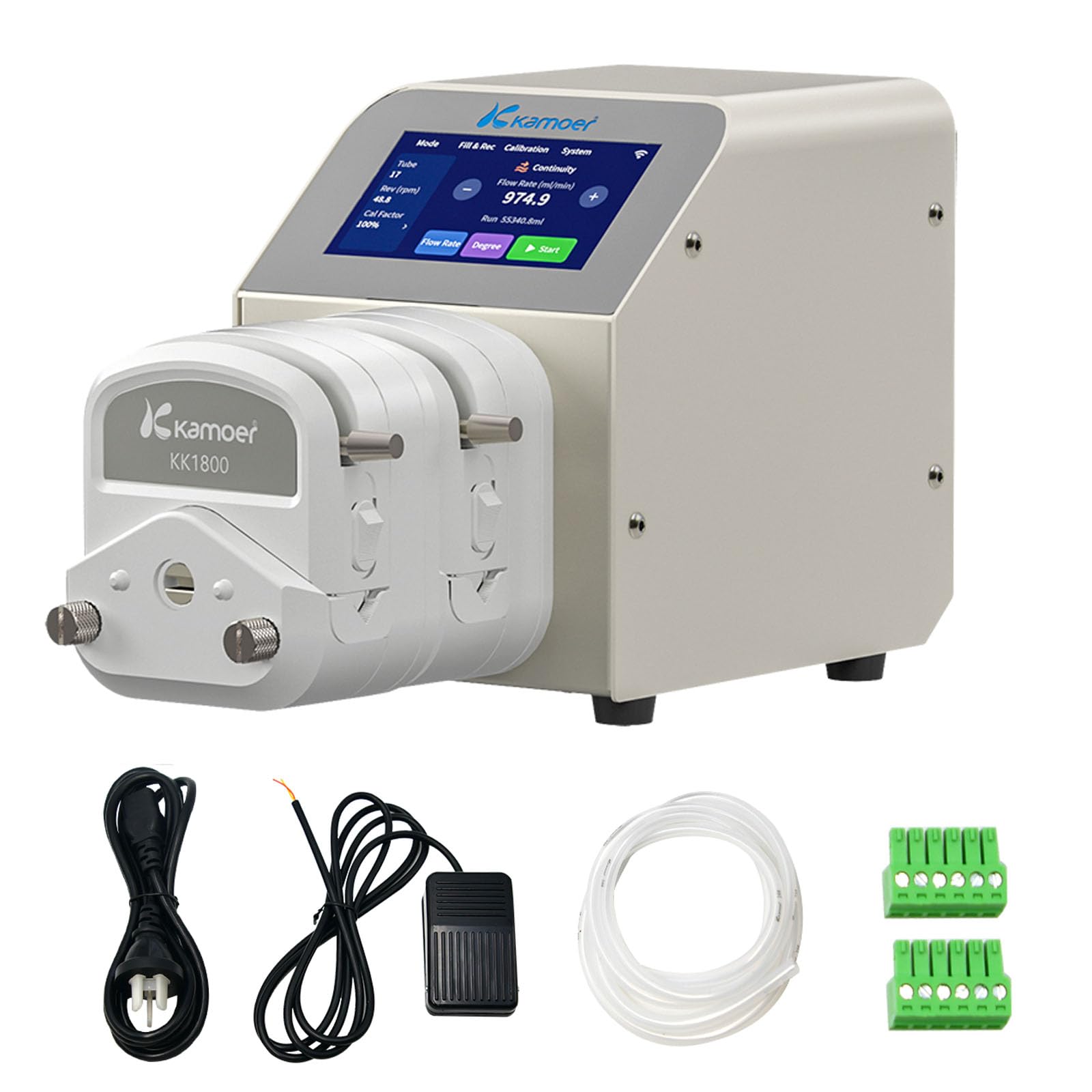

Kamoer UIP V2 Intelligent 0.1~1500ml/min high Flow peristaltic Pump with high-Precision Closed-Loop Stepper Motor 100V~240VAC dosing Pump Foot Switch (Double Head)

Brand: Kamoer

Features:

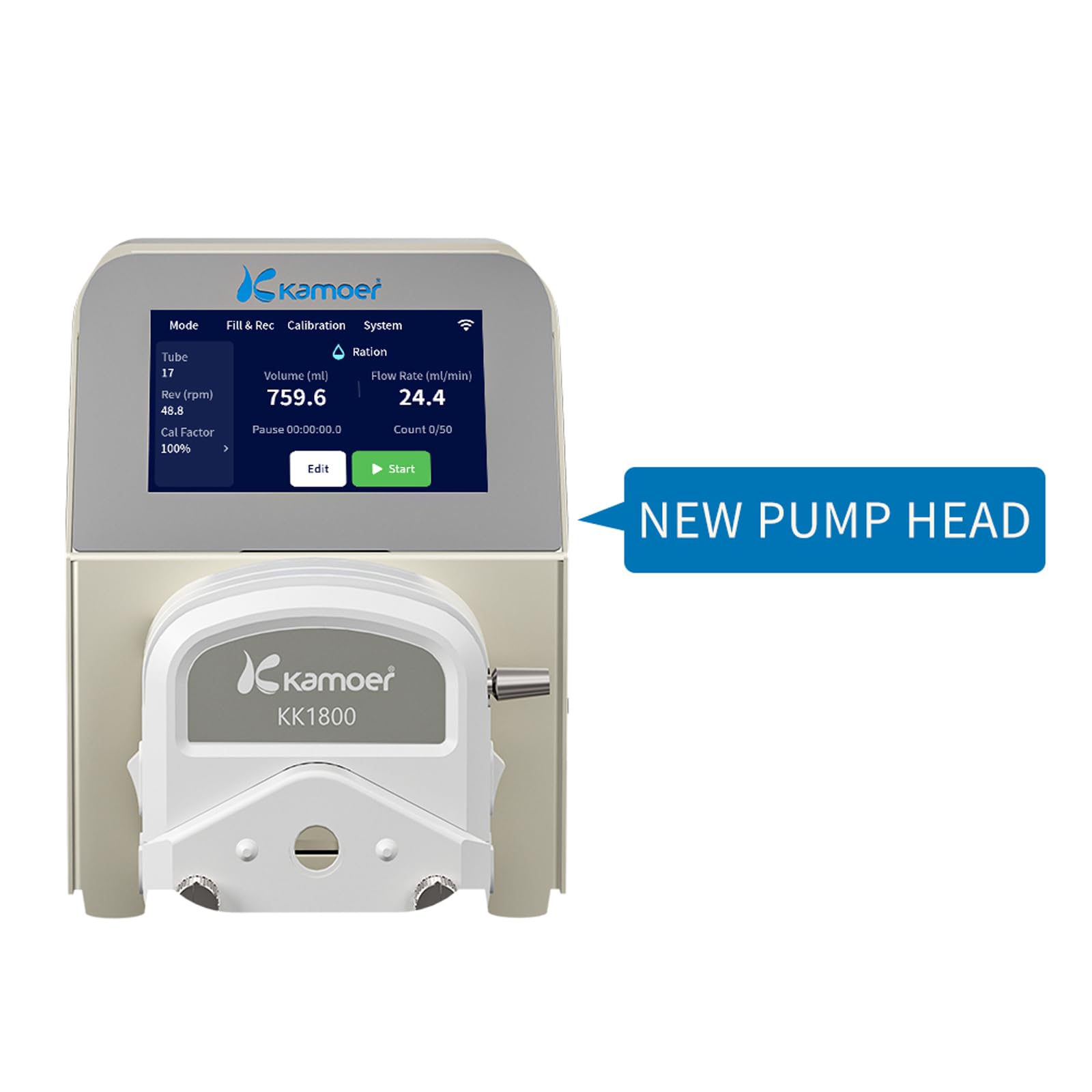

• Smart & Intuitive Operation – Features a 4.3' color touch screen with Wi-Fi connectivity. Supports continuous, dispensing (batch), and remote control modes. Easy to set flow rate, volume, cycles, and pause time via the built-in interface.
• High Precision & Wide Flow Range – Equipped with a closed-loop stepper motor (0.1–350 RPM resolution). Flow rate from 0.1 to 1500 mL/min depending on tubing (supports 1.6mm/2.5mm wall thickness, 3 or 6 rotor options). Built‑in flow calibration ensures accurate liquid delivery.

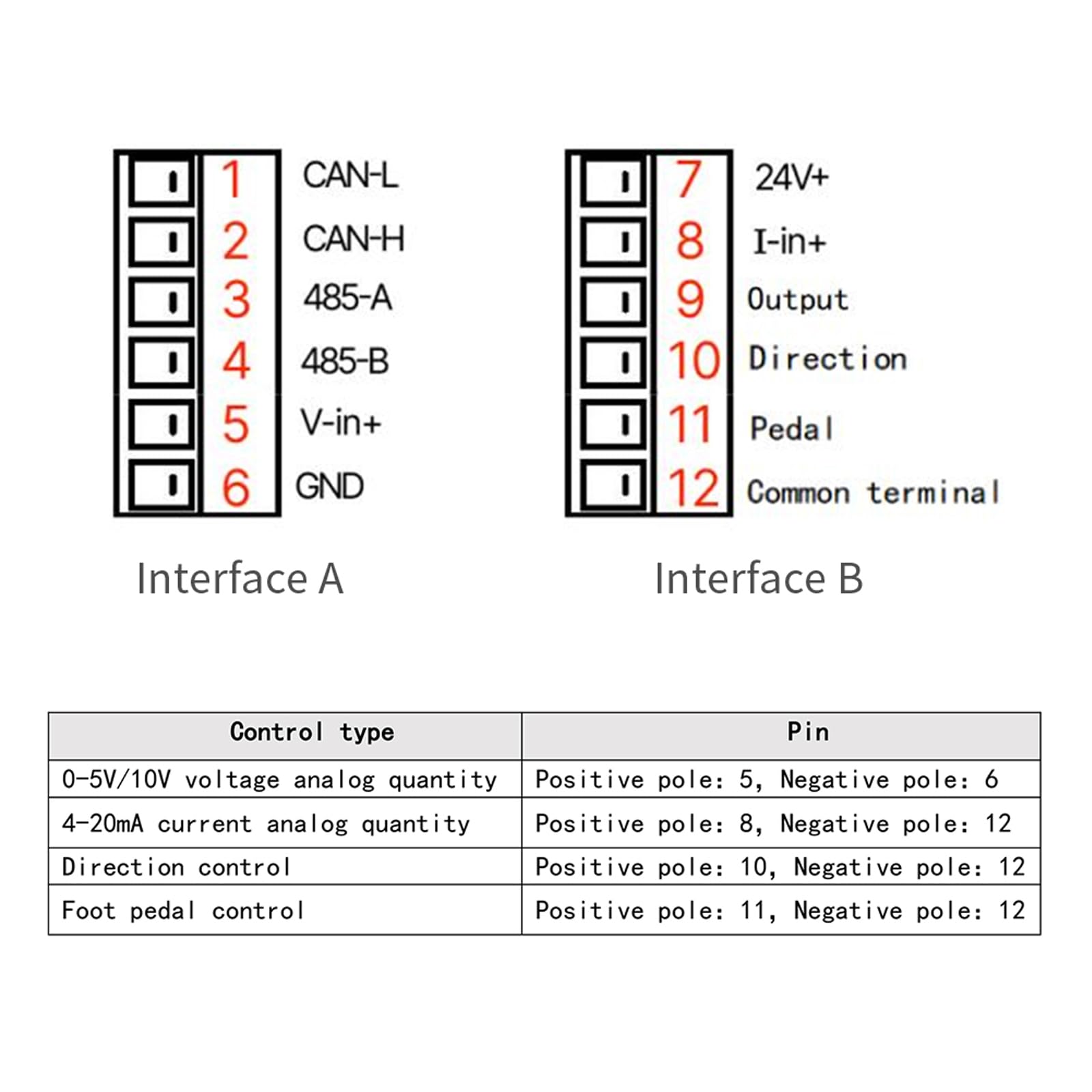

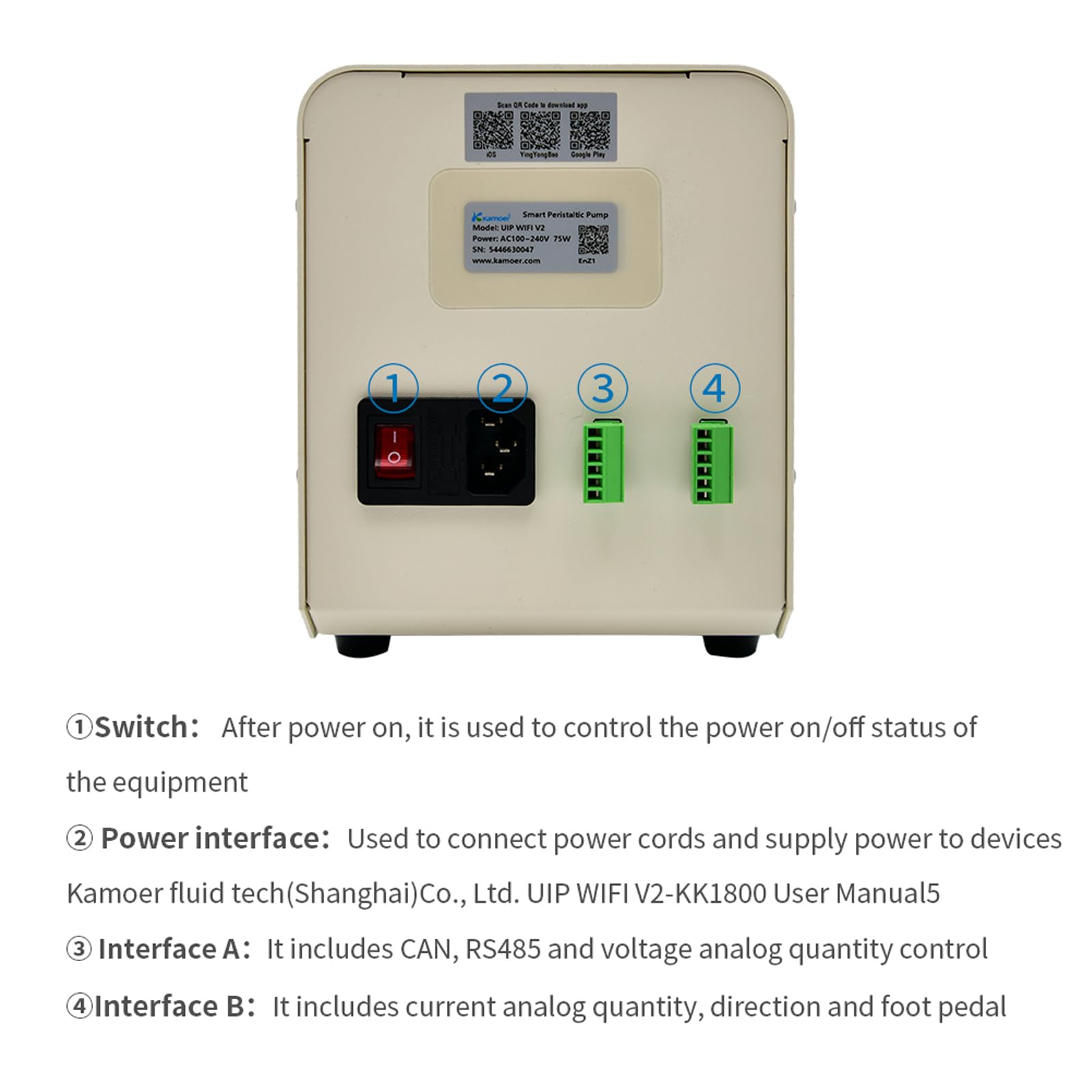

• Versatile External Control – Includes RS485, CAN, 0–5V/0–10V voltage analog, 4–20mA current analog, direction control, and foot pedal switch. Easily integrates into automated systems or remote operation setups.

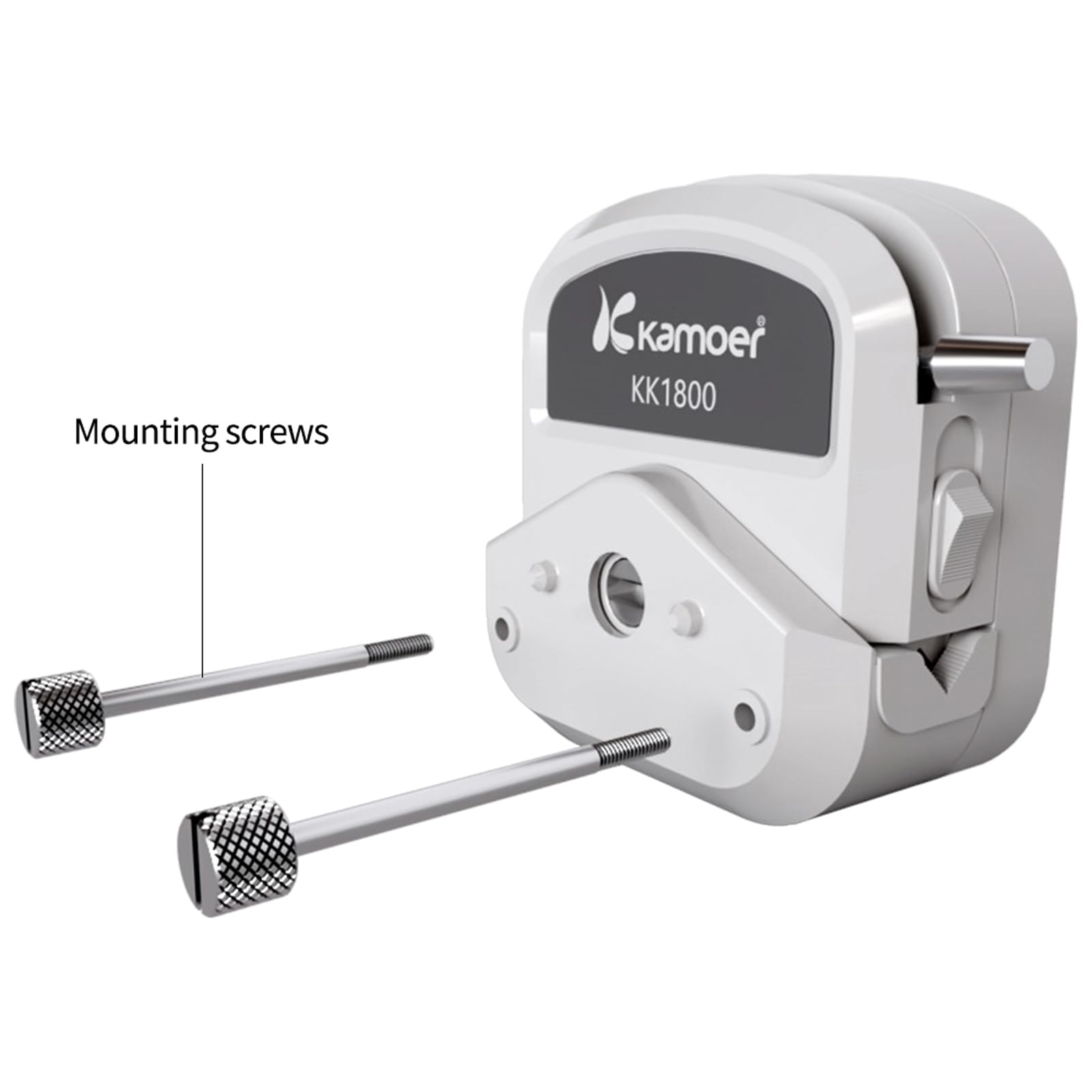

• Durable & Reliable Construction – Stainless steel rotor and rugged pump head (KK1800) for long service life. Stepper motor rated for >6,000 hours. Works with various tubing materials (silicone, etc.) for corrosive or viscous fluids. Back‑siphon function prevents drips after dispensing.
• Wide Application & Safety Features – Ideal for laboratory liquid transfer, reagent dispensing, food packaging machines, and chemical feeding. Supports foot pedal control, optical sensor (for bottle detection), and password lock. CE/RoHS compliant. Comes with 1.8m power cord and quick‑connect terminals.

model number: UIP-WIFI

Part Number: CA.01.03.0011-01

Package Dimensions: 14.5 x 11.9 x 8.8 inches
