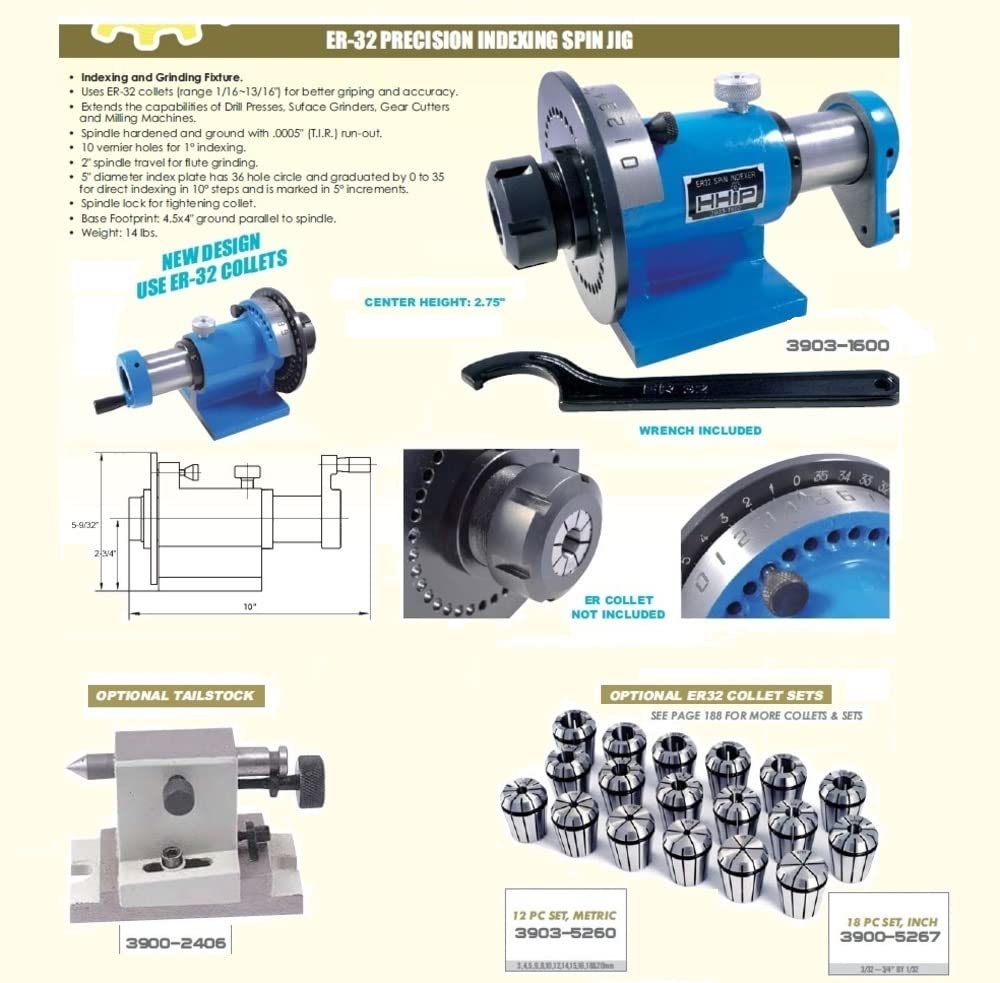

HHIP 3903-1600 Er-32 Indexing Spin Jig with Wrench

Brand: HHIP

Color: Blue

Features:

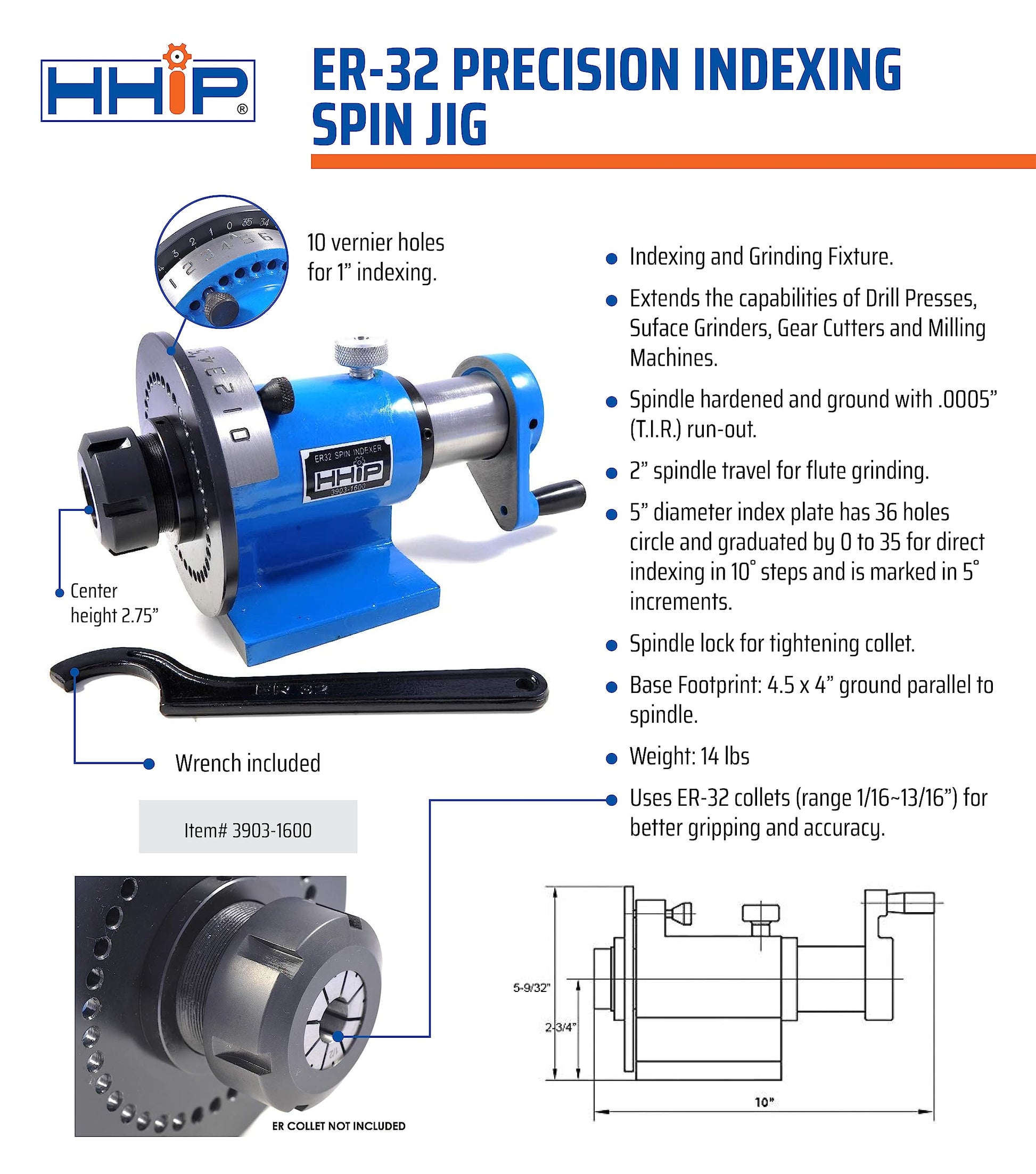

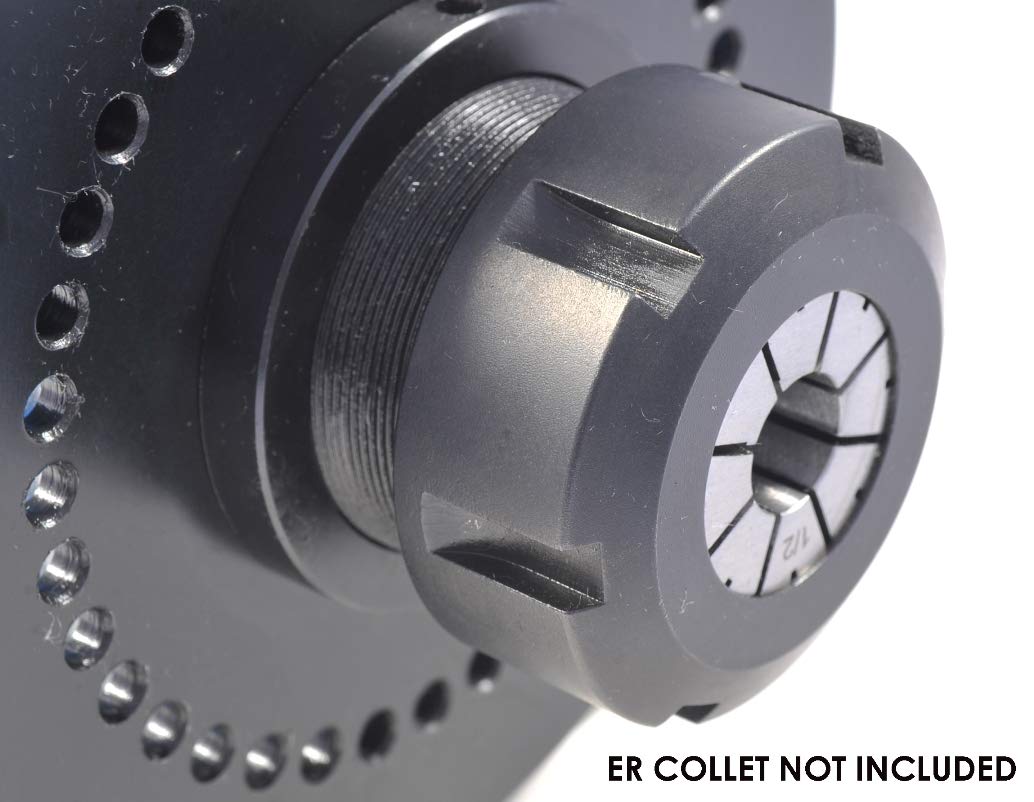

• This indexing & grinding fixture uses er-32 collets (range 1/16~13/16') for better griping and accuracy
• Extends the capabilities of drill presses, surface grinders, gear cutters and milling machines
• Spindle hardened and ground with a .0005' T.I.R

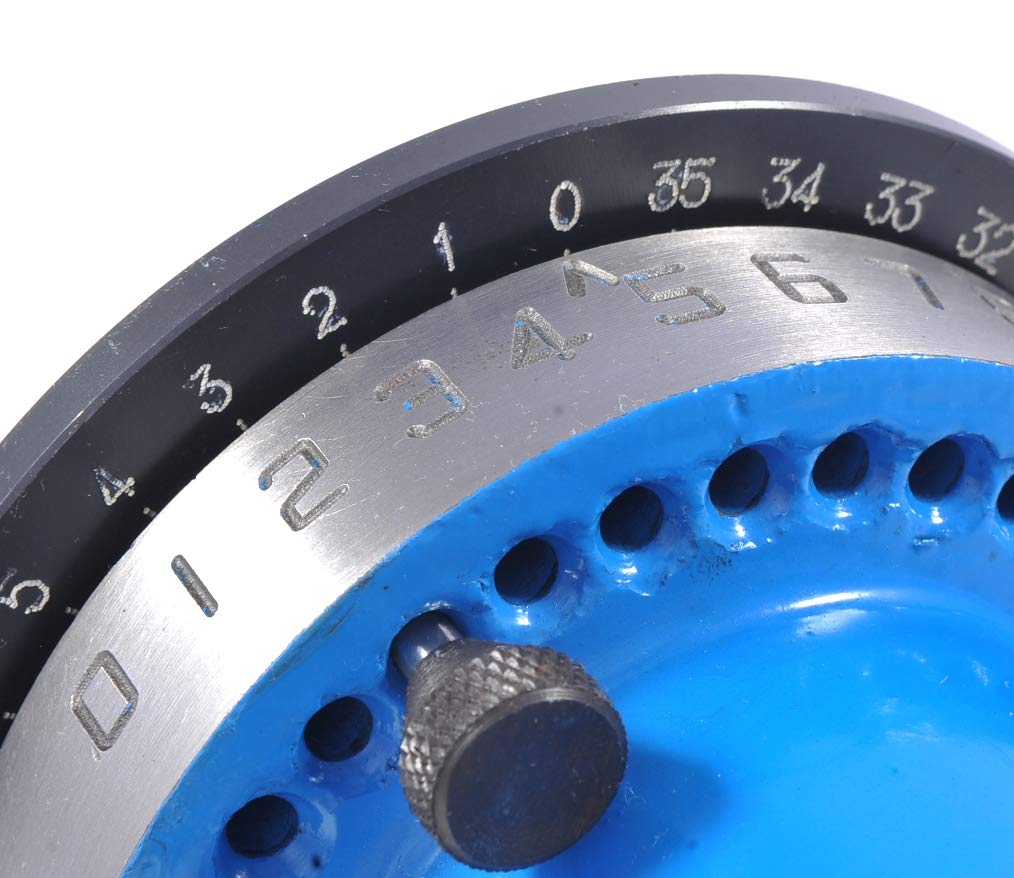

• 10 vernier holes for 1° indexing
• 2' spindle travel for flute grinding

model number: 3903-1600

Part Number: 3903-1600

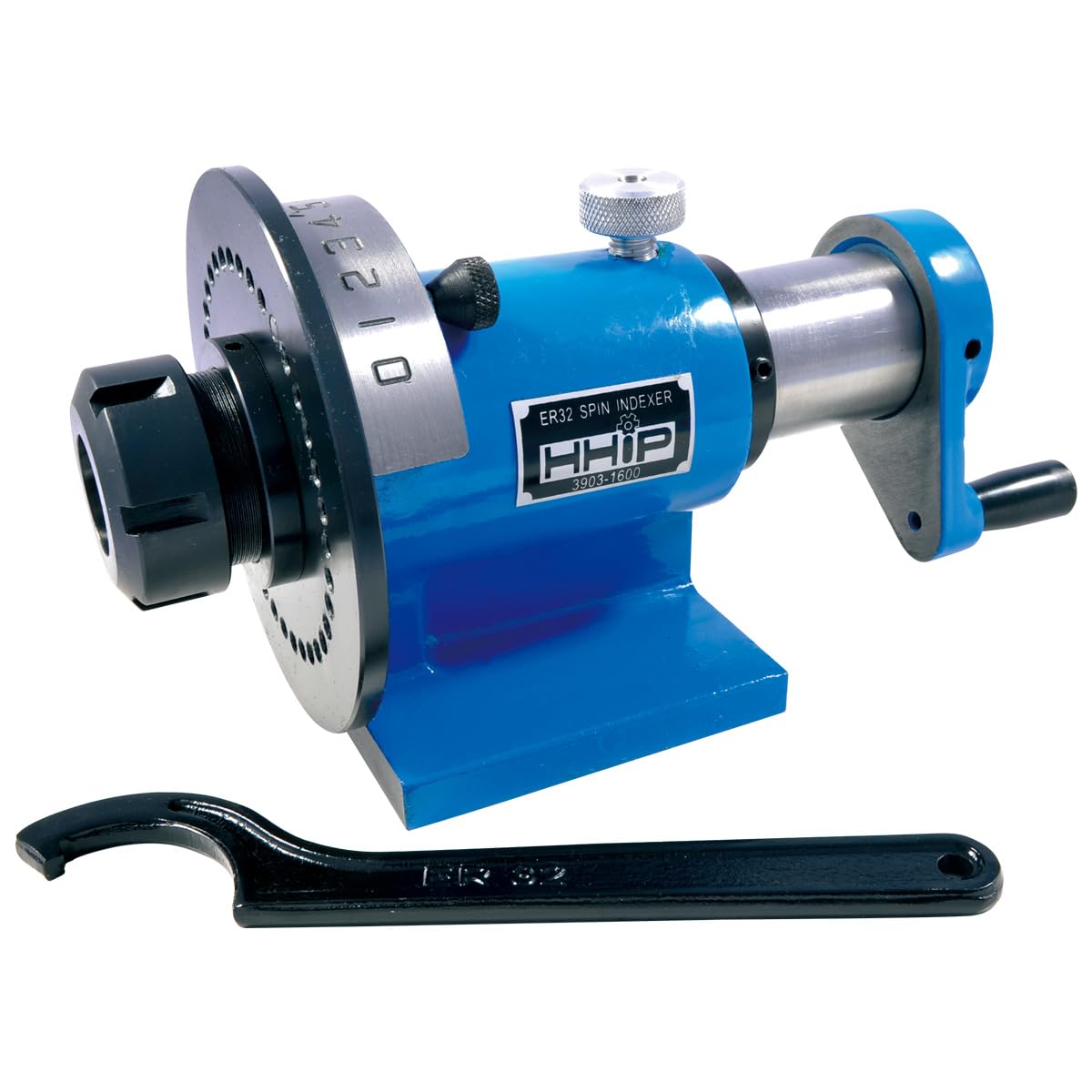

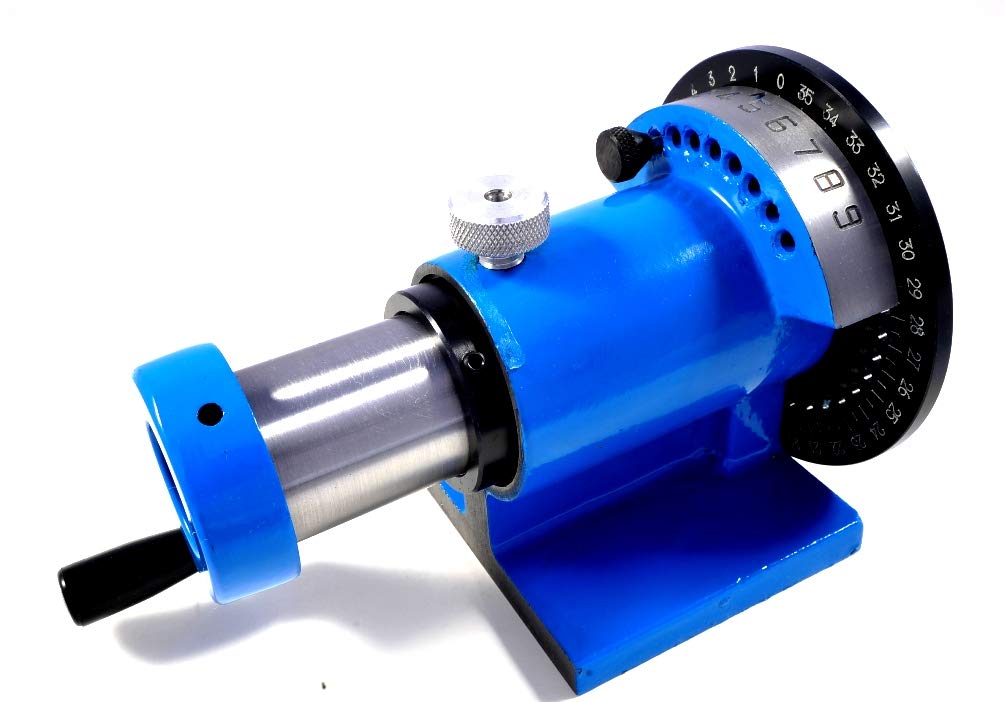

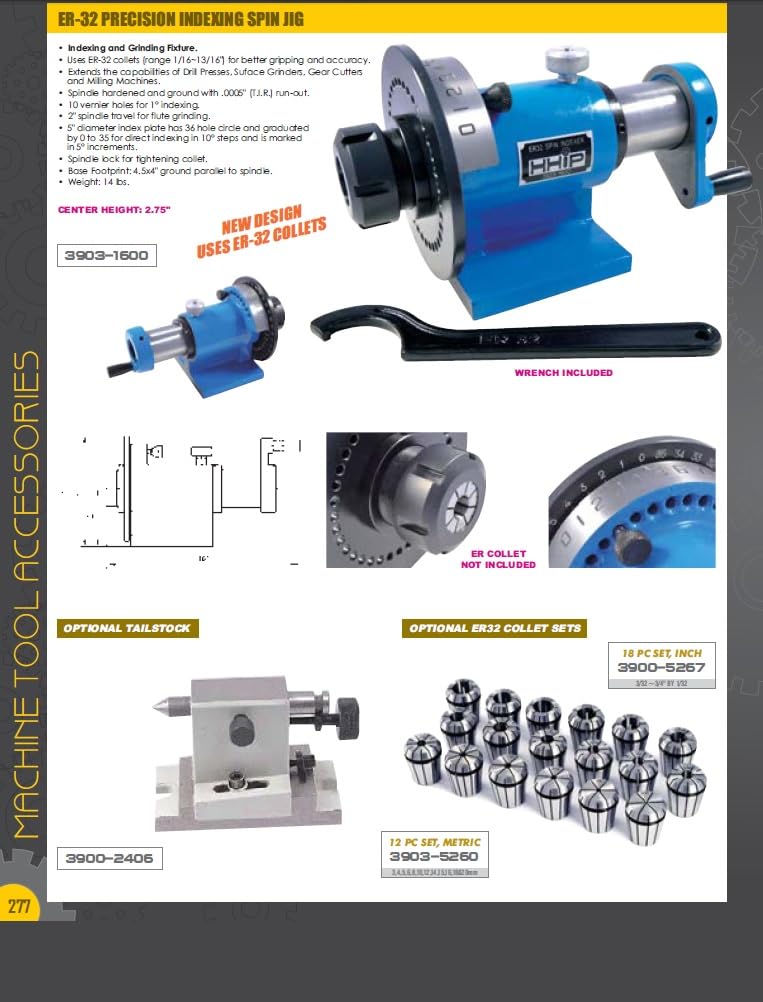

Details: HHIP ER-32 Indexing spin jig with wrench. This indexing and grinding fixture uses ER-32 collets (range 1/16. 13/16') for better griping and accuracy. Extends the capabilities of drill presses, surface grinders, gear cutters and milling machines. Spindle hardened and ground with a.0005' T.I.R. 10 vernier holes for 1° indexing. 2' spindle travel for flute grinding. 5' diameter index plate has a 36 hole circle and is graduated by 0 to 35 for direct indexing in 10° steps and is marked in 5° increments. Spindle lock for tightening collet. Center height is 2.75'. Base footprint is 4.5 X 4'. Ground parallel to spindle.

EAN: 0769053101835

Package Dimensions: 13.0 x 10.1 x 9.5 inches
