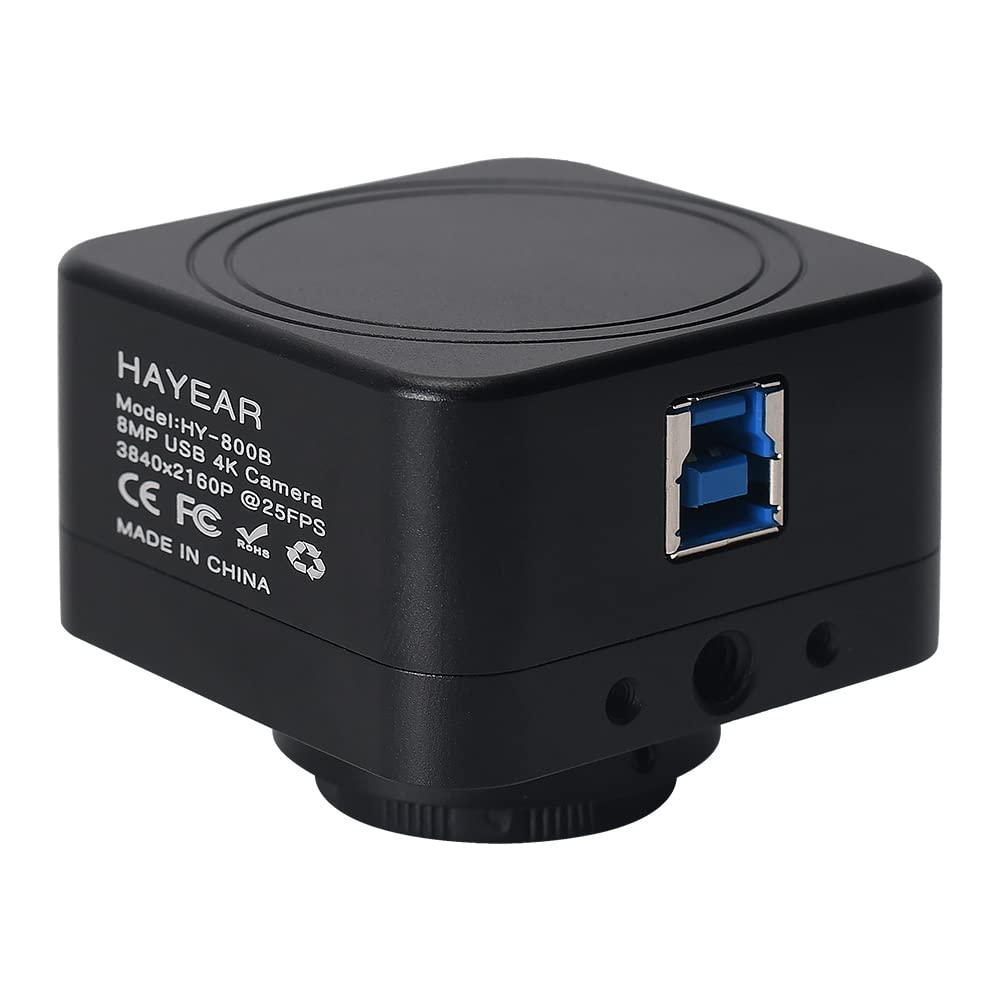

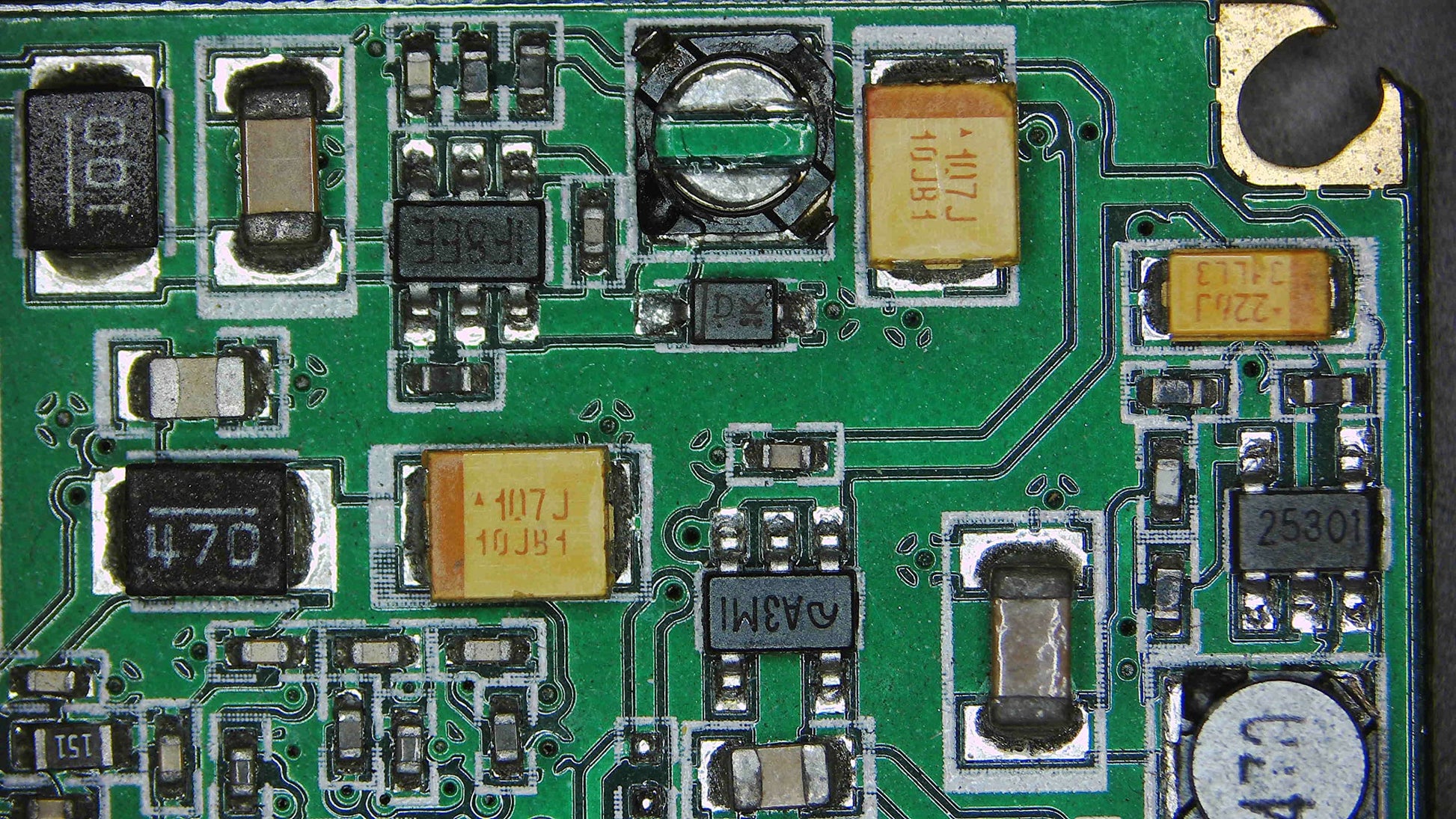

HAYEAR 8MP 4K USB Digital Camera 1/1.8 inch Sensor Microscope Camera, UHD 3840x2160 USB Camera for Windows Web Cam OTG Supported for Education Lab PCB Inspection

Brand: HAYEAR

Color: Purple

Features:

• Progressive scanning, real 8MP image sensor no compression, no interpolation
• Video: 3840x2160 @ 25fps; 2592x1944 @ 25fps; 2560x1440 @ 45fps; 1920x1080 HDR @ 60fps; 1280x960 HDR @ 60fps；1280x720 HDR @ 60fps; 640x480 HDR @ 60fps; 320x240 HDR @ 60fps

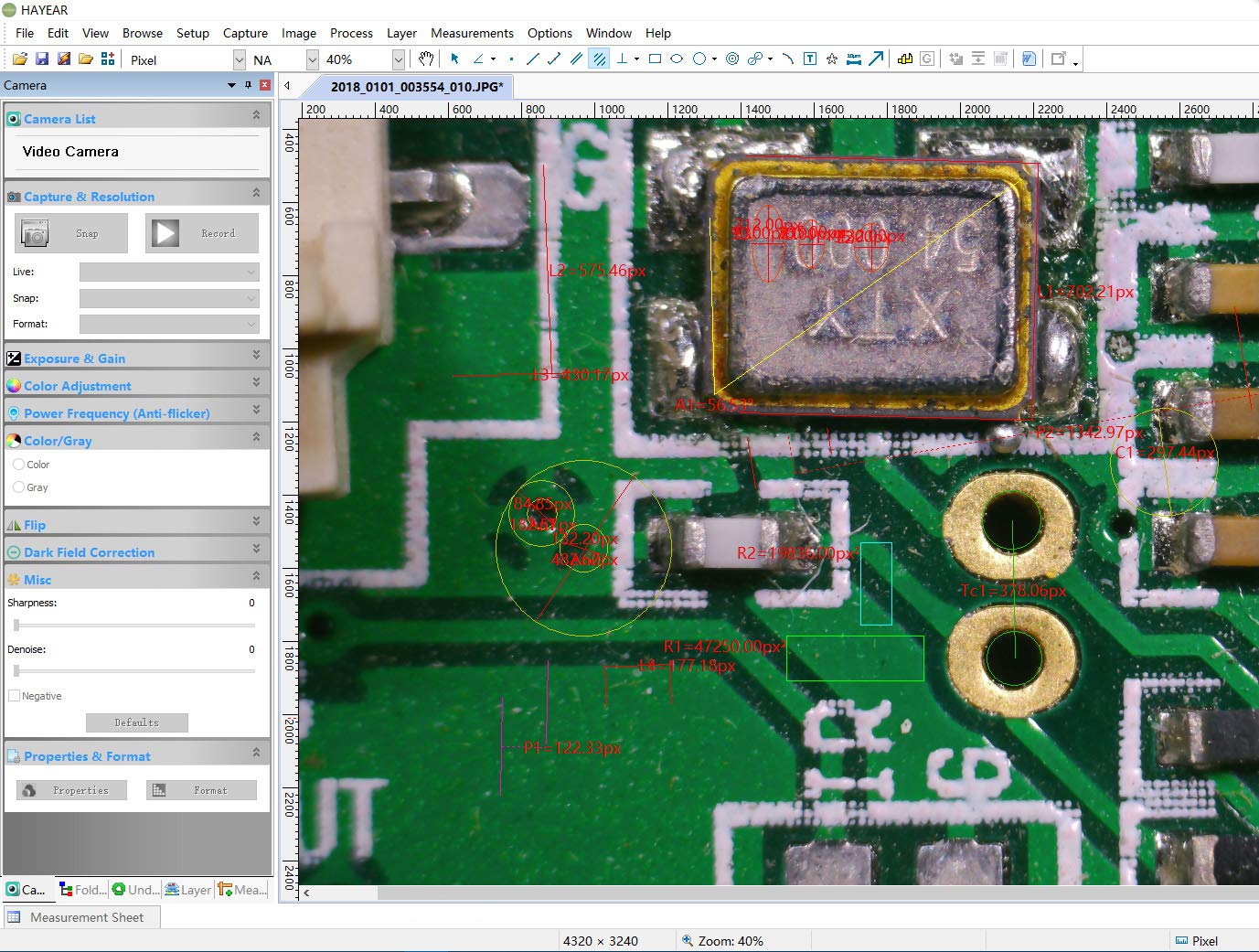

• 4K resolution, high speed without lag off. Driver free for Windows system. Compatible with Windows system, iOS and linux. We only provide free softwre for Windows.

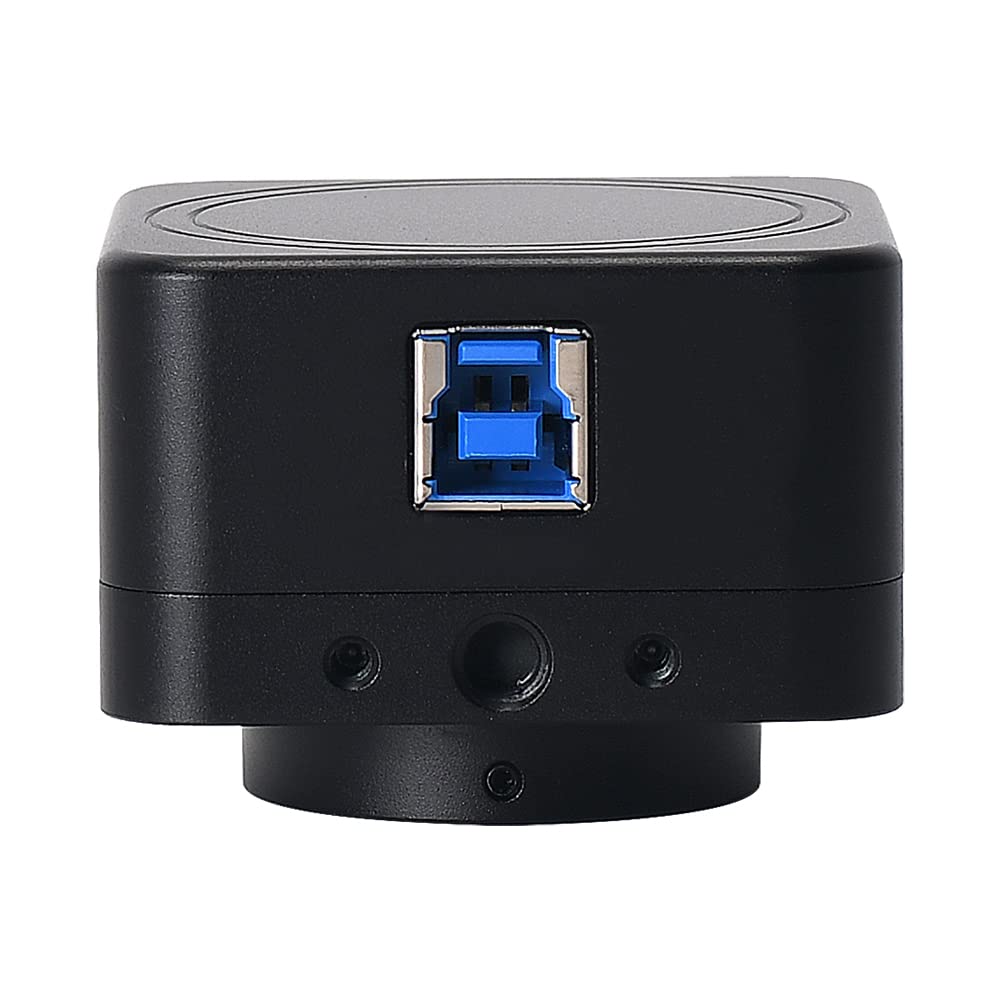

• USB2.0 interface, equipped with USB3.0 interface but only USB2.0 transmission speed. USB3.0 to be upgraded. Standard C mount camera mouting, compatible with most of machine vision lens, FA lens, monocular objective zoom lens, fix focus lens.
• Widel applicable for live streaming video brocast, stereo microscop, biological microscope, telescope, intelligent terminal devices, face recognition, scanning camera, machine vision detection, etc..

model number: HY-800B

Part Number: HY-800B

Details: Model: HY-800B
Name: USB 2.0 Color 8MP Driver-free UVC Digital Camera

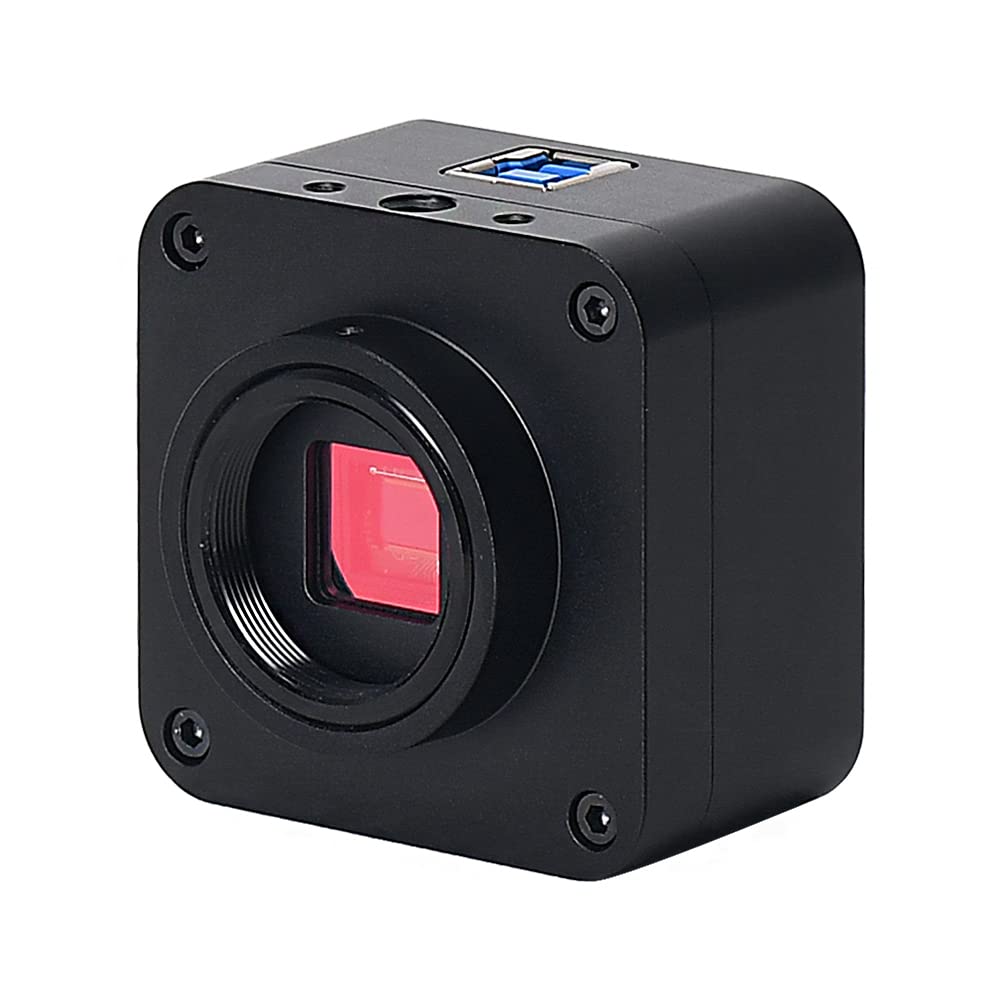

Image Sensor : 1/1.8' Color CMOS Image Sensor
Pixel size: 2μm（H）×2μm(V)
Spectral response: 400nm～1000nm
Scanning method: Progressive scanning, real 8MP image sensor no compression, no interpolation
Resolution: 3840x2160;2592x1944;2560x1440;1920x1080;1280x720;640x480
Image format:
MJPEG (Compression format)
840x2160 @ 25fps; 2592x1944 @ 25fps;
2560x1440 @ 45fps; 1920x1080 @ 60fps;
1280x960 @ 60fps； 1280x720 @ 60fps;
640x480 @ 60fps 320x240 @ 60fps

YUV422 (Compression format)
3840x2160 @ 1fps; 2592x1944 @ 1fps;
1920x1080 @ 5fps; 1280x720 @ 5fps;
640x480 @ 30fps 640x360 @ 60fps
320x240 @ 60fps
Dynamic Range: 74 dB (Linear)-85 dB (HDR)
Sensitive: 2400 mV/Lux-sec
White balance: Auto/manual
Data output: USB2.0，480Mb/s
SNR: 9dB
Working temperature: -30~65
Storage temperature: -30~60
Preservable parameters: Brightness, Contrast, Color saturation,Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure
Support UVC: USB Video Class（UVC）
White balance: Auto/Manual
One-click white balance: Support
Exposure control: Auto/Manual
supports output formats: 12-/10-bit RAW RGB/ supports 2x2 binning/ ISP clock up to 240MHz
Support systems:
Win XP/Win7/Win10/win11
Linux / Android /MAC OS X10.4.8 or later (Devices that comply with the UVC protocol)
Support OTG: USB2.0 OTG
Range of uses: Industrial vision, visual inspection, microscope, astronomical telescope, intelligent terminal equipment,
face recognition, advertising machine, dish recognition, smart vending camera,
electronic weighing object recognition, USB Raspberry Pi camera, code scanning camera, etc...

EAN: 0638457611205

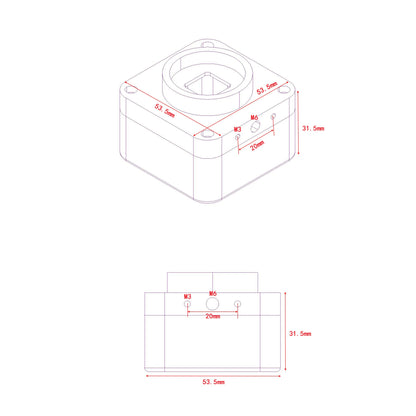

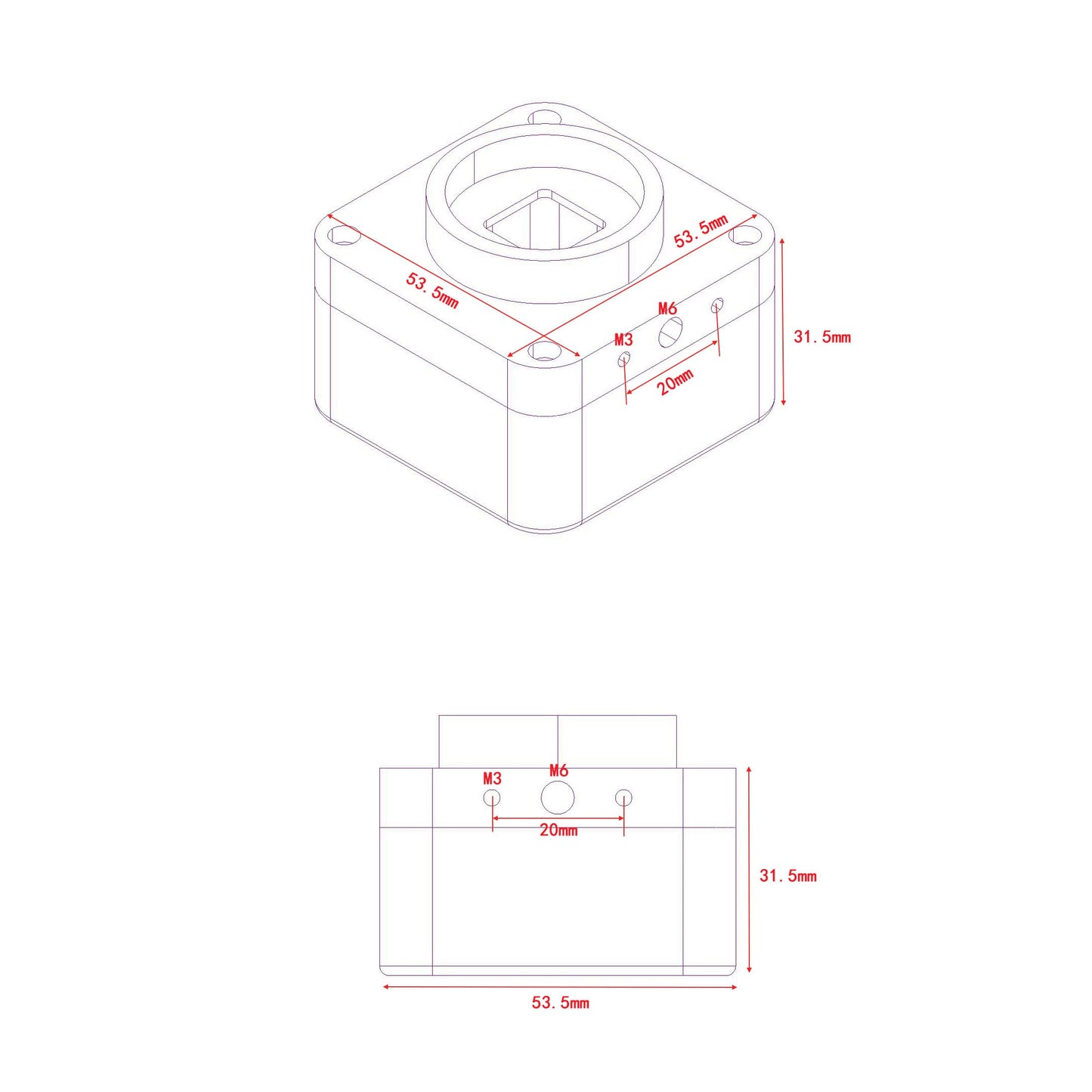

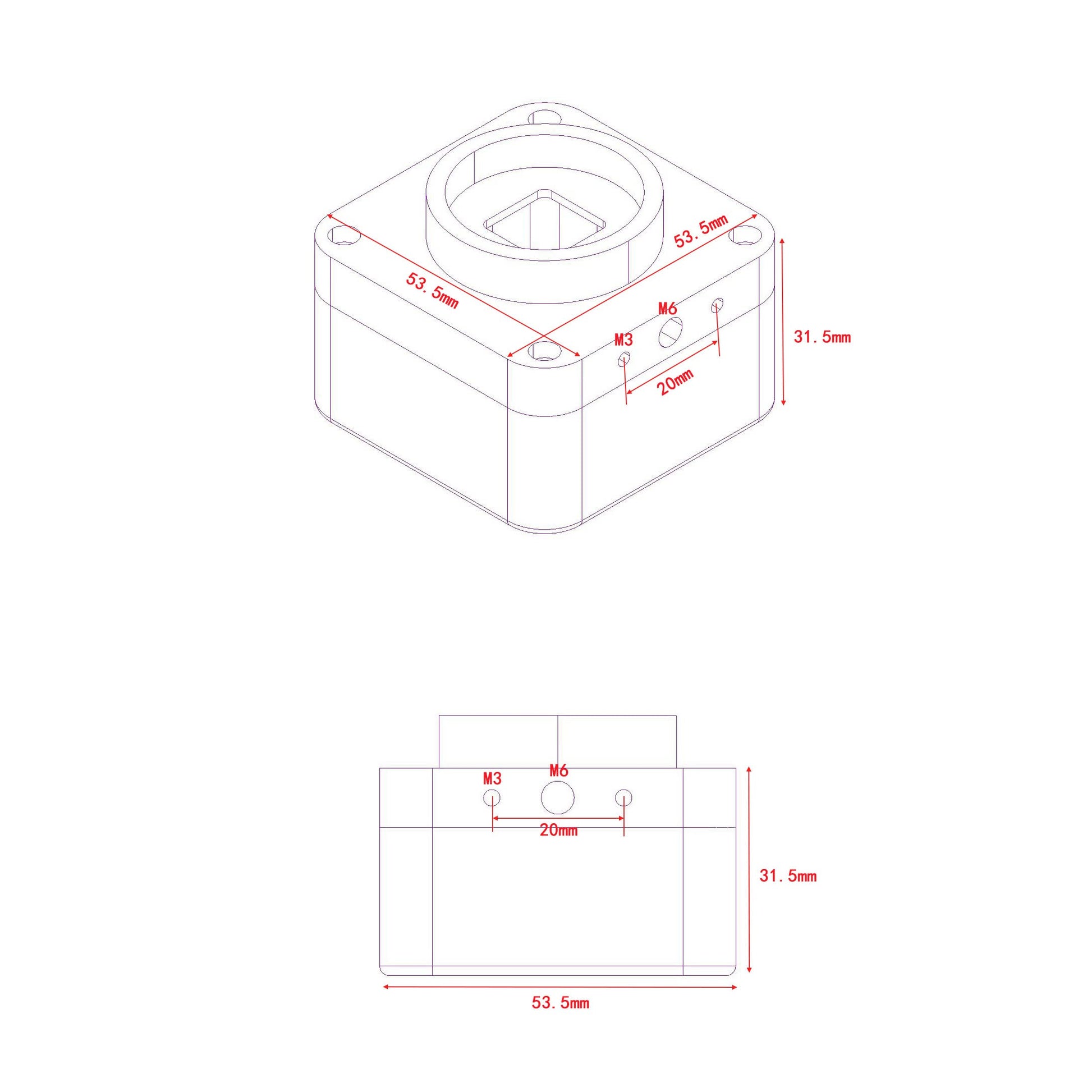

Package Dimensions: 6.4 x 4.3 x 3.3 inches
