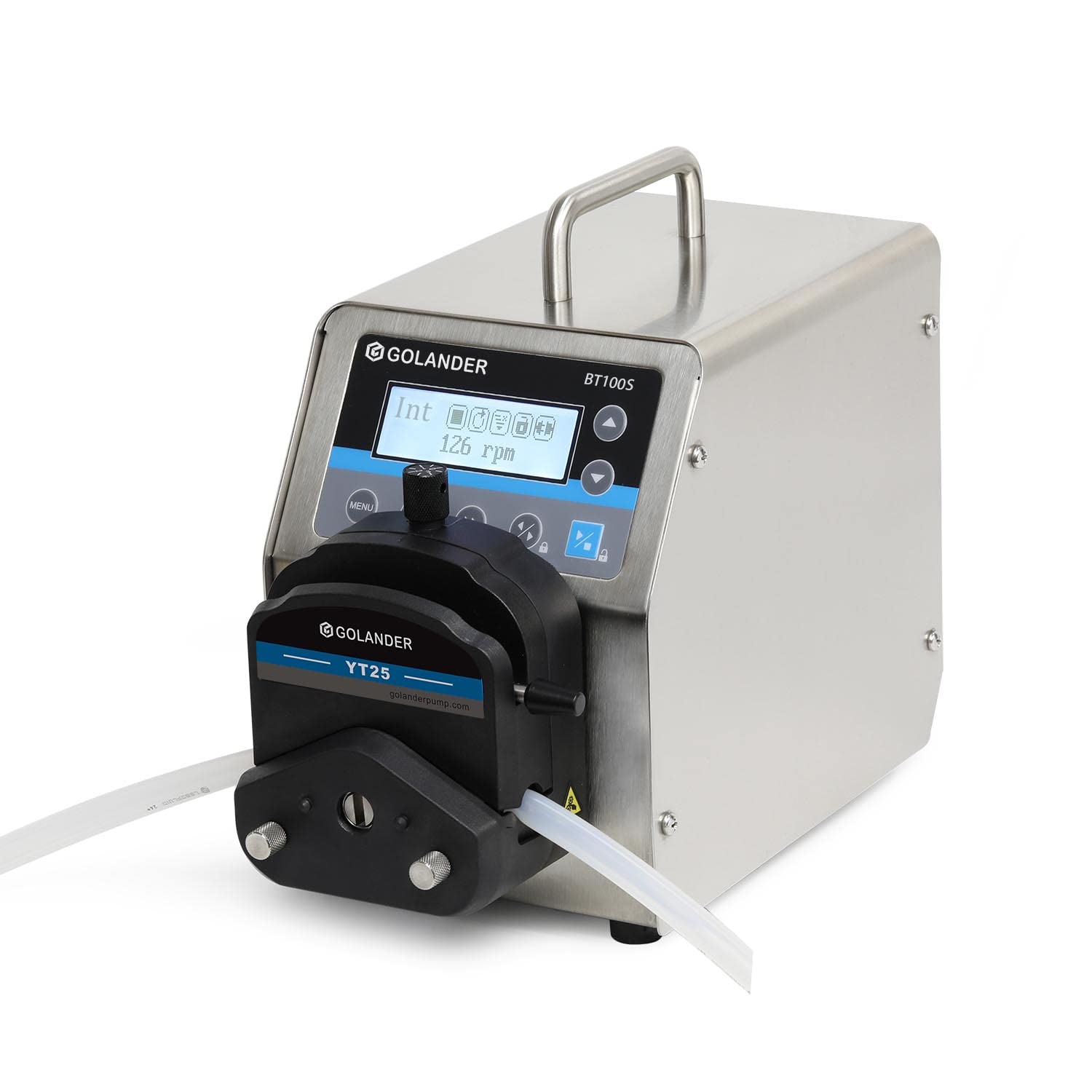

Golander BT100S Basic Variable Speed Peristaltic Pump with Pump Head YT25 (1 Channel), Flow Rate 0.17~720 mL/min Per Channel

Brand: Golander Pump

Features:

• Flow rate 0.17~720 mL/min. Speed 0.1-150rpm. Power input 100-240V 50/60Hz AC.
• Reversible direction, start/stop, prime and anti-drip. Time dispense function.
• Stainless steel housing, can drive multi-channels and various types of pump heads.
• The circuit board with conformal coating for dust-proof and moisture-proof.
• RS485 MODBUS interface is available. External voltage level to control the start/stop, reversible direction; External analog signal to adjust rotating speed. Optional footswitch to control start/stop.

model number: BT100S/YT25

Part Number: BT100S-YT25

Details: Golander BT100S variable-speed peristaltic pump with YT25 pump head provides flow range from 0.17 to 720 mL/min. It has functions such as reversible direction, start/stop, prime, adjustable speed, time dispense, anti-drip etc. Time dispense function can easily repeat liquid dispensing by time until finish dispensing the set cycles. With MODBUS RS485 interface, the drive is able to communicate with external device, such as PC, HMI or PLC.

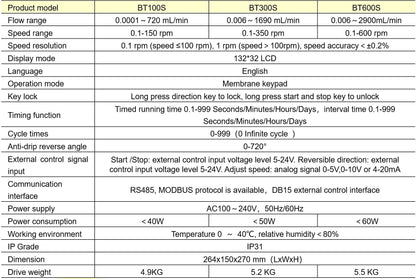

Specifications
- Speed range: 0.1-150 rpm
- Speed resolution: 0.1 rpm (when 0.1-100 rpm); 1 rpm (when 100-150 rpm)
- Speed accuracy: 0.5%
- Power supply: AC 100-240V, 50Hz/60Hz
- Power consumption: 40W max
- External start/stop control signal: 5V, 12V (standard), 24V (optional). External speed-control analog signal: 0-5V (standard); 0-10V, 4-20mA (optional)
- Communication interface: RS485, MODBUS protocol is ready
- Display: 132x32 LCD
- Case material: Stainless steel
- Operating condition: Temperature 0-40 C; Relative humidity <80%
- IP grade: IP31
- Dimensions (L x W x H): 223 x 150 x 195 mm (8.8 x 5.9 x 7.7 inch)
- Weight: 4.7 kg (10.4 lbs)

Suitable Tubing
15#, 24#, 35#, 36#

Package includes
1 x BT100S drive
1 x YT25 pump head
1 x 2 meters sample tubing
1 x DB15 female connector
1 x Instruction Manual
1 x US Power Cord

Instruction manual link
http://amzn.to/2FfTbVb

Tubing Selection Guide
http://amzn.to/2G7SEVM

EAN: 0641938799156

Package Dimensions: 14.1 x 13.1 x 10.6 inches
