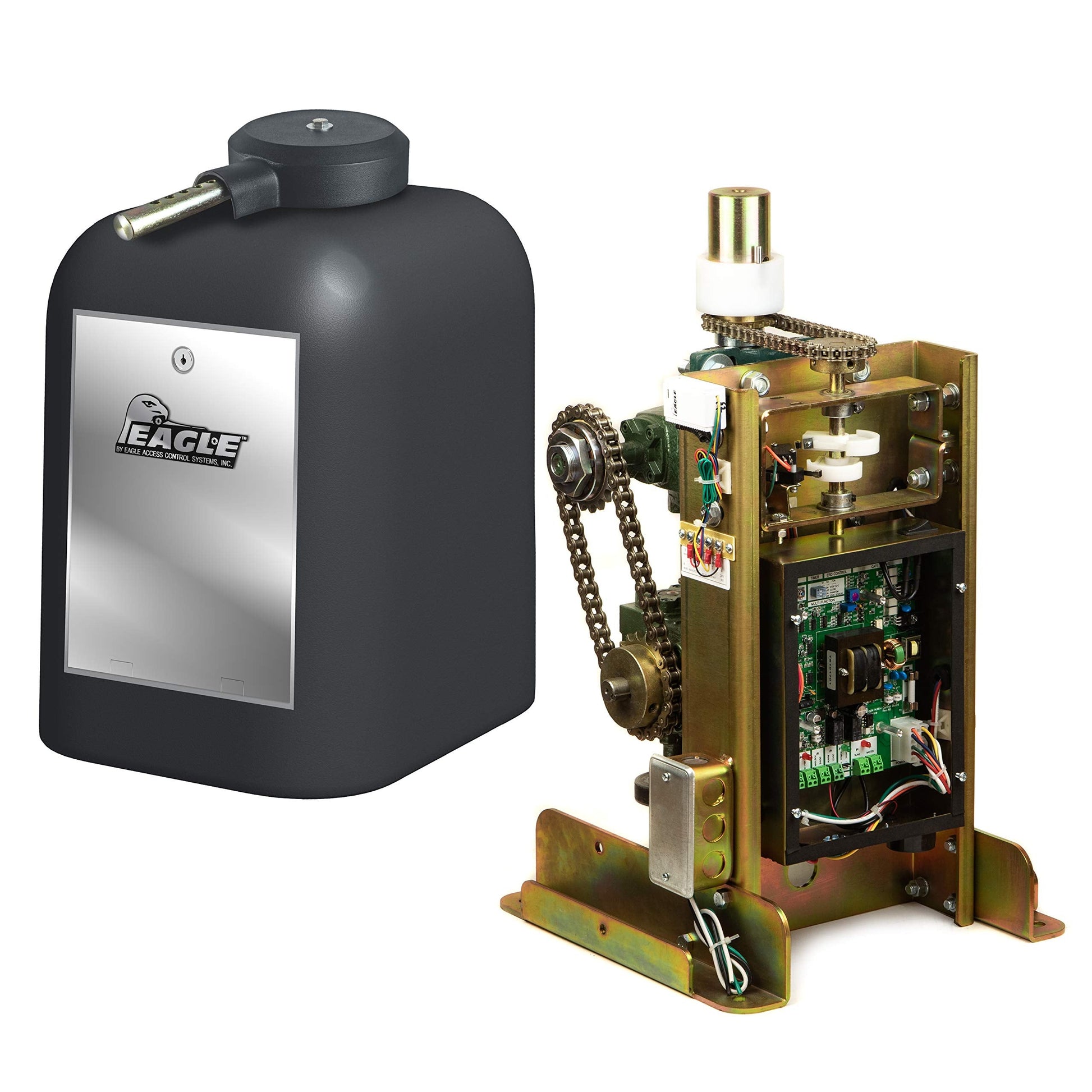

Eagle II 1/2 HP Residential Swing Gate Operator 14' & 400 lbs Gate Capacity FREE 2 Remotes, Receiver and Photo Eye Included

Brand: EAGLE ACCESS CONTROL SYSTEMS, INC.

Color: Gray

Features:

• Eagle-ll Swing Gate Operator is designed for Residential Gates or Small Business that utilizes small gates. The Automatic Swing Gate Opener is powered by a ½ HP Motor making it ideal for gates up to 14’ feet or 400lbs weight capacity
• Installation - With the professional installer in mind, the Eagle-Il Swing Gate Motor Opener is designed with an AC Mini Diamond control board; the most user-installer friendly control board in the industry that allows for Easy Installation.
• Safety - The Home Driveway Swing Gate Operator is equipped with a Quick Release lever. The user will be able to open the gate manually using the release lever. Also included is a built-in lighting and surge protection.

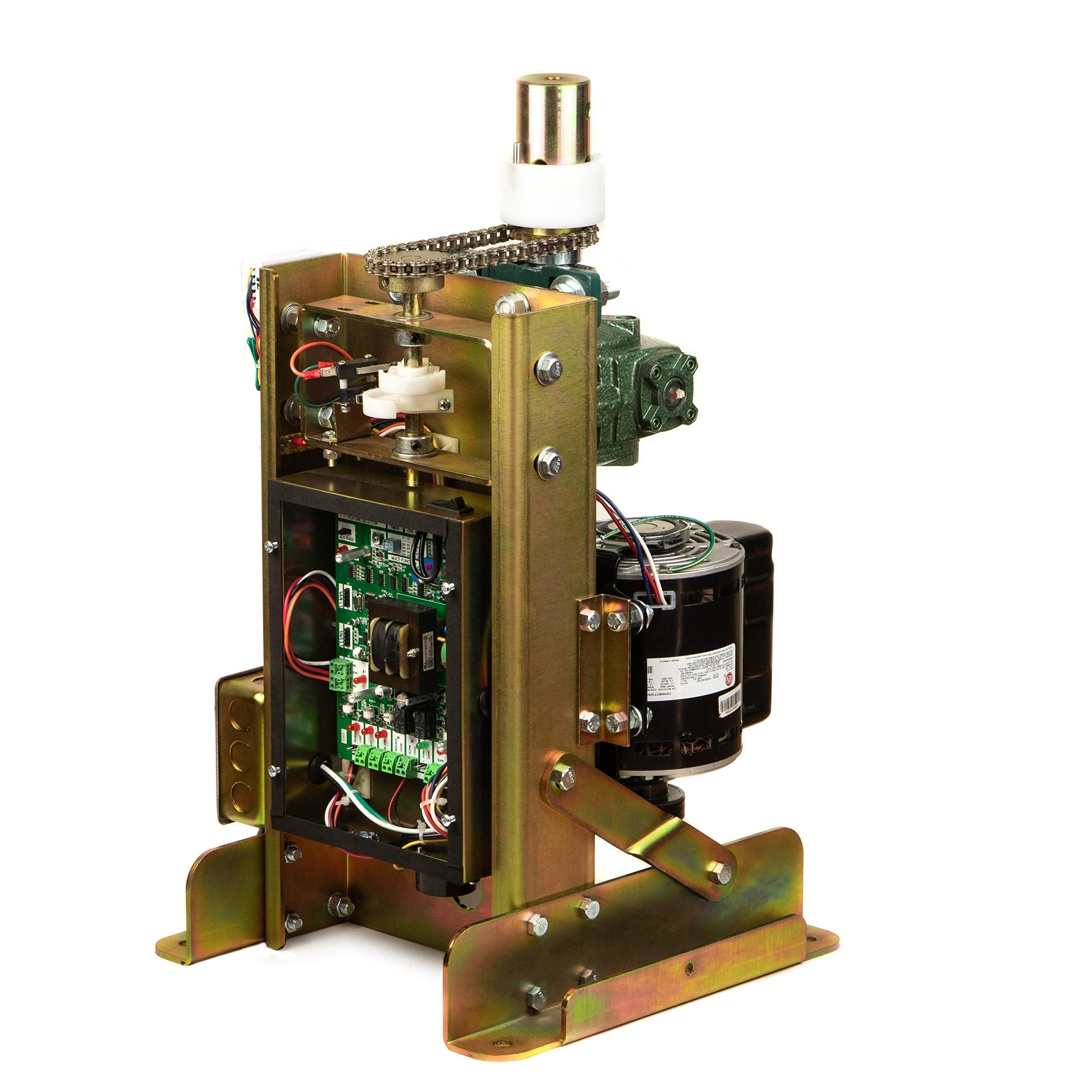

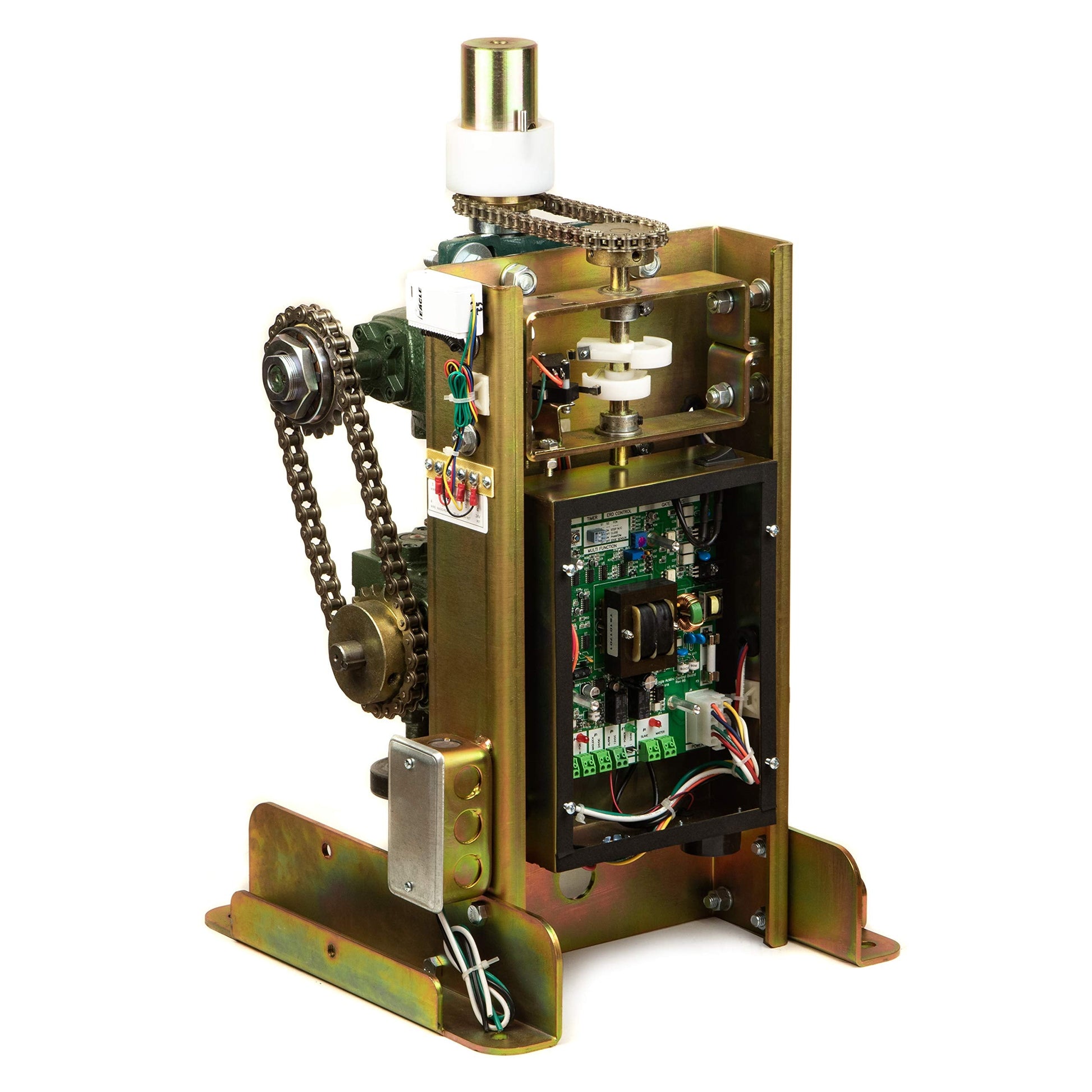

• Equipment - Built with a heavy duty ½ Horse Power continuous duty AC Motor, Gear reducers for silent and efficient operations. Features Open right/Open Left election, motor brake and auto Close timer

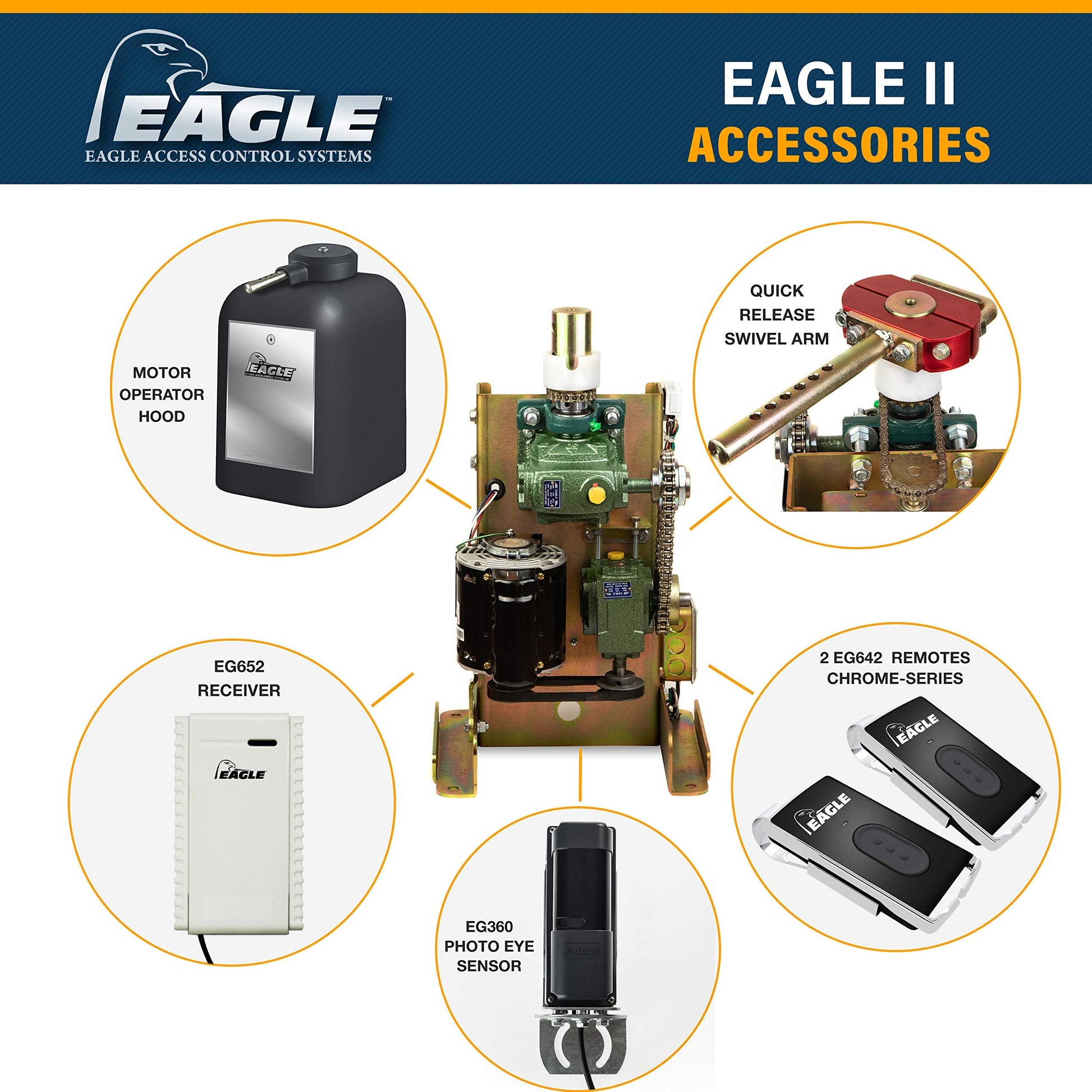

• Package includes – Swing Gate Operator, 2 Visor Wireless Remotes, 1 Long Range Receiver. We also include a 5-Year limited manufacture Warranty.

model number: Eagle-II

Part Number: Eagle-II

Details: Eagle-ll Residential Swing Gate Operator
up to 14' feet or 400lbs weight capacity
Standard Features 2-Wire Master/Slave with Global Inputs Open/Close Delay Motor Brake 24 VDC Output for MAG Lock 24 VAC Auxiliary Power Output Auto-Close Timer (1-60 sec.)
Operating Classification Class I
Warranty 5-Year Limited (Residential)

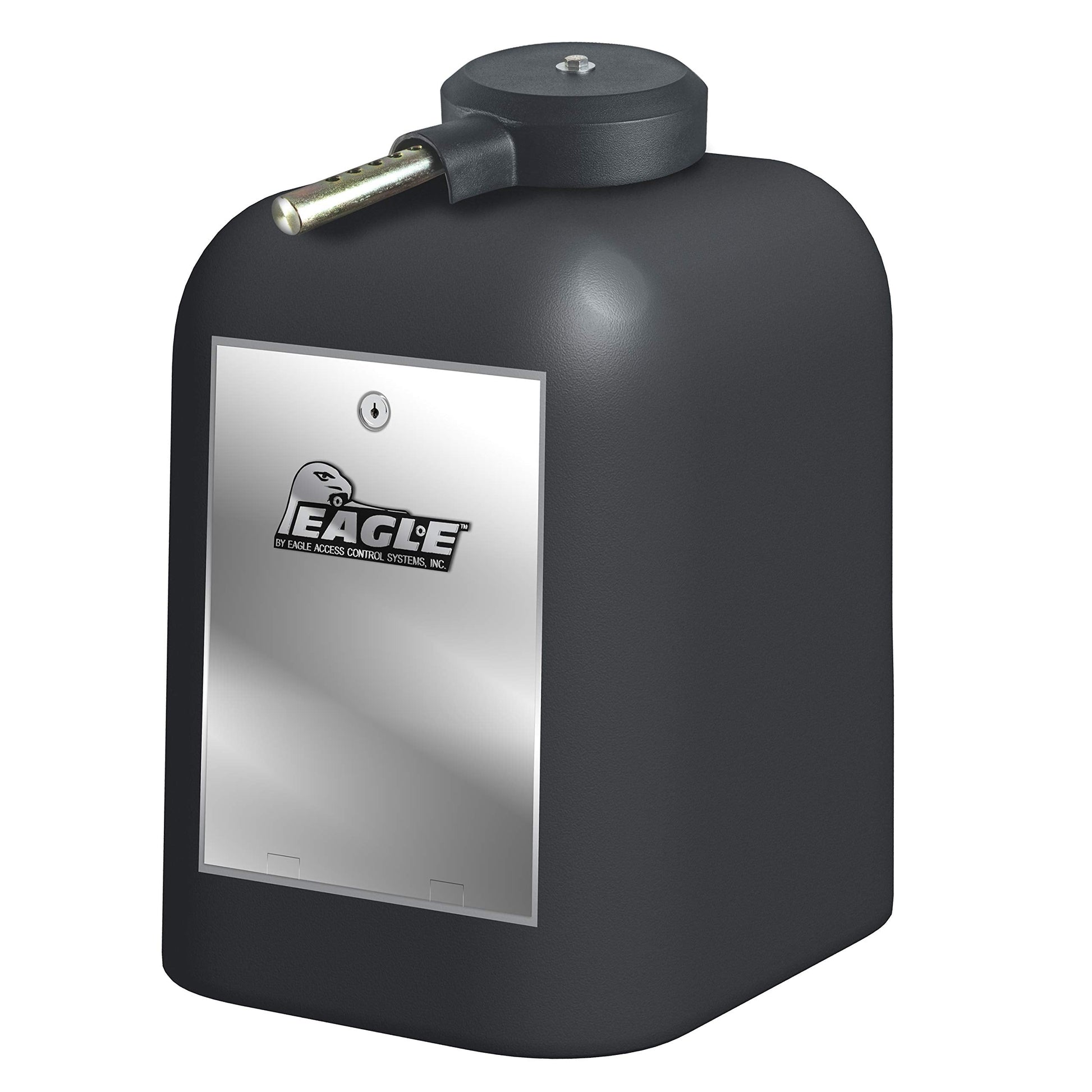

Mechanical Drive Chain: #50 Nickel Plated Gear Reducer: Size 50 & 40 Swing Arm with No-Pinch Design Cover: All-Weather/UV Resistant (HDPE) Chassis: Zinc Plated Steel to Resist Corrosion Power Disconnect (1/2 HP)
Manual Release Quick Release Lever
Power 1/2 HP Continuous Duty AC 115 VAC @ 60 HZ 5.7 AMP
Hardware No-Weld Swing Arm Assembly Audio Alarm Pre-Wired Receiver Terminal
Gate Capacity & Operation Maximum Gate: 14 ft & 400 lbs 18 seconds(approx.) to open (0-90 degrees) Rated Continuous Duty
Dimensions 20″ (h) x 16 1/2″ (w) x 15″ (d)
Shipping Weight Eagle-II: 90 lbs
Installation Instructions Easy to follow instructions. Available in Spanish. Las instrucciones de la instalación disponibles en Español.

EAN: 0852873001161

Package Dimensions: 30.0 x 18.5 x 18.0 inches
