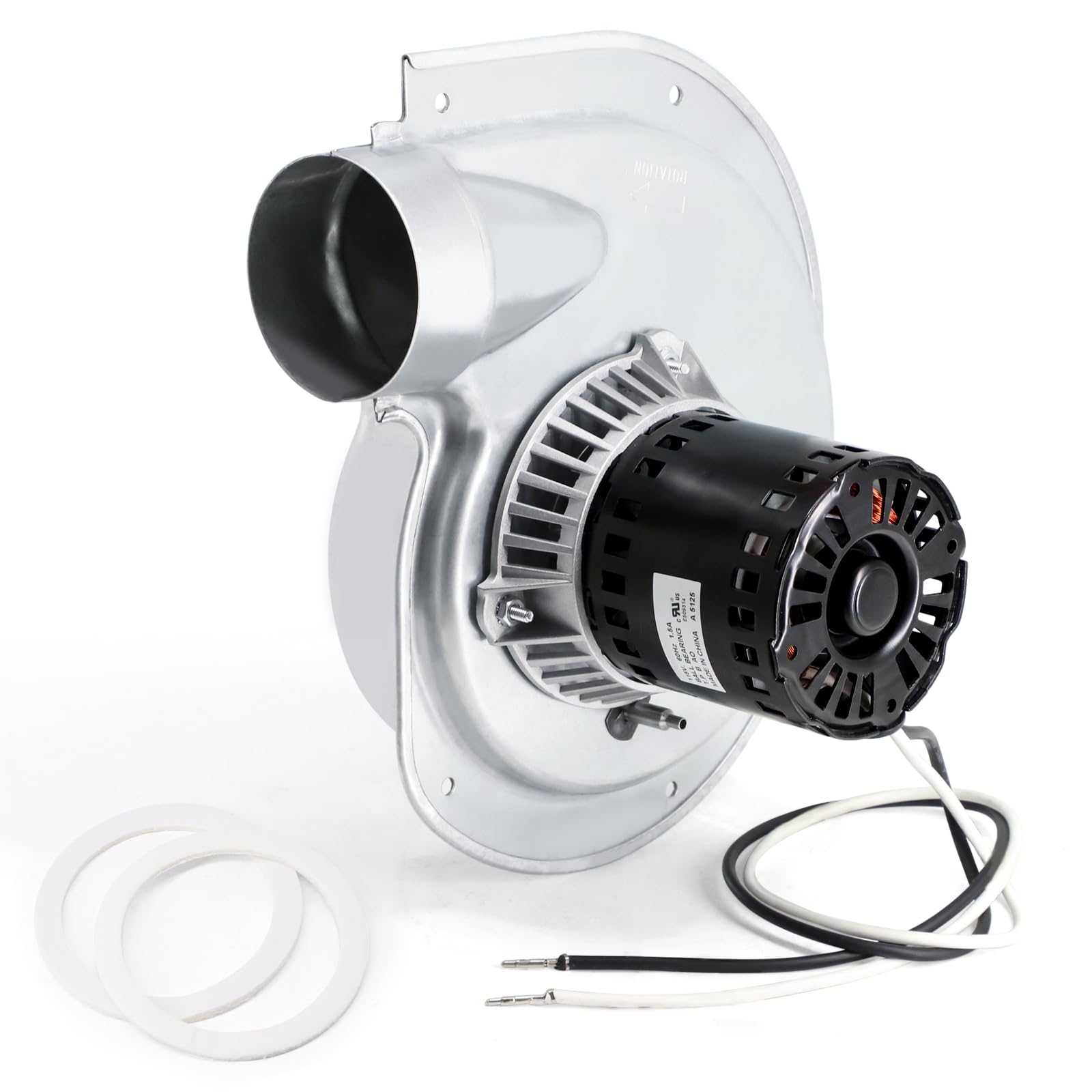

Criditpid A134 Furnace Draft Inducer Blower Motor for Fasco 1010975, 1010324, A172, Inter City 7021-9335, 7021-8735, 7021-9499, 7021-8736, Rotom FB-RFB383, 3.3" Shaded Pole Specific Purpose Blower

Brand: Criditpid

Features:

• 【Direct OEM Replacement】A134 Draft Inducer Blower Motor is designed as a precise replacement for Intercity Products. ▶ Cross Reference: Intercity Products 7021-8735, 7021-8736, 1708607; 7021-9335, 7021-7700, 1010324; 7021-9477, 1010236P; 7021-9918, 7021-10275, 70219408, 4MH28; 7021-8735; 7021-9499; J238-150-13933, 1010975, 1013833, 1010238, 1010238P, 1708-607P, 1708-607, 10705. Dayton 41H445. Rotom FB-RFB383, R7-RFB134, US Nidec N172, Fasco A172

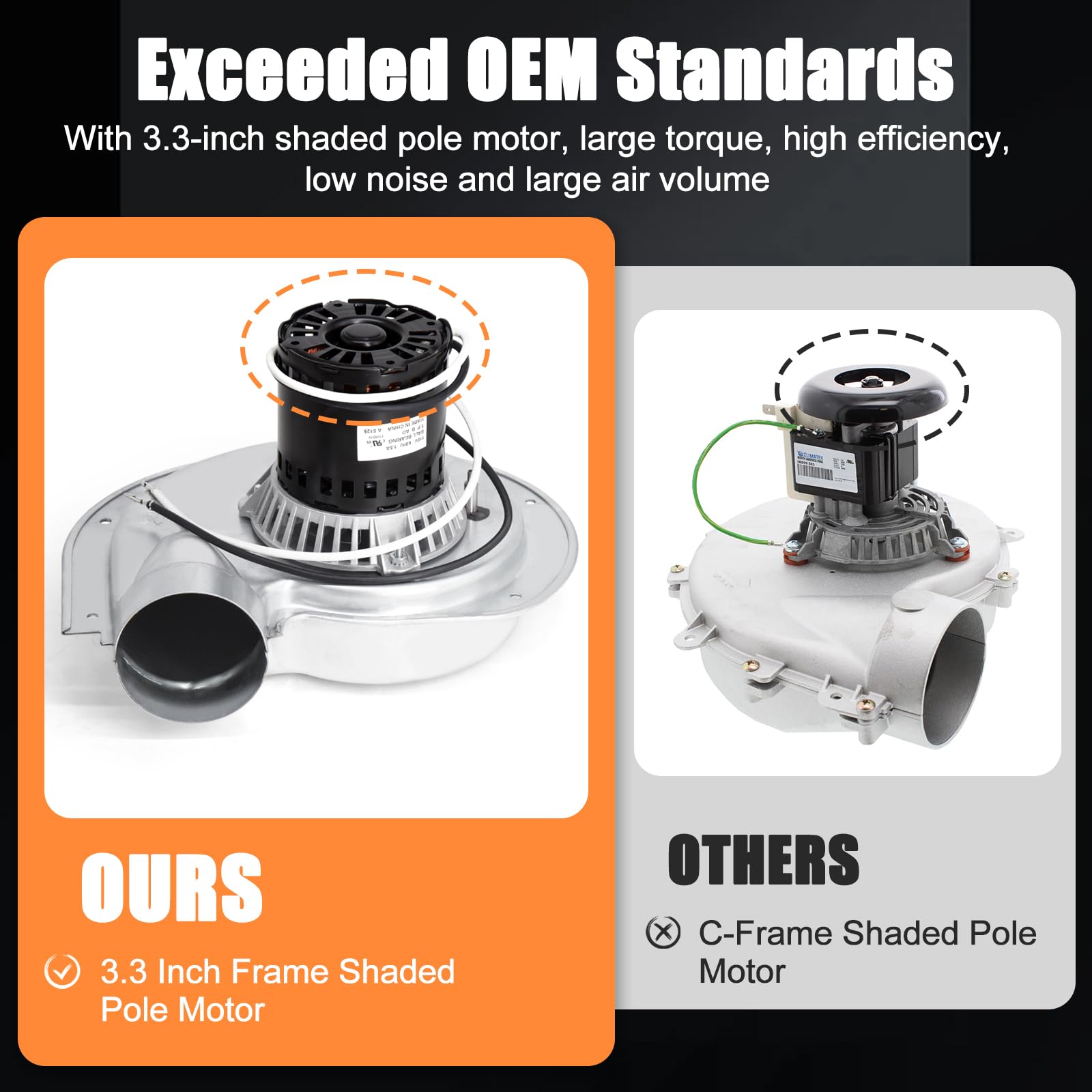

• 【The A134 Specific Purpose Blowers Specifications】3.3' Diameter Shaded Pole Motor, 1/25 hp; 1.5 Amps, 115 Volts, 60hz, 3060 RPM, 90CFM, 1-Speed, Ball Bearing, Open Air Over, Class B Insulation, 40°C Ambient, Thermally Protected, CSA Certified, CW Rotation, Max Ambient Temp (°F): 104°F

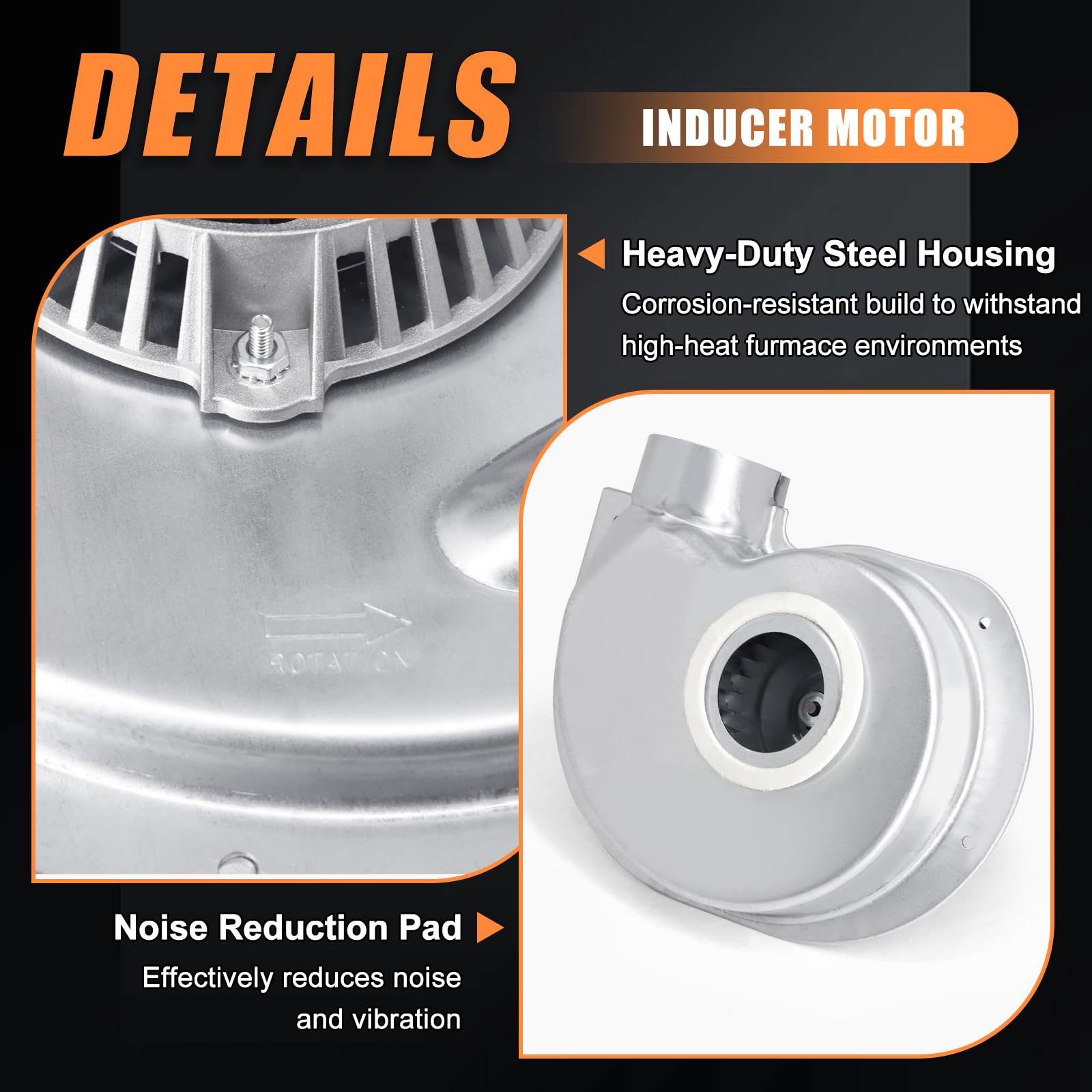

• 【Durable Construction】The 7021-7700 fasco inducer motor features a robust construction with a durable, corrosion-resistant housing, ensuring longevity and reliability in even the harshest environments. It is equipped with a powerful, permanently lubricated, sealed ball bearing design, reducing the need for maintenance and ensuring smooth operation
• 【Inducer Motor Functions】Designed to regulate and optimize airflow in gas-powered heating appliances, ensures combustion gases are properly pulled into the heat exchanger and expelled through the flue, The 7021-9335 inducer motor is suitable for a wide range of applications, including furnaces, boilers, and water heaters.
• 【Package & Service】- You will get a 7021-8735 fasco inducer motor assembly and enjoy peace of mind with our 12-month hassle-free product return service. if you're looking for a high-quality replacement draft inducer blower motor, look no further than the Fasco A134

model number: A134

Part Number: A134

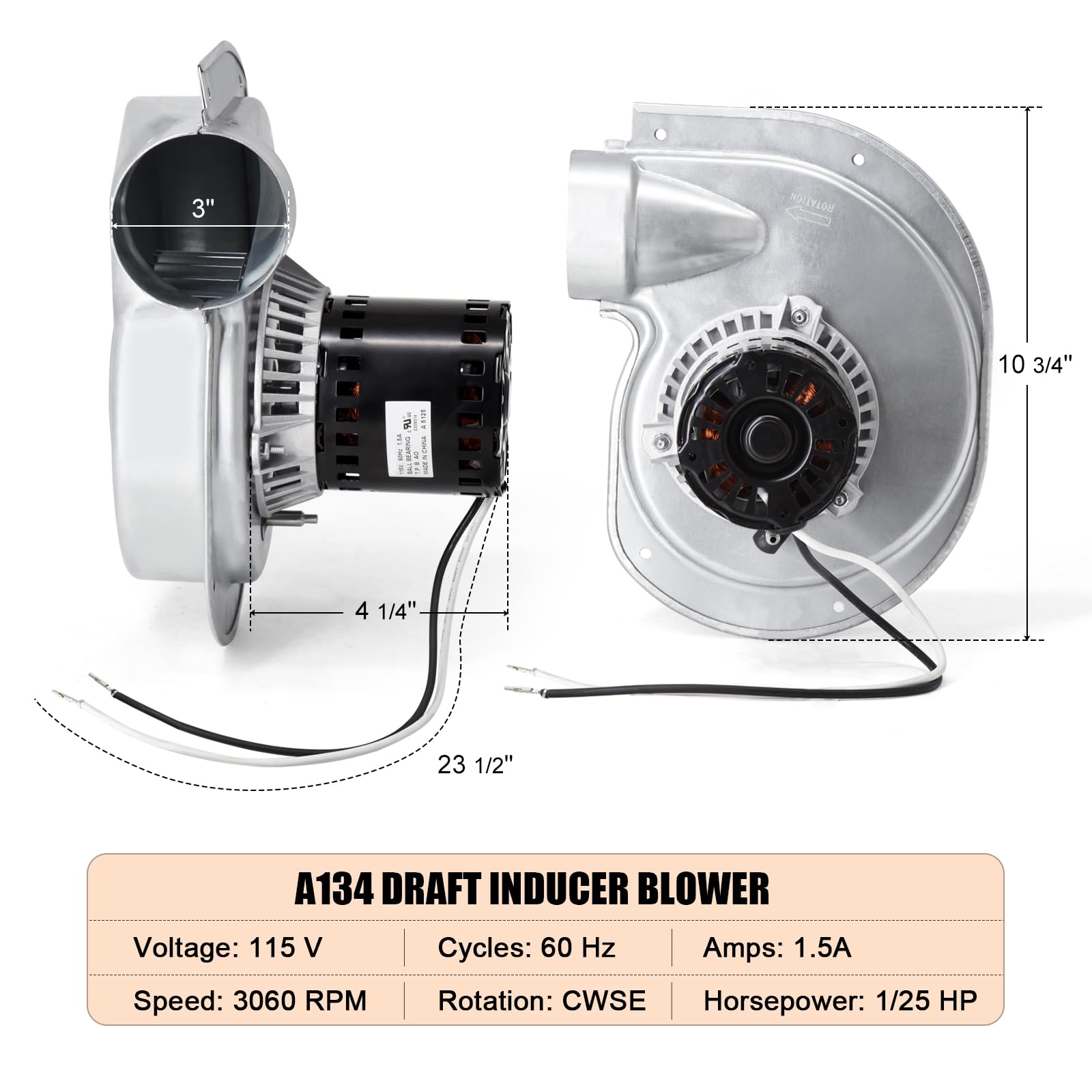

Details: Technical Specifications:
Voltage: 115 V
Cycles: 60 HZ
Amps: 1.5 A
Speed: 3060 RPM
CFM: 90
Phase: 1
Speeds: 1
Horse Power: 1/25
Rotation: CW
Max Ambient Temp (°F): 104°F
Insulation Class: B
3.3' Diameter
Shaded Pole
Thermally Protected
Open Air Over
Ball Bearing

Cross Reference:
Intercity Products 7021-8735, 7021-8736, 1708607; 7021-9335, 7021-7700, 1010324; 7021-9477, 1010236P; 7021-9918, 7021-10275, 70219408, 4MH28; 7021-8735; 7021-9499; J238-150-13933, 1010975, 1013833, 1010238, 1010238P, 1708-607P, 1708-607, 10705.
Dayton 41H445
Rotom FB-RFB383, R7-RFB134
US Nidec N172
Fasco A172

Package Dimensions: 12.0 x 7.0 x 3.0 inches
