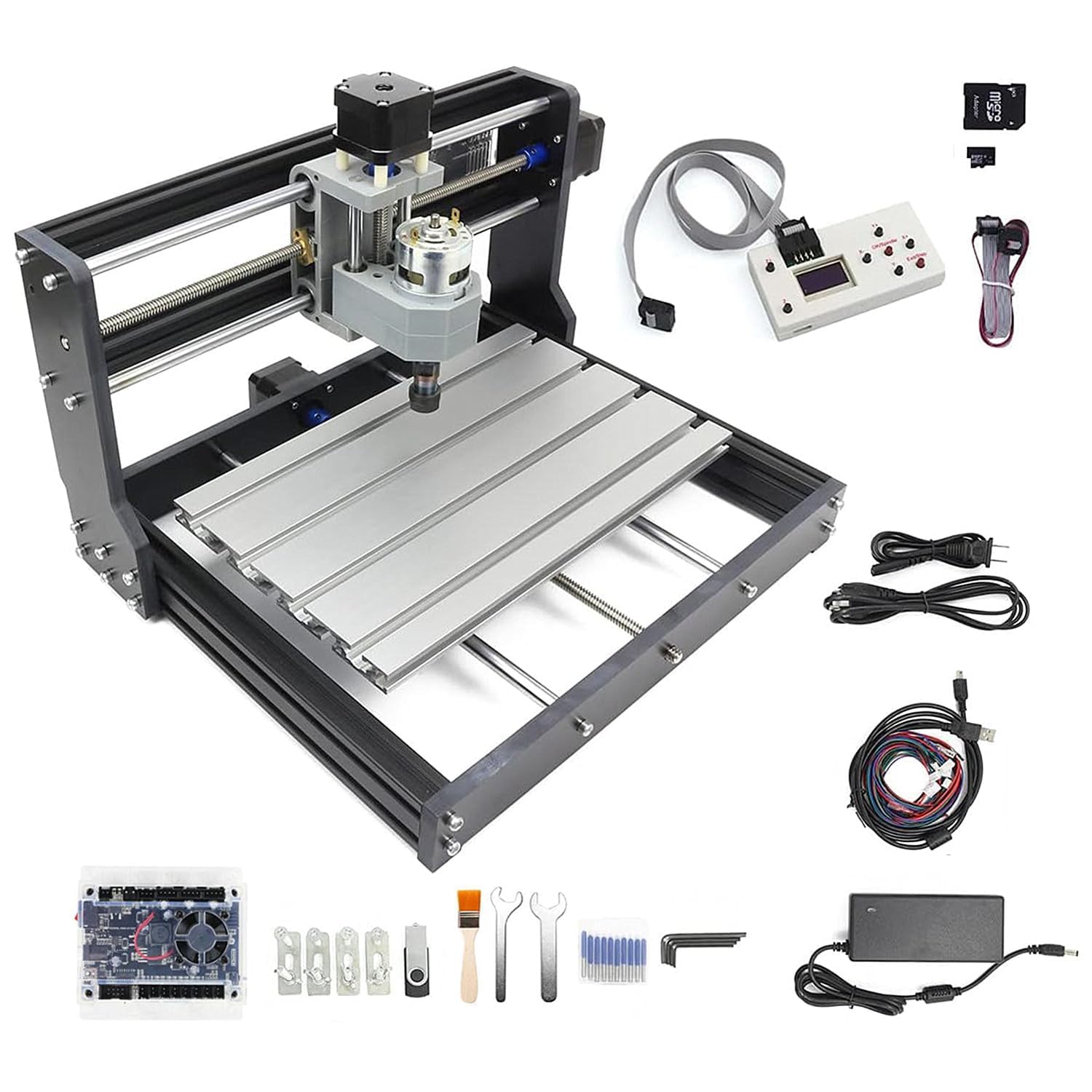

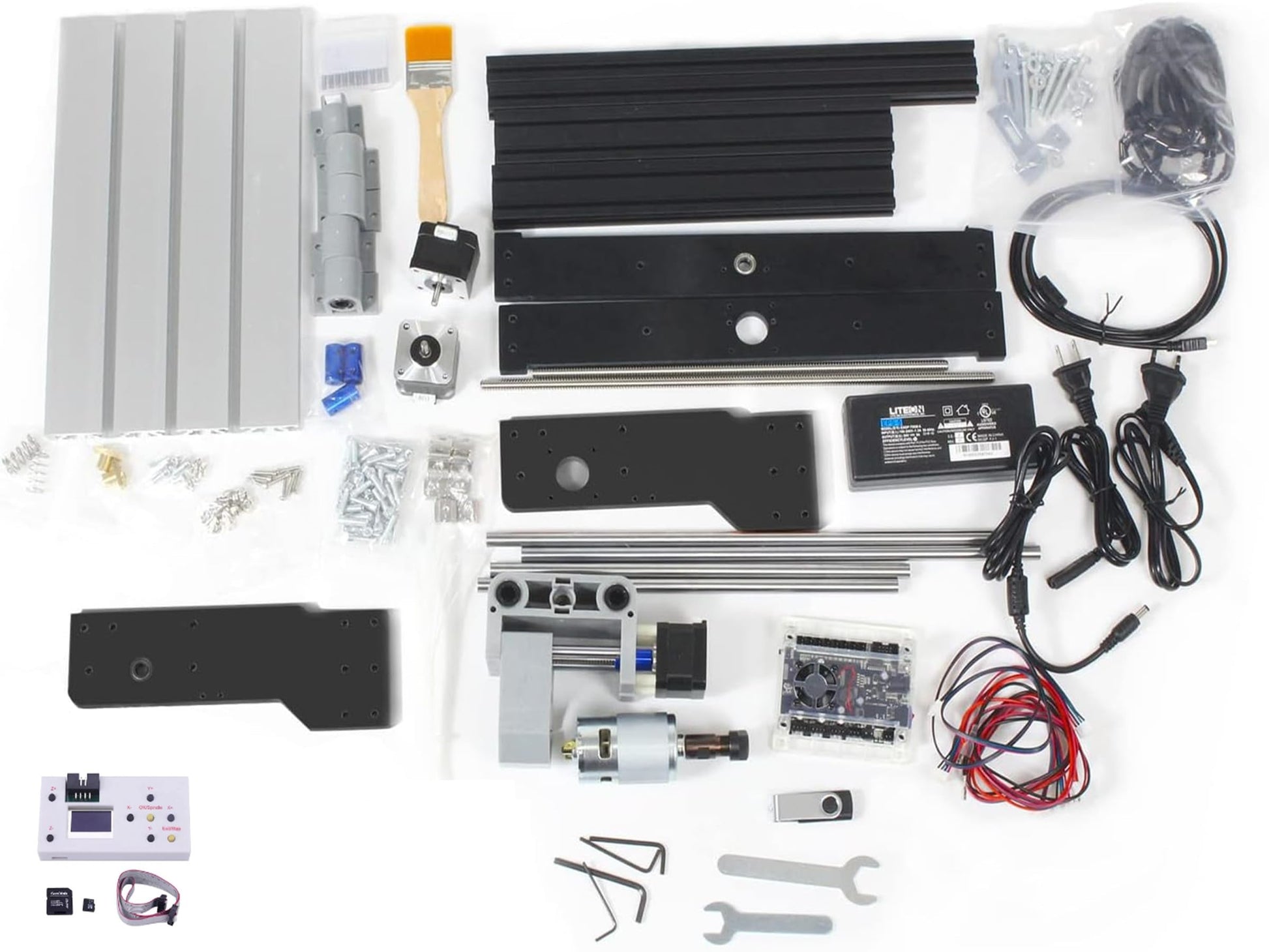

CNCTOPBAOS Upgrade CNC 3018-PRO 3 Axis DIY Mini CNC Router Kit with GRBL Remote Control Offline Controller PVC PCB Acrylic Plastic Wood Cutting Engraving Carving Milling Machine

Brand: CNCTOPBAOS

Features:

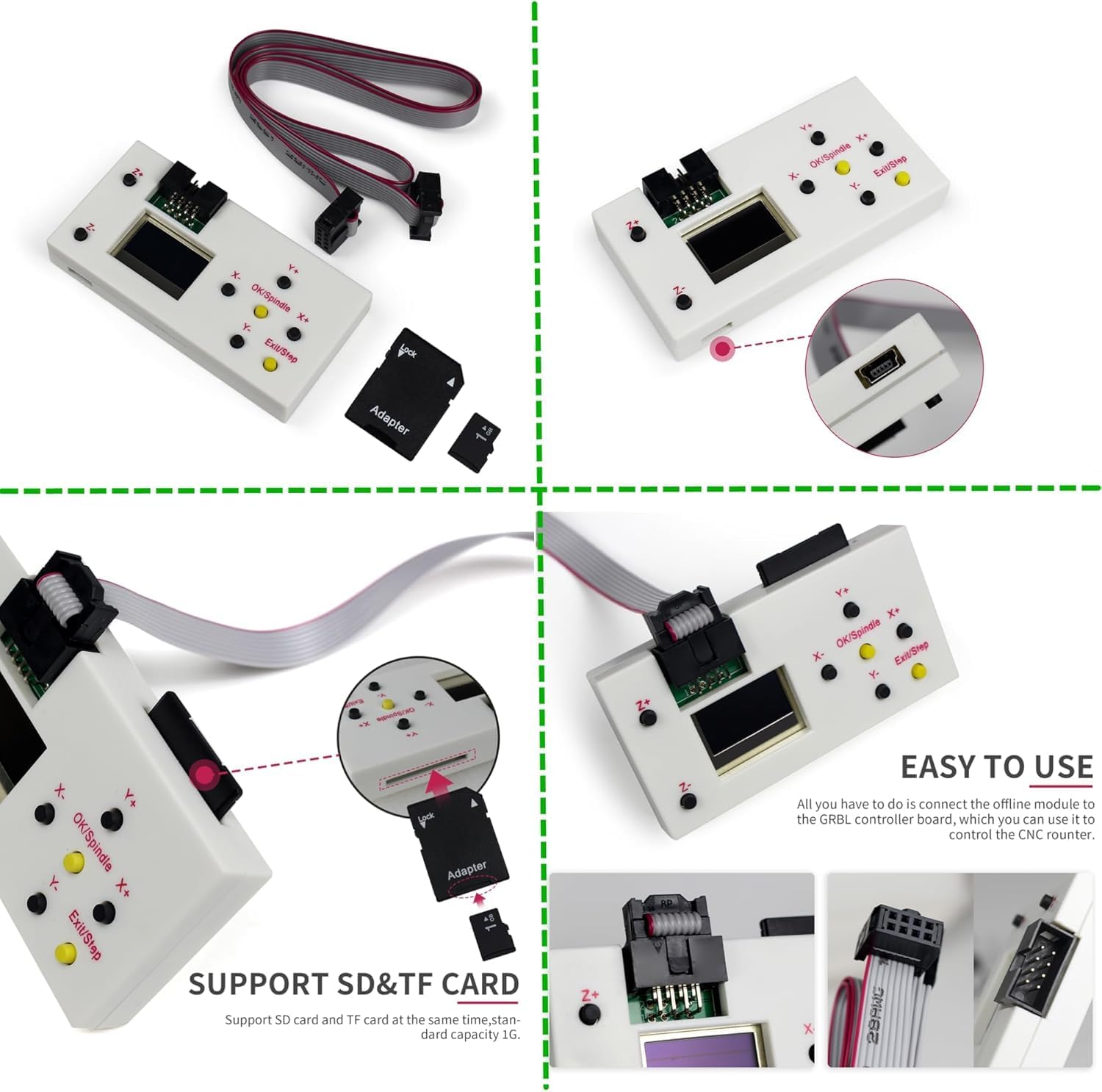

• Model: Upgrade Version 3018-PRO with Offline Controller; Mini CNC machine small size, light weight, USB interface, GRBL control systems, great cnc router machine for beginers; You can operate this machine without connect to the computer; offline controller included a SD card reader to write into the root directory G-code files or NC file; Support manually adjust X, Y, Z axis location as engraving starting point,manually open or close spindle

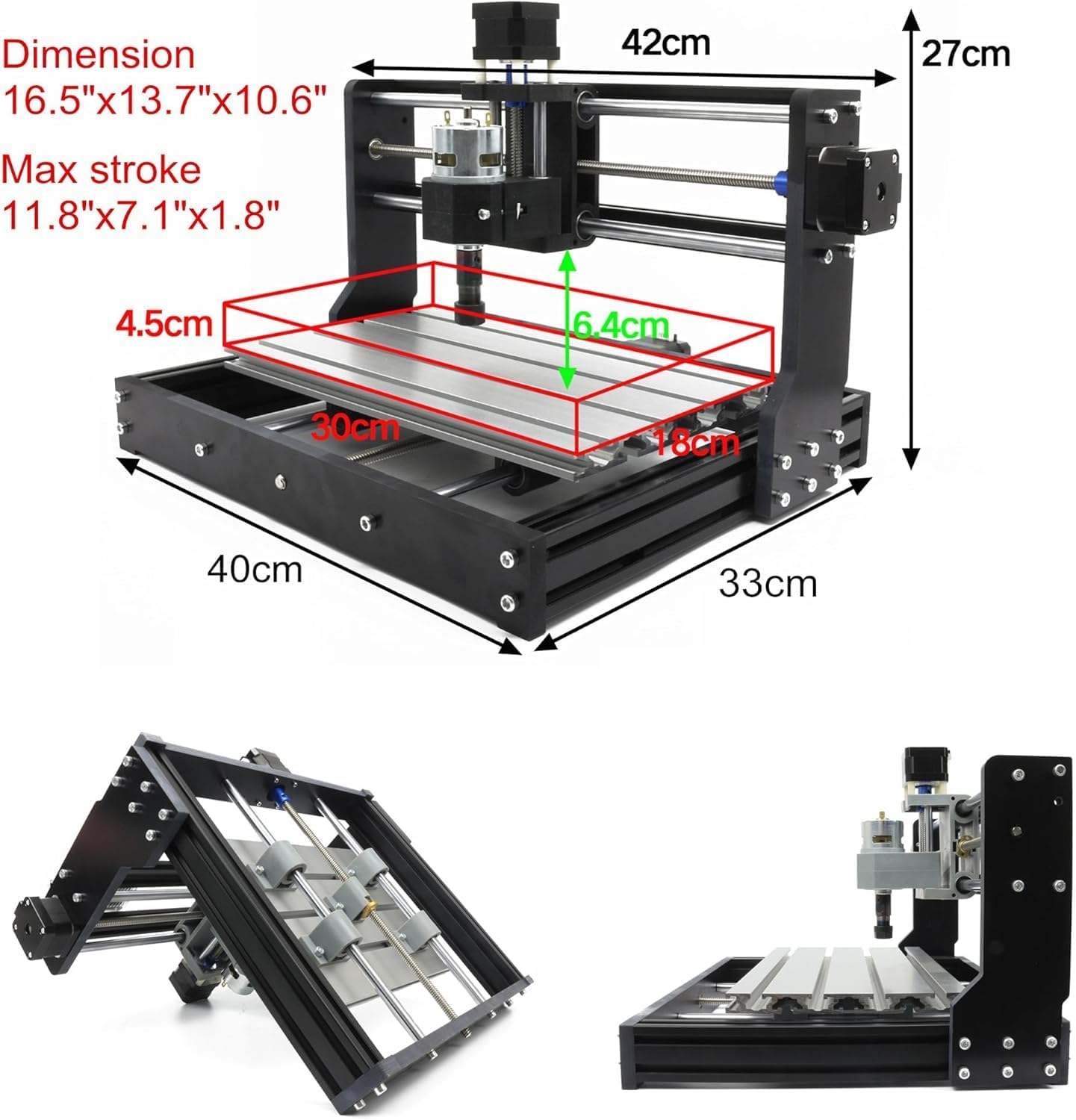

• Working area:300x180x45 mm / 11.8 x 7.1 x 1.8';Frame size: 420x350x270mm / 16.53x13.78x10.63'; Type: USB Port Desktop cnc router ; Spindle: 775 spindle motor 120W 12-36V,10000rpm/24V; Motor: Nema17 Stepper Motor 1.33A,42x42x34mm,0.3N.m,43 oz-in

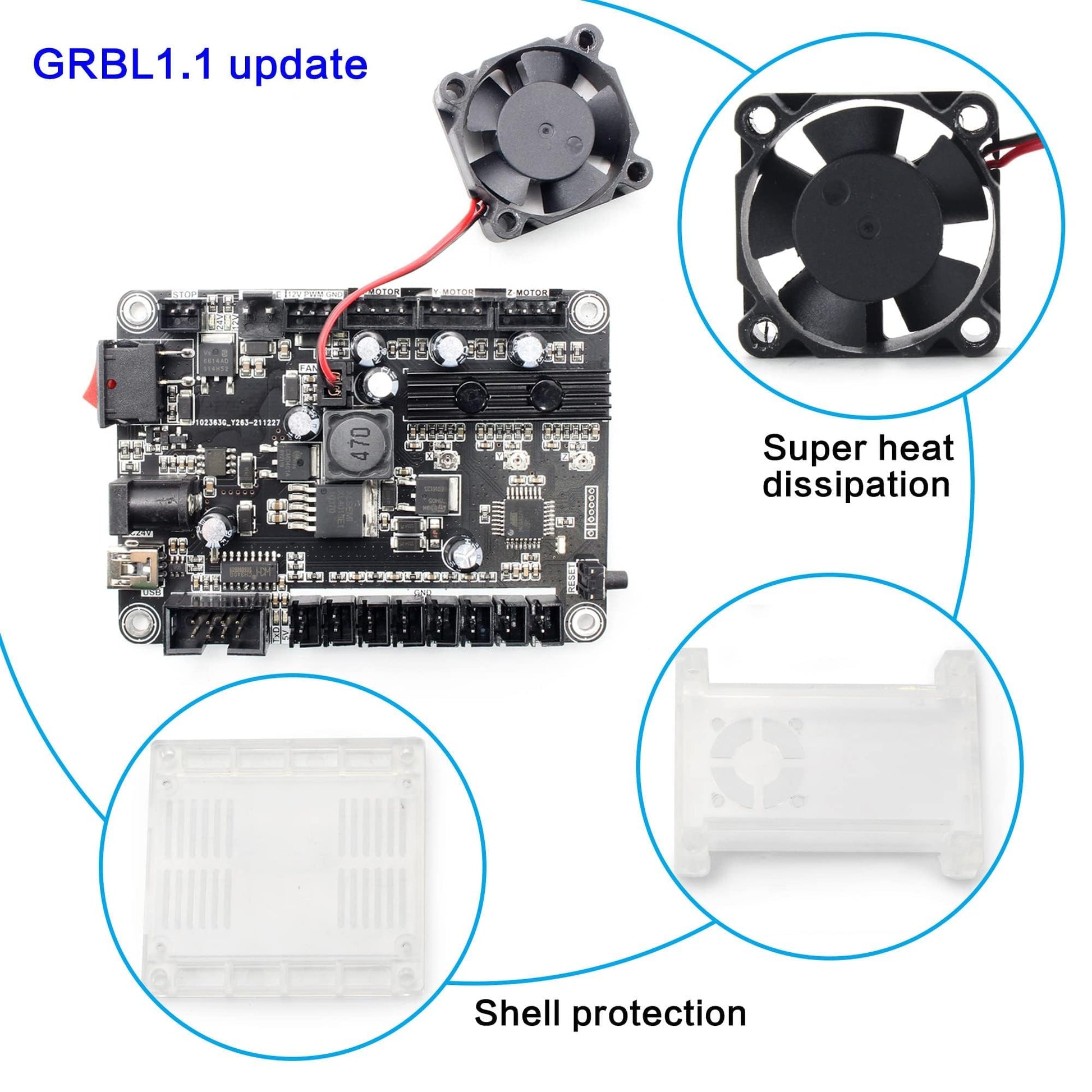

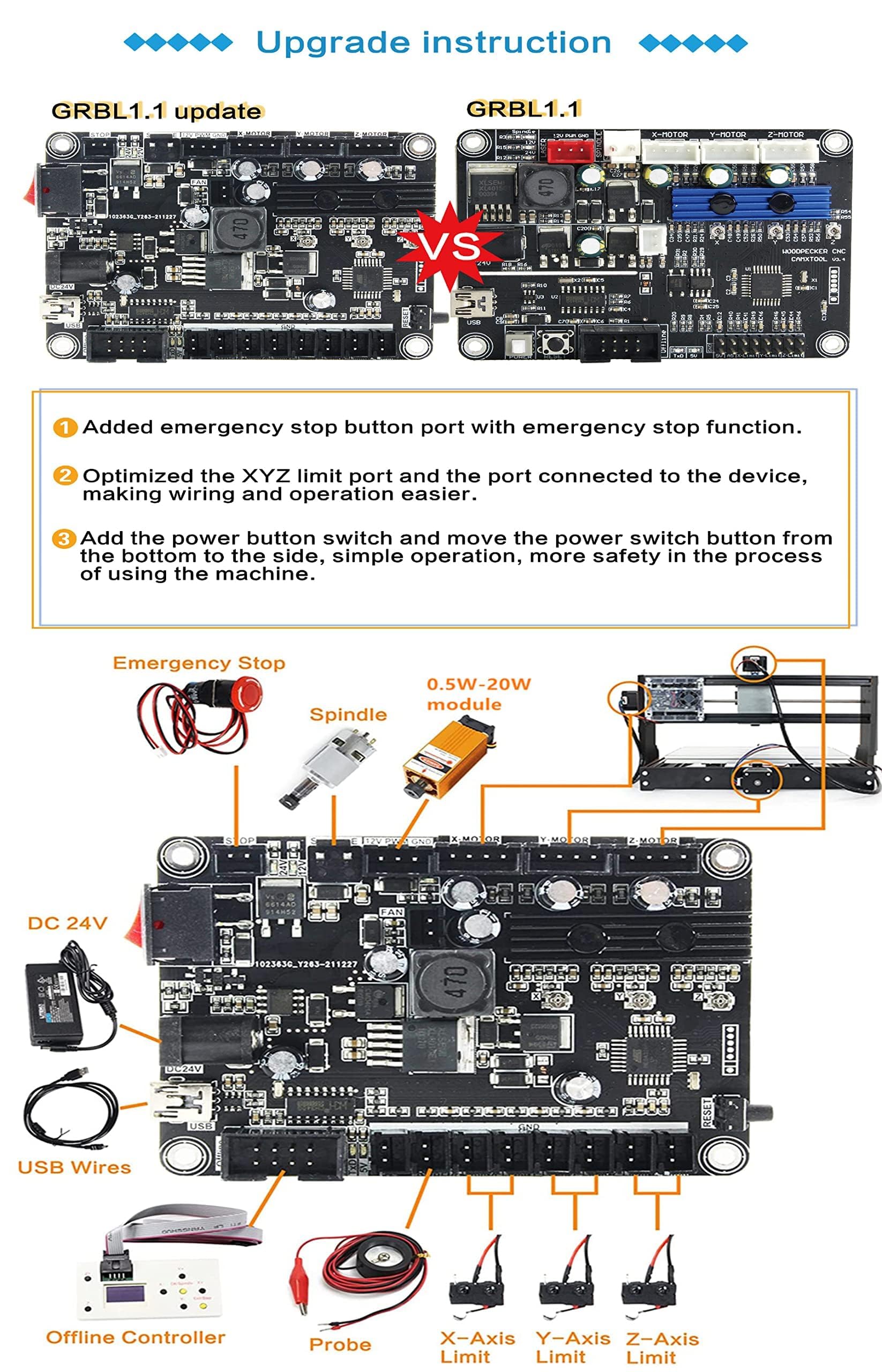

• Upgraded GRBL1.1f Control Board: Added the outer casing,E-stop button port,tool setting probe port,X/Y/Z axis limit port and add the power button switch,and come with the fan port to force heat dissipation,with enhanced spindle drive,can support max 20000rpm spindle,and also can support 12V 3-PIN 0.5W-20W engraver module
• Main application: Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.and soft metal like copper and aluminum and other materials; Supporting files: G-code nc/txt/tape/gcode

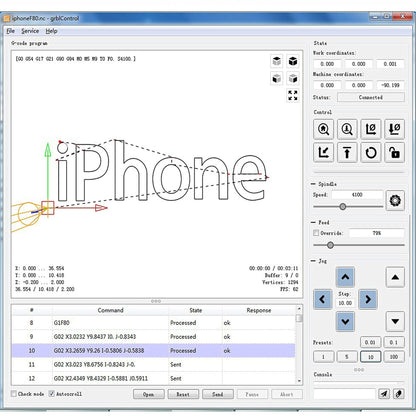

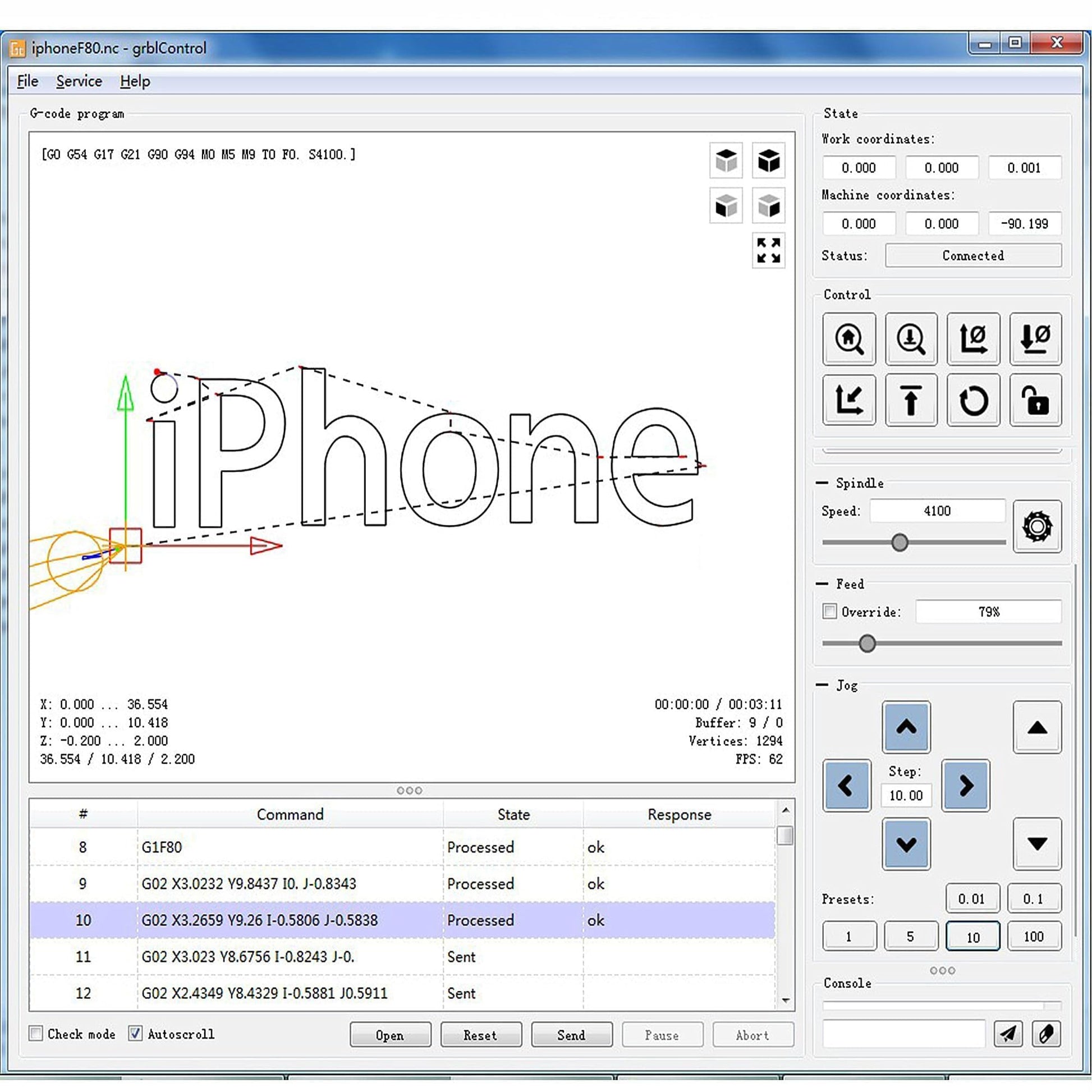

• GRBL Software: Our parcel include 4G USB flash drive,pls download the installation instructions,user manual and GRBL software from the USB flash drive; System requirements: Windows XP SP3,Win 7,Win 8,Win 10 32/64 can be and Linux

model number: 3018

Part Number: 3018

EAN: 0619191628230

Package Dimensions: 17.4 x 9.7 x 6.8 inches
