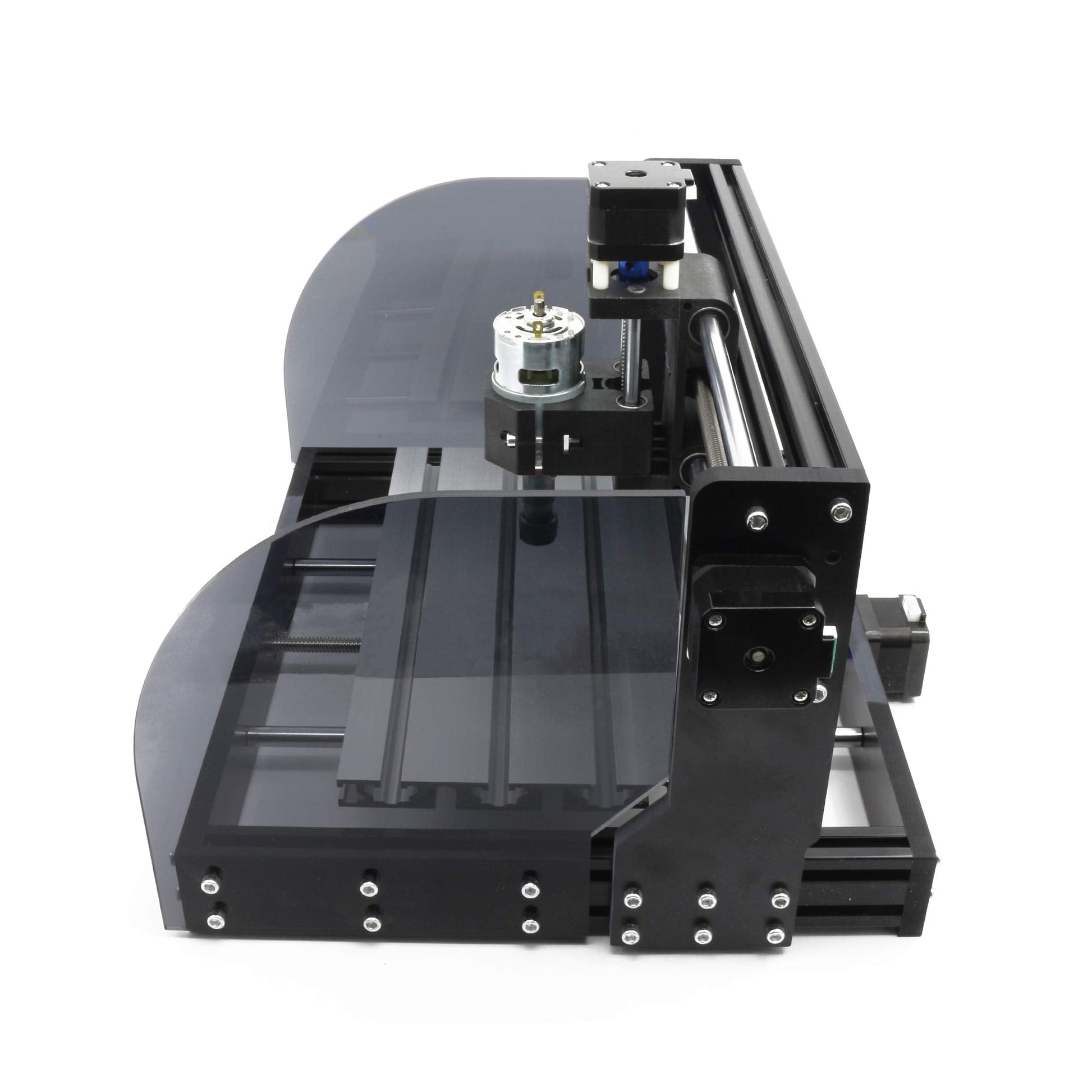

CNCTOPBAOS CNC 3018-PRO-MAX 3 Axis Desktop DIY Mini Wood Router Kit Engraver Woodworking PCB PVC Milling Engraving Carving Machine GRBL Control with ER11 Collet (3018-PRO-MAX)

Brand: CNCTOPBAOS

Features:

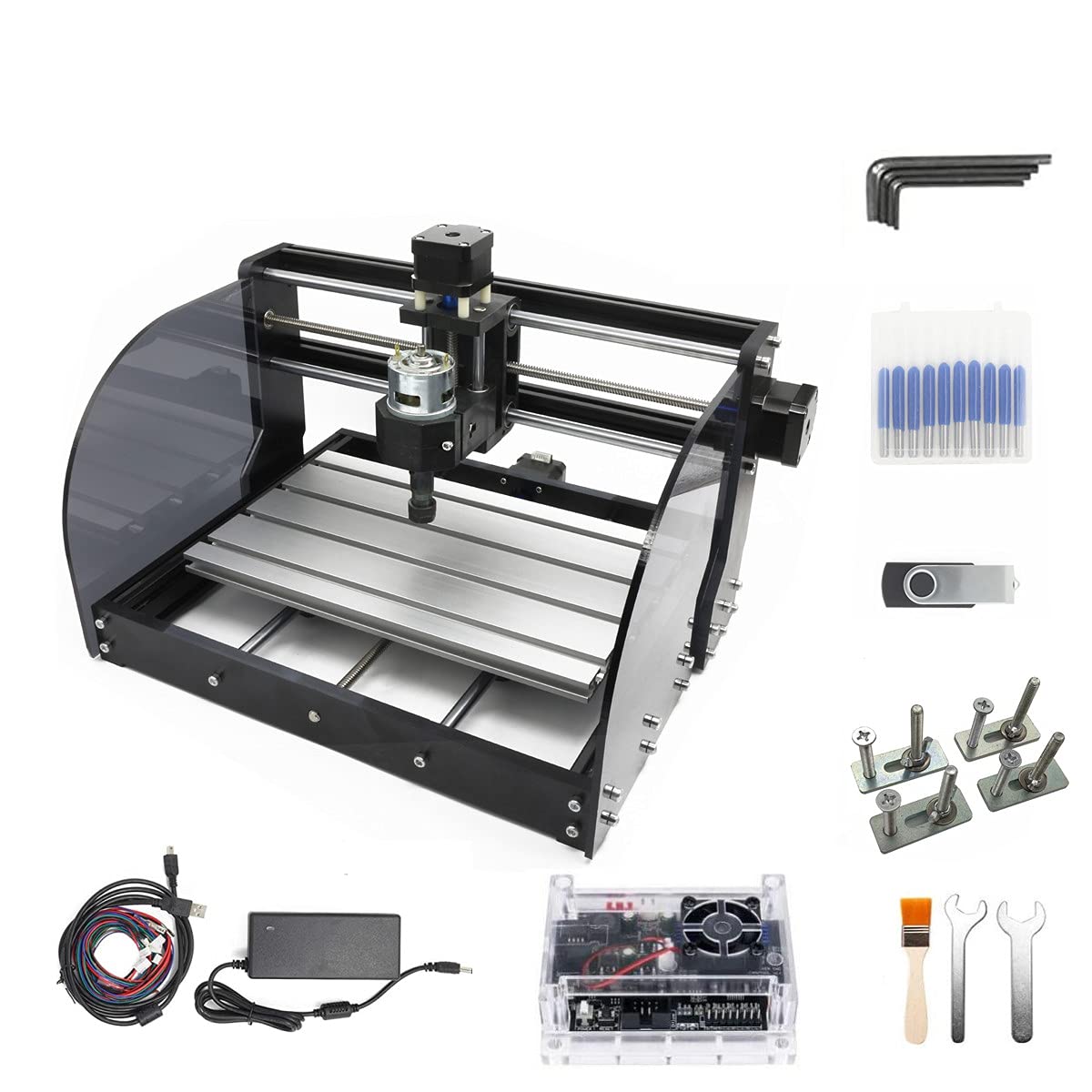

• Upgrade Version CNC3018-PRO-MAX: Mini CNC machine small size, light weight, USB interface, GRBL control systems, great cnc router machine for beginers;3018-PRO-MAX machine is very easy to install,stable structure,our parcel also include english user manual; Supporting files:G-code .nc/.txt/.tape/.gcode
• Working area: 30x18x4.5cm / 11.8 x 7.1 x 1.8 inches;Frame size: 42x35x27cm / 16.53 x 13.78 x 10.63 inches; Type:USB port Desktop cnc router; System requirements: Windows XP / Win 7 / Win 8 / Win 10 / Linux
• Spindle Motor: 775 120W spindle motor (12-36V) 24V:10000 r/min; Collet: ER11 3.175mm Can be equipped with 0-7mm; Stepper Motor: Nema17 42 stepper motor 1.33A/0.3N.m/43oz-in/42x42x34 mm

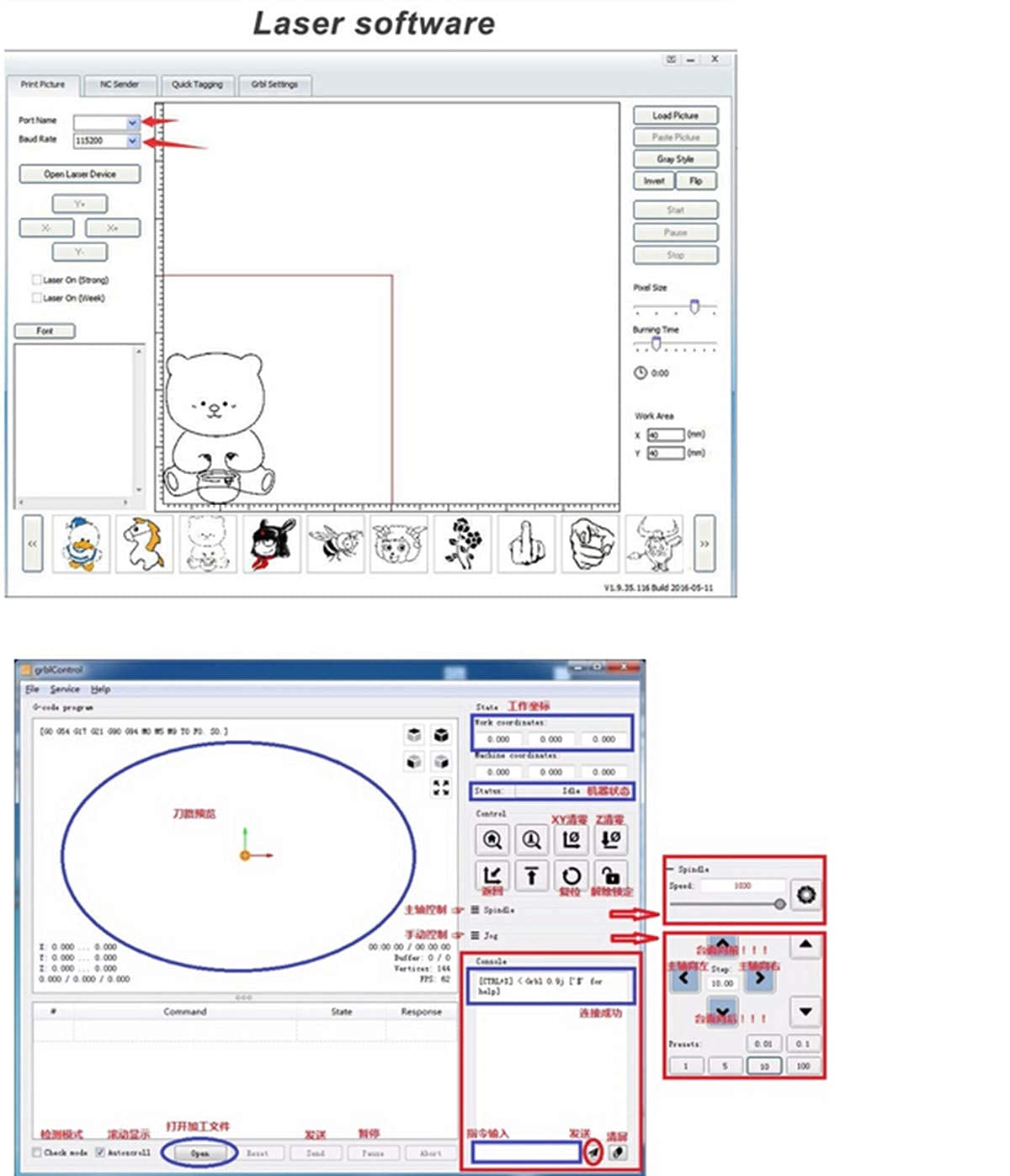

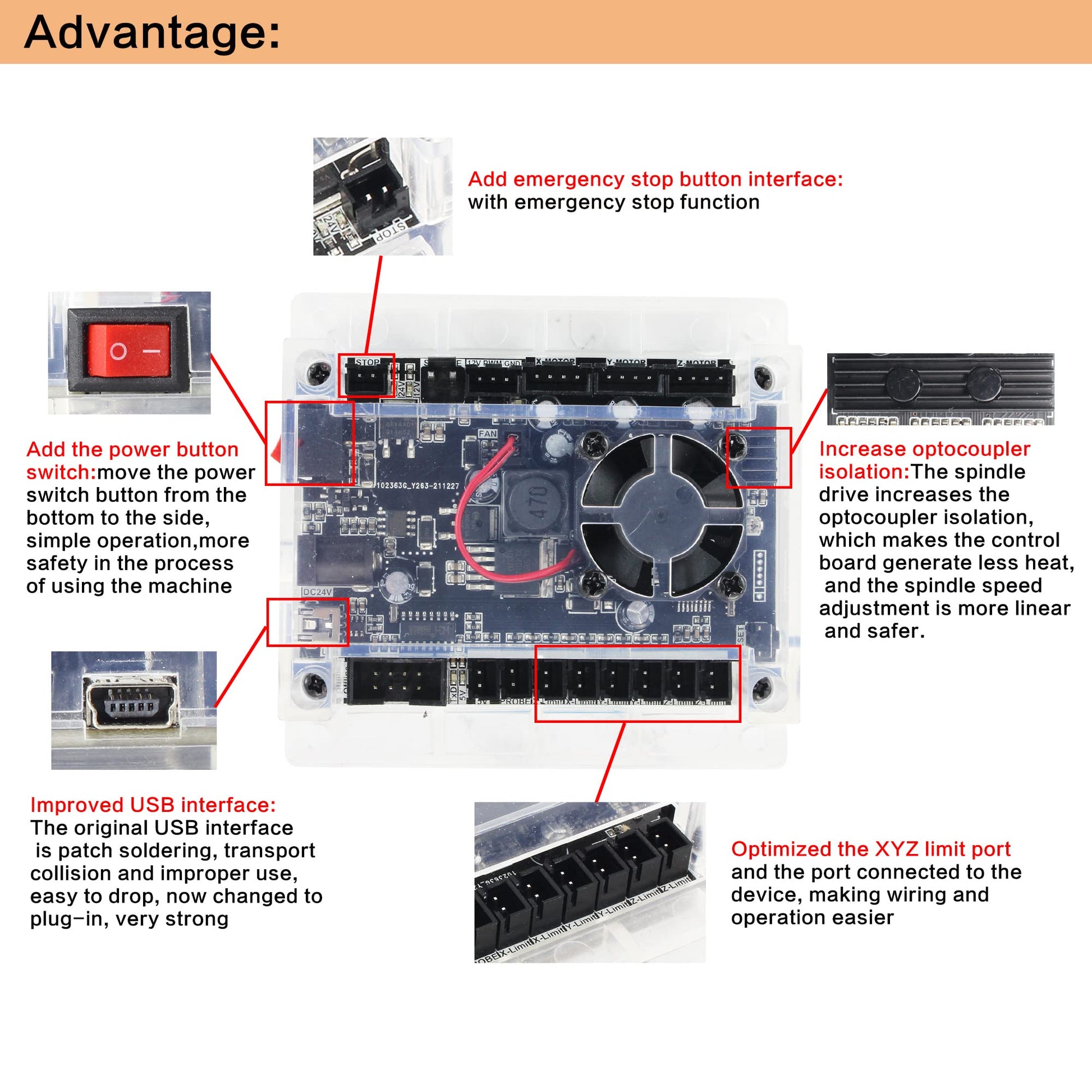

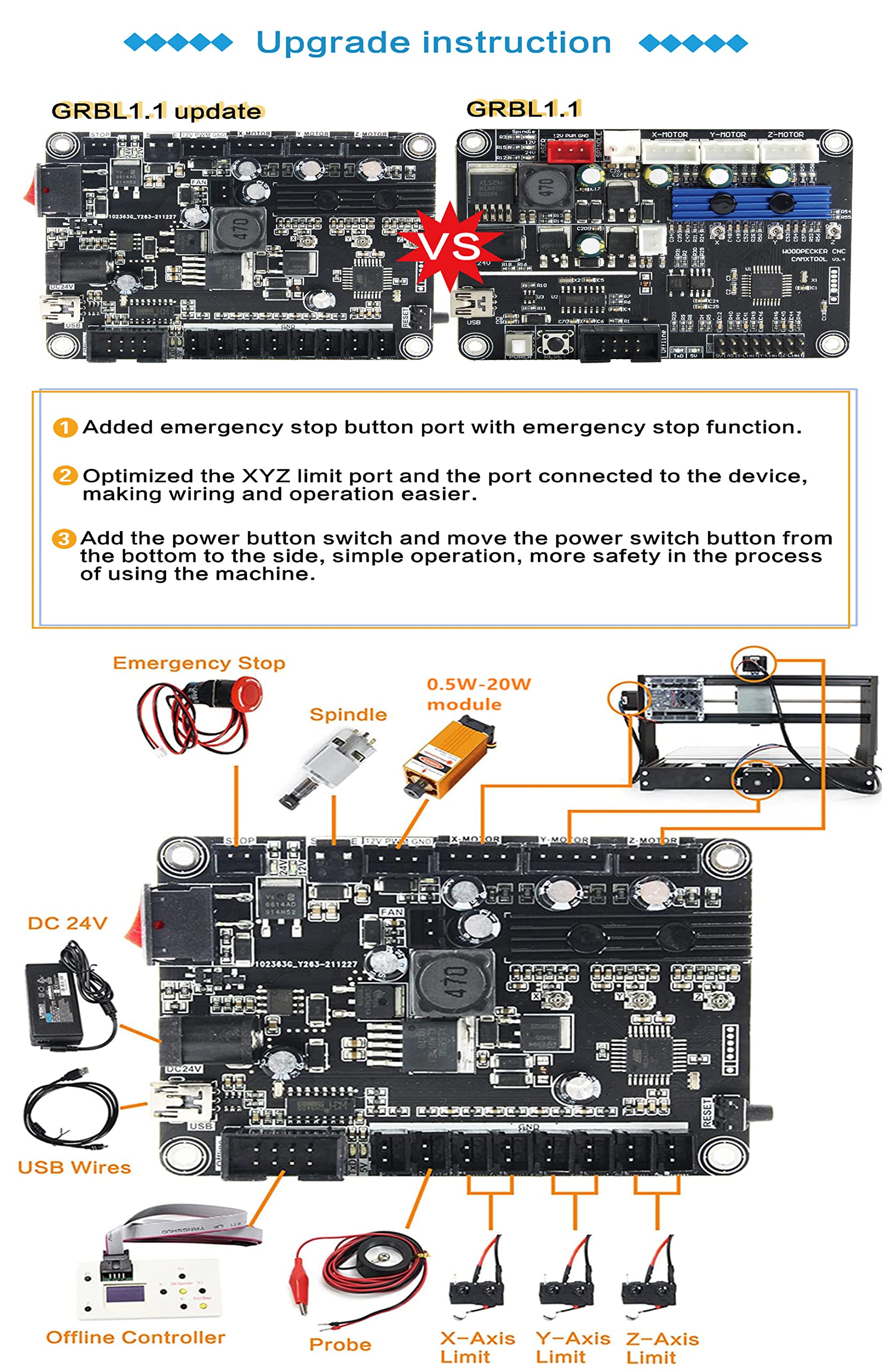

• GRBL Software: Our parcel include a 4G USB flash drive,it include the installation instructions,user manual and GRBL software; Upgraded GRBL1.1f Control Board: Added the outer casing,E-stop button port,probe port,limit port,offline controller port and add the power button switch,with the fan,enhanced spindle drive,can support max 20000rpm spindle,and also can support 12V 3-PIN PWM/TTL 0.5W-20W module
• Application: Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.soft metal like copper and aluminum and other materials; If you have the engraver module,you also can change the spindle to a 3-pin PWM engraver module,then also can carve on kraft paper, wood, leather etc

model number: 3018

Part Number: 3018

EAN: 0619191628247

Package Dimensions: 17.5 x 9.8 x 6.9 inches
