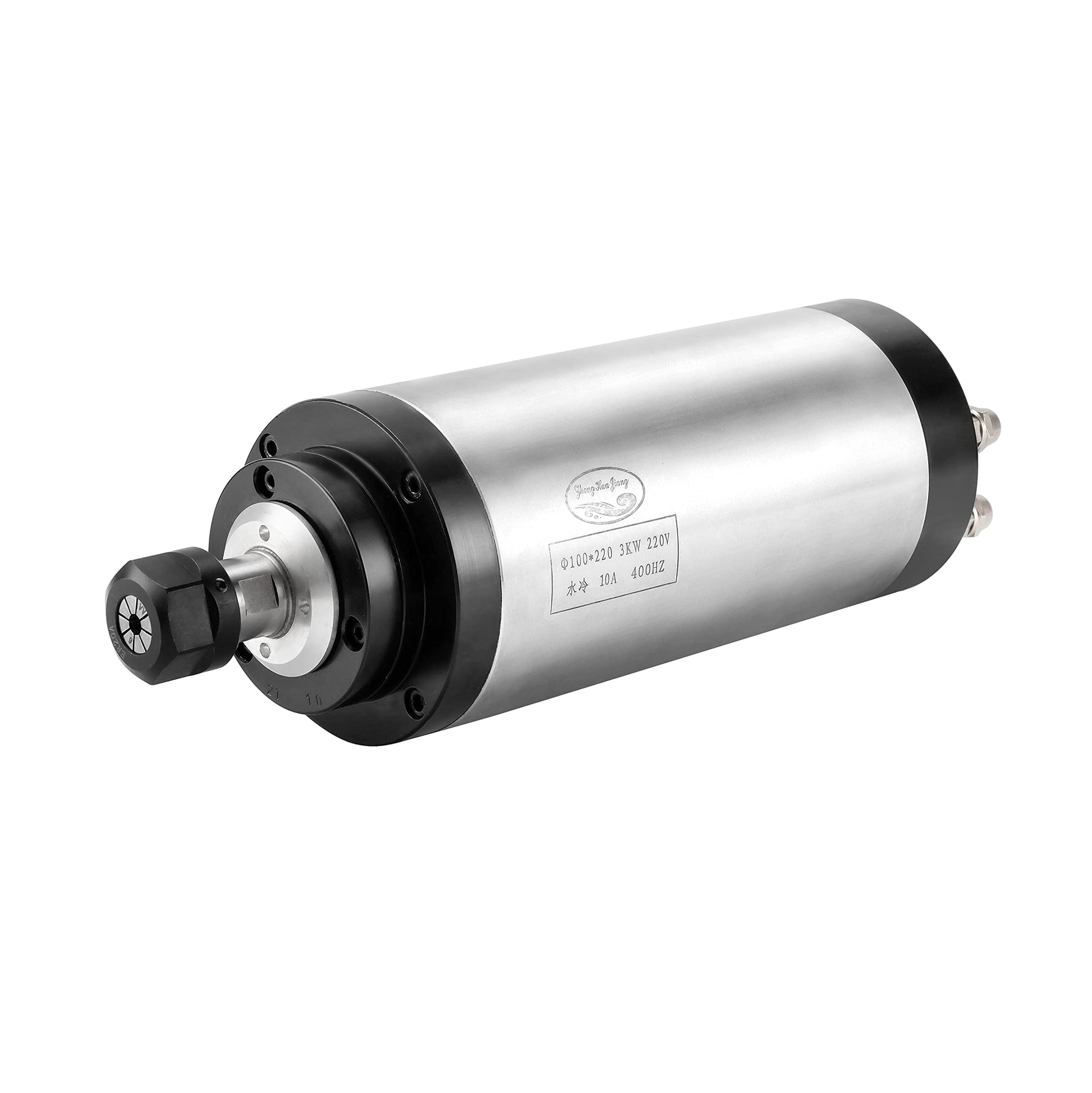

CNC Spindle CNC Motor 220V 3KW 3000W Quiet Water Cooled Spindle Motor 100mm 4 Bearings 24000RPM 400HZ for CNC Router Machine

Brand: Zhong Hua Jiang

Features:

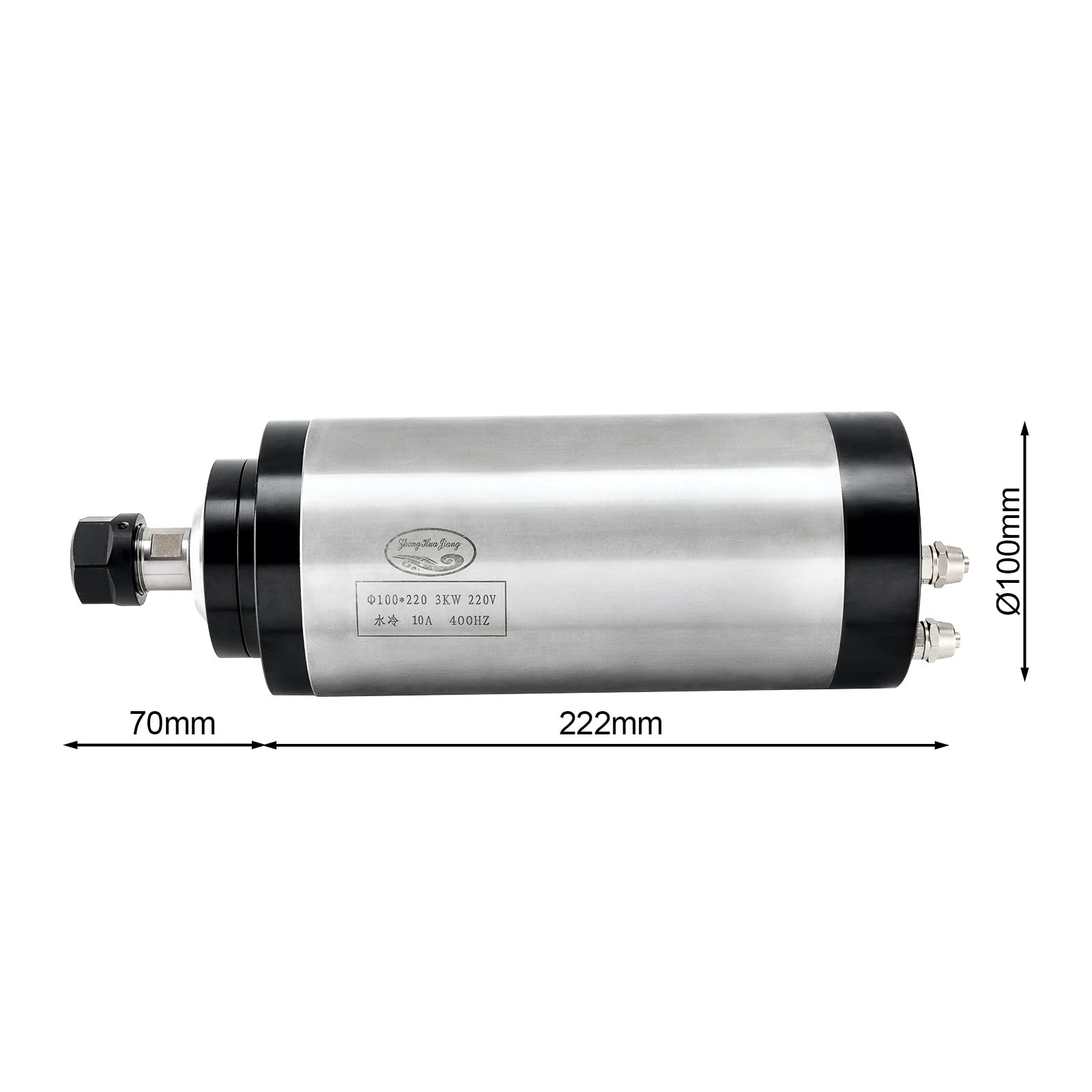

• 【BASIC INFORMATION】-This spindle motor should be equipped with VFD 220V,400HZ. 2 Poles, Collet ER20-6mm,Diameter： Φ100mm，Voltage: 220V ,Power: 3KW, Frequency: 400 Hz, Current: 10A, Speed: 5000-24000 RPM, Runout off: less than 0.005 mm,weight:8.8kg(19.4lbs)

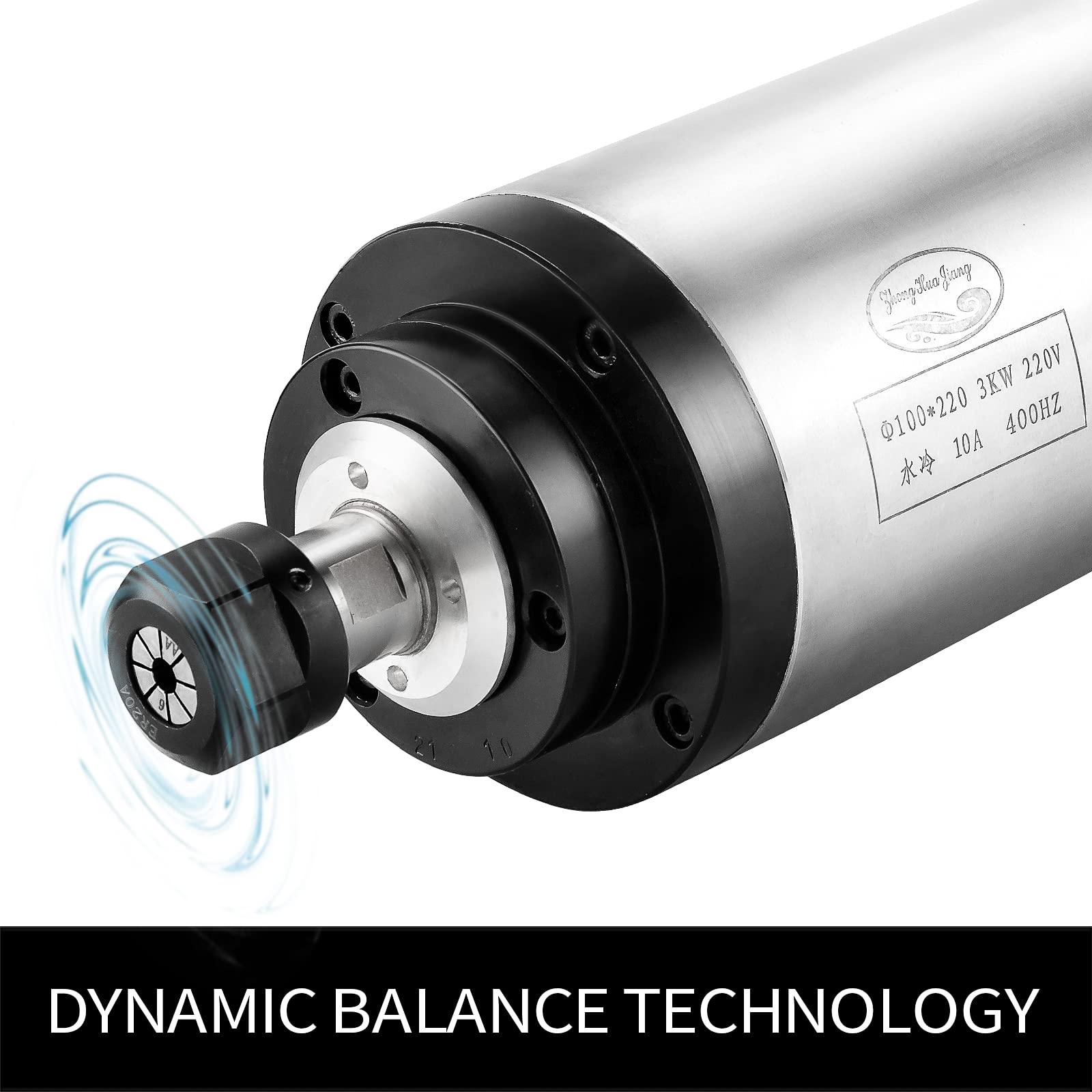

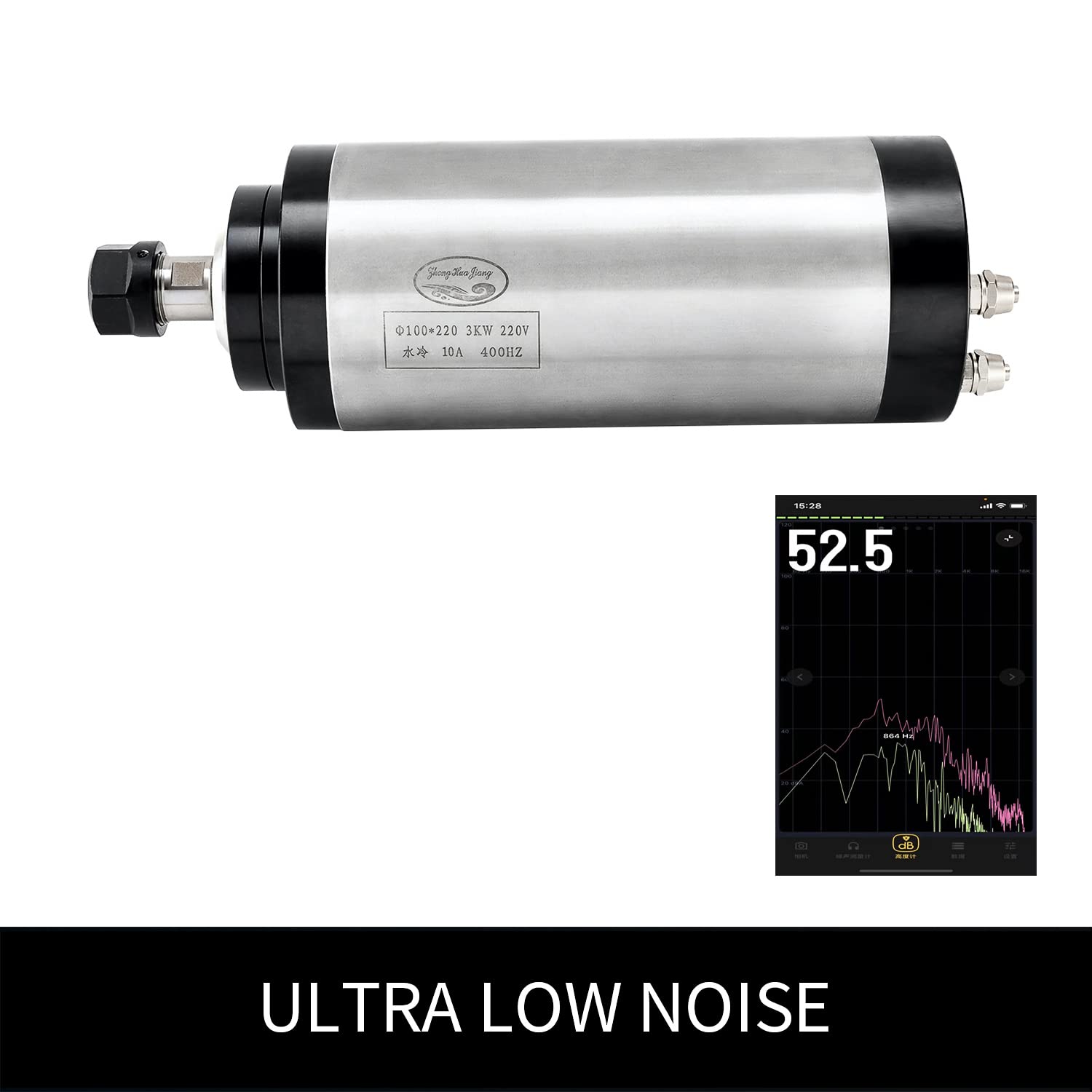

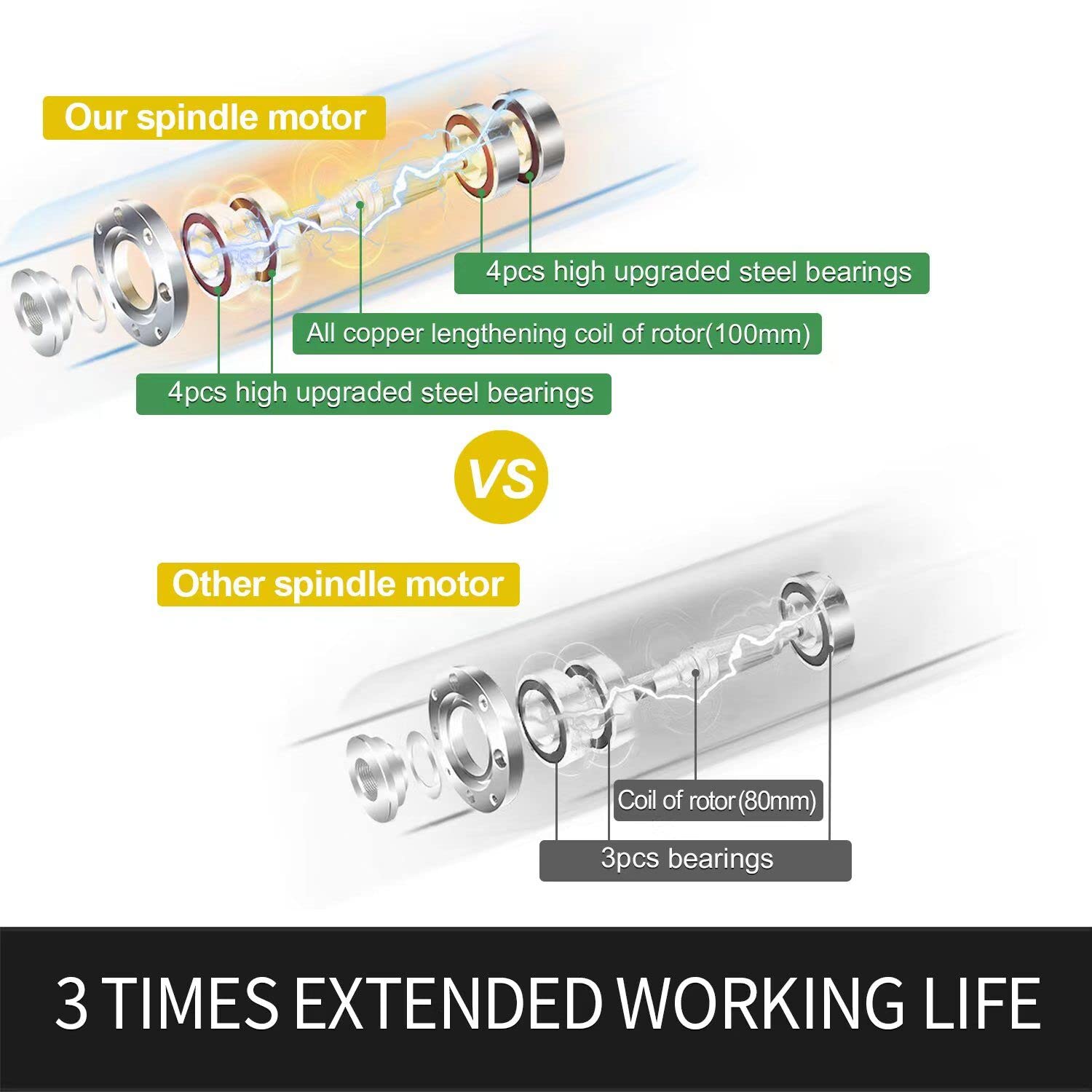

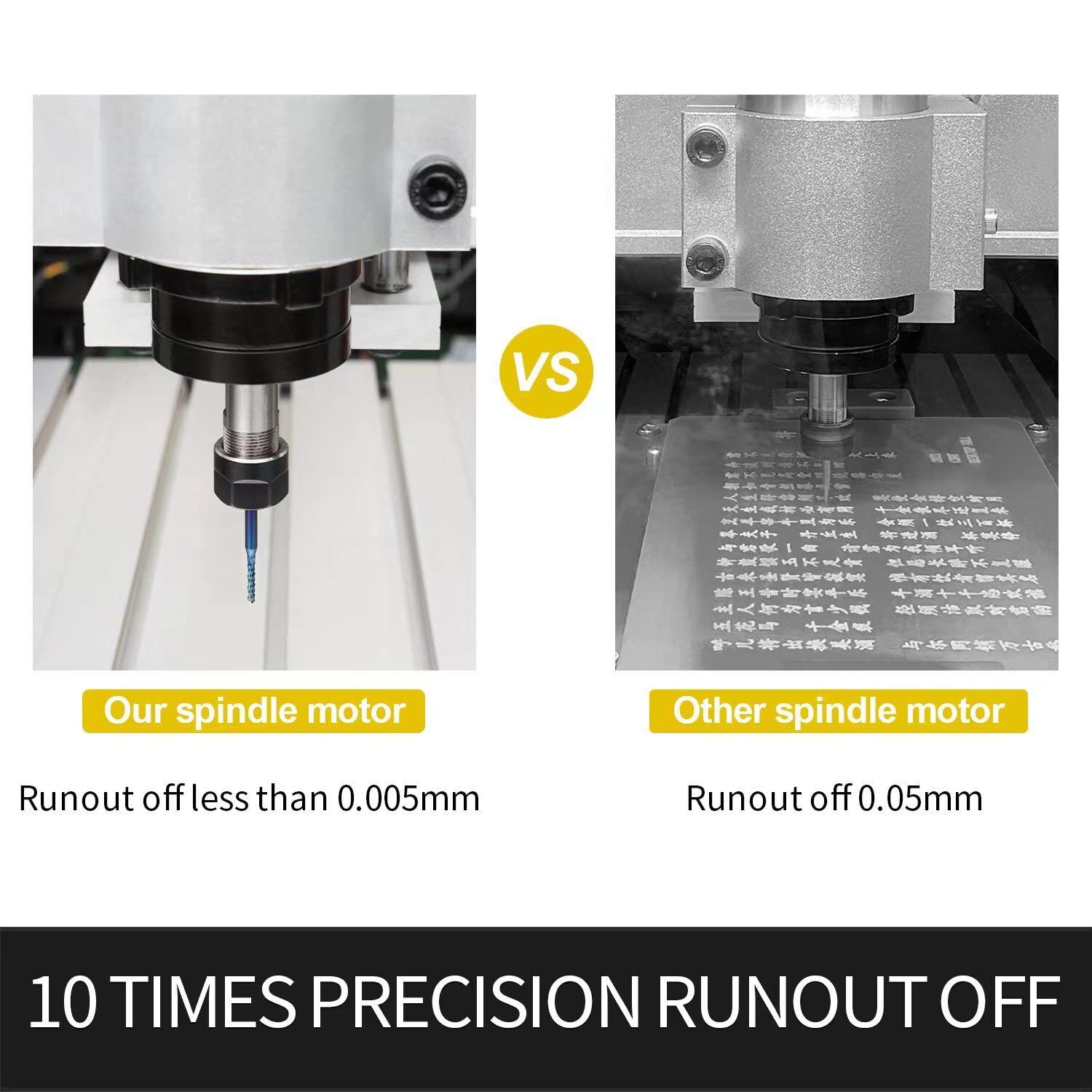

• 【SPINDLE ADVANTAGE 】-It made less noise when working, Authentic 4pcs upgraded steel bearings significantly extend working life 3 times longer than ordinary spindle motor; Advanced dynamic balance technology effectively reduce the noise and increase stability in the working process; Runout off less than 0.005mm that 10 times precision beyond average spindle motor.

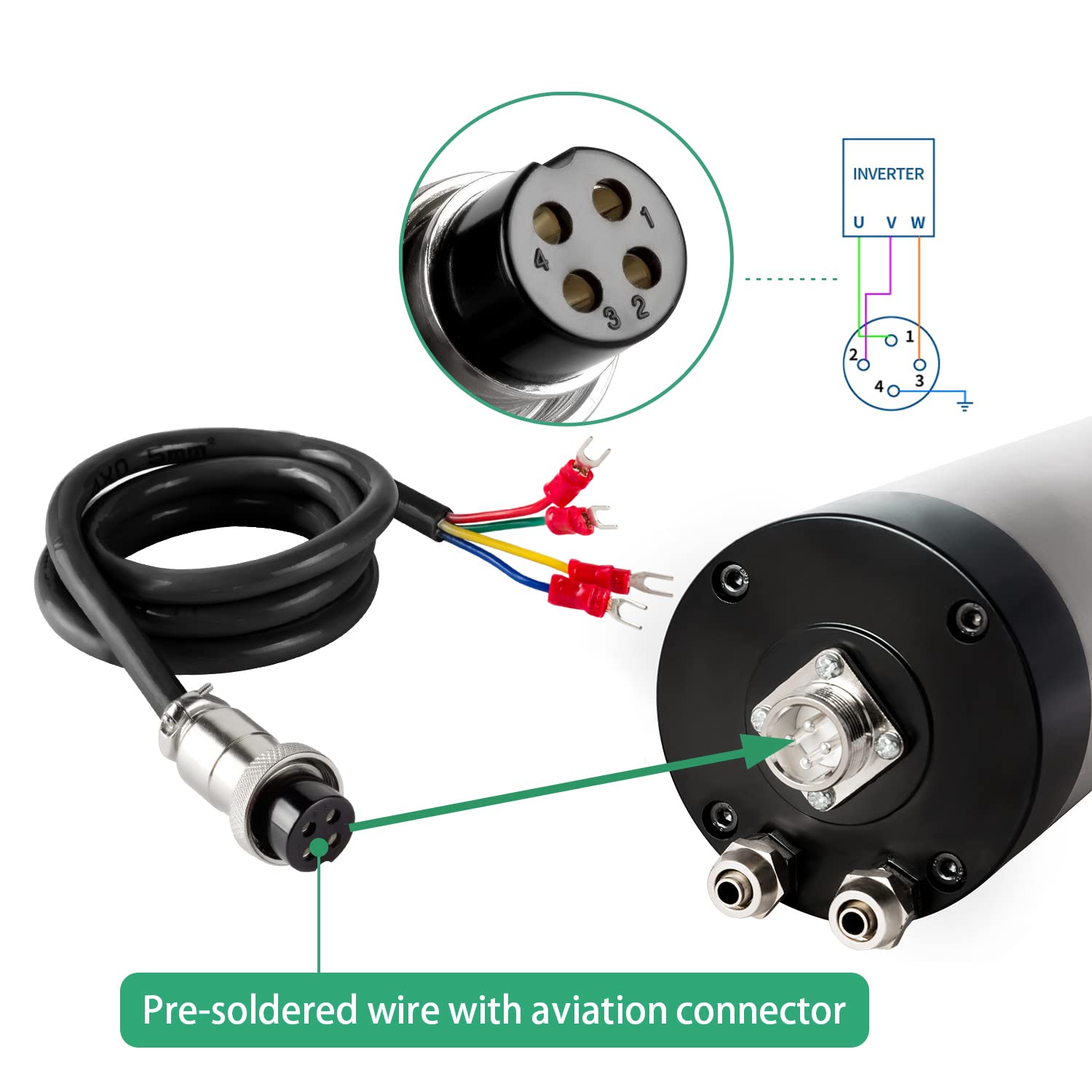

• 【EASY AND FAST TO ASSEMBLE 】-We offer pre-soldered aviation wire , You will take 2 minutes to connect spindle motor with VFD.
• 【WIDE APPLICATION】-Kinds of engraving and drilling material :Kinds of drilling and engraving materials , such as plastics, soft aluminum,brass, acrylics, PVC, PCB, wood,plywood, nylon.
• 【WARRANTY ASSURANCE】-We have 20 years manufacturing experience , pls contact us for any question or problem. We are proficient in customizing products according to various requests and applications. If you have special inquiry, pls let us know.

model number: ytx-3kw-water

Part Number: ytx-3kw-water

Package Dimensions: 15.7 x 7.0 x 7.0 inches
