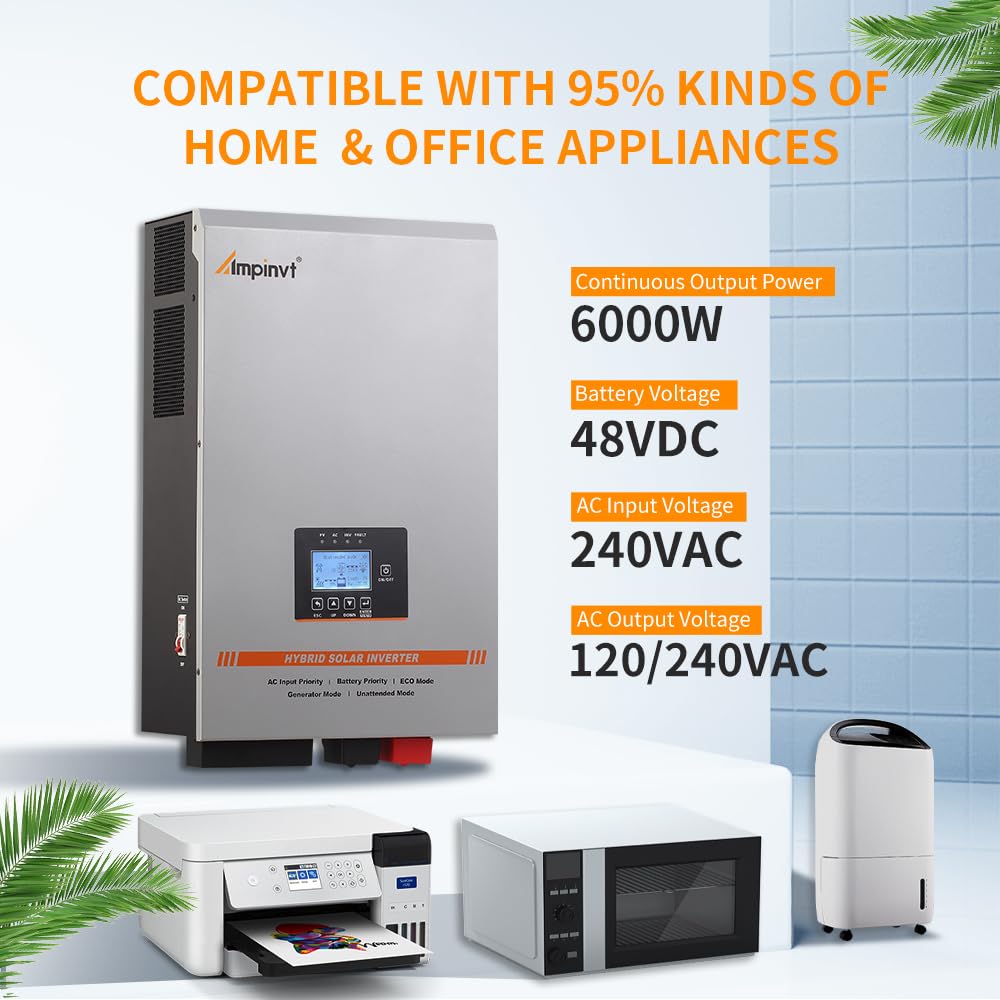

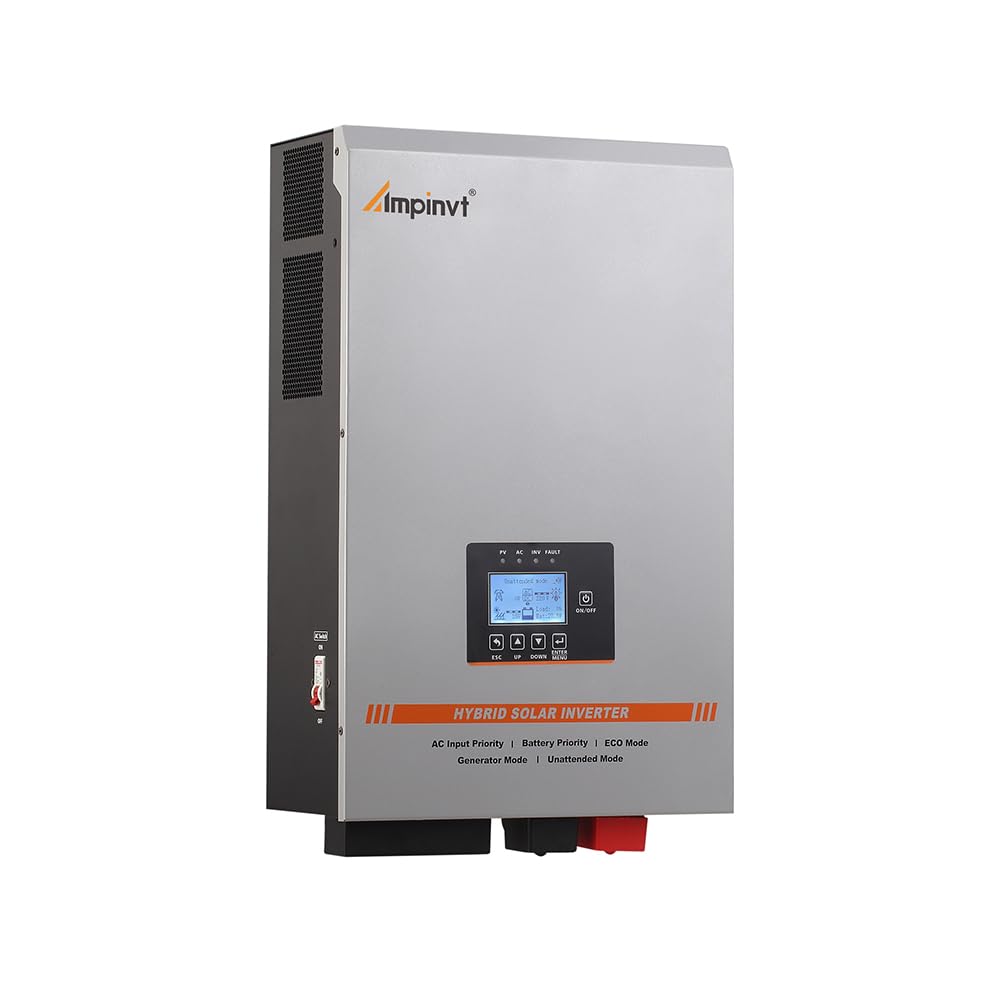

Ampinvt 6000W Solar Inverter 48V DC to 120V/240V AC Split Phase Output, Built-in 100A MPPT Solar Controller, Off Grid Low Frequency Pure sine Wave Inverter Charger, for Lead Acid Lithium Gel Battery

Brand: AMPINVT

Color: Silver

Features:

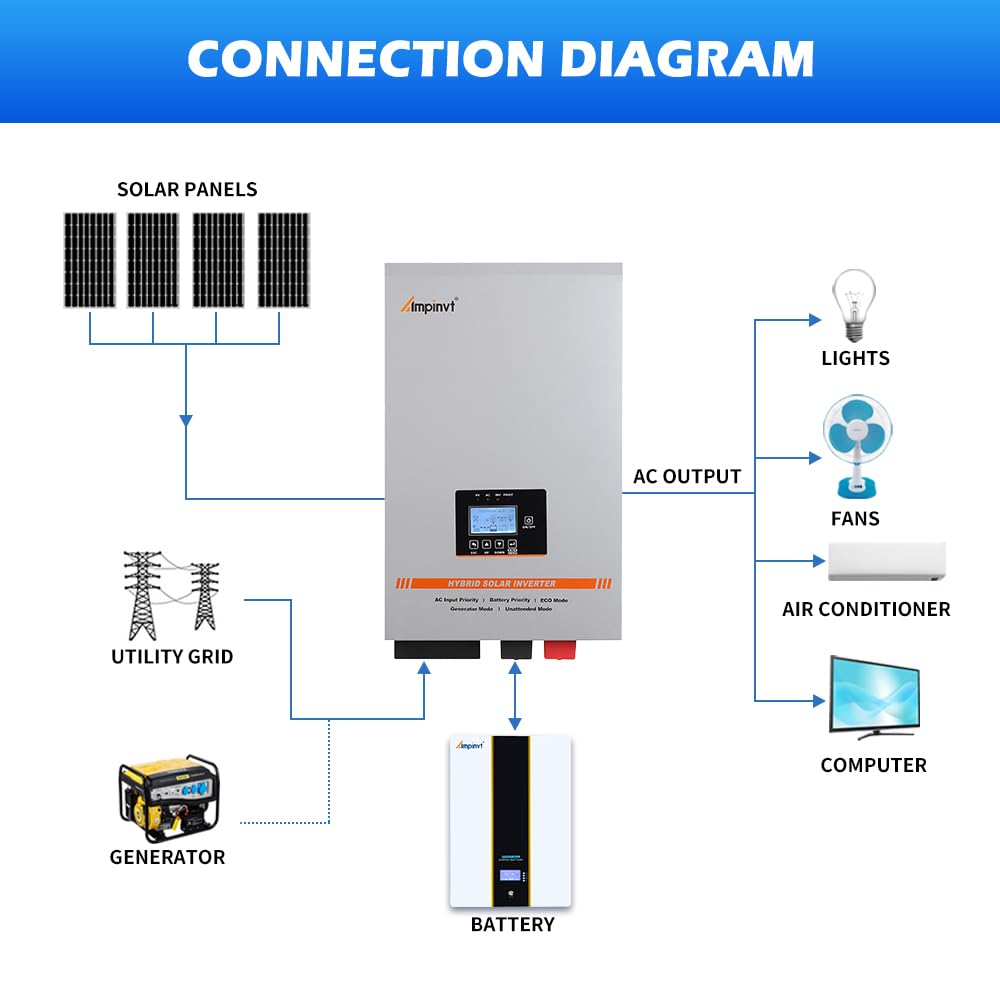

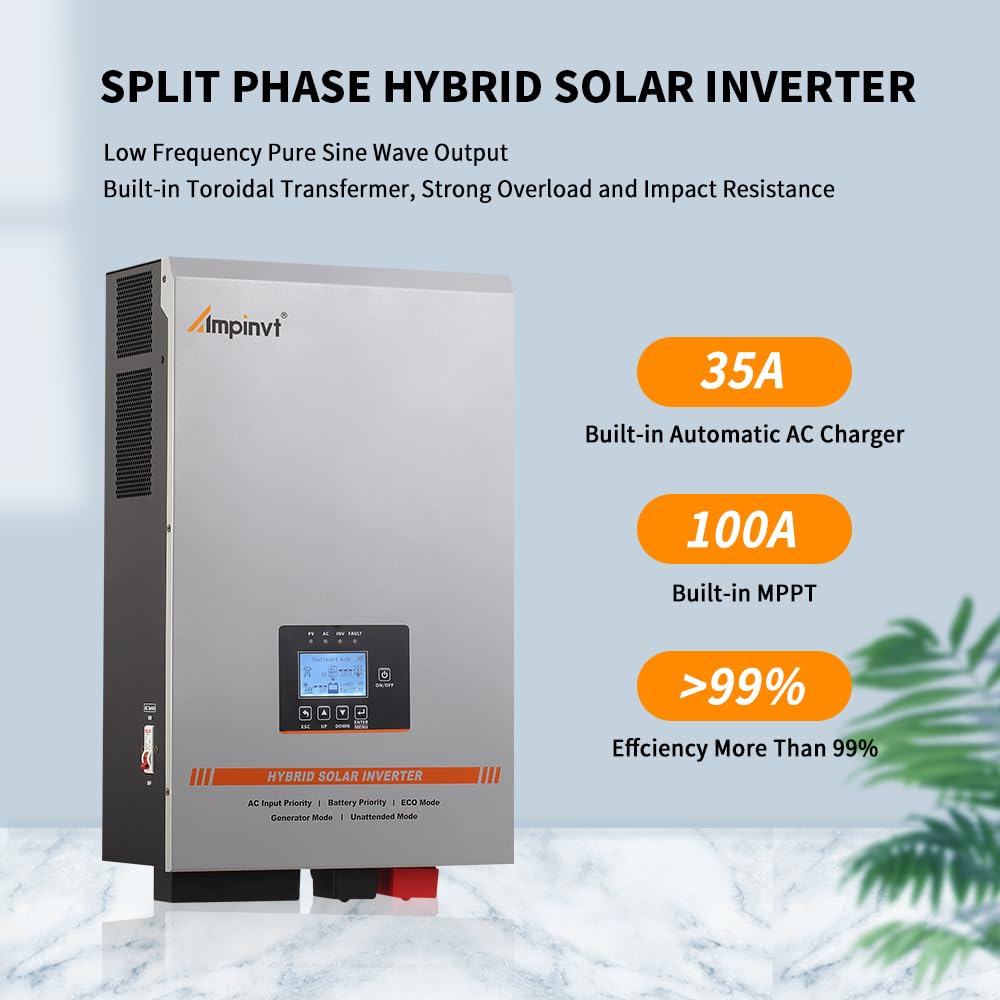

• This Pure Sine Wave Solar Inverter is a combination of an inverter, ac battery charger , MPPT solar charge controller and AC auto-transfer switch. High transfer efficiency is above 85%, built-in AVR stabilizer, complete isolate surge interference of input & output's voltage and current, Impact resistance super load capacity, continuous stable pure sine wave output. Available at 240Vac (HOT1+HOT2) and 120/240Vac output at the same time.
• The max charge current can be adjusted from 0-35A, Setting the value to 0A will turn off the charging function.
• Protections: Battery low voltage alarm / Battery high voltage alarm / Over temperature protection / Over load protection / Short Circuit protection. 110%-120% of the output was maintained for 30s, then the output turned to bypass, more than 160% maintained the 300ms

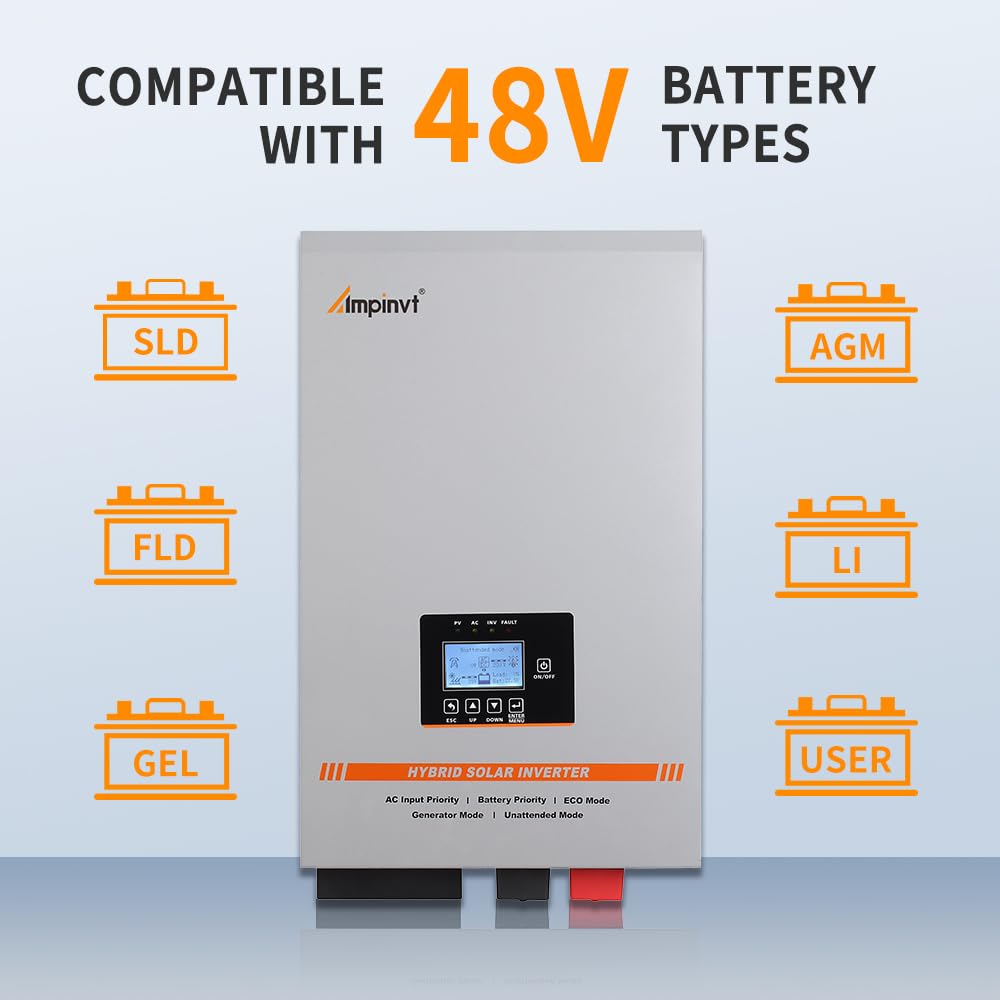

• MPPT controller with high tracking efficiency of up to 98% can charge 48V lead-acid batteries (Seal, AGM, Gel, Flooded), LiFePO4 batteries and lithium batteries(User Mode) from solar panels, the grid, or a generator. PV Array Power is 5600W and the MAX PV input voltage is 150V DC
• Protections: Battery low voltage alarm / Battery high voltage alarm / Over temperature protection / Over load protection / Short Circuit protection. 110%-120% of the output was maintained for 30s, then the output turned to bypass, more than 160% maintained the 300ms.

model number: 48V6000W100A

Part Number: TG-60248M100

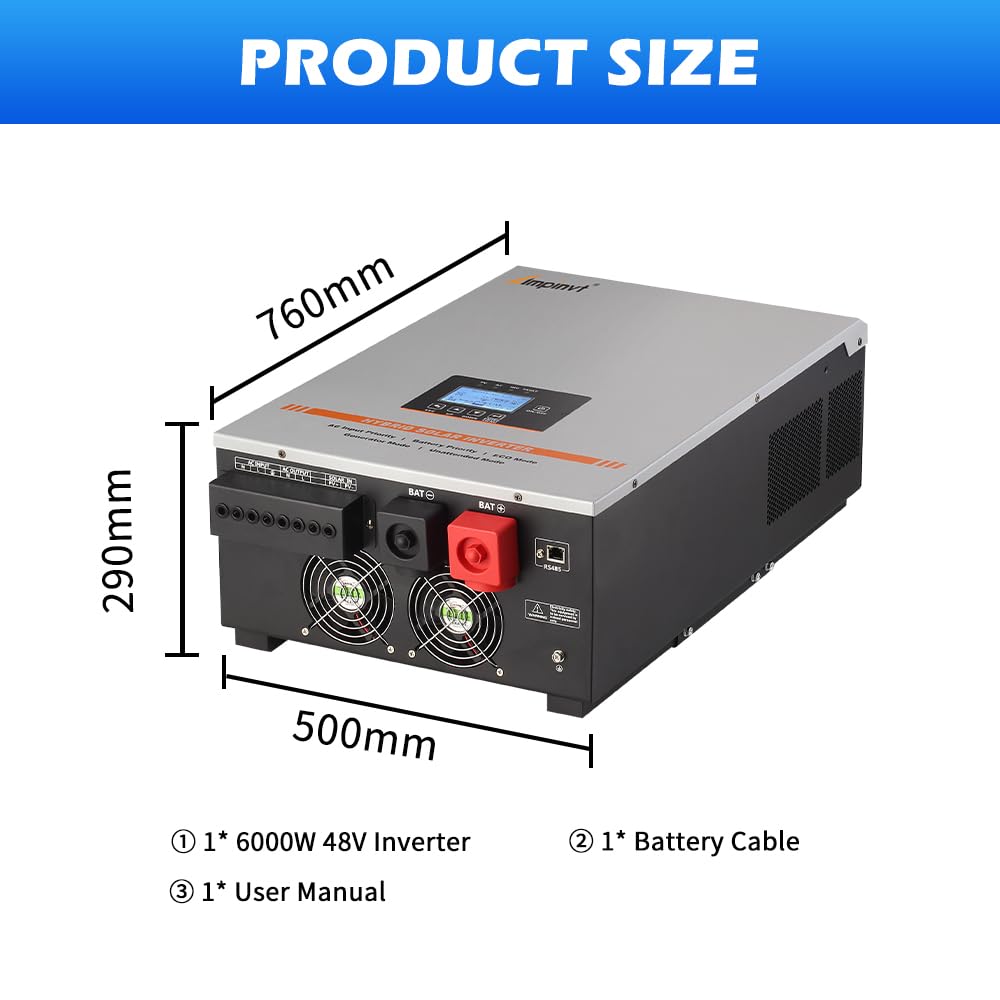

Package Dimensions: 30.0 x 19.0 x 12.0 inches
