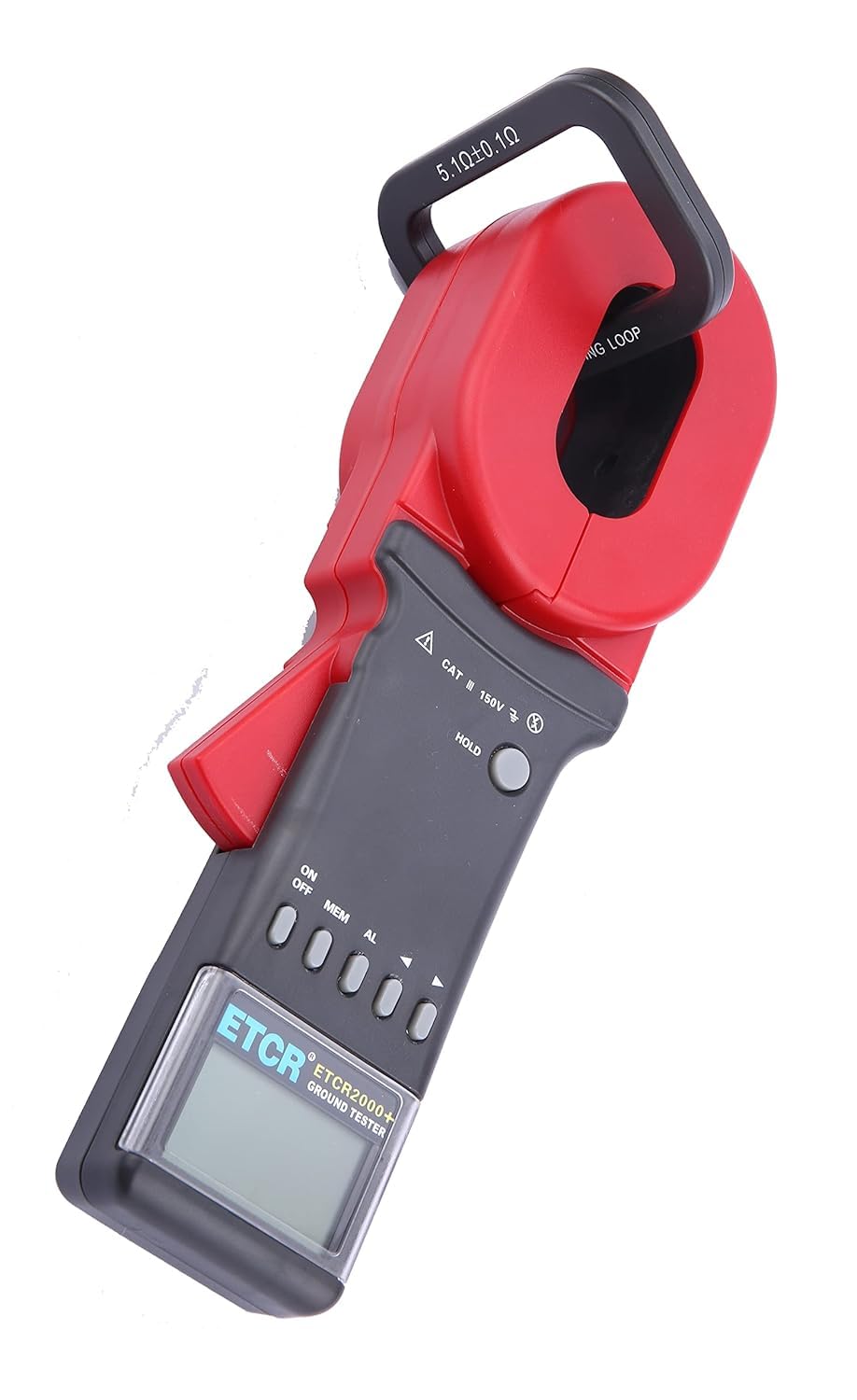

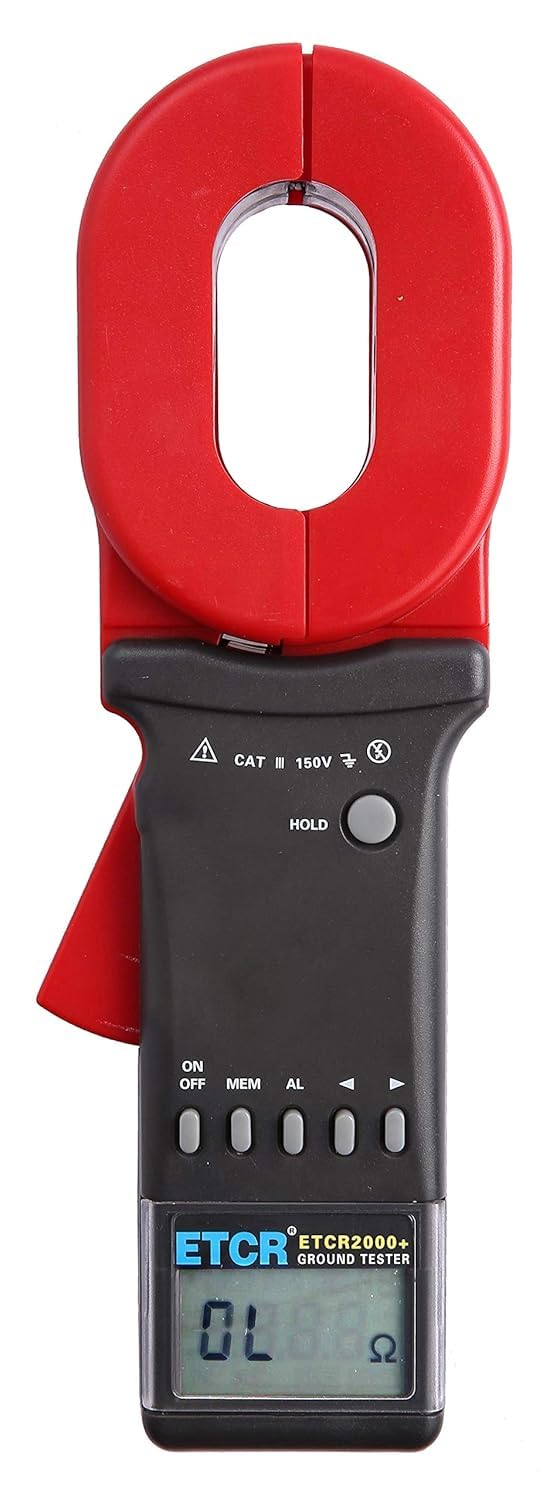

ETCR ETCR2000+ 1200Ω Digital Clamp Ground Earth Resistance Meter Tester 0.01-1200Ω

Brand: ETCR

Color: Dark Grey & Red

Features:

• Wide Application: Ideal for measuring grounding resistance in power, meteorology, oilfields, construction, and industrial electrical equipment. No need to break down grounding leads or use auxiliary electrodes for loop system measurements
• Advanced Functionality: Measures ground faults undetectable by traditional methods, making it suitable for applications where conventional meters fail. Accurately measures the combined resistance of the grounding body and lead

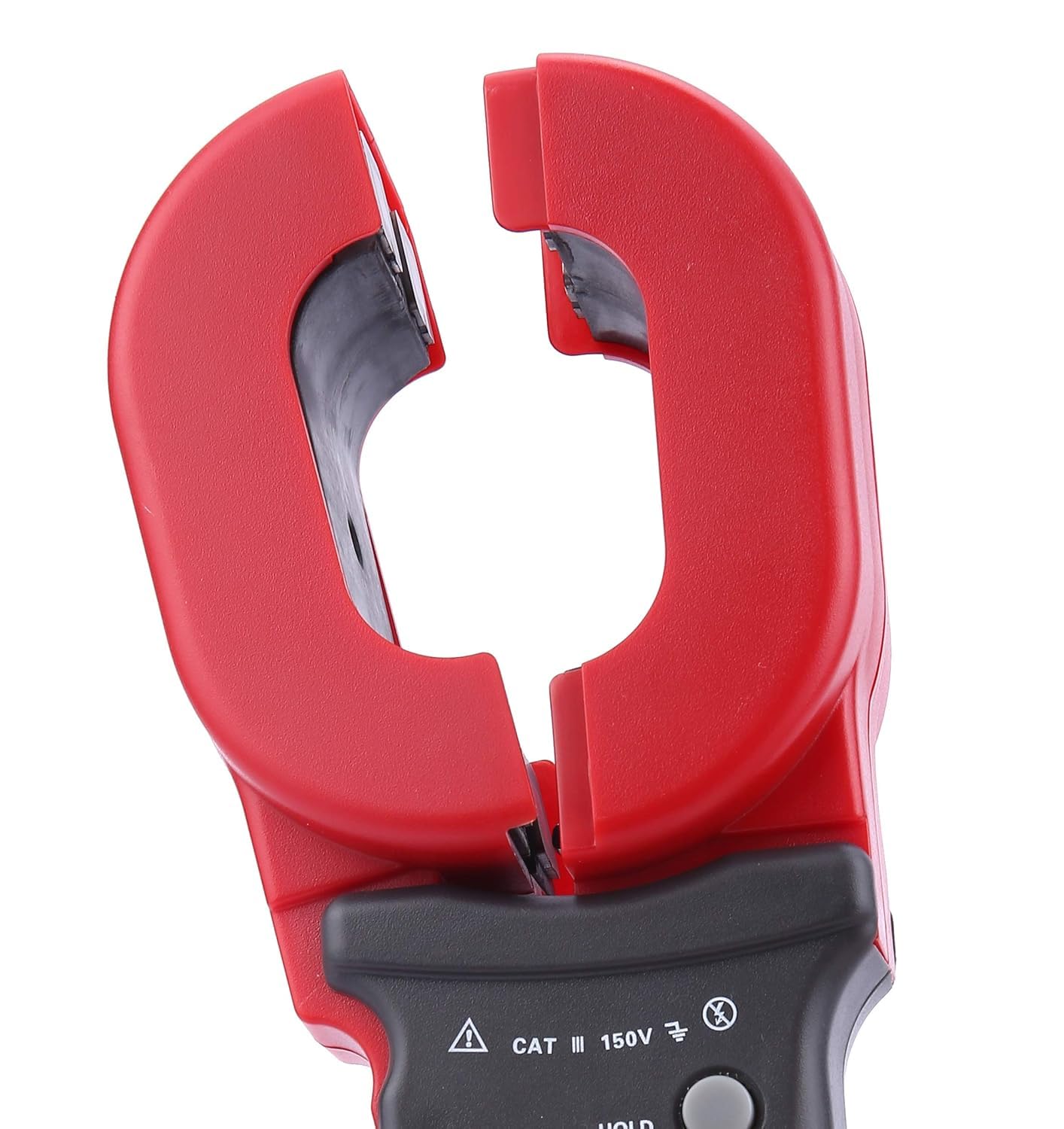

• Measurement Range: Offers a wide measuring range from 0.010Ω to 1200Ω with a high resolution of 0.001Ω. The clamp size is 65mmX32mm, ensuring versatility in various testing scenarios
• Precision Measurement: Utilizes loop resistance measurement, combining voltage and current coils. It measures induced potential and current to calculate resistance using the formula R=E/I for precise results
• Important Notice: Designed to measure loop resistance only, not single-point grounding. Users can create an artificial loop near the grounding electrode for testing. Refer to the user manual for detailed instructions

model number: ETCR2000+

Part Number: ETCR2000+

EAN: 0707918210063

Package Dimensions: 12.6 x 9.1 x 4.7 inches
